Toyota CAMRY 喇叭 — Figure 8611

Toyota CAMRY EPC diagram 8611, 喇叭, with 1 images and 3 PNC and OE references.

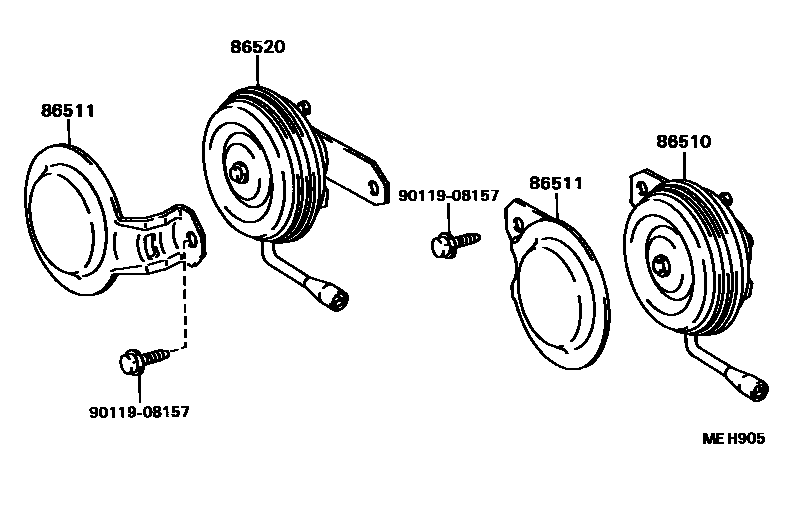

Toyota CAMRY 喇叭 EPC diagram — MEH905
喇叭 — MEH905 (198610 – 999999)

PNC and OE references

PNCPart nameOE numbers
86510tweeter assembly86510-32030
86511tweeter cover86511-32020
86520Subwoofer assembly86520-32030
