Toyota CAMRY 收音机、放大器和冷凝器 — Figure 8601

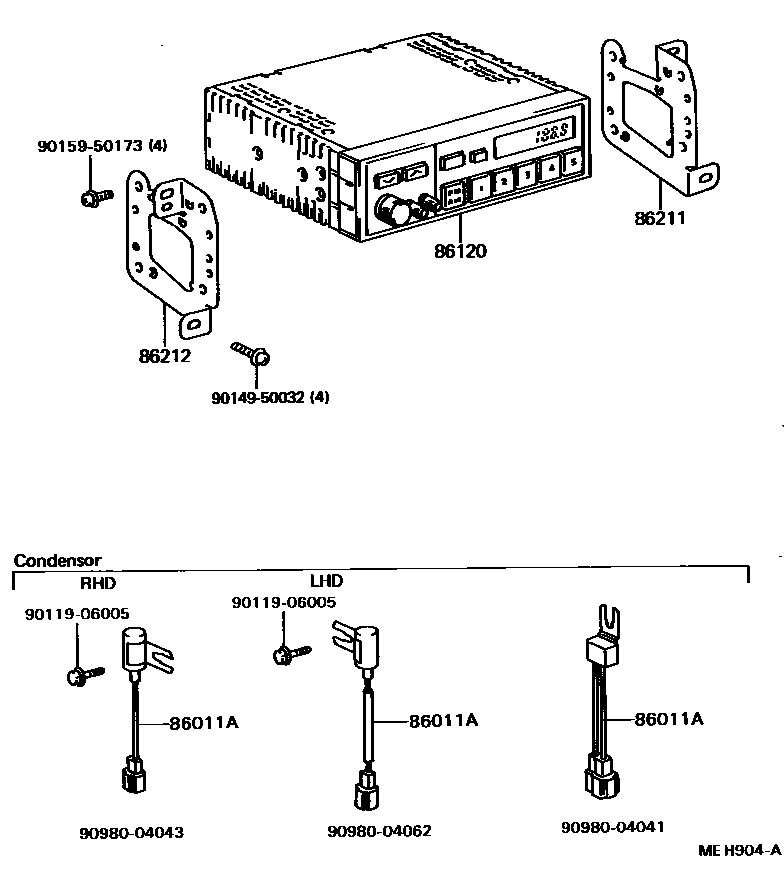

Toyota CAMRY EPC diagram 8601, 收音机、放大器和冷凝器, with 2 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86011A | radio settings phase modulator | 90980-04041 · 90980-04043 · 90980-04062 |
| 86120 | Radio assembly | 86120-32100 · 86120-32102 · 86120-32110 · 86120-32111 · 86120-32240 · 86120-32241 · 86120-32260 · 86120-32261 |
| 86211 | No. 1 radio bracket | 86211-32050 |
| 86212 | No. 2 radio bracket | 86212-32050 |
