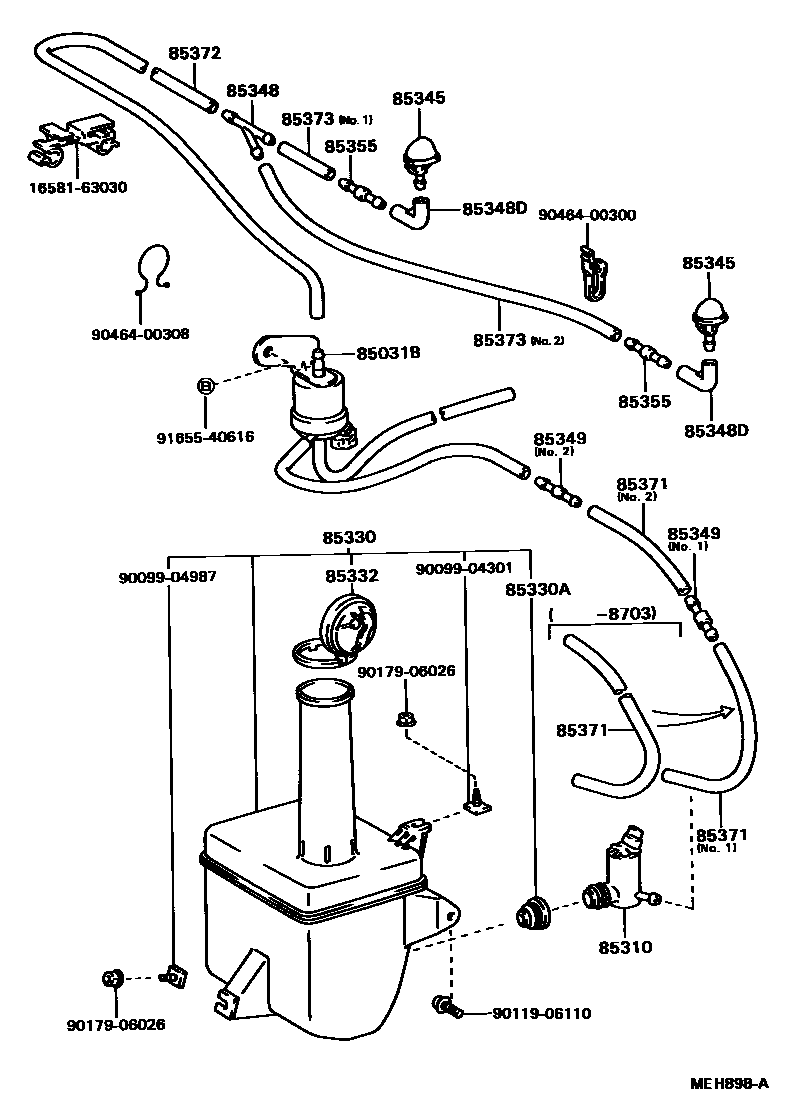

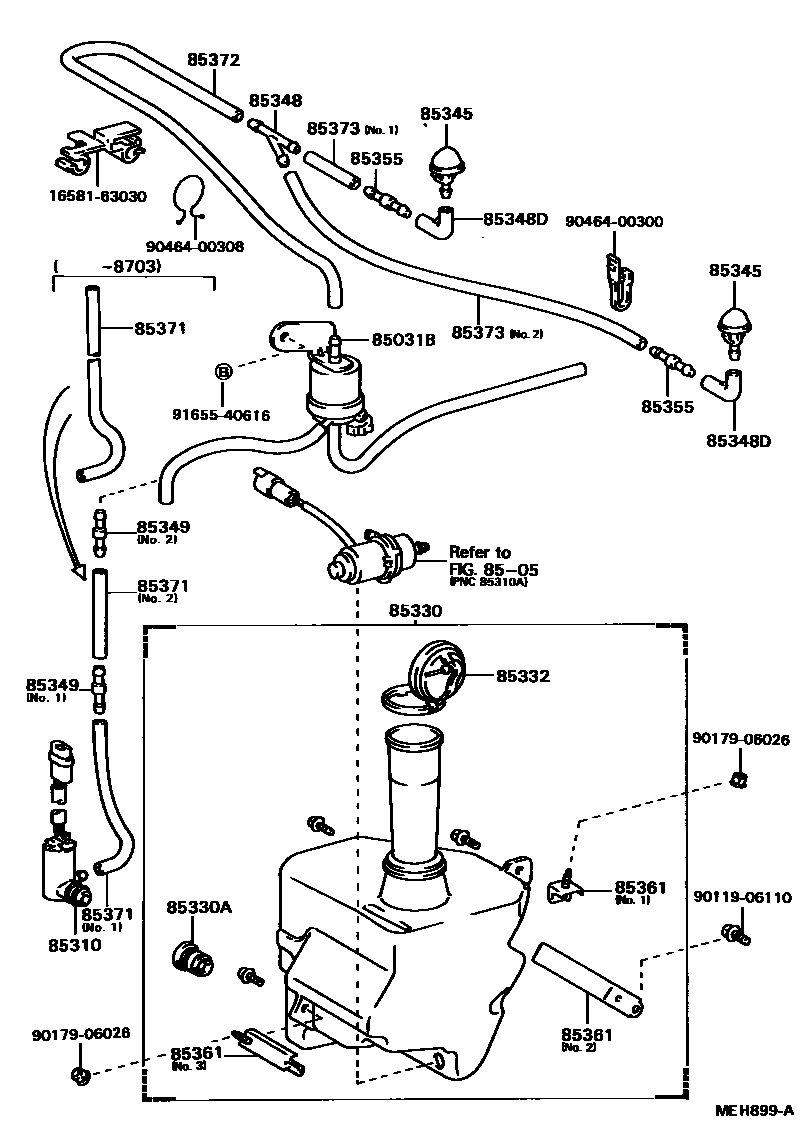

Toyota CAMRY 挡风玻璃清洗器 — Figure 8503
Toyota CAMRY EPC diagram 8503, 挡风玻璃清洗器, with 2 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85031B | Cleaner valve sub-assembly | 85031-32010 |
| 85310 | Windshield washer motor and pump assembly | 85310-16050 · 85310-32030 |
| 85330 | Windshield washer fluid tank assembly | 85331-32140 · 85331-32180 |
| 85330A | Windshield washer fluid tank bushing | 90099-32089 |
| 85332 | Windshield washer fluid tank cap | 85332-32130 |
| 85345 | windshield washer nozzle | 85035-32080 · 85035-32090 · 85035-32100 · 85035-32110 |
| 85348 | Windshield washer hose connector No. 1 | 85348-12250 |
| 85348D | No. 1 windshield washer elbow joint | 85355-14481 · 85355-20070 |
| 85349 | Windshield washer hose connector No. 1 | 85349-32150 · 85349-89122 |
| 85355 | Windshield washer hose valve | 85031-12250 |
| 85361 | windshield washer mounting parts | 85361-32180 · 85362-32180 · 85363-32180 |
| 85371 | Windshield washer hose (from motor to connector) | 90099-32299 · 90099-33382 · 90446-06013 |
