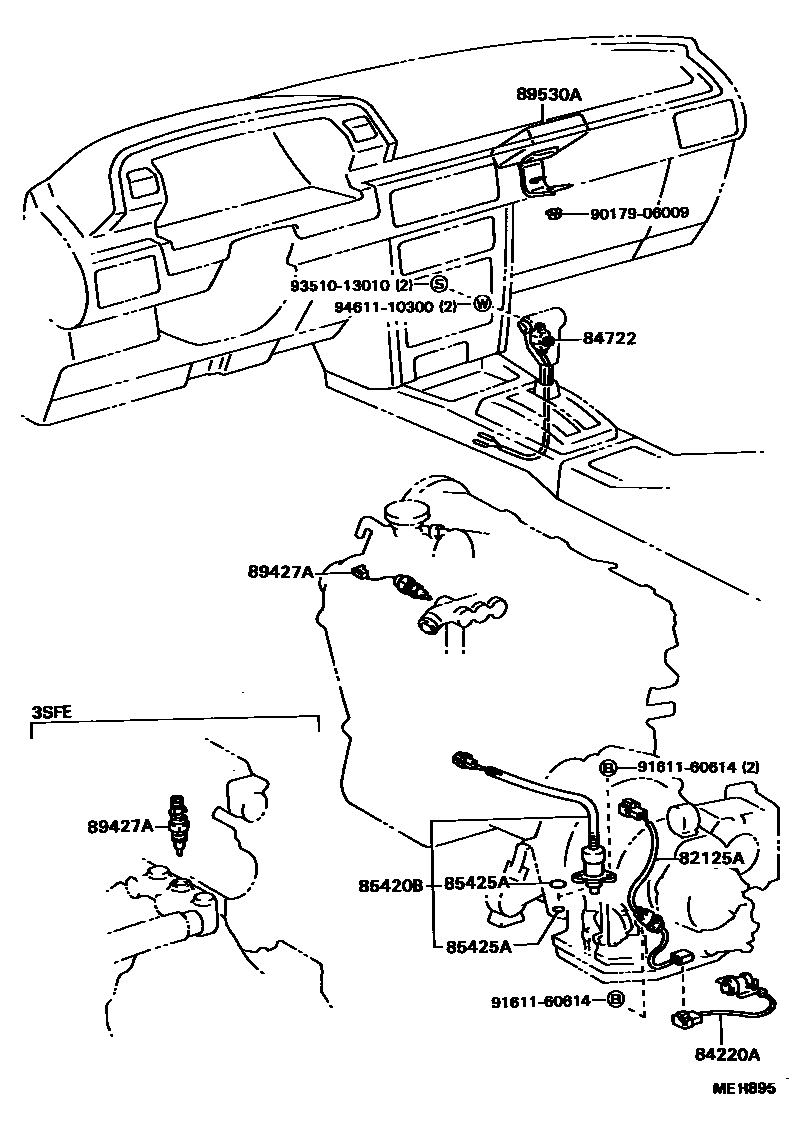

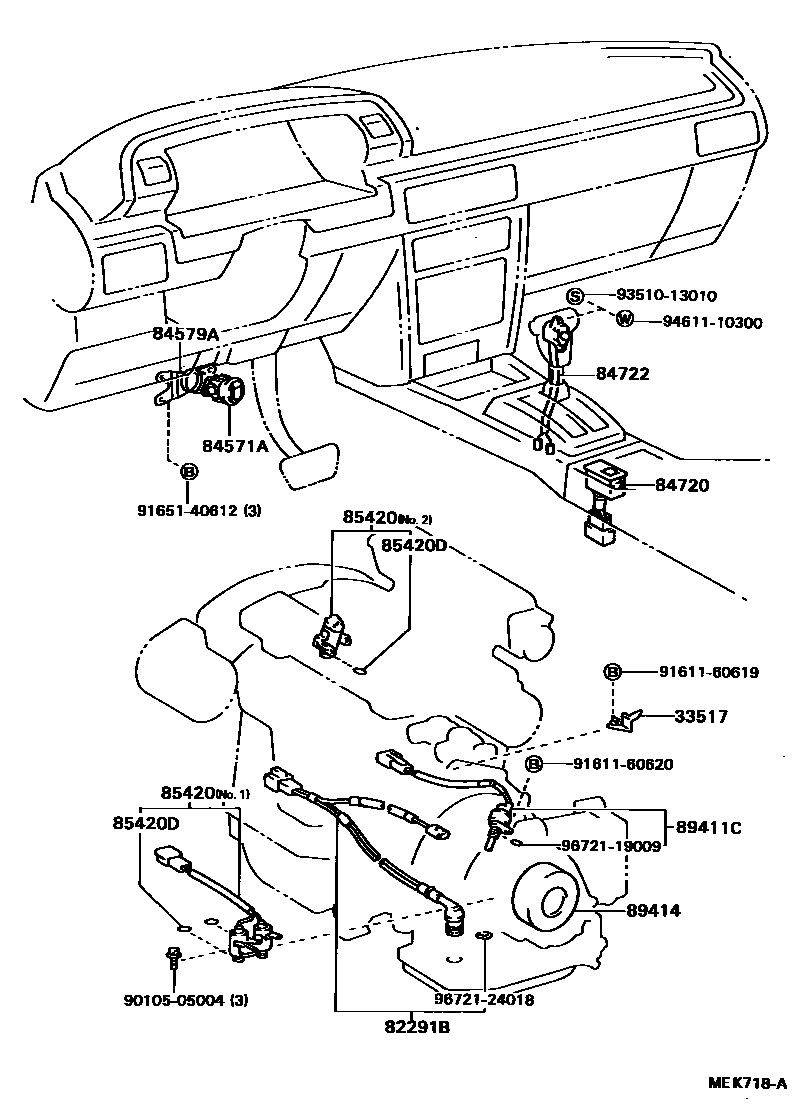

Toyota CAMRY 超速档和电子控制变速器 — Figure 8410
Toyota CAMRY EPC diagram 8410, 超速档和电子控制变速器, with 2 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 35517 | Transmission harness locking plate | 35517-32010 |
| 82125A | Transmission wiring harness | 82125-32020 |
| 82291B | to solenoid valve harness (for transmission) | 82125-32030 |
| 84220A | Transmission position indicator light switch assembly | 84220-32010 |
| 84571A | Kickdown switch | 84571-20010 |
| 84579A | Kickdown switch bracket | 84579-32010 |
| 84720 | Mode selection switch assembly | 84720-32050 |
| 85420 | Transmission solenoid valve assembly | 85420-32090 · 85420-32091 · 85420-32110 |
| 85420B | Transmission solenoid valve assembly | 85420-32081 |
| 85420D | O-ring (for transmission solenoid valve) | 90301-06004 |
| 85425A | O-ring (for overspeed solenoid valve) | 90301-06005 · 96721-19017 |
| 89411C | Speed sensor | 89411-32020 |
| 89414 | sensor rotor | 89414-32020 |
| 89427A | temperature switch | 89427-12070 · 89427-32010 |
| 89530A | Transmission control ECU assembly | 89530-32170 · 89530-32180 |
