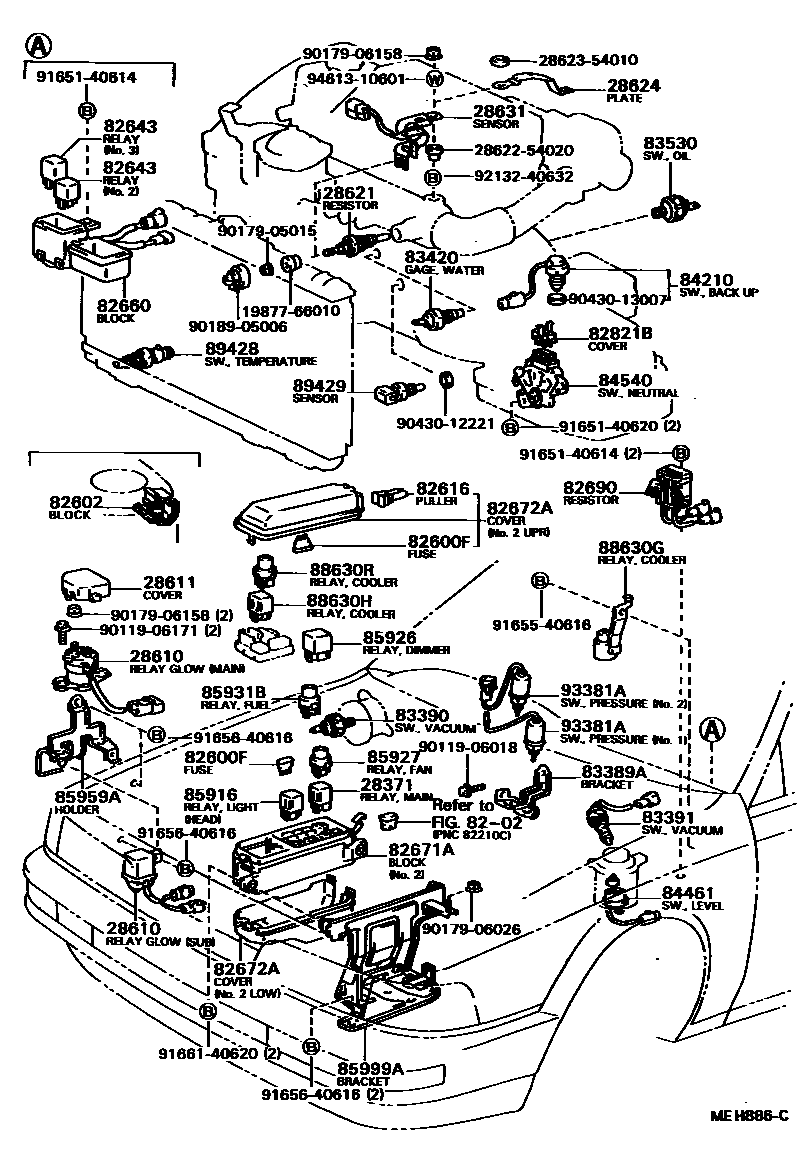

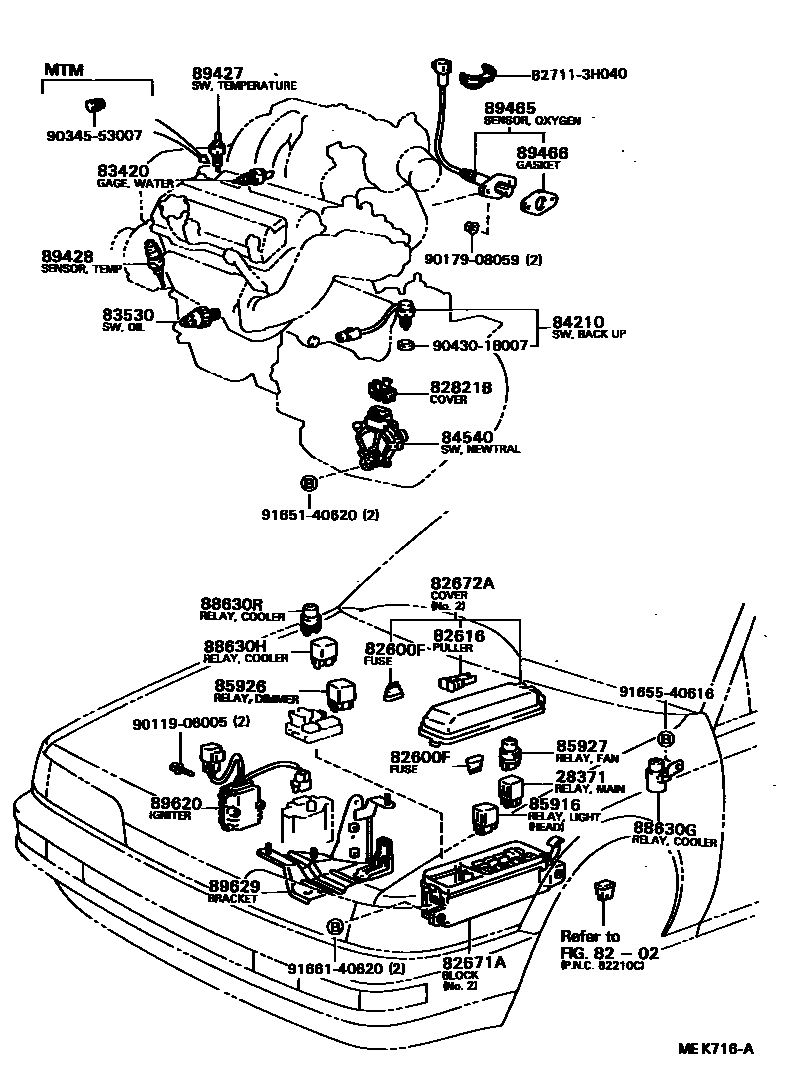

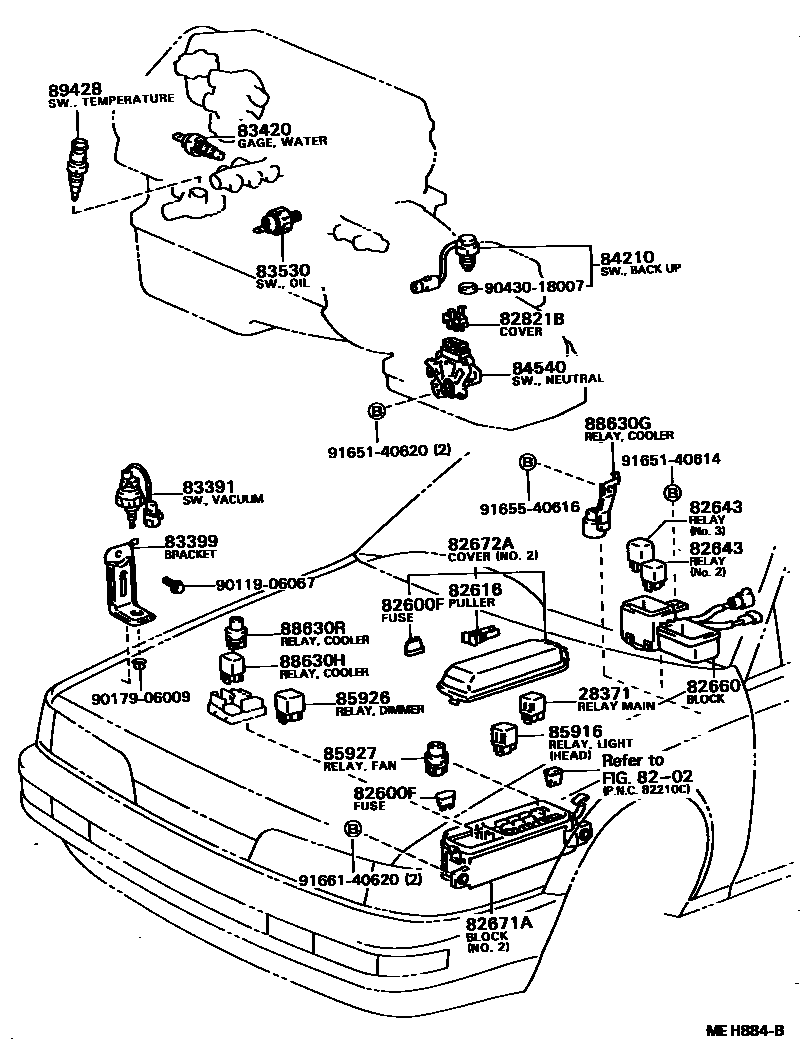

Toyota CAMRY 开关和继电器和ECU — Figure 8401
Toyota CAMRY EPC diagram 8401, 开关和继电器和ECU, with 10 images and 110 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 27790 | Charging indicator light relay assembly | 27790-35020 |
| 28371 | No. 1 ignition relay | 85913-30020 · 90987-04002 |
| 28521 | Preheat timer | 28521-64260 · 28521-64270 |
| 28529 | Preheat timer bracket No. 1 | 28529-64120 · 28529-64130 · 89667-32020 |
| 28610 | Glow plug relay assembly | 28610-64040 · 28610-64050 |
| 28611 | Glow plug relay cover | 28611-55010 |
| 28621 | glow plug resistor | 28621-64011 |
| 28624 | Current sensor chip | 28624-64020 |
| 28631 | glow plug current sensor | 28631-64030 |
| 81980 | Turn signal flasher relay assembly | 81980-16010 |
| 82600F | Spare fuse | 90982-07011 · 90982-09002 · 90982-09003 · 90982-09004 · 90982-09005 |
| 82600G | Warning nameplate (for fuses) | 82685-32010 |
| 82602 | Relay box sub-assembly | 82602-32080 |
| 82616 | fuse puller | 82616-12010 |

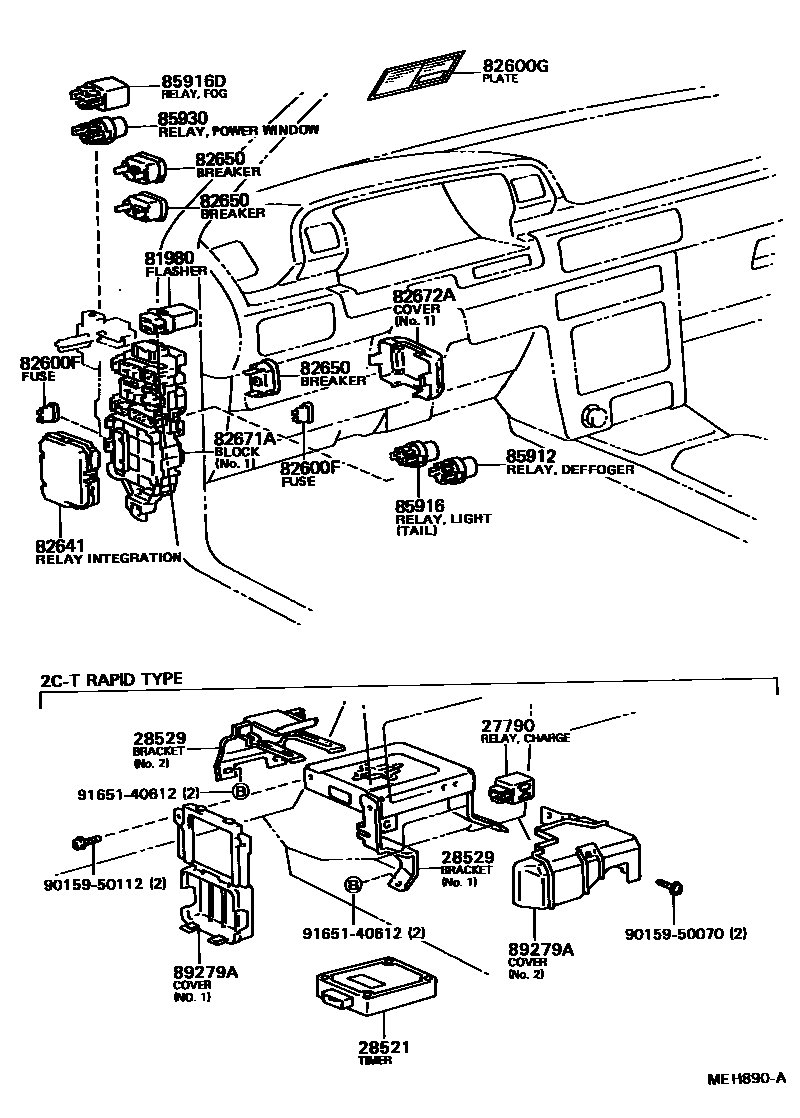

| 82641 | Integrated relay No. 1 | 82641-20110 · 82641-32020 |

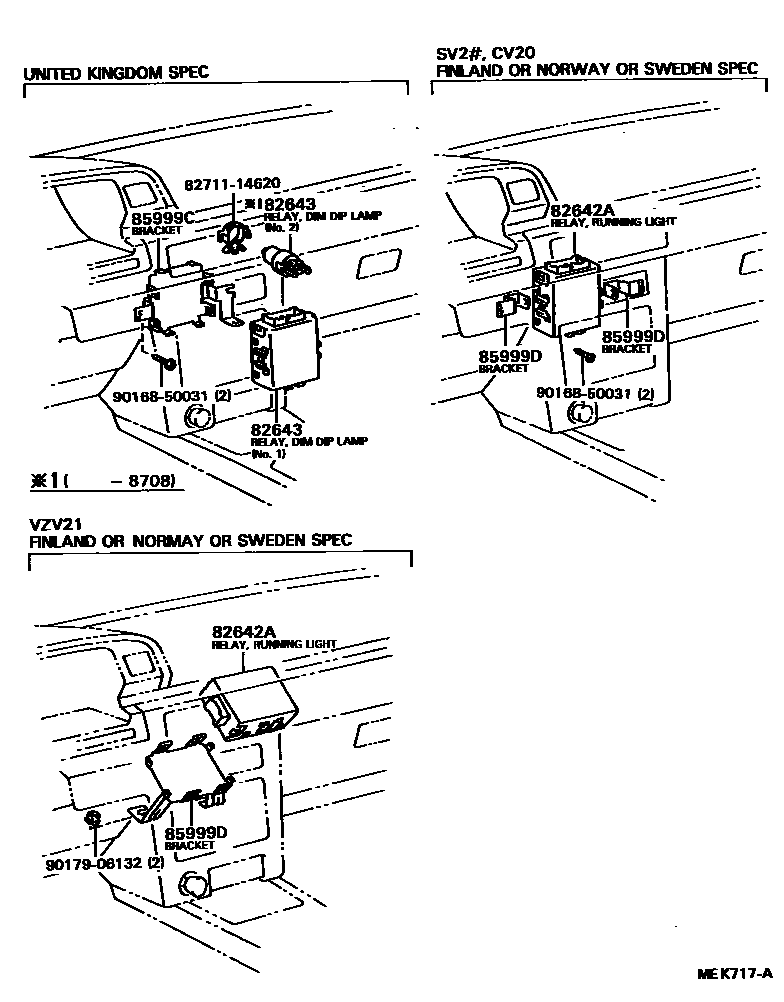

| 82642A | driving light relay | 82642-28010 · 82642-32030 |
| 82643 | low beam relay | 82643-12010 · 82643-32010 · 90987-02004 · 90987-02006 · 90987-04002 |
| 82650 | No. 1 circuit breaker assembly | 82650-20011 |
| 82660 | Engine room relay box assembly | 82660-32130 |
| 82671A | junction box | 82671-20030 · 82671-32030 |
| 82672A | Junction box cover | 82672-32010 · 82672-32030 · 82672-32031 · 82672-32070 · 82672-32071 · 82672-32090 · 82672-32091 · 82672-32100 · 82672-32110 · 82672-32111 · 82672-32120 · 82672-32121 · 82672-32140 |
| 82690 | Low beam resistor assembly | 82690-32010 |
| 82821B | Connector cover | 82821-12250 · 82821-32050 · 82821-35010 |
| 83320 | Fuel gauge sensor assembly | 83320-39775 · 83320-39785 · 83320-39795 · 83320-80095 · 83320-80096 |
| 83361 | fuel gauge sensor gasket | 83361-32020 |
| 83381A | pressure switch | 83381-32040 · 83381-32050 |
| 83389A | Pressure switch bracket | 83389-32030 |
| 83390 | Vacuum warning switch assembly | 83390-30020 |
| 83391 | Vacuum switch | 83391-32020 · 83391-32030 |
| 83399 | Vacuum switch bracket | 83399-32040 |
| 83420 | Water temperature sensor assembly | 83420-16020 · 83420-20020 |
| 83530 | Oil pressure switch assembly (for engine) | 83530-14030 · 83530-30050 · 83530-30080 |
| 84110 | No. 1 light control switch assembly | 84112-39335 · 84112-39355 · 84112-39365 · 84112-39385 |
| 84118 | Light control rheostat button | 84118-20011 |
| 84119 | Light control rheostat | 84119-20082 · 84119-32080 |
| 84119A | Rheostat control retaining bolt or nut | 90170-09167 |
| 84140 | Headlight dimmer switch assembly | 84140-20150 · 84140-20190 · 84140-32050 · 84140-32070 |
| 84162A | Rear fog light switch | 84160-32040 · 84160-32050 |
| 84162C | Bulb (for rear fog light switch) | 84999-10190 |
| 84210 | Reversing light switch assembly | 84210-60021 |
| 84222 | No. 1 transfer case indicator switch | 84222-12010 |
| 84233 | Door control light switch assembly (for front door) | 84231-32020 |
| 84234 | Door control light switch assembly (for rear door) | 84231-24010 |
| 84235 | Door control light switch assembly (for back door) | 84230-16020 |
| 84236 | Door control light switch assembly (for trunk) | 84231-20110 |
| 84242 | Glove box light switch | 84242-20030 |

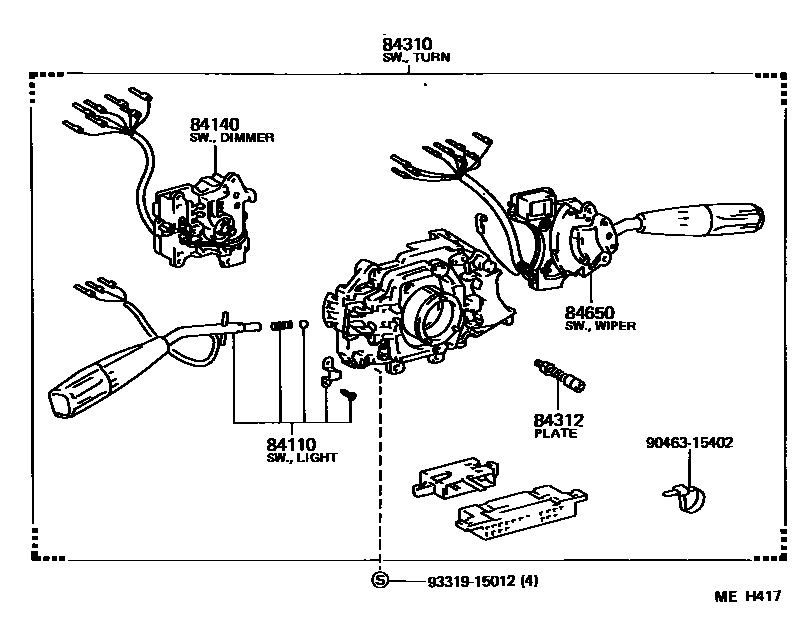

| 84310 | Turn signal switch assembly | 84310-32300 · 84310-32350 · 84310-32380 · 84310-32390 · 84310-32460 · 84310-32480 · 84310-32490 · 84310-32520 |
| 84312 | Speaker contact piece | 84312-32010 · 84312-32020 |
| 84330 | Hazard warning signal switch assembly | 84332-32110 · 84332-32130 · 84332-32131 |
| 84330B | Hazard warning signal switch light bulb | 84999-10090 · 84999-10190 |
| 84340 | brake light switch assembly | 84340-22100 · 84340-22110 · 84340-30030 · 84340-32010 |
| 84450 | Ignition or starter switch assembly | 84450-17020 · 84450-20170 |
| 84461 | Liquid level warning switch | 84461-12050 |
| 84540 | Neutral start switch assembly | 84540-32070 · 84540-32090 |
| 84550 | Parking brake switch assembly | 84550-12060 |
| 84560A | Fuel control switch assembly | 84560-32010 · 84560-32020 |
| 84650 | Windshield wiper switch assembly | 84652-32300 · 84652-32350 · 84652-32380 · 84652-32390 · 84652-32460 · 84652-32480 · 84652-32490 · 84652-32520 |
| 84653A | Rear wiper switch | 84653-32030 |
| 84653B | Rear wiper switch light bulb | 84999-10170 |
| 84660C | Cooler switch | 84660-20090 |
| 84725 | Center differential lock switch | 84725-32010 |
| 84730 | Heater blower switch assembly | 84732-32070 · 84732-32080 |
| 84730B | heater blower switch light bulb | 81850-32160 |
| 84739A | switch fixture | 84739-32010 |
| 84742 | Sliding sunroof limit switch | 84742-32010 |
| 84751 | Seat heater switch | 84751-32010 |

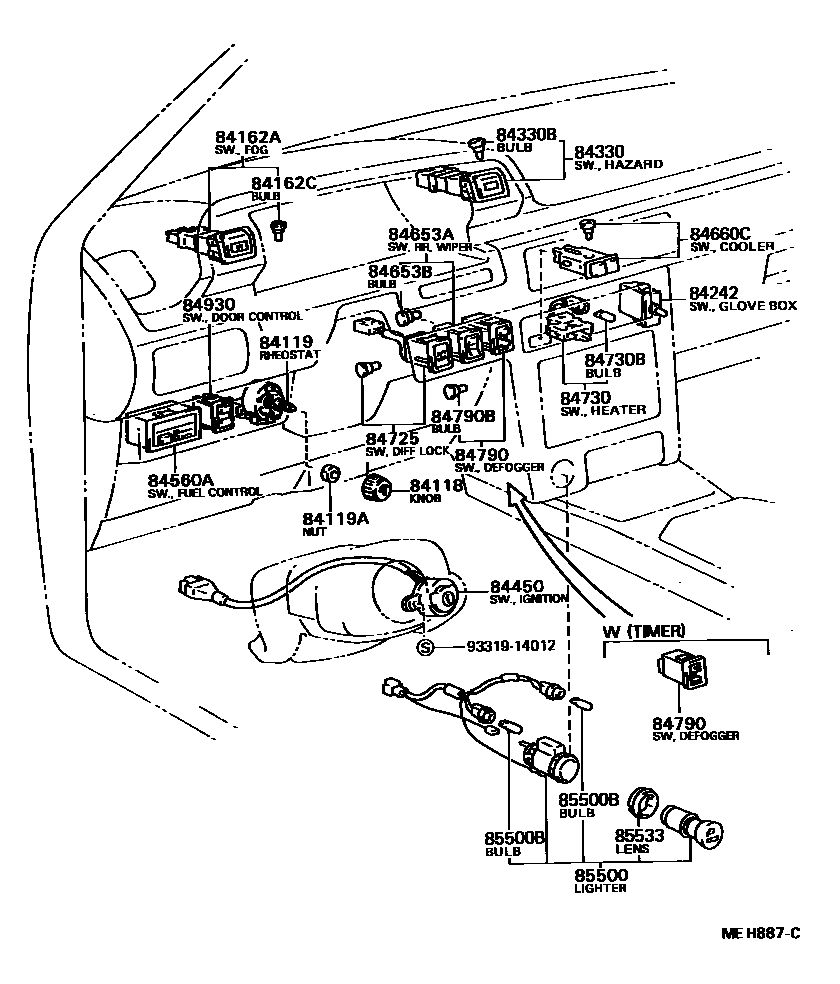

| 84790 | Rear window defogger switch assembly | 84790-20130 · 84790-32070 |
| 84790B | Bulb (for rear window defogger switch) | 84999-10130 |

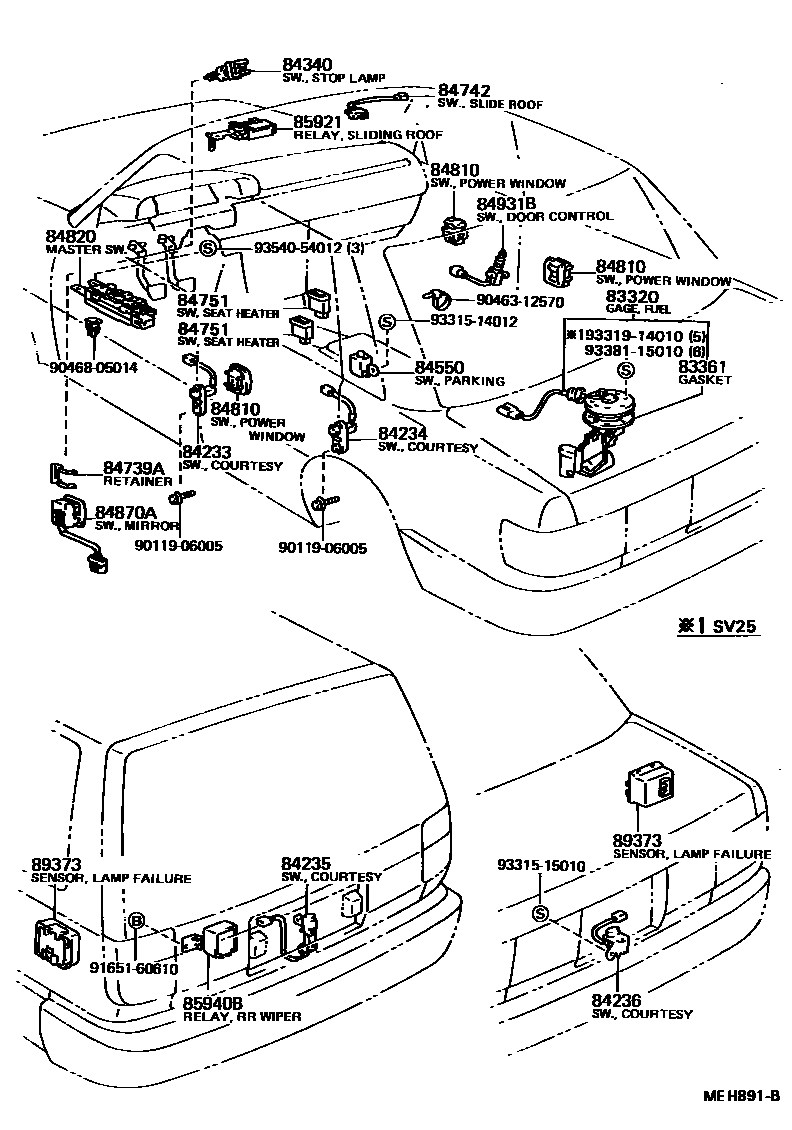

| 84810 | Electric window lift switch assembly | 84810-32050 |
| 84820 | Electric window lift main switch assembly | 84820-32100 · 84820-32120 |
| 84930 | Door control switch assembly | 84930-32020 |
| 84931B | door control switch | 84931-32040 |
| 85440A | Four-wheel drive control solenoid valve assembly | 85440-32010 |
| 85500 | Cigarette lighter assembly | 85500-32050 |
| 85500B | Cigarette lighter bulb | 90981-11014 |
| 85533 | Cigarette lighter indicator lamp shade | 85533-20011 |
| 85910C | Relay assembly (for heater blower motor) | 85913-30020 · 90987-04002 |
| 85912 | defogger relay | 90987-02002 · 90987-02004 |
| 85916 | Light control relay | 90987-02002 · 90987-02004 · 90987-02006 |
| 85916D | fog light relay | 90987-02002 · 90987-02004 |
| 85921 | Sliding sunroof control relay | 85921-32010 |
| 85926 | Headlight dimmer relay | 85926-30020 |
| 85927 | cooling fan relay | 90987-03001 |
| 85927A | Cooling fan relay No. 2 | 88630-32010 |
| 85930 | Electric window relay assembly | 90987-02002 · 90987-02004 |
| 85931B | Fuel heater relay | 90987-02004 |
| 85940B | Rear wiper relay assembly | 85940-32060 |
| 85959A | Relay mounting parts | 85959-32040 |
| 85980 | Door control relay assembly | 85980-32060 · 85980-32070 |
| 85999A | No. 2 relay bracket | 85999-32100 |
| 85999C | No. 3 relay bracket | 85999-32010 |
| 85999D | No. 4 relay bracket | 85999-32110 · 85999-32140 |
| 85999H | Relay bracket | 85999-32030 |
| 86530 | Speaker relay assembly | 90987-02002 · 90987-02004 |
| 88630G | Cooler relay assembly | 88630-32020 |
| 88630H | Cooler relay assembly | 88630-32010 |
| 88630R | No. 3 cooler relay assembly | 90987-02004 |
| 89279A | ECU cover | 89279-32070 · 89279-32080 · 89279-32110 |
| 89373 | Malfunction indicator light sensor | 89373-32150 · 89373-32151 · 89373-32160 · 89373-32180 |
| 89427 | Temperature detection switch | 89427-32021 |
| 89428 | No. 2 temperature detection switch | 89428-15030 · 89428-20060 · 89428-32010 |
| 89429 | oil temperature sensor | 89422-30020 |
| 89437 | sensor cover | 89437-32020 |
| 89439 | Sensor holder | 89439-32010 |

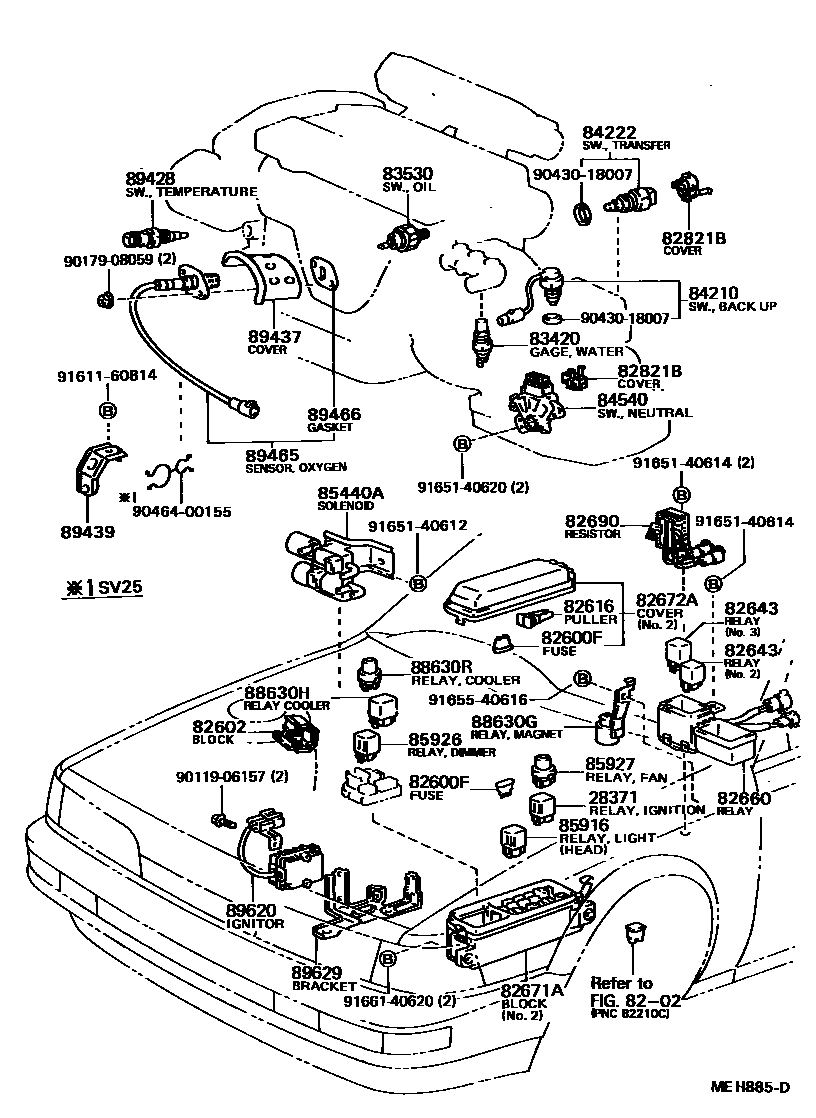

| 89465 | oxygen sensor | 89465-29285 · 89465-39135 · 89465-39185 · 89465-39195 · 89465-39205 |
| 89466 | Oxygen sensor pad | 89466-20020 · 89466-30010 |

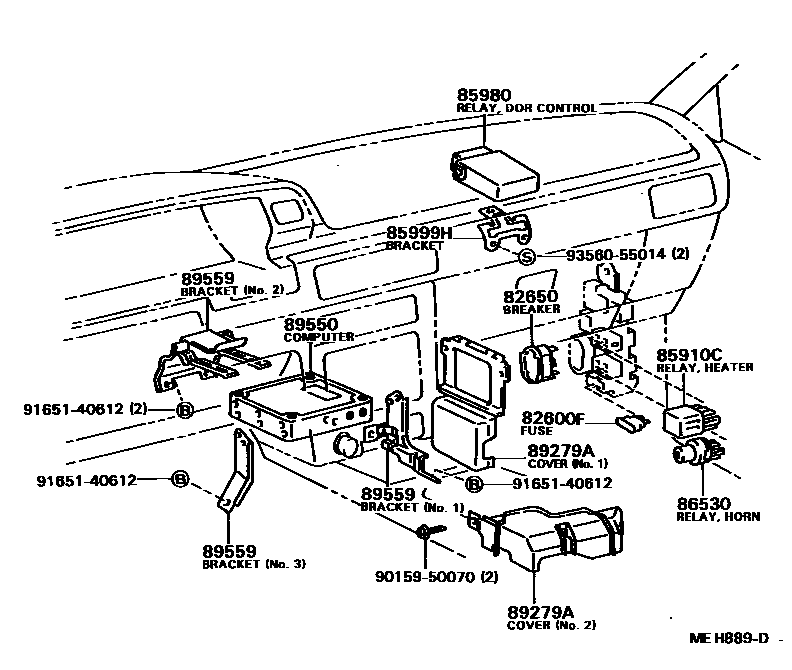

| 89550 | Emission control ECU assembly | 89550-32090 |
| 89559 | Emission control ECU bracket | 28529-64101 · 89667-32020 · 89669-32040 |
| 89620 | Ignition assembly | 89620-32110 · 89621-32010 |
| 89629 | Ignition bracket assembly | 89629-32030 · 89629-32070 |
