Toyota CAMRY indicator light — Figure 8302

Toyota CAMRY EPC diagram 8302, indicator light, with 1 images and 5 PNC and OE references.

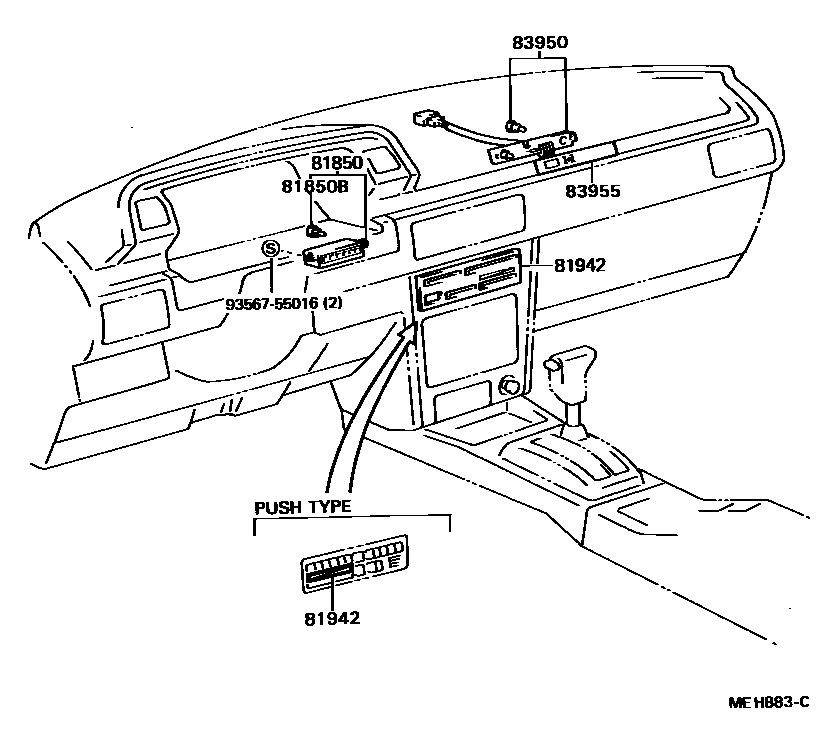

Toyota CAMRY indicator light EPC diagram — MEH883C
indicator light — MEH883C (198610 – 999999)

PNC and OE references

PNCPart nameOE numbers
81850Indicator light assembly81850-32070 · 81850-32080 · 81850-32100 · 81850-32120
81850Bpilot light bulb84999-20090 · 84999-20100 · 84999-50180 · 84999-50190
81942Heater control nameplate81942-32010 · 81942-32030 · 81942-32040
83950Warning light assembly83950-32010 · 83950-32020
83955warning light shade83955-32010 · 83955-32020 · 83955-32030 · 83955-32040
