Toyota CAMRY 仪表 — Figure 8301

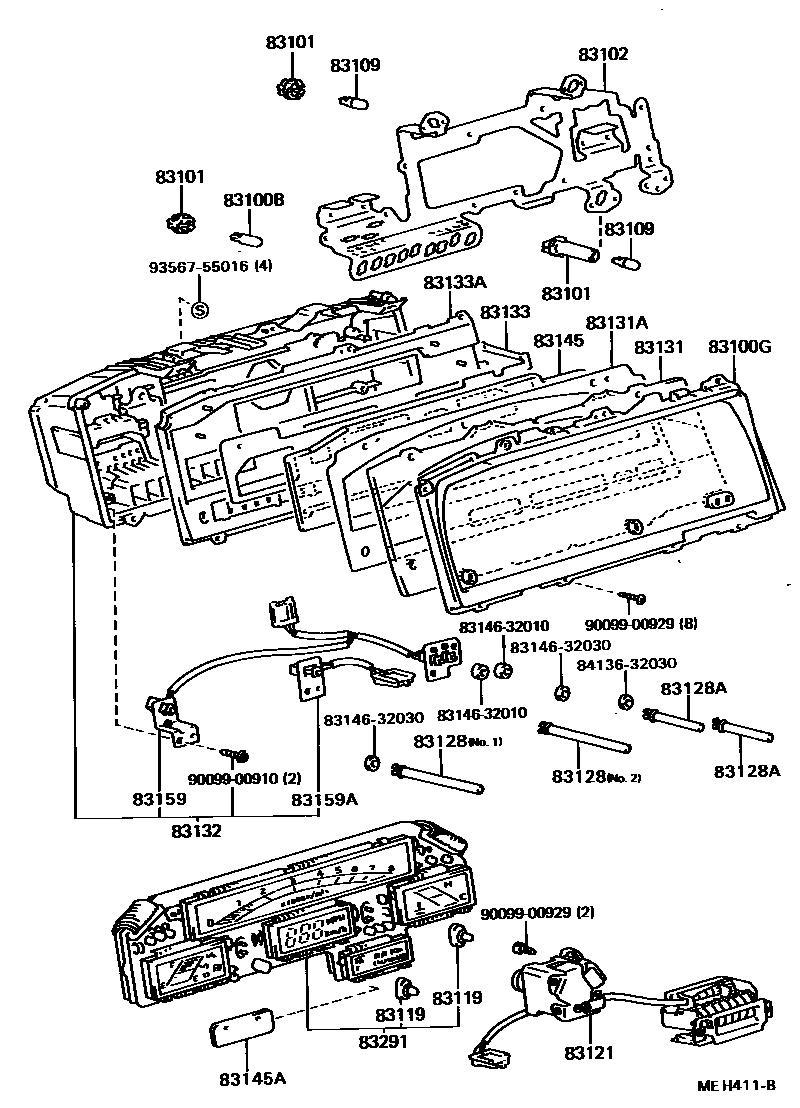

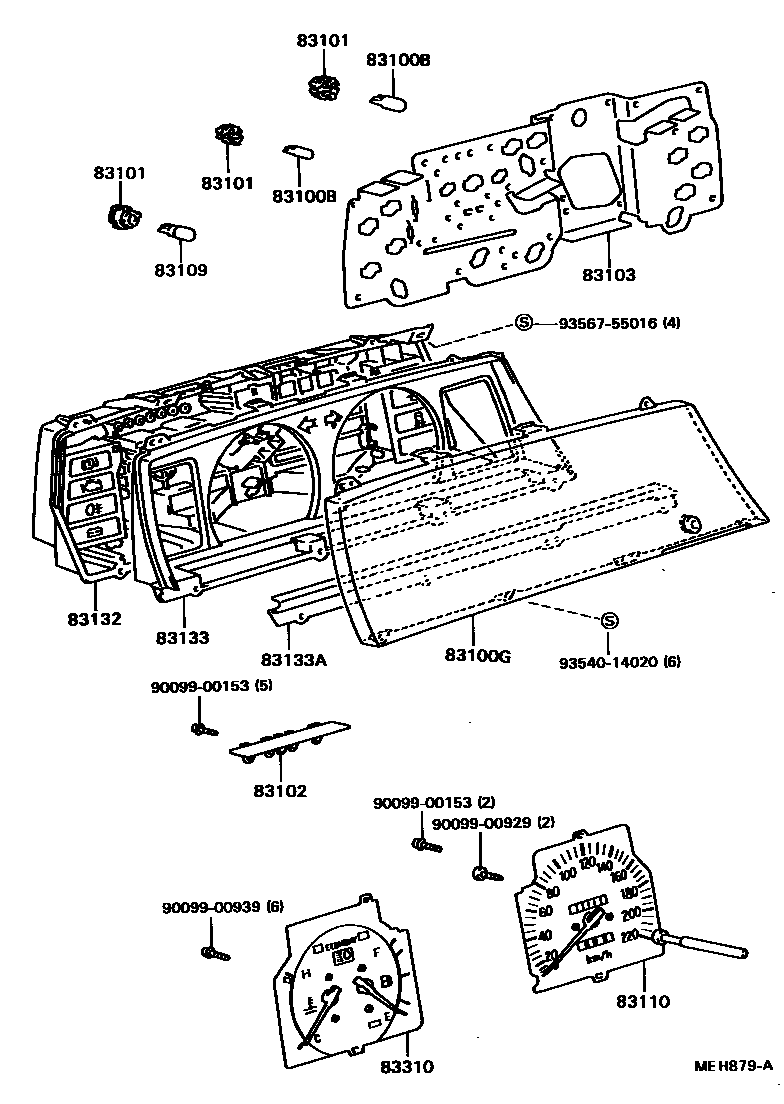

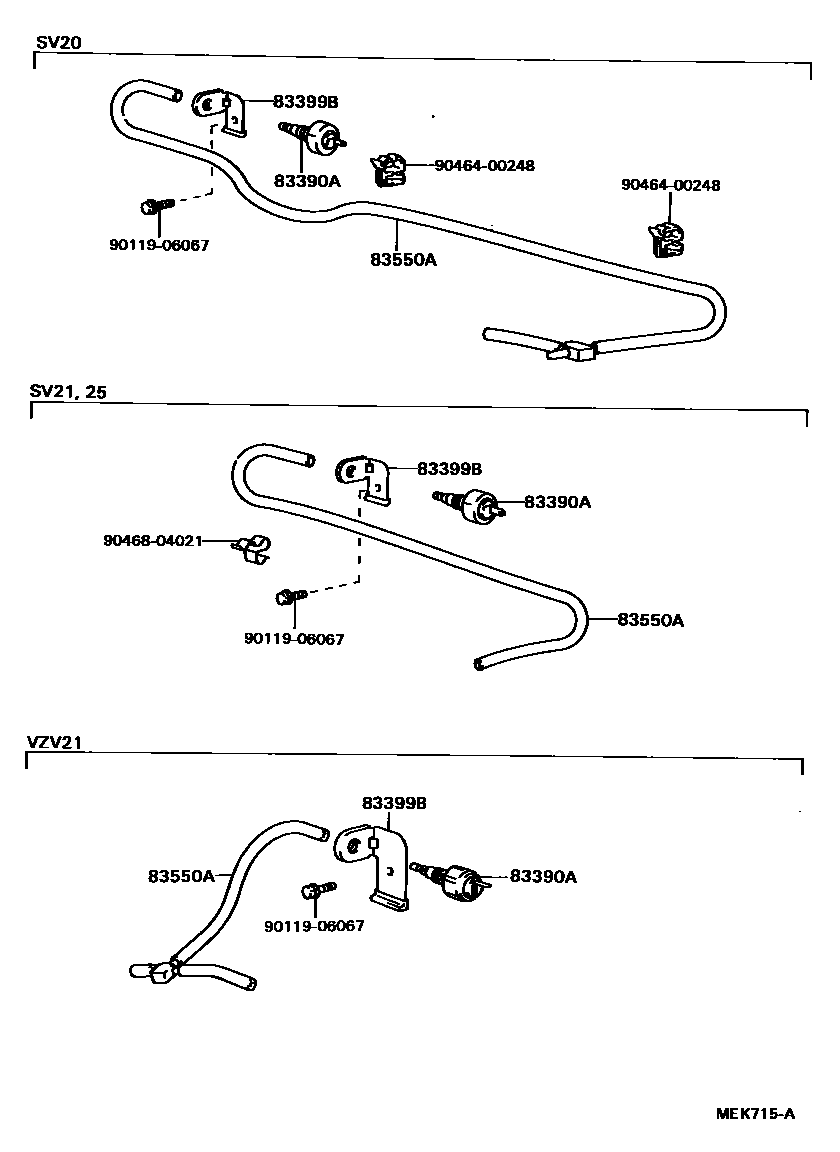

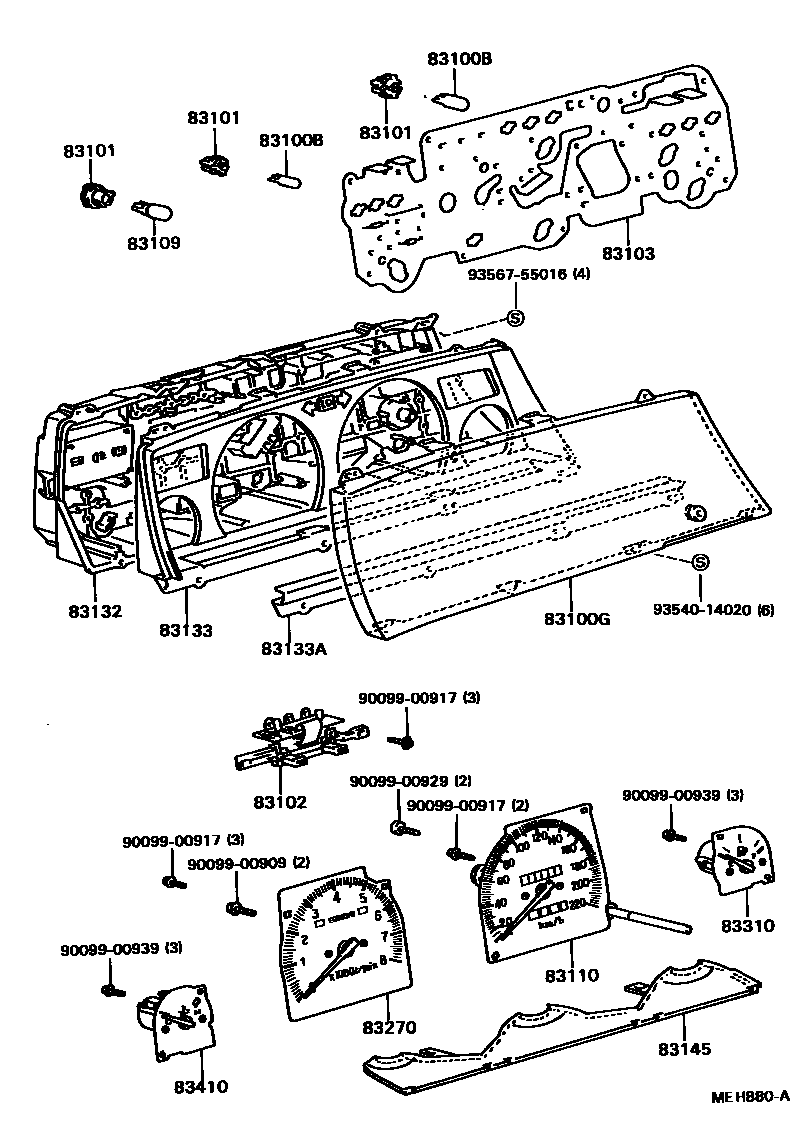

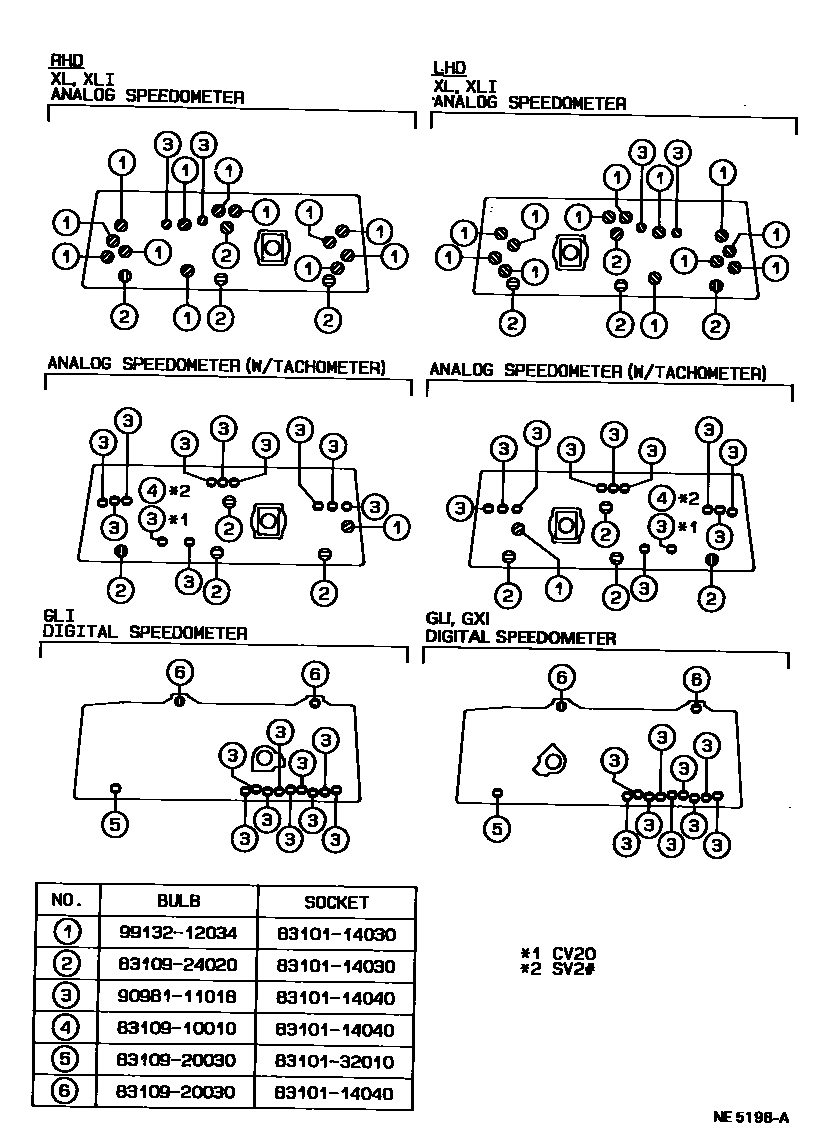

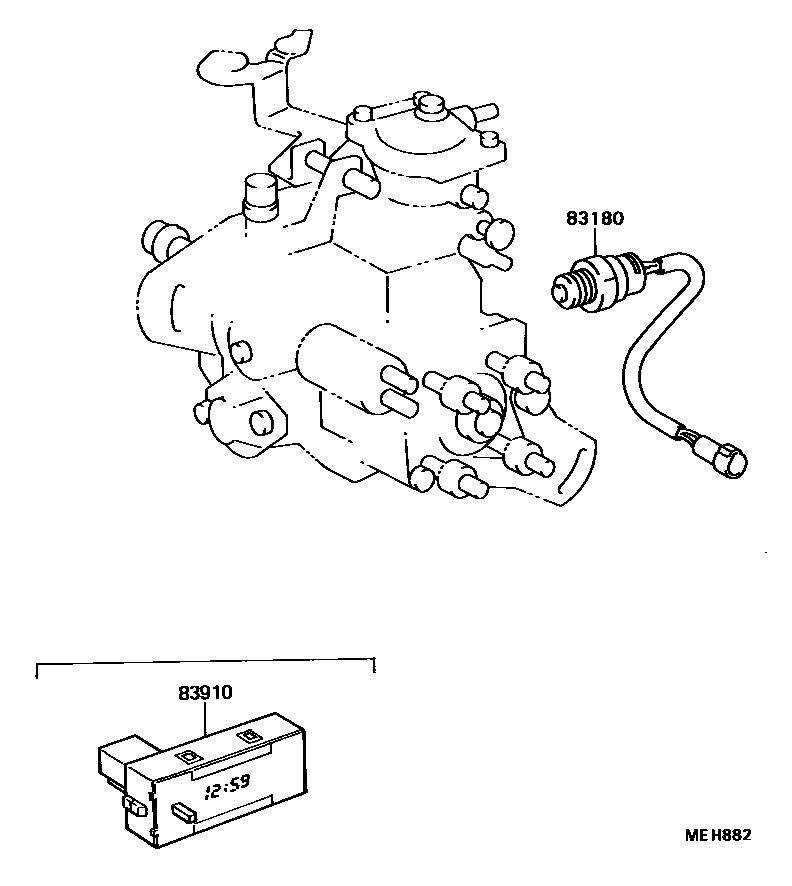

Toyota CAMRY EPC diagram 8301, 仪表, with 7 images and 33 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 83100B | Combination instrument bulb No. 1 | 83109-10010 · 90981-11018 · 99132-12034 |
| 83100G | Instrument cluster glass | 83133-32370 · 83133-32410 · 83138-32030 · 83138-32050 |
| 83101 | Combined instrument lamp holder sub-assembly | 83101-14030 · 83101-14040 · 83101-32010 |
| 83102 | Combination instrument No. 1 circuit board sub-assembly | 83247-32320 · 83247-32340 · 83247-32660 · 83247-32680 · 83247-32700 · 83247-32740 · 83247-32860 |
| 83103 | Combined instrument No. 2 circuit board sub-assembly | 83247-32380 · 83247-32400 · 83247-32420 · 83247-32460 · 83247-32500 · 83247-32520 · 83247-32620 · 83247-32640 · 83247-32840 · 83247-32860 · 83247-3H290 |
| 83109 | Combined instrument bulb No. 2 | 83109-20030 · 83109-24020 |
| 83110 | Speedometer assembly | 83110-32460 · 83110-32470 · 83110-32480 · 83110-32490 · 83110-32500 · 83110-32540 |
| 83119 | Instrument cluster No. 3 light bulb | 83119-24030 |
| 83121 | total counter | 83121-32130 · 83121-32190 |
| 83128 | trip odometer handle | 83128-32090 · 83128-32130 |
| 83128A | instrument handle | 83128-32110 |
| 83131 | Instrument panel No. 1 | 83131-32370 · 83131-32410 · 83131-32450 · 83131-32470 |
| 83131A | Instrument panel No. 2 | 83131-32250 · 83131-32310 · 83131-32430 |
| 83132 | Instrument cluster housing | 83132-32020 · 83132-32060 · 83132-32100 · 83132-32140 · 83132-32160 · 83132-32180 · 83132-32260 · 83132-32280 · 83132-32320 · 83132-32340 · 83132-32480 |
| 83133 | Combined instrument panel No. 1 | 83133-32330 · 83133-32510 · 83133-32530 · 83133-32550 · 83133-32570 |
| 83133A | Combined instrument panel No. 2 | 83133-32470 · 83133-32590 · 83133-32610 · 83133-32630 |
| 83145 | Instrument No. 1 lampshade | 83145-32330 · 83145-32350 · 83145-32370 |
| 83145A | Instrument No. 2 lampshade | 83145-32390 |
| 83159 | No.1 instrument switch | 83159-32110 |
| 83159A | No. 2 instrument switch | 83159-32130 |
| 83180 | Speed detector assembly | 83180-32020 |
| 83189 | instrument bracket | 83189-20020 |
| 83270 | Engine tachometer assembly | 83242-32450 · 83242-32470 · 83242-32530 · 83242-32550 · 83242-32570 · 83242-32670 · 83242-32690 · 83242-32810 |
| 83291 | Instrument cluster ECU | 83291-32050 · 83291-32060 · 83291-32130 |
| 83310 | Fuel gauge assembly | 83243-32310 · 83243-32370 · 83243-32390 · 83243-32430 · 83243-32490 · 83243-32510 · 83243-32530 · 83243-32570 · 83243-32630 · 83243-32650 |
| 83390A | Vacuum switch assembly (for flue gas analyzer) | 83391-16020 |
| 83399B | Vacuum switch bracket | 83399-32050 |
| 83410 | Water temperature meter assembly | 83244-32450 · 83244-32530 |
| 83550A | ED monitor hose | 83090-32010 · 83090-32020 · 83090-32030 |
| 83710 | No. 1 speedometer transmission cable assembly | 83710-32040 · 83710-32110 · 83710-32120 · 83710-32130 · 83710-32150 · 83710-32160 · 83710-32170 · 83710-32180 · 83710-32190 · 83710-32200 · 83710-32220 · 83710-32260 |
| 83770 | Speedometer transmission flexible shaft joint assembly | 83770-17010 · 83770-22100 |
| 83798 | Speedometer transmission flexible shaft adapter key | 83798-17010 |
| 83910 | clock assembly | 83910-32060 |
