Toyota CAMRY Headlamp — Figure 8101

Toyota CAMRY EPC diagram 8101, Headlamp, with 1 images and 6 PNC and OE references.

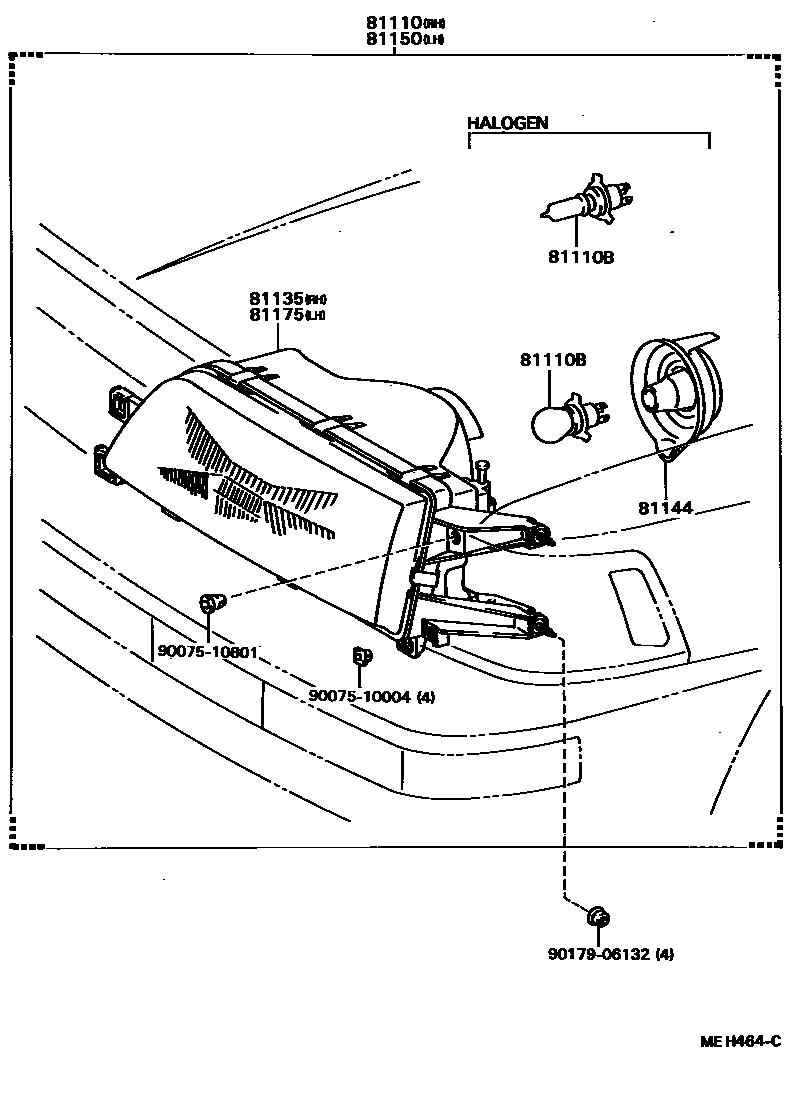

Toyota CAMRY Headlamp EPC diagram — MEH464C
Headlamp — MEH464C (198610 – 999999)

PNC and OE references

PNCPart nameOE numbers
81110Right headlight assembly81110-32160 · 81110-32170 · 81110-32180 · 81110-32190
81110BBulb (for headlight No. 1)90981-13013 · 90981-13015 · 90981-13016
81135Right headlight assembly81130-32160 · 81130-32170 · 81130-32190
81144No. 1 headlight cover81139-20730
81150Left headlight assembly81150-32160 · 81150-32170 · 81150-32180 · 81150-32190
81175Left headlight assembly81170-32160 · 81170-32170 · 81170-32190
