Toyota CAMRY 安全带和儿童保护座椅 — Figure 7104

Toyota CAMRY EPC diagram 7104, 安全带和儿童保护座椅, with 1 images and 5 PNC and OE references.

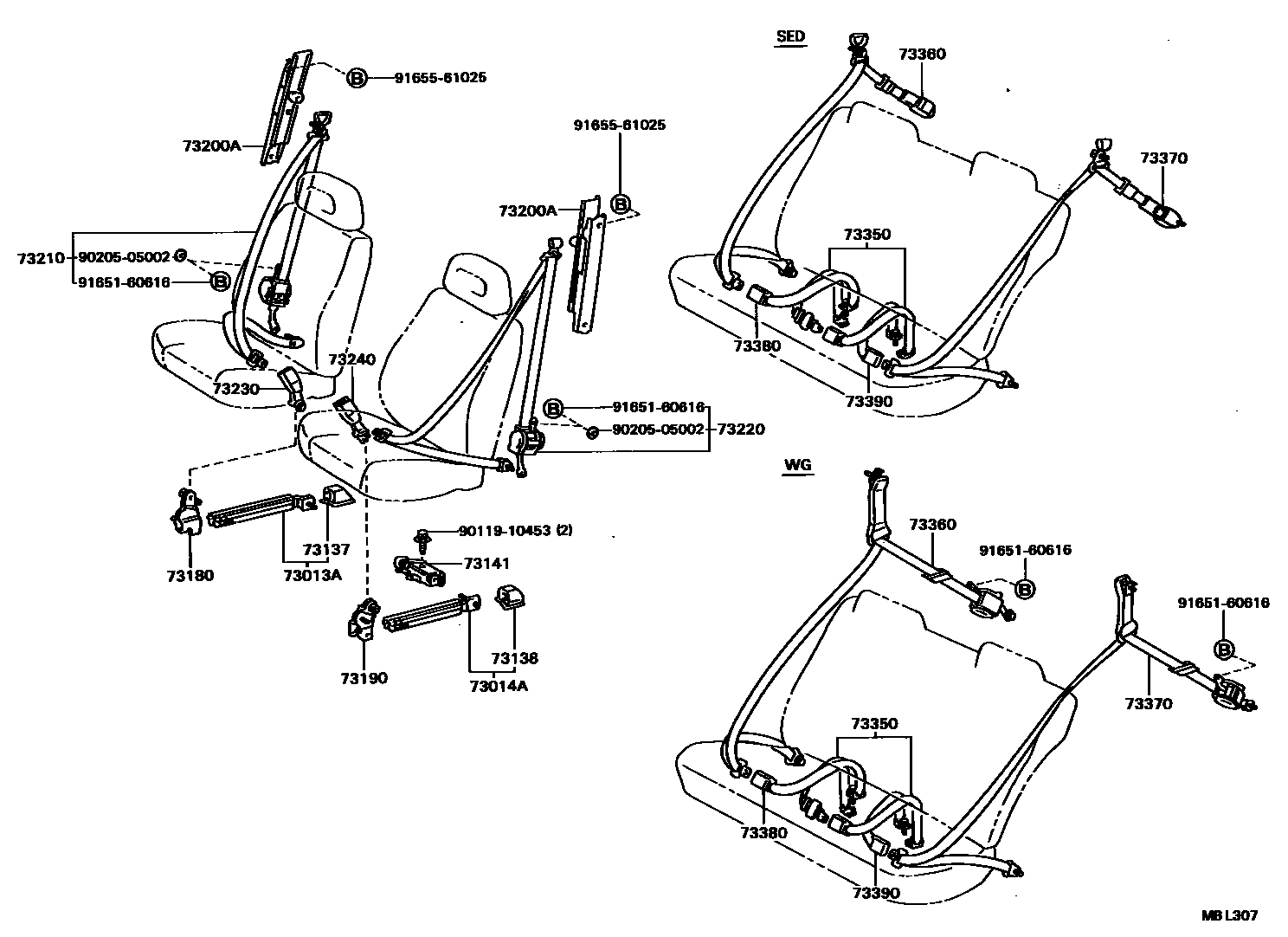

Toyota CAMRY 安全带和儿童保护座椅 EPC diagram — MBL307
安全带和儿童保护座椅 — MBL307 (198610 – 999999)

PNC and OE references

PNCPart nameOE numbers
73013AFront right seat seat belt inner anchor plate sub-assembly73013-32040
73014AFront left seat belt inner anchor plate sub-assembly73014-32040
73141Front seat belt anchor base73141-32040
73180Right seat belt inner anchor bracket assembly73011-32020
73190Left side seat belt inner anchor bracket assembly73012-32020
