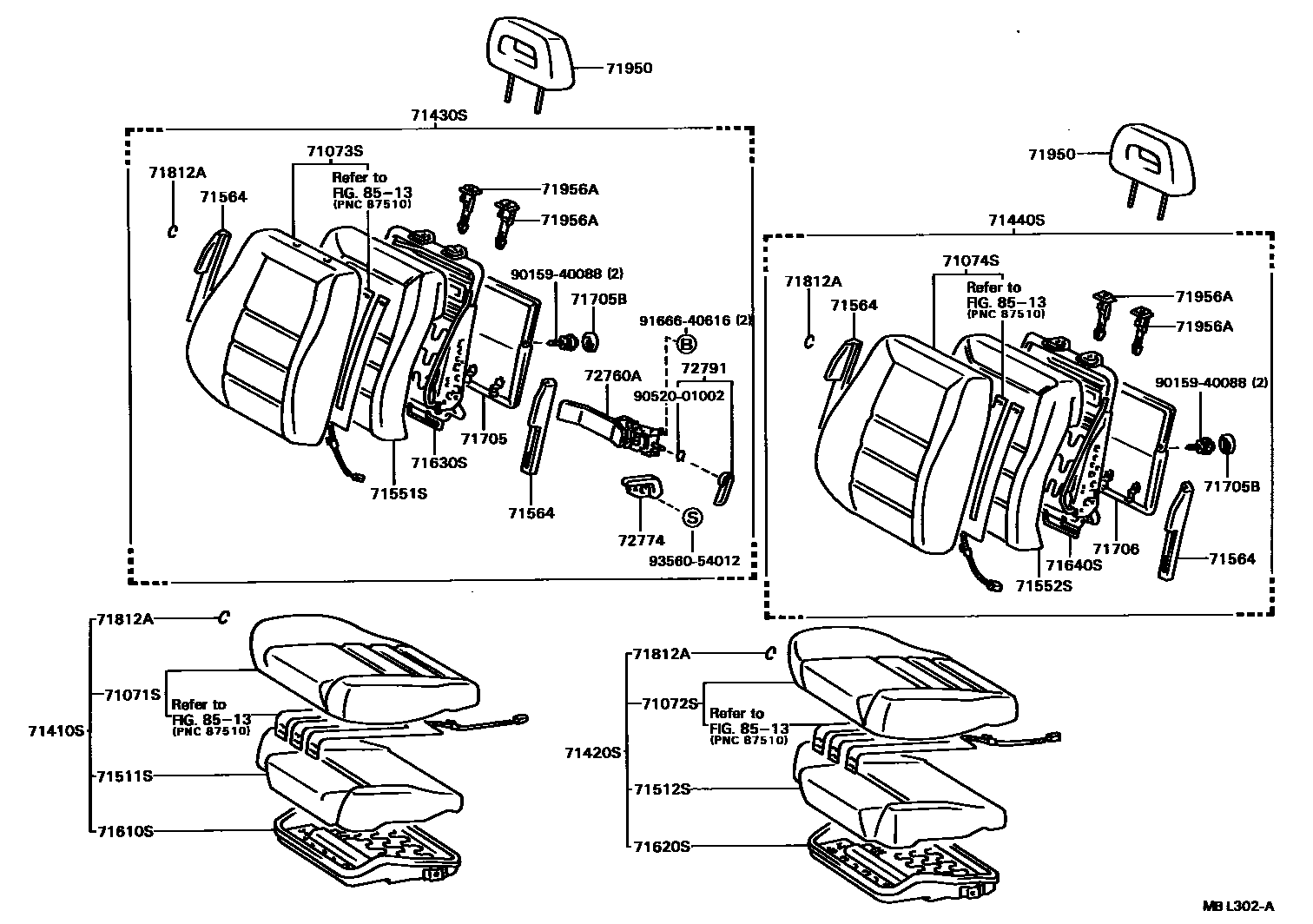

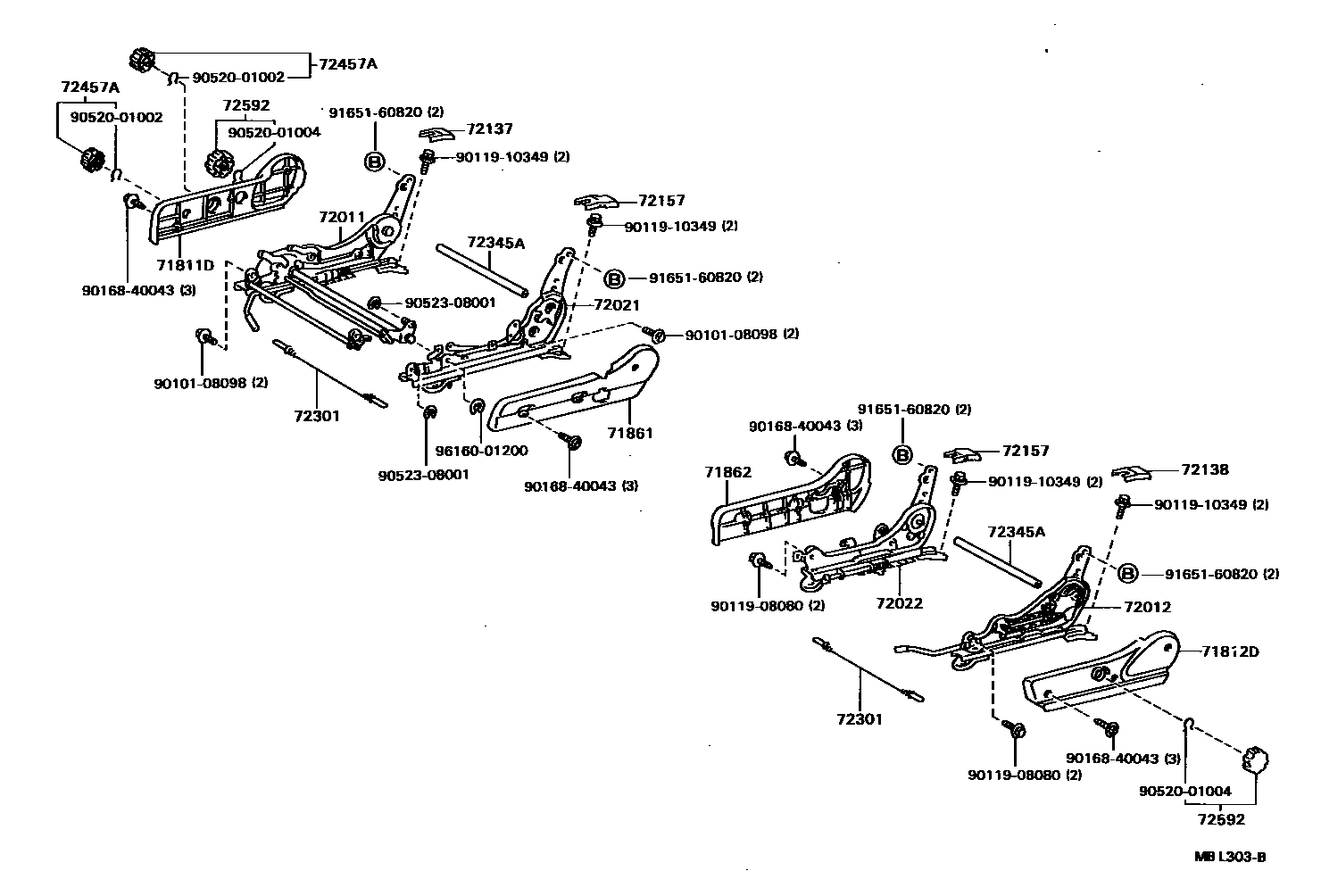

Toyota CAMRY 前排座椅和座椅滑轨 — Figure 7101
Toyota CAMRY EPC diagram 7101, 前排座椅和座椅滑轨, with 2 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71511S | Front right seat cushion cushion (for split seats) | 71511-32100 · 71511-32130 |
| 71512S | Front left seat cushion cushion (for split seats) | 71511-32100 · 71511-32130 |
| 71551S | Front right seat back cushion (for split seats) | 71551-32100 · 71551-32110 |
| 71552S | Front left seat back cushion (for split seats) | 71551-32100 · 71551-32110 |
| 71564 | Front seat backrest side cushions | 71563-32030 · 71563-32040 · 71564-32030 · 71564-32040 |
| 71610S | Front right seat cushion spring assembly (for split seats) | 71610-32030 · 71610-32040 |
| 71620S | Front left seat cushion spring assembly (for split seats) | 71610-32030 · 71610-32050 |
| 71630S | Front right seat back spring assembly (for split seats) | 71630-32110 · 71630-32120 |
| 71640S | Front left seat back spring assembly (for split seats) | 71630-32110 · 71630-32120 |
| 71812A | Small clamp ring (for front seats) | 90468-18071 |
| 72011 | Front right seat outer adjuster sub-assembly | 72011-32070 · 72011-32080 |
| 72012 | Front left seat outer adjuster sub-assembly | 72012-32070 · 72012-32080 |
| 72021 | Front right seat inner adjuster sub-assembly | 72021-32070 · 72021-32080 |
| 72022 | Front left seat inner adjuster sub-assembly | 72022-32060 · 72022-32070 |
| 72301 | Seat slide rail balance harness sub-assembly | 72301-32020 |
| 72345A | Seat back recliner connecting tube | 72345-32020 |
| 72760A | Lumbar support adjuster assembly | 72750-32030 · 72760-32020 |
| 72774 | Lumbar support spring guard | 72774-32010 · 72775-32010 |
