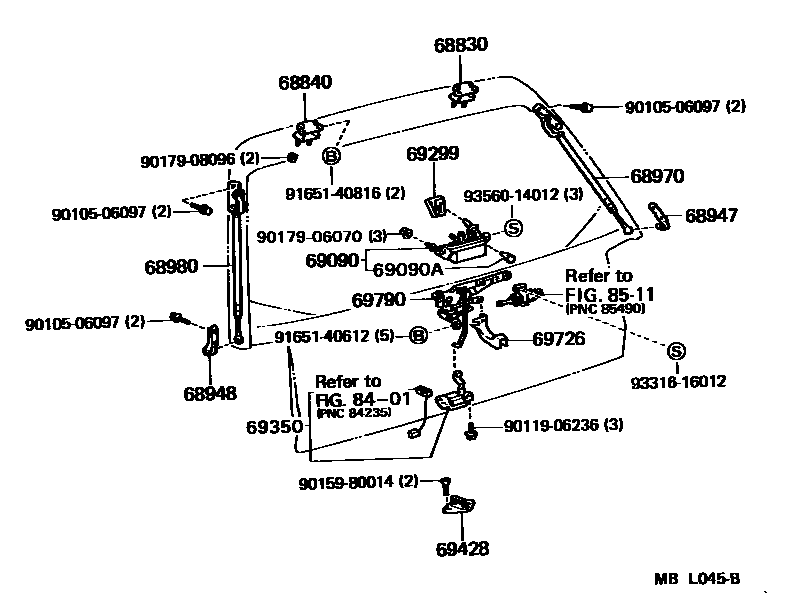

Toyota CAMRY 背门锁和背门把手 — Figure 6709
Toyota CAMRY EPC diagram 6709, 背门锁和背门把手, with 1 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 68830 | Back door right hinge assembly | 68810-32010 |
| 68840 | Back door left hinge assembly | 68810-32010 |
| 68947 | Back door right damping strut lower bracket | 68947-32010 |
| 68948 | Rear door left damping strut lower bracket | 68948-32010 |
| 68970 | Back door right support rod assembly | 68950-32060 · 68950-39206 |
| 68980 | Back door support rod assembly | 68960-32010 · 68960-39076 |
| 69090 | Rear door outer handle assembly | 69090-32010 |
| 69090A | Cushion pad (for outer back door handle) | 90541-03021 |
| 69299 | Rear door handle seal | 69299-32010 |
| 69350 | Rear door lock assembly | 69350-32040 |
| 69428 | Rear door lock base plate | 69410-32020 |
| 69726 | Rear door lock control protection parts | 69726-32010 |
| 69790 | Rear door lock control assembly | 69709-32020 |
