Toyota CAMRY 后门车窗升降器和合页 — Figure 6707

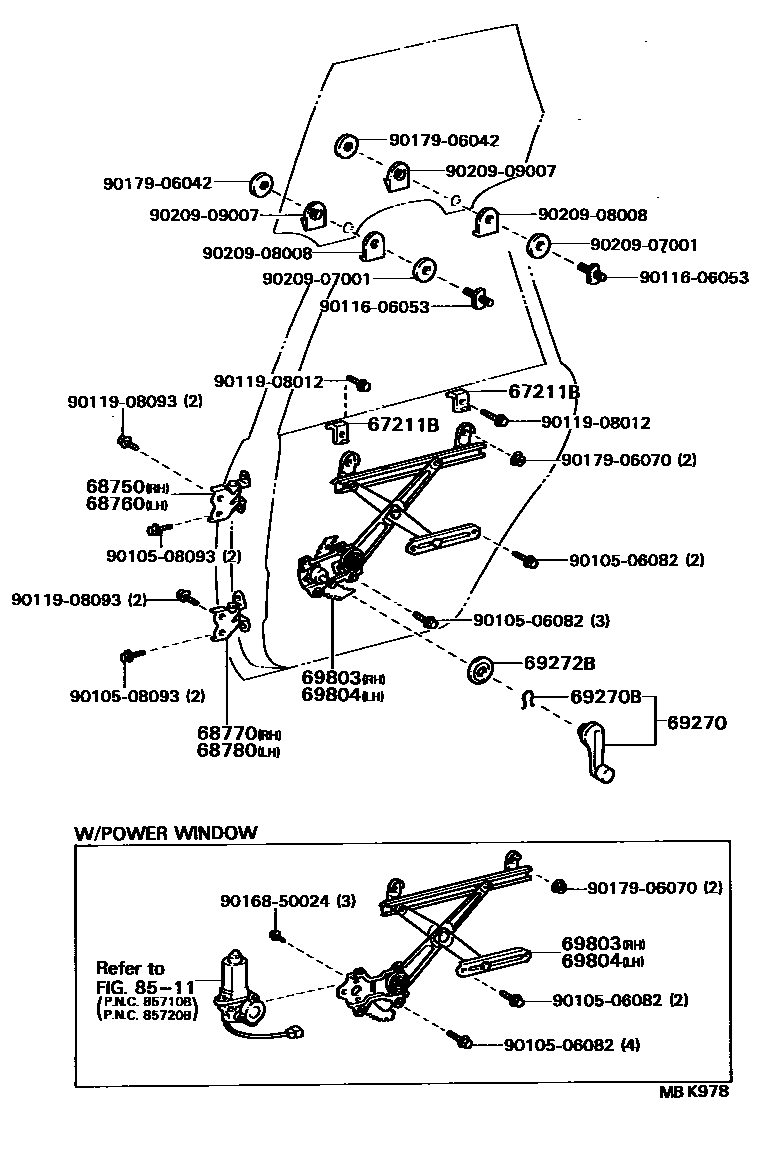

Toyota CAMRY EPC diagram 6707, 后门车窗升降器和合页, with 1 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 67211B | Rear door window upper block | 67211-32010 |
| 68750 | Right rear door upper hinge assembly | 68750-32020 |
| 68760 | Left rear door upper hinge assembly | 68760-32020 |
| 68770 | Right rear door lower hinge assembly | 68770-32020 |
| 68780 | Left rear door lower hinge assembly | 68780-32020 |
| 69270B | Shaft snap ring (for rear door window regulator handle) | 90520-01002 |
| 69272B | Rear door window regulator inner handle plate | 69285-22010 |
| 69803 | Right rear door window lifter sub-assembly | 69803-32020 · 69830-32030 |
| 69804 | Left rear door window lifter sub-assembly | 69804-32020 · 69840-32030 |
