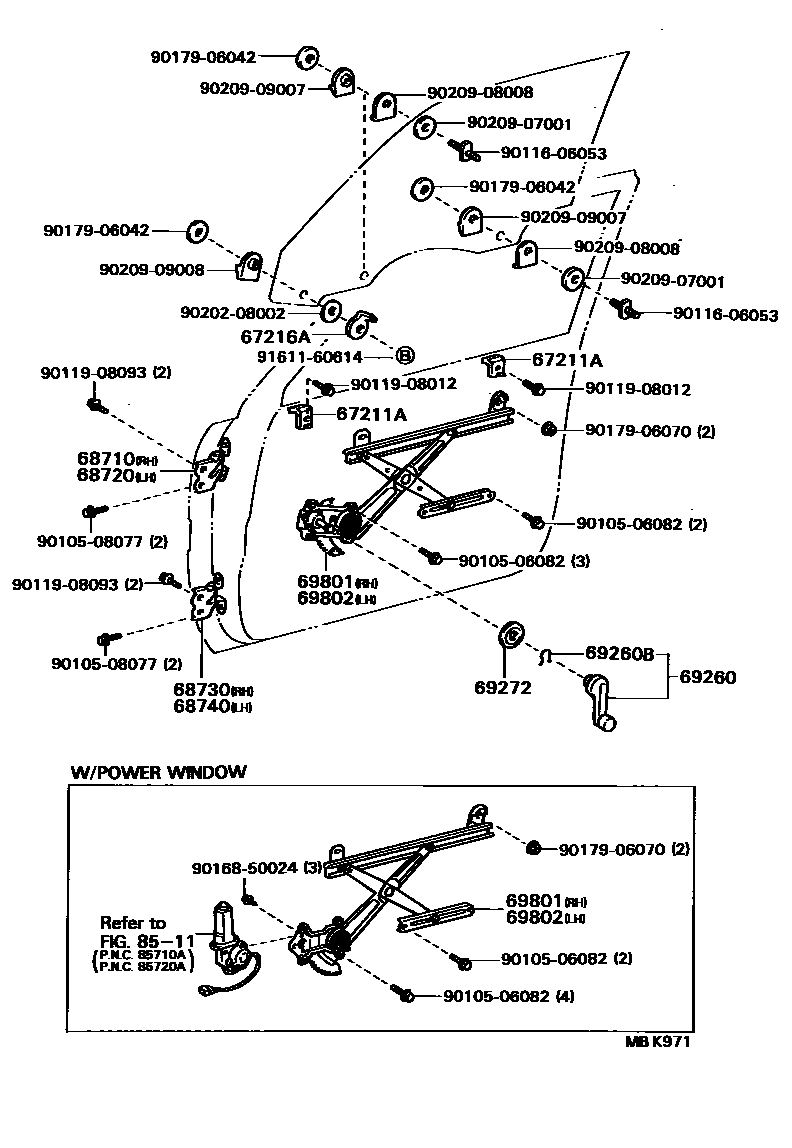

Toyota CAMRY 前门车窗升降器和合页 — Figure 6704
Toyota CAMRY EPC diagram 6704, 前门车窗升降器和合页, with 1 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 67211A | Front door window upper block | 67211-32010 |
| 67216A | No. 2 front door glass upper stop | 67216-32010 |
| 68710 | Right front door upper hinge assembly | 68710-32020 |
| 68720 | Left front door upper hinge assembly | 68720-32020 |
| 68730 | Right front door lower hinge assembly | 68730-16010 |
| 68740 | Left front door lower hinge assembly | 68740-16010 |
| 69260B | Shaft snap ring (for front door window regulator handle) | 90520-01002 |
| 69272 | Front door window lift inner handle plate | 69285-22010 |
| 69801 | Right front door window lifter sub-assembly | 69801-32030 · 69810-32050 |
| 69802 | Left front door window lifter sub-assembly | 69802-32030 · 69820-32050 |
