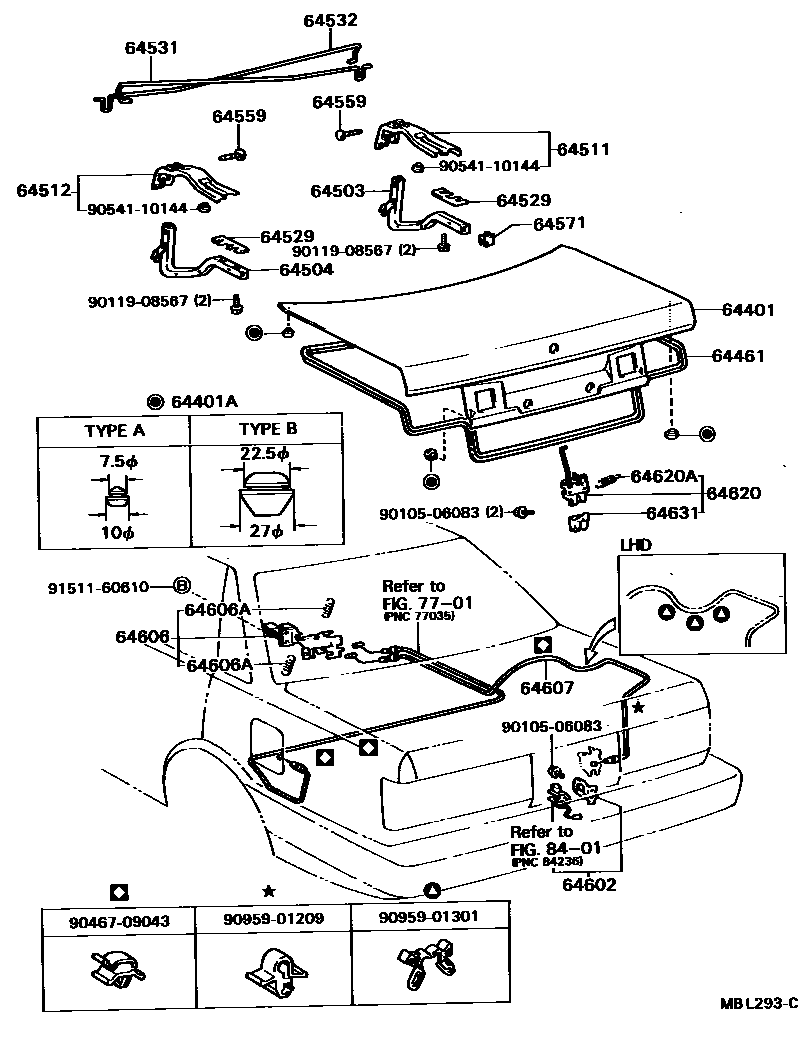

Toyota CAMRY 行李箱门和行李箱锁 — Figure 6105
Toyota CAMRY EPC diagram 6105, 行李箱门和行李箱锁, with 1 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 64401 | Trunk door panel sub-assembly | 64401-32120 · 64401-32130 · 64401-32270 · 64401-32280 · 64401-32310 · 64401-32320 |
| 64401A | Cushion pad (for luggage compartment door panel) | 90541-06076 · 90541-19001 |
| 64461 | Trunk door seal | 64461-32050 |
| 64503 | Trunk door right hinge arm sub-assembly | 64503-32010 |
| 64504 | Trunk door left hinge arm sub-assembly | 64503-32010 |
| 64511 | Trunk door right hinge bracket | 64511-32020 |
| 64512 | Trunk door left hinge bracket | 64512-32020 |
| 64529 | Trunk door hinge spacer | 64529-14010 |
| 64531 | Trunk door right hinge torsion bar | 64531-32030 · 64531-32040 |
| 64532 | Trunk door left hinge torsion bar | 64532-32030 · 64532-32040 |
| 64559 | Trunk door hinge pin | 64559-32010 |
| 64571 | Trunk door hinge cover | 64571-30020 |
| 64602 | Trunk door lock buckle sub-assembly | 64620-20050 |
| 64606 | Trunk door lock opening lever sub-assembly | 64606-14060 · 64606-14070 |
| 64606A | Tension spring (for trunk door lock opening lever) | 90506-09004 |
| 64607 | Trunk door lock control cable sub-assembly | 64607-32110 · 64607-32160 |
| 64620 | Trunk door lock assembly | 64610-32030 |
| 64620A | Tension spring (for trunk door lock) | 90506-08001 |
| 64631 | Trunk door lock protector | 64631-91D01 |
