Toyota CAMRY 侧梁 — Figure 6101

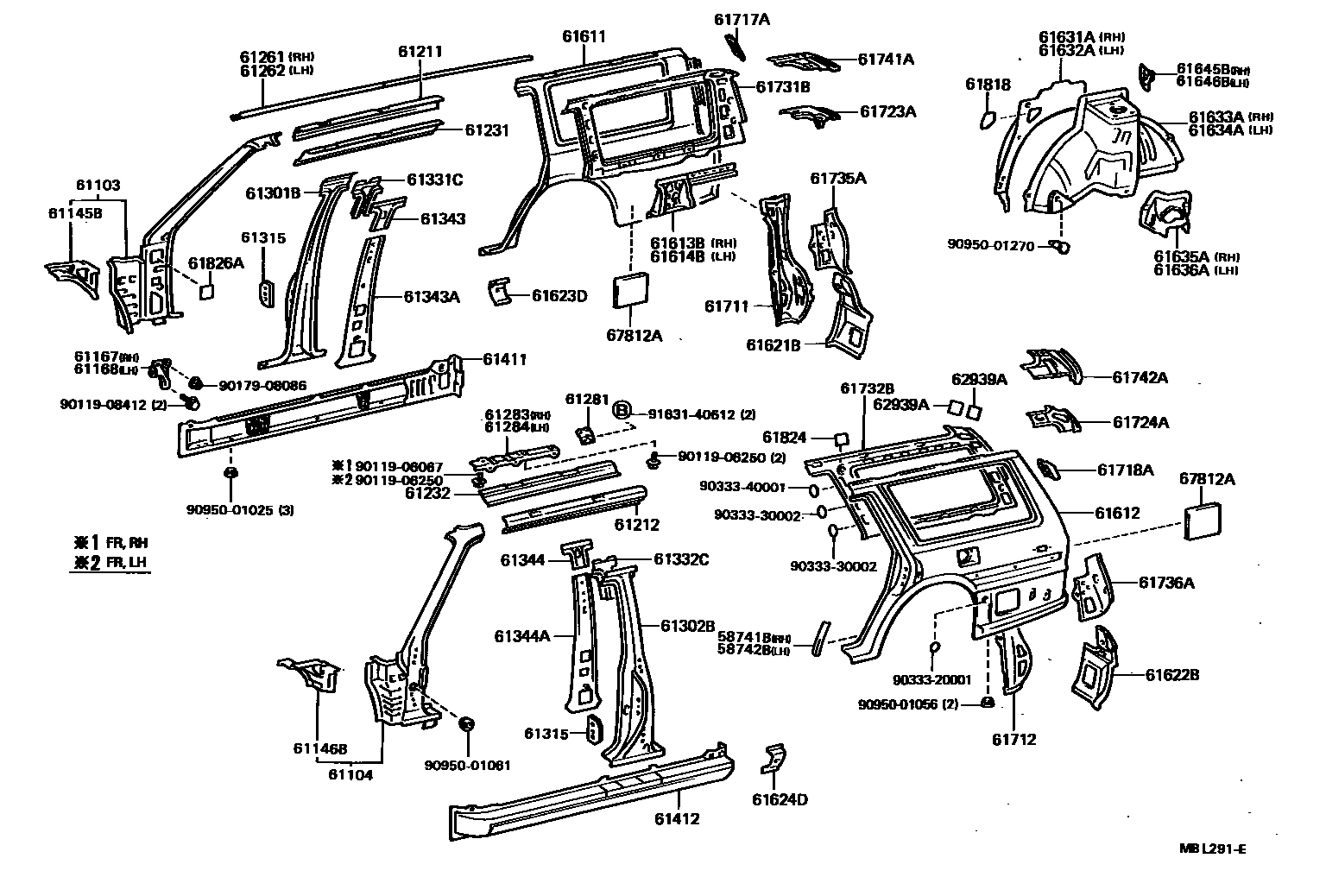

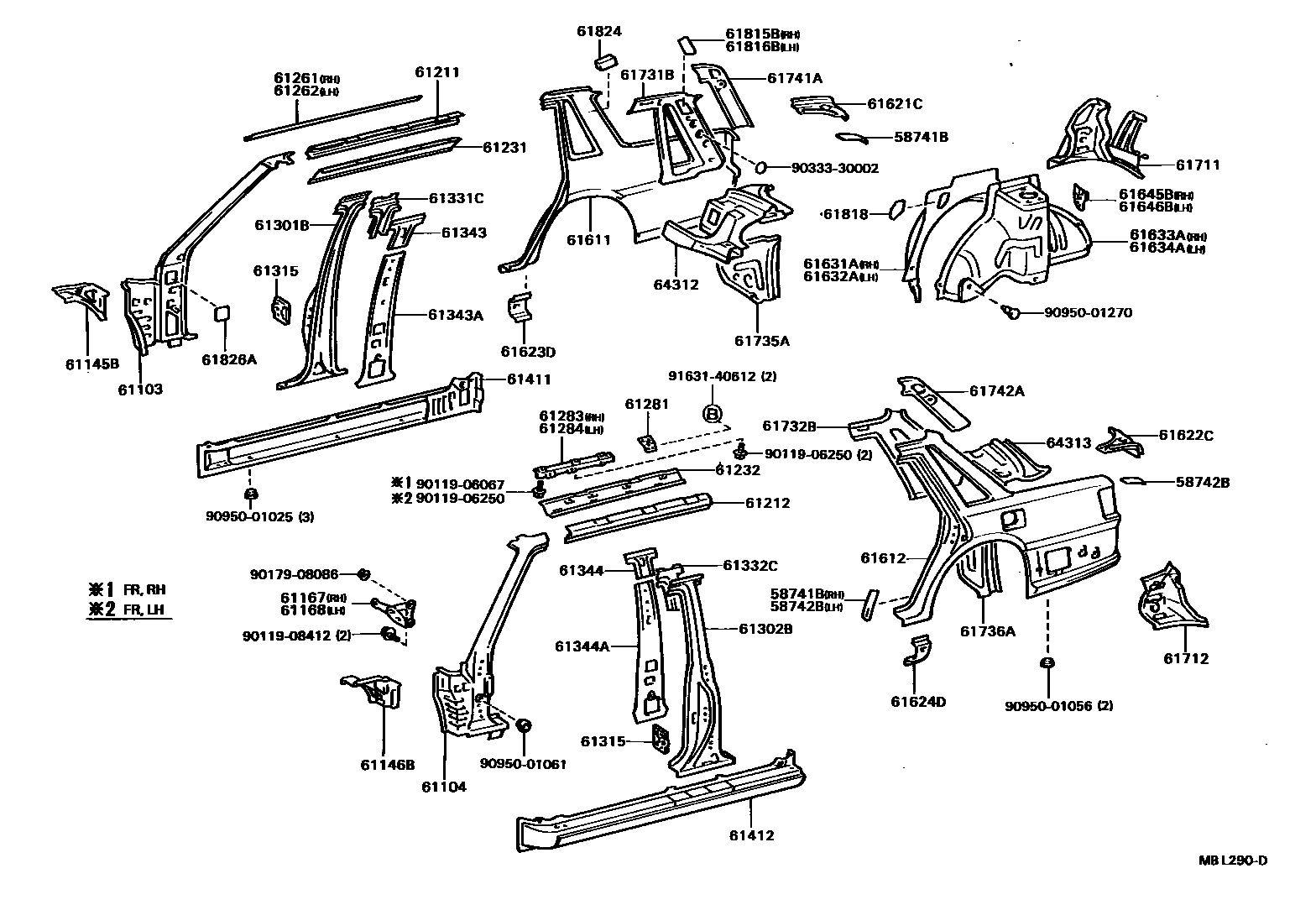

Toyota CAMRY EPC diagram 6101, 侧梁, with 2 images and 68 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58741B | Right side enclosure protection panel | 58741-12060 · 58741-32010 |
| 58742B | Left side enclosure protection panel | 58741-12060 · 58742-32010 |
| 61103 | Right body front pillar sub-assembly | 61021-32290 · 61021-32300 · 61021-32330 |
| 61104 | Left body front pillar sub-assembly | 61022-32320 · 61022-32340 · 61022-32350 |
| 61145B | Right body front pillar lower corner panel | 61145-32010 |
| 61146B | Left body front pillar lower corner panel | 61146-32010 |
| 61167 | Dashboard to right front wall side bracket | 61165-32010 |
| 61168 | Dashboard to left front wall side bracket | 61166-32010 |
| 61211 | Roof right outer longitudinal beam | 61211-32030 · 61211-32040 |
| 61212 | Roof left outer longitudinal beam | 61212-32030 · 61212-32040 |
| 61231 | Inner longitudinal beam on the right side of the roof | 61231-32140 · 61231-32160 · 61231-32170 |
| 61232 | Roof left inner longitudinal beam | 61232-32140 · 61232-32160 · 61232-32170 |
| 61261 | Drainage channel on the right side of the roof | 61261-32030 · 61261-32040 |
| 61262 | Drainage channel on the left side of the roof | 61262-32030 · 61262-32040 |
| 61281 | Sliding skylight frame No. 1 mounting bracket | 61281-32030 · 61281-32040 |
| 61283 | Sliding sunroof frame No. 3 right mounting bracket | 61283-32030 · 61283-32040 |
| 61284 | Sliding sunroof frame No. 3 left mounting bracket | 61284-32030 · 61284-32040 |
| 61301B | Right body outer center pillar | 61301-32900 |
| 61302B | Left body outer center pillar | 61302-32900 |
| 61315 | Door latch plate fixing parts | 61315-22020 |
| 61331C | Right outer center pillar reinforcement | 61331-32010 |
| 61332C | Reinforcement member on the left outer center pillar | 61332-32010 |
| 61343 | Right inner middle pillar | 61341-32040 |
| 61343A | Right body inner center pillar | 61343-32902 |
| 61344 | Left side inner center pillar | 61342-32040 |
| 61344A | Left body inner center pillar | 61344-32902 |
| 61411 | Right door outer sill panel | 61401-32050 |
| 61412 | Left door outer sill panel | 61402-32050 |
| 61611 | Right side hoarding | 61601-32906 · 61601-32907 · 61601-32910 · 61601-32911 · 61601-32913 |
| 61612 | left side panel | 61602-32907 · 61602-32908 · 61602-32909 · 61602-32910 · 61602-32912 · 61602-32913 · 61602-32915 · 61602-32917 · 61602-32920 · 61602-32921 |
| 61613B | Right front side panel inner panel | 61613-32900 |
| 61614B | Left front side panel inner panel | 61614-32900 |
| 61621B | Back door right front opening slot | 61621-32900 |
| 61621C | Luggage right opening slot | 61621-32030 |
| 61622B | Back door left front opening slot | 61622-32900 |
| 61622C | Luggage trunk left opening slot | 61622-32030 |
| 61623D | Right front side panel extension | 61623-32020 |
| 61624D | Left front side panel extension | 61624-32020 |
| 61631A | Right wheel cover outer panel | 61631-32030 · 61631-32050 · 61631-32900 · 61631-32901 |
| 61632A | Left side wheel cover outer panel | 61632-32030 · 61632-32050 · 61632-32900 · 61632-32901 |
| 61633A | Right wheel housing lining panel | 61603-32902 · 61603-32903 · 61603-32906 · 61603-32908 |
| 61634A | Left side wheel housing lining panel | 61604-32902 · 61604-32903 · 61604-32906 · 61604-32908 |
| 61635A | Right wheel cover bracket | 61635-32010 |
| 61636A | Left side wheel cover bracket | 61636-32010 |
| 61645B | Right rear side wheel housing corner panel | 61645-32030 · 61645-32040 |
| 61646B | Left rear side wheel housing corner panel | 61646-32020 · 61646-32030 |
| 61711 | Roof right side outer panel | 61711-32900 · 61711-32901 |
| 61712 | Roof left outer panel | 61712-32900 · 61712-32901 |
| 61717A | Right side panel extension reinforcement | 61717-32010 |
| 61718A | Left side bulkhead extension reinforcement | 61718-32010 |
| 61723A | No. 1 right corner window opening fixing piece | 61723-32010 |
| 61724A | No. 1 left corner window opening fixing piece | 61724-32010 |
| 61731B | Roof right inner panel | 61731-32030 · 61731-32040 · 61731-32901 |
| 61732B | Roof left inner panel | 61732-32030 · 61732-32040 · 61732-32901 |
| 61735A | Right rear roof inner panel | 61735-32030 · 61735-32901 |
| 61736A | Left rear roof inner panel | 61736-32030 · 61736-32901 |
| 61741A | Rear door opening upper right reinforcement | 61741-32040 · 61741-32900 |
| 61742A | Rear door opening upper left reinforcement | 61742-32030 · 61742-32900 |
| 61815B | Right inner upper cover of the roof | 61815-32020 |
| 61816B | Roof left inner upper cover | 61815-32020 |
| 61818 | Inner roof cover | 61817-32020 |
| 61824 | Noise Control Panel No. 1 | 61824-12010 |
| 61826A | Noise Control Panel No. 3 | 61826-32010 · 62939-23010 |
| 62939A | Side ventilation silencers | 62939-23010 |
| 63344 | No. 4 roof silencer mat | 63341-32020 |
| 64312 | Glove box right bracket | 64312-32900 |
| 64313 | Glove box left bracket | 64313-32900 |
| 67812A | Side panel sound absorbing pads | 67812-12010 |
