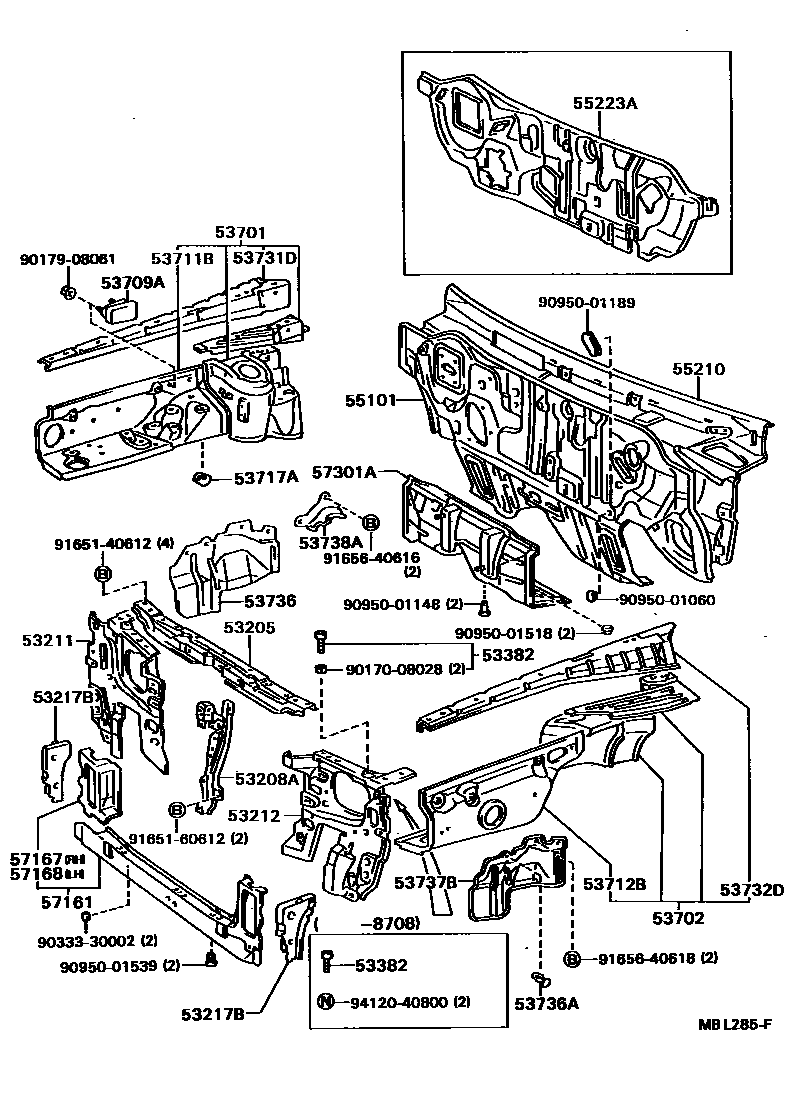

Toyota CAMRY 前翼子板挡泥板和前围板 — Figure 5304
Toyota CAMRY EPC diagram 5304, 前翼子板挡泥板和前围板, with 1 images and 25 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53205 | Radiator upper bracket sub-assembly | 53205-32010 |
| 53208A | Engine cover lock bracket sub-assembly | 53208-32050 |
| 53211 | Radiator right side support | 53211-32900 |
| 53212 | Radiator left support | 53212-32900 |
| 53217B | Radiator bracket to cross member bracket | 53217-32030 · 53218-32030 |
| 53382 | Engine cover front buffer block | 53382-12040 · 53382-32020 |
| 53701 | Right front fender fender sub-assembly | 53701-32909 · 53701-32910 · 53701-32911 · 53701-32912 |
| 53702 | Left front fender fender sub-assembly | 53702-32908 · 53702-32910 |
| 53709A | Front fender fender airflow adjuster sub-assembly | 53709-32020 |
| 53711B | Right front fender front fender | 53711-32030 · 53711-32070 · 53711-32071 · 53711-32080 |
| 53712B | Left front fender front fender | 53712-32030 |
| 53717A | fender fender | 53717-32010 |
| 53731D | Right front fender to cowl side upper beam | 53731-32020 |
| 53732D | Left front fender to cowl side upper beam | 53732-32020 |
| 53736 | Right front fender fender seal | 53736-32020 |
| 53736A | Clip (for front fender fender seal) | 90467-09063 |
| 53737B | Left front fender fender seal | 53737-32020 |
| 53738A | Right front fender fender rear seal | 53738-32020 |
| 55101 | Front apron sub-assembly | 55101-32110 · 55101-32111 · 55101-32140 · 55101-32150 · 55101-32170 · 55101-32180 · 55101-32190 · 55101-32191 |
| 55210 | Front wall insulation pad assembly | 55210-32030 · 55210-32040 |
| 55223A | Front wall outer heat insulation pad | 55223-32030 · 55223-32040 |
| 57161 | front cross member | 57104-32901 · 57104-32903 |
| 57167 | Front cross member upper right corner panel | 57167-32030 |
| 57168 | Front cross member upper left corner panel | 57168-32030 |
| 57301A | Steering housing support beam sub-assembly | 57301-32040 · 57301-32050 · 57301-32060 · 57301-32070 |
