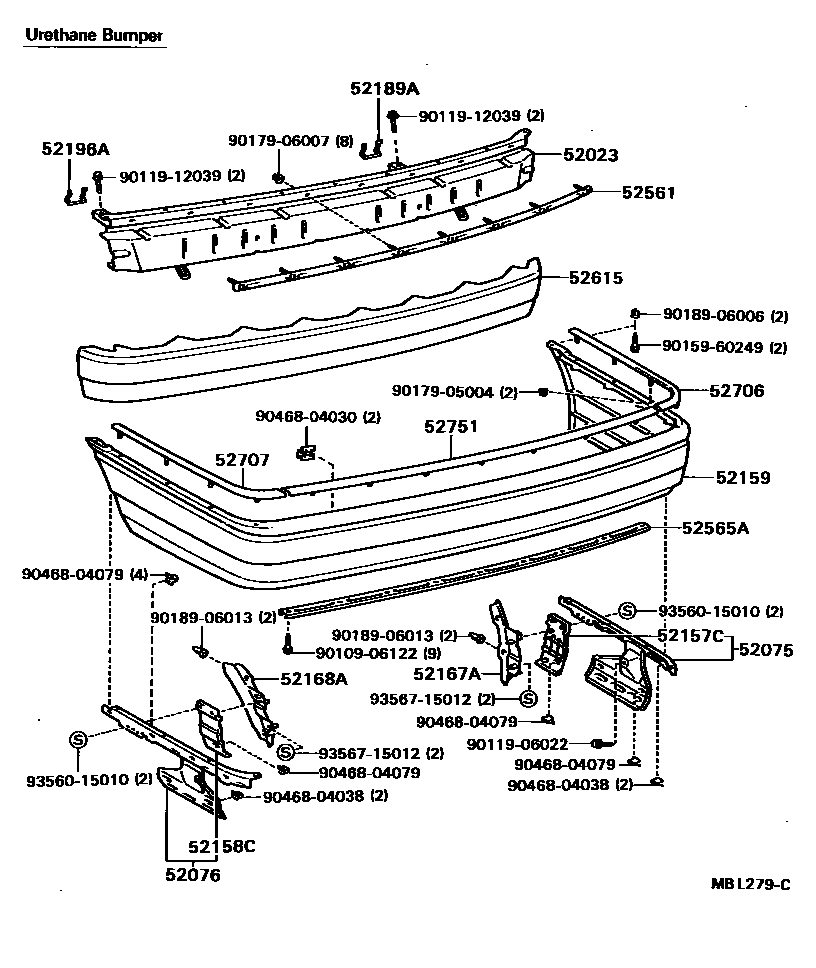

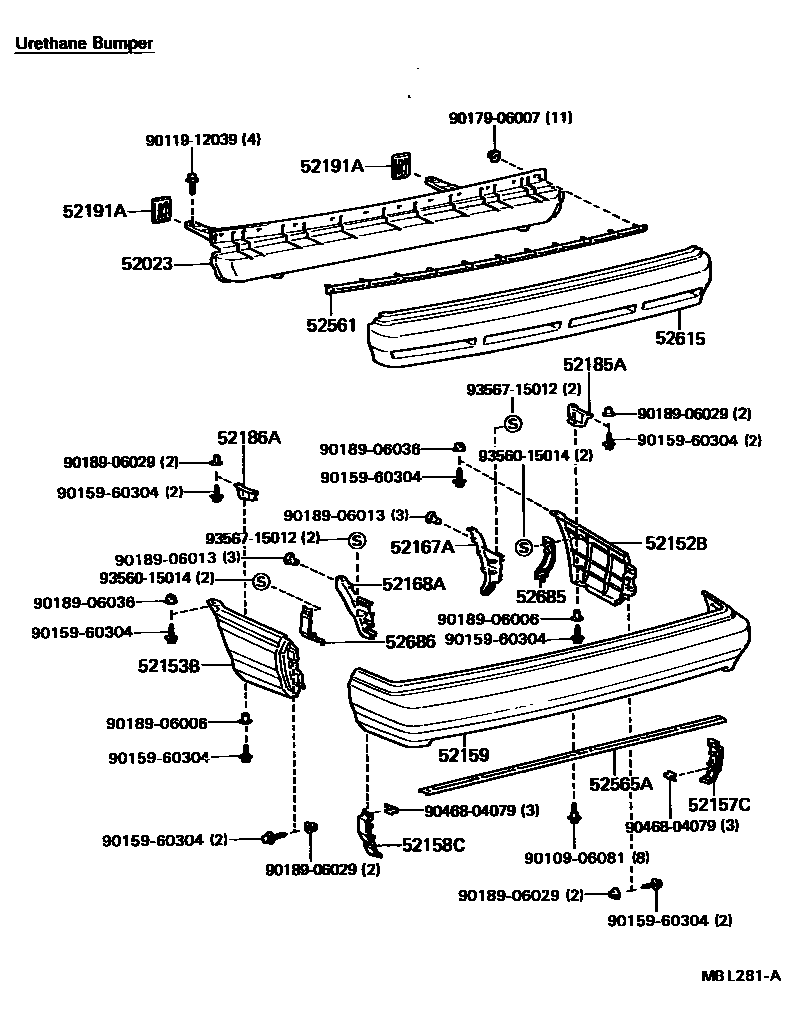

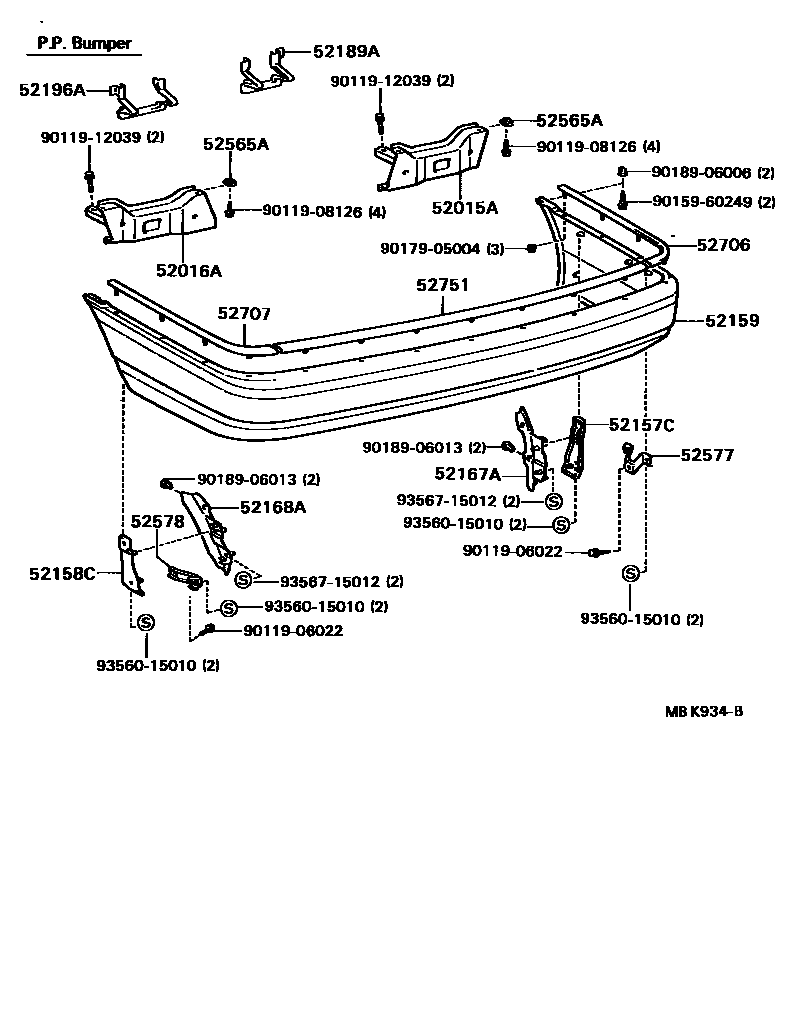

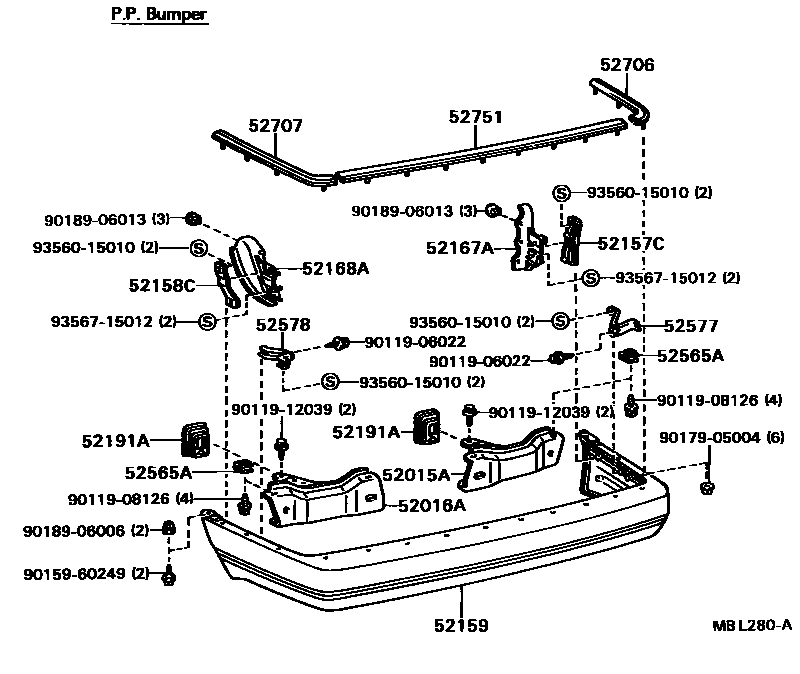

Toyota CAMRY 后保险杠及附件 — Figure 5202
Toyota CAMRY EPC diagram 5202, 后保险杠及附件, with 4 images and 27 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52015A | Rear bumper right arm sub-assembly | 52015-32070 · 52015-32090 · 52015-32110 |
| 52016A | Rear bumper left arm sub-assembly | 52016-32010 · 52016-32020 · 52016-32030 |
| 52023 | Rear bumper reinforcement sub-assembly | 52023-32070 · 52023-32090 · 52023-32110 |
| 52075 | Rear bumper right side fixing part sub-assembly | 52075-32010 |
| 52076 | Rear bumper left side fixing part sub-assembly | 52076-32010 |
| 52152B | Rear bumper right extension | 52152-32080 |
| 52153B | Rear bumper left extension | 52153-32080 |
| 52157C | Rear bumper No. 2 right side bracket | 52157-32040 · 52157-32050 · 52157-32060 · 52157-32070 |
| 52158C | Rear bumper No. 2 left side bracket | 52158-32020 · 52158-32030 · 52158-32040 · 52158-32050 |
| 52159 | rear bumper cover | 52159-32170 · 52159-32200 · 52159-32909 · 52159-32910 |
| 52167A | Rear bumper No. 4 right side bracket | 52167-32020 · 52167-32030 · 52167-32040 |
| 52168A | Rear bumper No. 4 left side bracket | 52168-32020 · 52168-32030 · 52168-32040 |
| 52185A | Rear bumper right side bracket | 52185-32010 |
| 52186A | Rear bumper left bracket | 52186-32010 |
| 52189A | Rear bumper right arm edge guard | 52189-32010 |
| 52191A | Rear bumper arm seal | 52191-32010 · 52191-32020 |
| 52196A | Rear bumper left arm edge guard | 52196-32010 |
| 52561 | Rear bumper upper center fixing bracket | 52561-32010 · 52561-32030 |
| 52565A | Rear bumper lower fixing bracket | 52565-12040 · 52565-32030 · 52565-32040 |
| 52577 | Rear bumper No. 2 right side fixing bracket | 52577-32040 |
| 52578 | Rear bumper No. 2 left side fixing bracket | 52578-32040 |
| 52615 | Rear bumper energy absorber | 52615-32060 · 52615-32070 |
| 52685 | Rear bumper No. 3 right side bracket | 52685-32020 |
| 52686 | Rear bumper No. 3 left bracket | 52686-32020 |
| 52706 | Rear bumper right side protective strip sub-assembly | 52706-32030 · 52706-32040 |
| 52707 | Rear bumper left protection strip sub-assembly | 52707-32030 · 52707-32040 |
| 52751 | Rear bumper protection strip | 52751-32030 · 52751-32040 |
