Toyota CAMRY Rear Spring & Shock Absorber — Figure 4804

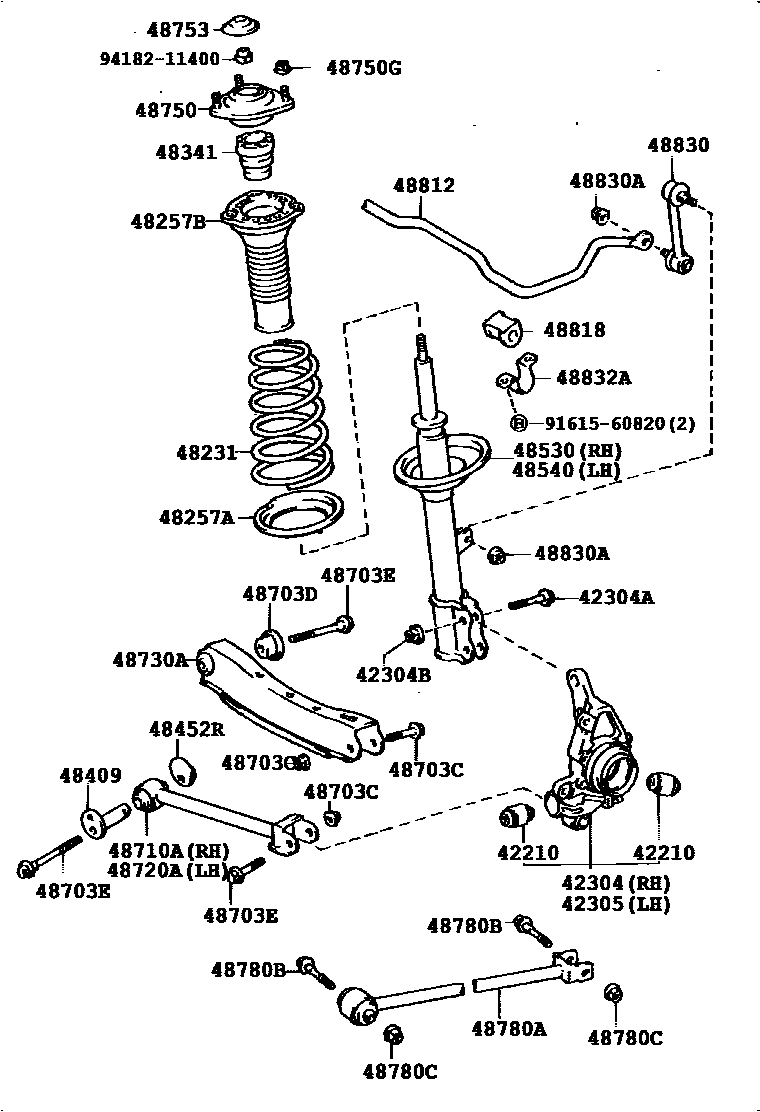

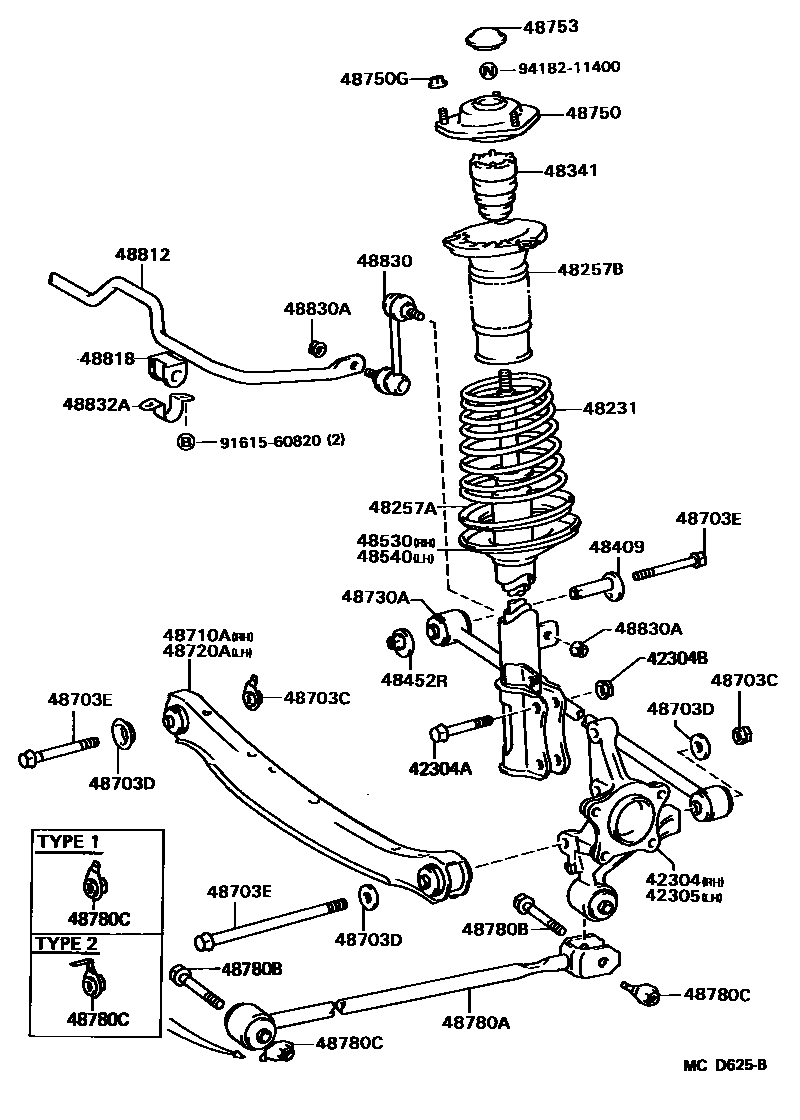

Toyota CAMRY EPC diagram 4804, Rear Spring & Shock Absorber, with 2 images and 30 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 42210 | Lower steel ball bushing assembly | 42210-14010 |
| 42304 | Rear axle right bracket sub-assembly | 42304-32020 · 42304-32030 · 42304-32040 · 42304-32050 |
| 42304A | Bolts (for rear axle bracket) | 90105-15001 |
| 42304B | Nut (for rear axle bracket) | 90179-15001 |
| 42305 | Rear axle left bracket sub-assembly | 42305-32020 · 42305-32030 · 42305-32040 · 42305-32050 |
| 48231 | rear coil spring | 48231-32320 · 48231-32330 · 48231-32350 · 48231-32500 · 48231-32580 |
| 48257A | Rear coil spring lower vibration isolation pad | 48258-32010 |
| 48257B | Rear coil spring upper vibration isolation pad | 48257-32030 |
| 48341 | Rear spring buffer block | 48341-20100 · 48341-32030 |
| 48409 | Rear suspension toe adjustment cam sub-assembly | 48409-20030 · 48409-32020 |
| 48452R | No. 2 rear suspension toe adjustment piece | 48452-20010 · 48452-32020 |
| 48530 | Right rear shock absorber assembly | 48530-32080 · 48530-32120 · 48530-32150 · 48530-32190 |
| 48540 | Left rear shock absorber assembly | 48540-32080 · 48540-32120 · 48540-32150 · 48540-32190 |
| 48703C | Nut (for rear suspension arm) | 90170-14006 · 90179-12063 · 90179-14019 |
| 48703D | Washers (for rear suspension arms) | 90201-14017 · 90209-13005 · 90209-13008 |
| 48703E | Bolts (for rear suspension arms) | 90105-12132 · 90105-12147 · 90105-12159 · 90105-14036 · 90119-12083 · 90119-12126 · 90119-14024 |
| 48710A | Right rear suspension No. 1 arm assembly | 48710-20060 · 48710-20070 |
| 48720A | Left rear suspension No. 1 arm assembly | 48710-20070 · 48720-20050 |
| 48730A | Rear suspension No. 2 arm assembly | 48730-20020 · 48730-32020 · 48730-32030 |
| 48750 | Rear suspension support assembly | 48750-20040 · 48750-32040 |
| 48750G | Nut (for rear suspension mount) | 90179-08111 · 90179-08122 |
| 48753 | Rear suspension mount cover | 48753-16010 |
| 48780A | Rear support rod assembly | 48780-20030 · 48780-32020 |
| 48780B | Bolts (for support rods) | 90105-12082 · 90119-12131 |
| 48780C | Nut (for support rod) | 90179-12062 · 90179-12063 · 90179-12065 |
| 48812 | rear stabilizer bar | 48812-32170 · 48812-32210 |
| 48818 | Rear stabilizer bar bushing | 48818-20070 · 48818-20110 |
| 48830 | Rear stabilizer link assembly | 48830-20010 · 48830-32020 |
| 48830A | Nut (for rear stabilizer link) | 90179-10054 |
| 48832A | Rear stabilizer bar No. 1 bracket | 48832-20020 · 48832-20030 · 48832-32020 |
