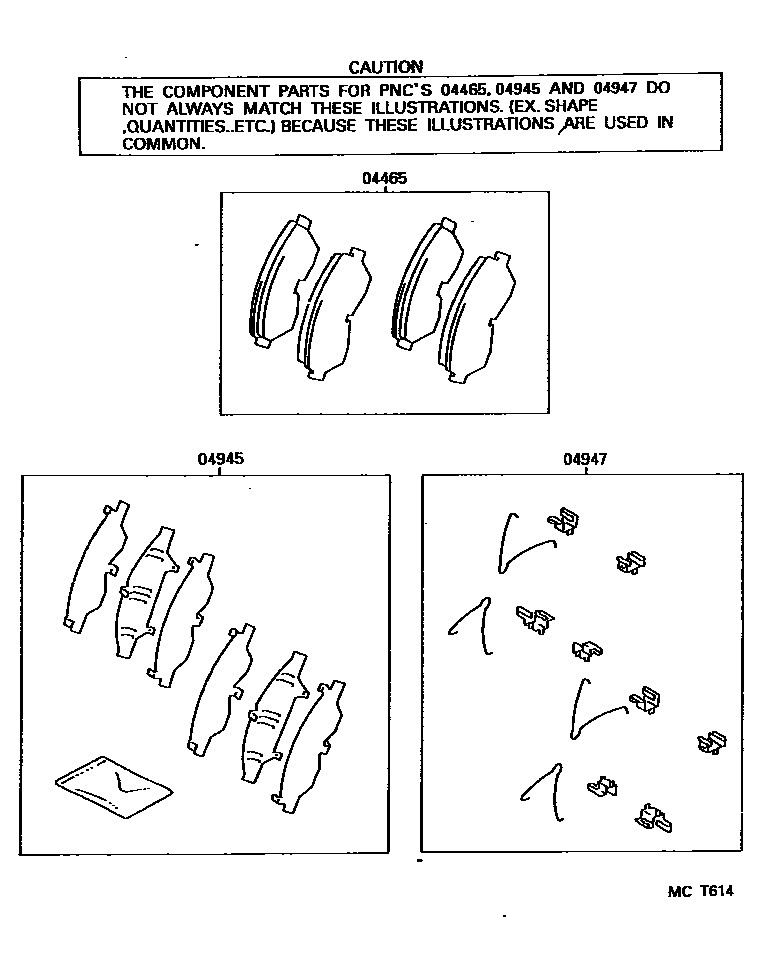

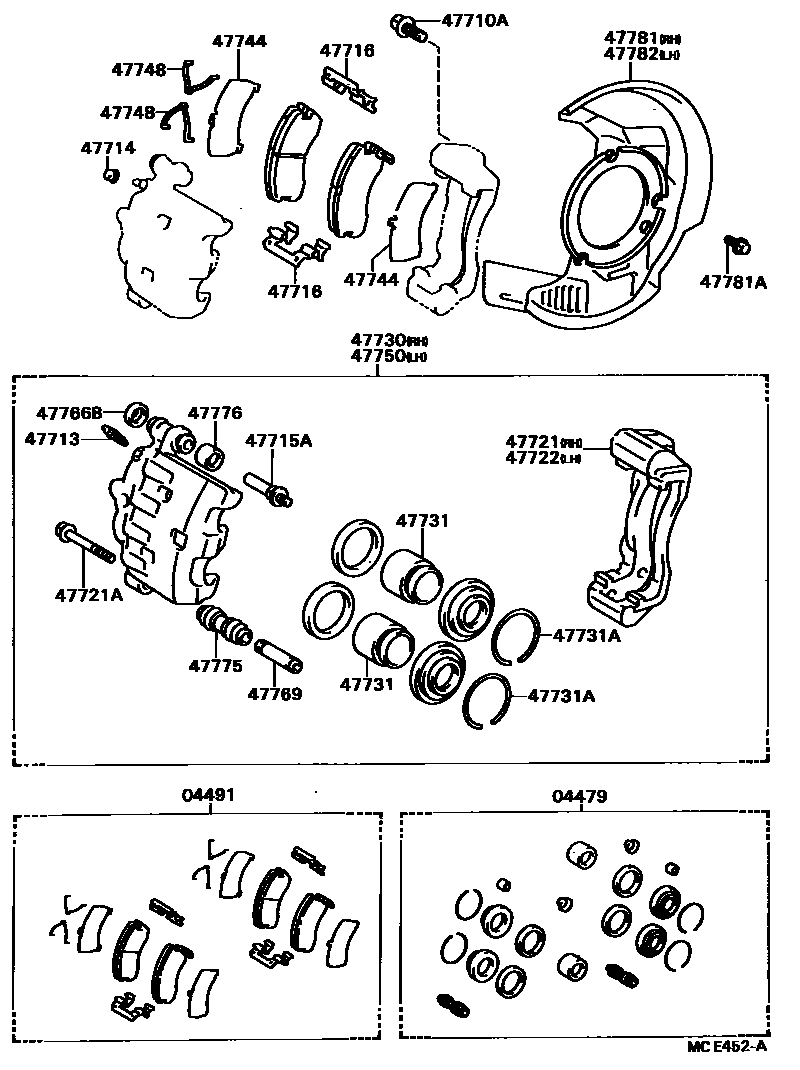

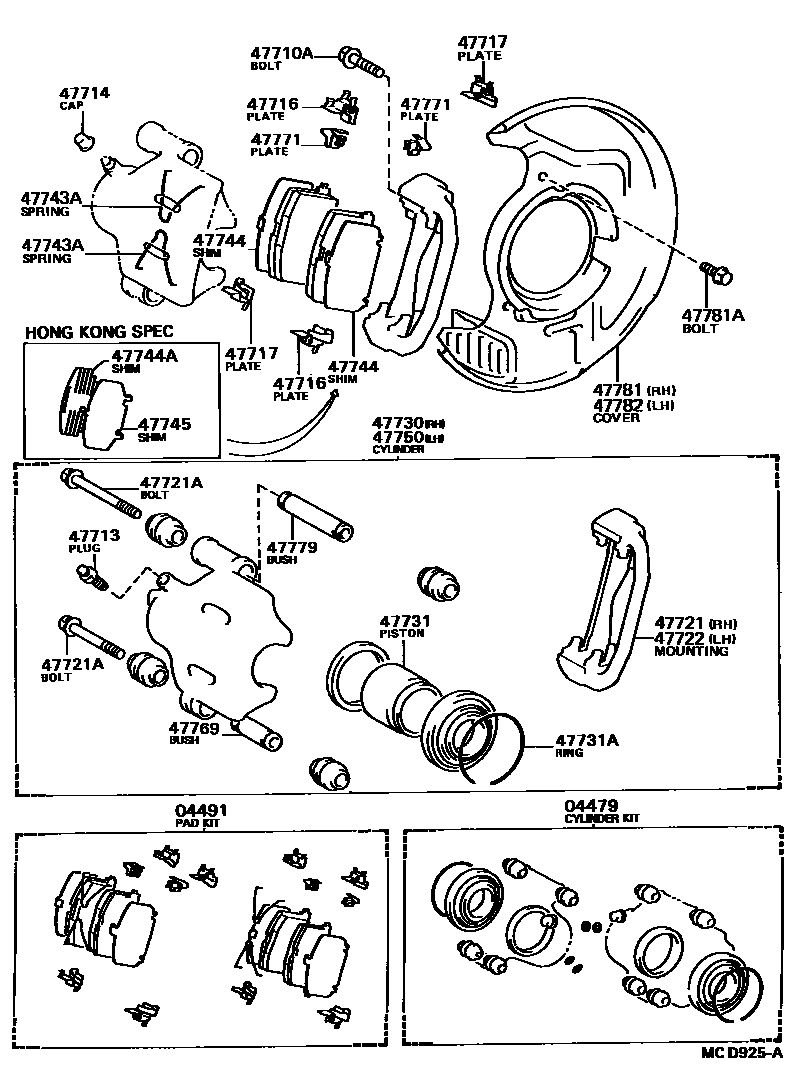

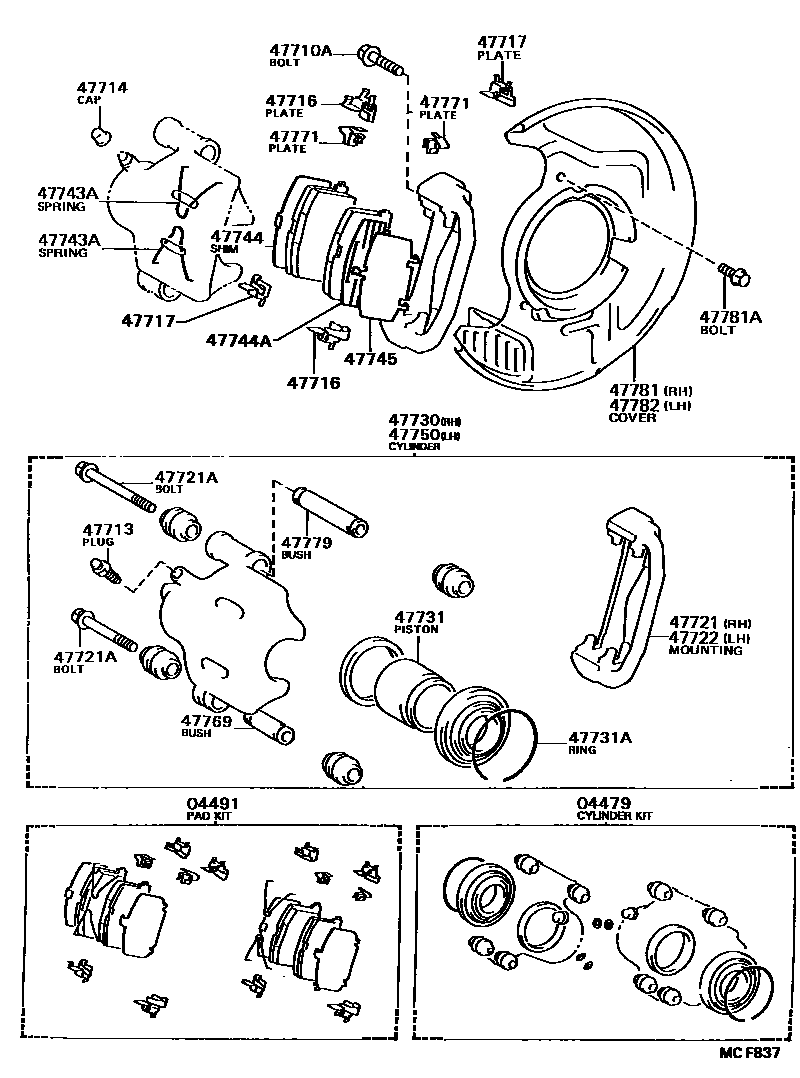

Toyota CAMRY 前盘式制动器卡钳和防尘罩 — Figure 4705
Toyota CAMRY EPC diagram 4705, 前盘式制动器卡钳和防尘罩, with 4 images and 32 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04465 | Front disc brake pad assembly | 04465-20150 · 04465-20270 · 04465-30080 · 04465-32150 |
| 04479 | Front disc brake cylinder assembly | 04479-20110 · 04479-32030 |
| 04491 | Front disc brake pad assembly | 04491-20380 · 04491-20390 · 04491-32131 · 04491-32150 · 04491-32151 · 04491-32240 |
| 04945 | Front silencer gasket assembly | 04945-20130 · 04945-32140 · 04945-32180 · 04945-32190 · 04945-50020 |
| 04947 | Front disc brake mounting kit | 04947-20050 · 04947-32130 · 04947-32140 · 04947-50010 |
| 47710A | Hexagonal bolt (for front disc brake caliper) | 90105-12131 · 90119-12040 |
| 47713 | Bleed plug (for front disc brake) | 47547-20010 |
| 47714 | Bleeder plug cap (for front disc brake) | 31478-30010 |
| 47715A | Front disc brake cylinder sliding pin | 47715-20020 |
| 47716 | Pad support plate No. 1 (for front disc brake) | 47716-20080 · 47716-32040 |
| 47717 | Pad support plate No. 2 (for front disc brake) | 47717-32040 |
| 47721 | Right front disc brake cylinder retainer | 47721-20140 · 47721-20160 · 47721-32060 |
| 47721A | Bolt (for front disc brake cylinder retainer) | 90119-10014 · 90119-10249 · 90119-10385 · 90119-10403 |
| 47722 | Left front disc brake cylinder retainer | 47721-20140 · 47721-20160 · 47721-32060 |
| 47730 | Right front disc brake cylinder assembly | 47730-20240 · 47730-20270 · 47730-32070 |
| 47731 | Front disc brake piston | 47731-30070 · 47731-32040 |
| 47731A | retaining ring (for front disc brake piston) | 90522-49001 · 90522-66001 |
| 47743A | Silencer spring (for front disc brake) | 47743-32020 · 47743-32030 |
| 47744 | No. 1 silencer gasket (for front disc brake) | 47744-20080 · 47744-32040 · 47744-32041 |
| 47744A | No. 3 silencer gasket (for front disc brake) | 47742-32020 · 47742-32021 |
| 47745 | No. 2 silencer gasket (for front disc brake) | 47745-32020 |
| 47748 | Anti-vibration spring No. 1 (for front disc brake) | 47748-20020 |
| 47750 | Left disc brake cylinder assembly | 47750-20230 · 47750-20270 · 47750-32070 |
| 47766B | Brake cylinder sliding pin cover | 47766-17010 |
| 47769 | No. 1 brake cylinder sliding sleeve (for front disc brake) | 47769-28020 · 47769-40010 |
| 47771 | No. 1 pad wear indicator plate | 47771-12050 · 47771-32010 |
| 47775 | Bushing boot (for front disc brake) | 47775-28020 |
| 47776 | Kingpin dust boot (for front disc brake) | 47776-20020 |
| 47779 | No. 2 brake cylinder sliding sleeve (for front disc brake) | 47779-40010 |
| 47781 | Right front disc brake dust cover | 47703-20040 · 47703-32010 · 47703-32011 · 47703-32020 · 47703-32030 |
| 47781A | Bolt (used to secure dust cover to knuckle arm) | 90119-06227 |
| 47782 | Left front disc brake dust cover | 47704-20040 · 47704-32010 · 47704-32011 · 47704-32020 · 47704-32030 |
