Toyota CAMRY Brake Pedal & Bracket — Figure 4701

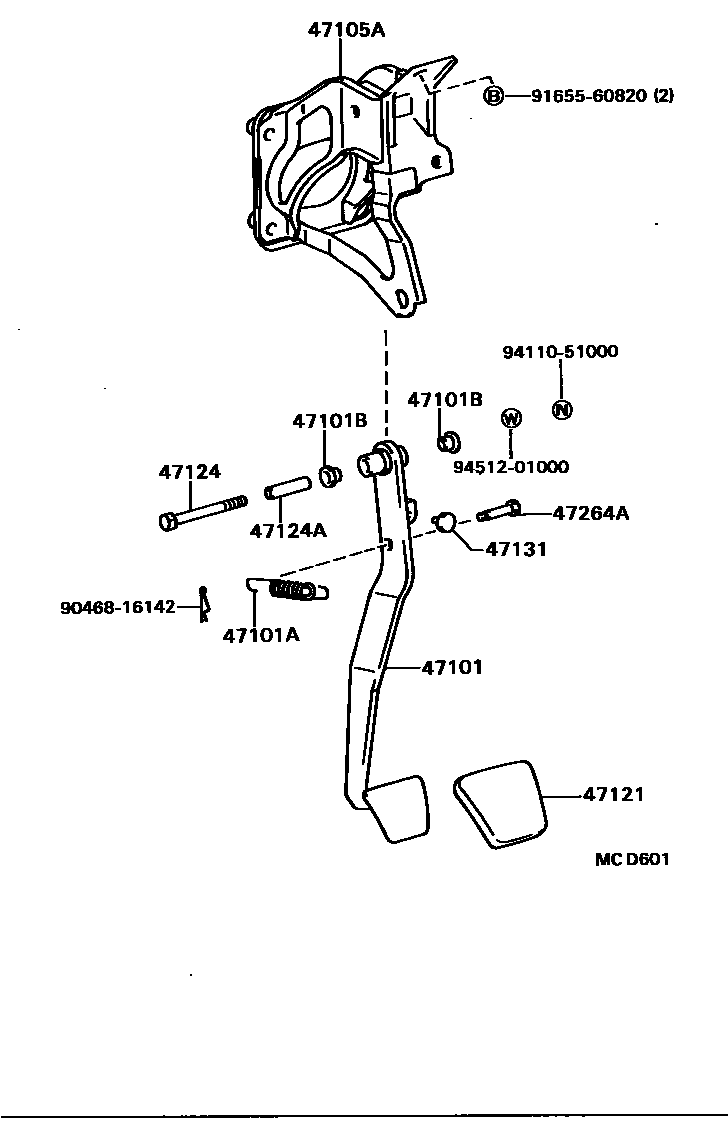

Toyota CAMRY EPC diagram 4701, Brake Pedal & Bracket, with 1 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 47101 | Brake pedal sub-assembly | 47101-32090 · 47101-32091 · 47101-32100 · 47101-32101 · 47101-32110 · 47101-32120 |
| 47101A | Spring (for brake pedal return) | 90507-14024 |
| 47101B | Bushing (for brake pedal) | 90386-13015 |
| 47105A | Brake pedal bracket sub-assembly | 55106-32030 · 55106-32040 |
| 47121 | brake pedal pad | 31321-14020 · 47121-14010 |
| 47124 | brake pedal shaft | 90101-10039 |
| 47124A | Collar (for brake pedal shaft) | 90387-10003 |
| 47131 | Bump pad (for brake light switch) | 90541-06032 |
| 47264A | Pin (for push rod) | 90249-08051 |
