Toyota CAMRY Steering Column & Shaft — Figure 4501

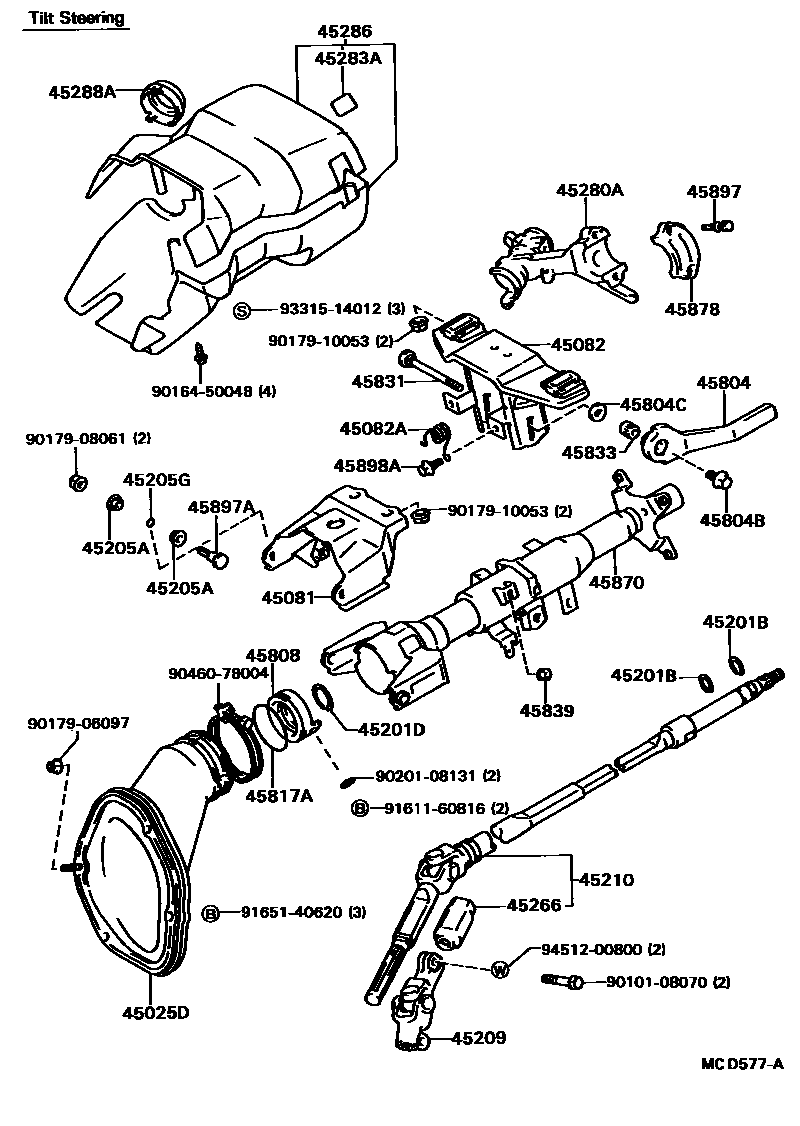

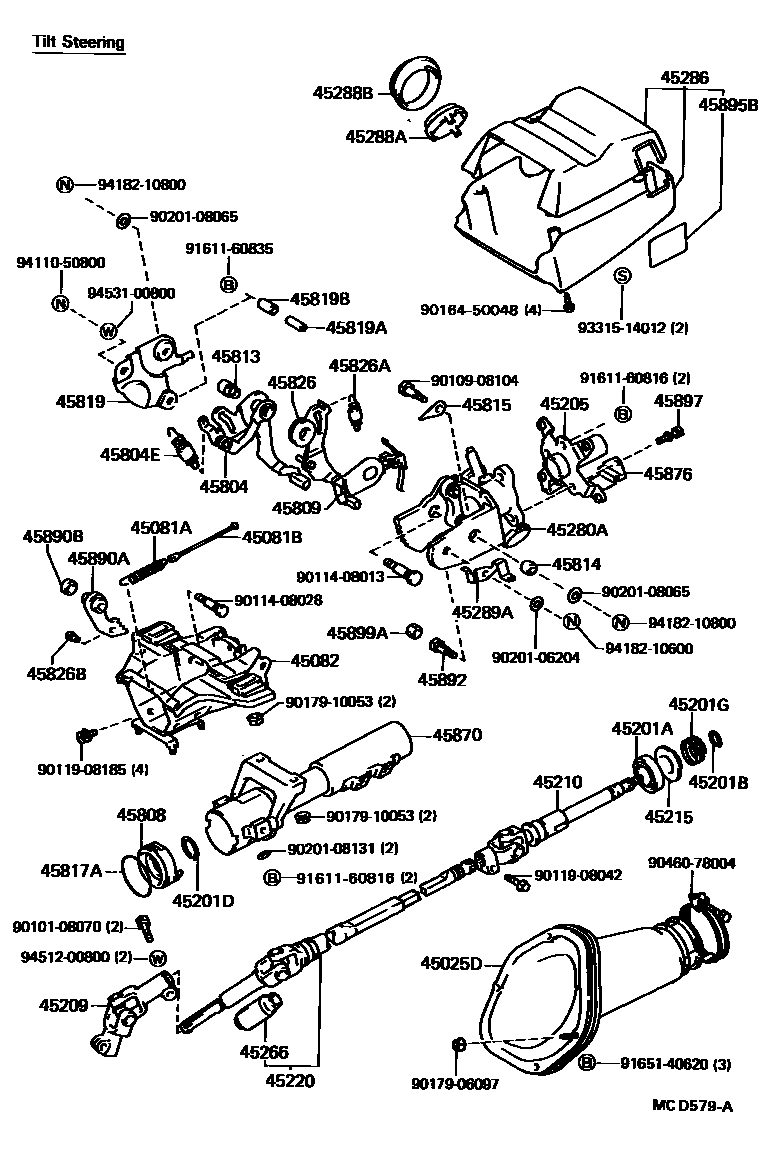

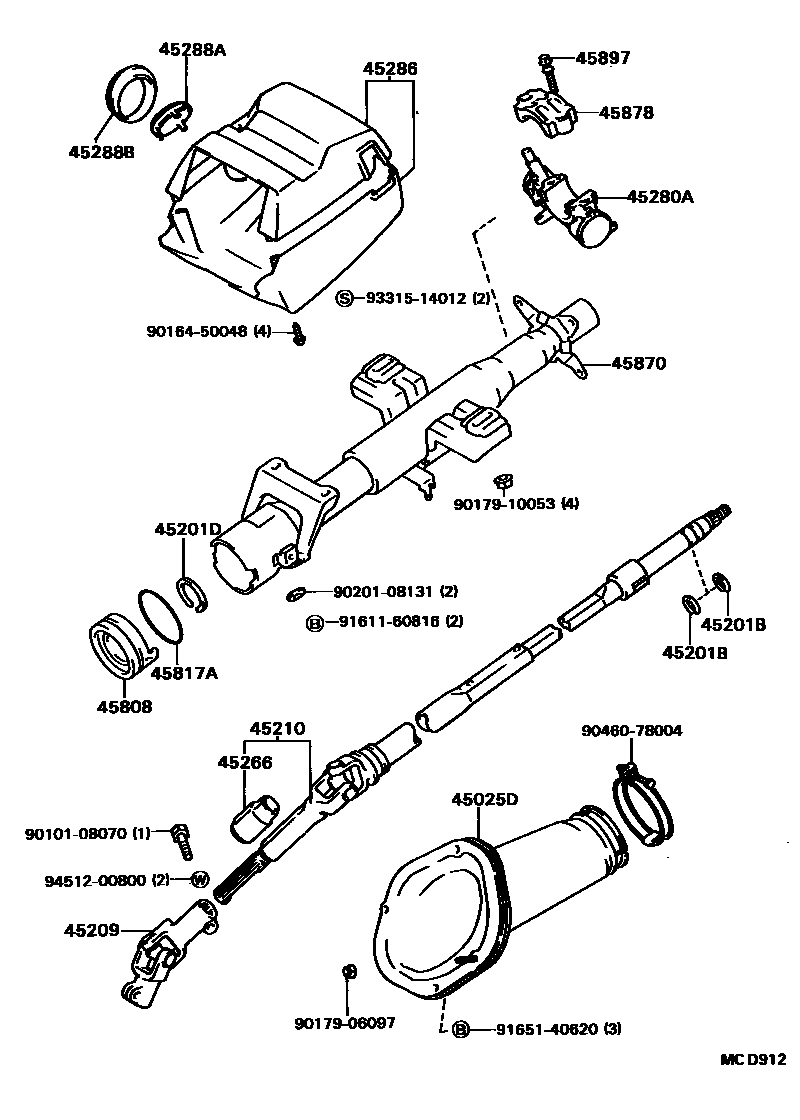

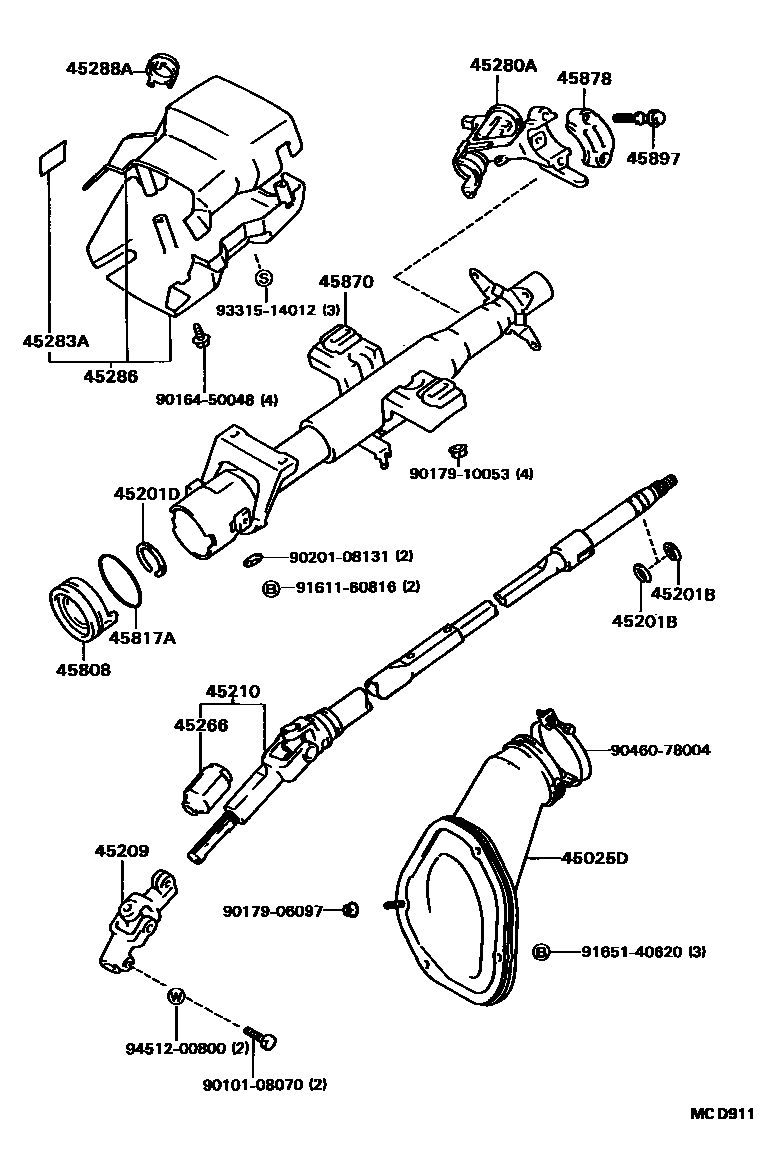

Toyota CAMRY EPC diagram 4501, Steering Column & Shaft, with 4 images and 52 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 45025D | No. 1 steering column hole cover sub-assembly | 45025-32050 · 45025-32060 · 45025-32080 |
| 45081 | Tilt-adjustable steering bracket sub-assembly | 45081-32070 |
| 45081A | Tension spring (for tilt-adjustable steering column) | 90506-26016 |
| 45081B | Wire (for tilt-adjustable steering column) | 90945-02052 · 90945-02078 |
| 45082 | Separate bracket sub-assembly with enclosure | 45082-32020 · 45082-32040 |
| 45082A | Torsion spring (for tilt-adjustable steering column return) | 90508-29015 |
| 45201A | Bearings (for steering spindle) | 90363-28001 |
| 45201B | Shaft snap ring (for steering spindle) | 90520-17042 · 90520-17196 |
| 45201D | Ring (for steering spindle) | 90520-28061 · 96152-00300 |
| 45201G | Compression spring (for steering spindle) | 90501-45011 |
| 45205 | Steering column tube sub-assembly | 45205-32080 |
| 45205A | Bushing (for steering column tube) | 90389-11005 |
| 45205G | O-ring (for steering column tube) | 90301-11005 |
| 45209 | Steering slip fork sub-assembly | 45209-32010 · 45209-32020 |
| 45210 | Steering spindle assembly | 45210-32110 · 45210-32120 · 45210-32130 · 45210-32140 |
| 45215 | Spindle bearing thrust collar | 45215-22011 |
| 45220 | Steering intermediate shaft assembly | 45220-32050 · 45220-32060 |
| 45266 | Steering intermediate shaft dust cover | 45266-20010 |
| 45280A | Steering column upper bracket assembly | 45280-20280 · 45280-32100 · 45280-32110 |
| 45283A | Beam change and turn signal warning plate | 45283-22010 |
| 45288A | Steering column cover spacer | 45288-30010 · 45288-32040 |
| 45289A | Steering column cover bracket | 45289-32020 |
| 45804 | Steering tilt adjustment lever sub-assembly | 45804-20010 · 45804-32020 |
| 45804B | Bolt (for steering tilt adjustment lever) | 90105-08060 |
| 45804C | Flat washer (for steering tilt adjustment lever) | 90201-08029 |
| 45804E | Tension spring (for steering tilt adjustment lever) | 90506-13001 |
| 45808 | Steering shaft thrust stop sub-assembly | 45808-32010 |
| 45809 | Regulator memory cover sub-assembly | 45809-32010 |
| 45813 | No. 1 tilt-adjustable steering bracket collar | 45813-30010 · 45813-30011 · 45813-30020 · 45813-30030 · 45813-30040 · 45813-30050 |
| 45814 | No. 2 tilt-adjustable steering bracket collar | 45814-32010 · 45814-32020 |
| 45815 | Tilt-adjustable steering rack spacer | 45815-22060 · 45815-22070 · 45815-22080 · 45815-22090 · 45815-22100 |
| 45817A | O-ring (for steering shaft thrust stop) | 90301-54002 |
| 45819 | Tilt adjustment lever retaining ring | 45819-32010 |
| 45819A | Collar (for tilt adjustment lever retaining ring) | 90387-08046 |
| 45819B | Cushion pad (for tilt adjustment lever retaining ring) | 90540-11007 |
| 45826 | Steering tilt adjustment lever | 45826-32030 |
| 45826A | Tension spring (for steering tilt adjustment lever) | 90507-10011 |
| 45826B | Pin (for steering tilt adjustment lever) | 72538-12010 |
| 45831 | No. 1 tilt adjustment lever locking bolt | 45831-20010 |
| 45833 | Tilt-adjustable steering column adjustment nut No. 1 | 45833-20010 |
| 45839 | return spring seal | 45839-20010 |
| 45870 | Steering column tube assembly | 45870-32020 · 45870-32070 · 45870-32080 · 45870-32110 |
| 45876 | turn signal wire conduit | 45876-32020 |
| 45878 | Steering column upper bracket | 45878-32030 · 45878-32040 |
| 45890A | Tilt-adjustable steering pawl assembly | 45890-32010 |
| 45890B | Spacer (for tilt-adjustable steering pawl) | 90560-13008 |
| 45892 | Tilt-adjustable steering bracket limit bolt | 45898-22020 |
| 45895B | Tilt adjustment lever indicator plate | 45895-22060 |
| 45897 | Steering lock fixing bolt | 45897-12020 · 45897-32010 |
| 45897A | Tilt-adjustable steering pawl retaining bolt | 45897-26010 |
| 45898A | return spring fixing bolt | 45898-20020 |
| 45899A | Tilt-adjustable steering rack stop cover | 45899-22020 |
