Toyota CAMRY 速度表从动齿轮(ATM) — Figure 3505

Toyota CAMRY EPC diagram 3505, 速度表从动齿轮(ATM), with 2 images and 10 PNC and OE references.

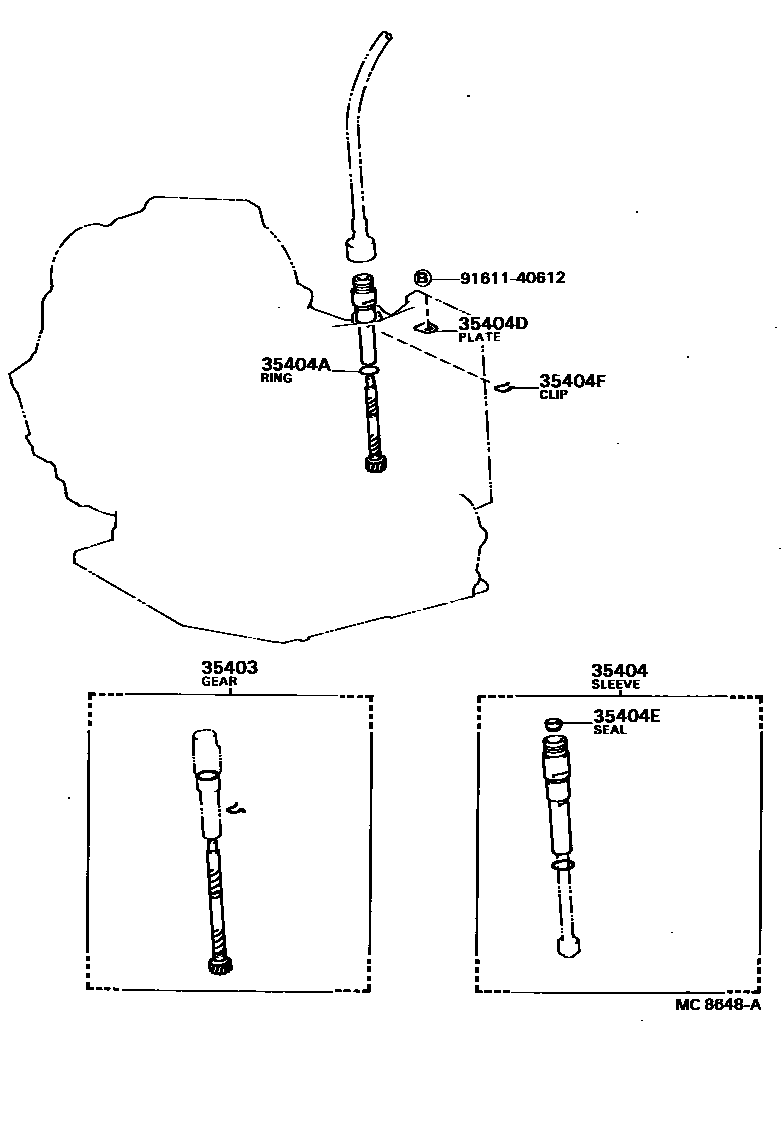

Toyota CAMRY 速度表从动齿轮(ATM) EPC diagram — MC8648A
速度表从动齿轮(ATM) — MC8648A (198610 – 999999)
Toyota CAMRY 速度表从动齿轮(ATM) EPC diagram — MCH571
速度表从动齿轮(ATM) — MCH571 (198802 – 999999)

PNC and OE references

PNCPart nameOE numbers
33403GSpeedometer driven gear sub-assembly (ATM)33403-39225
33404GSpeedometer shaft sleeve sub-assembly (ATM)33404-12030
33404KClamp (for automatic transmission speedometer shaft sleeve)90468-12005
33485ASpeedometer sleeve locking plate (ATM)33485-30020
35403Speedometer driven gear sub-assembly (ATM)33403-39096
35404Speedometer shaft sleeve sub-assembly (ATM)33404-32010
35404AO-ring (for automatic transmission speedometer shaft sleeve)96711-24018 · 96711-24030
35404DSpeedometer sleeve locking plate (ATM)33485-14010
35404EOil seal (for automatic transmission speedometer shaft sleeve)90310-09001
35404FClamp (for automatic transmission speedometer shaft sleeve)90468-12005
