Toyota CAMRY 离合器踏板和挠性软管 — Figure 3102

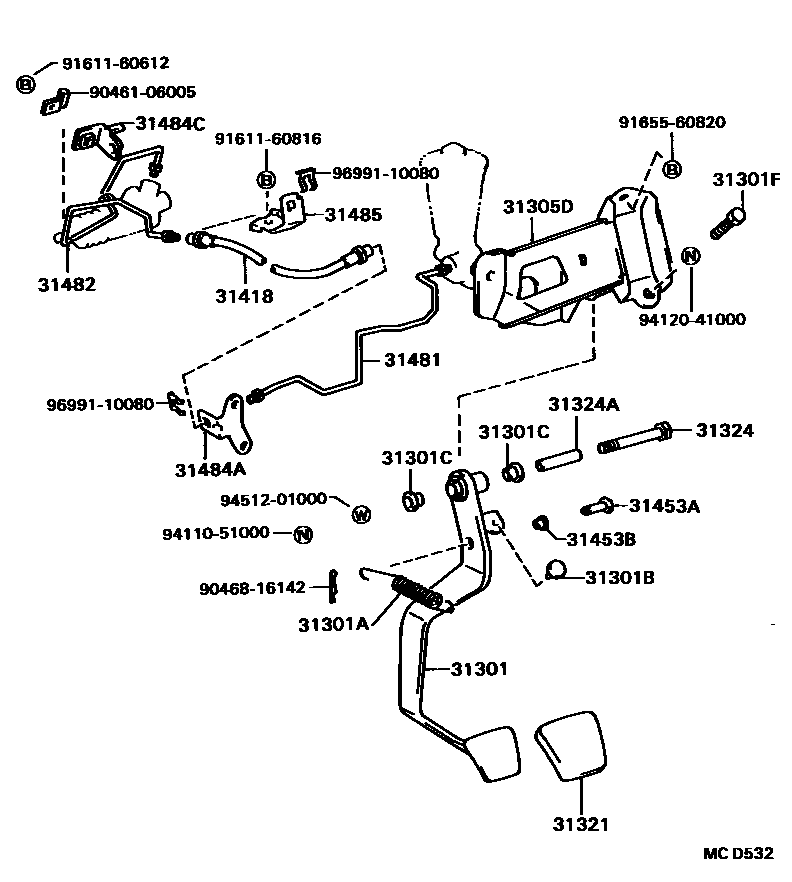

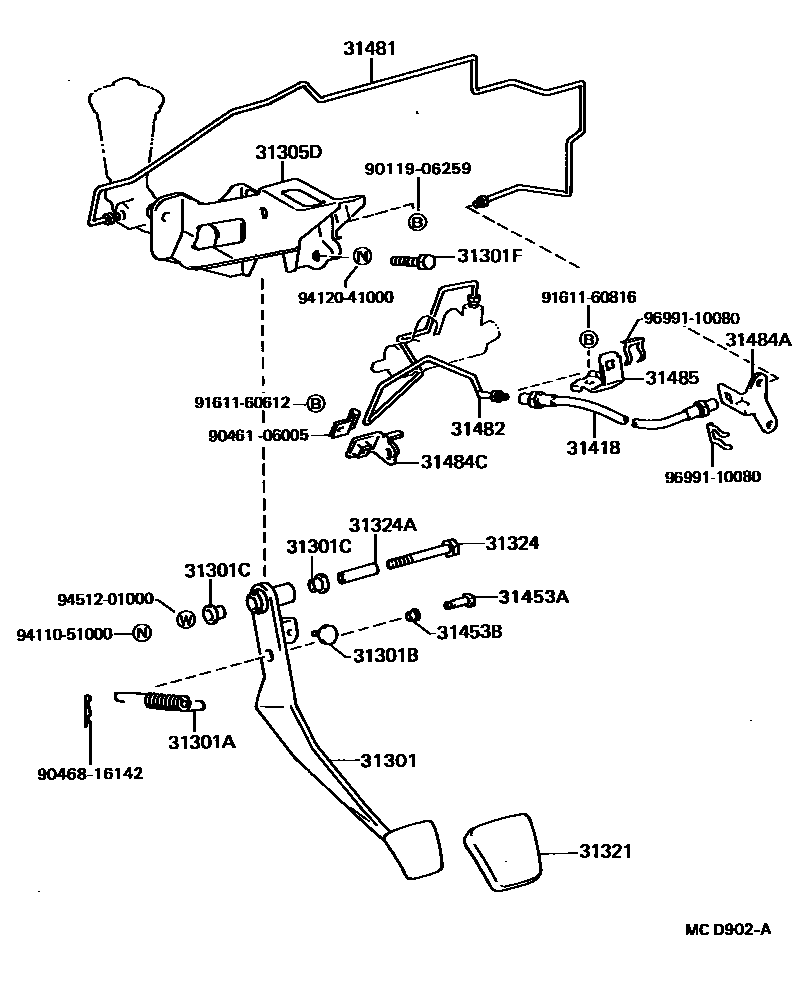

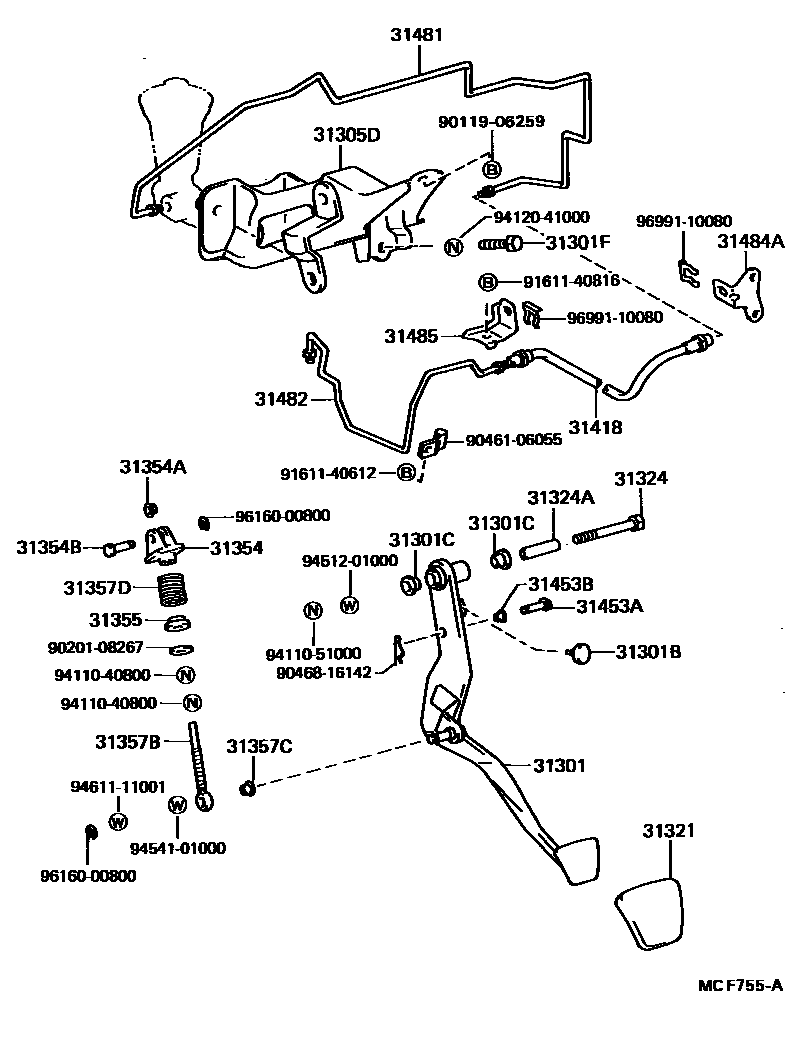

Toyota CAMRY EPC diagram 3102, 离合器踏板和挠性软管, with 3 images and 24 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 31301 | Clutch pedal sub-assembly | 31301-32050 · 31301-32080 · 31301-32081 · 31301-32110 |
| 31301A | Spring (for clutch pedal) | 90507-14024 |
| 31301B | Cushion pad No. 1 (for clutch pedal) | 90541-06008 · 90541-07020 |
| 31301C | Bushing (for clutch pedal) | 90386-13015 |
| 31301F | Bolt (for clutch pedal stop) | 90101-10369 |
| 31305D | Clutch pedal bracket sub-assembly | 55107-32050 · 55107-32070 · 55107-32080 |
| 31321 | clutch pedal pad | 31321-14020 |
| 31324 | clutch pedal shaft | 90101-10039 · 90101-10273 |
| 31324A | clutch pedal collar | 90387-10003 |
| 31354 | Clutch pedal spring upper seat | 31354-12010 |
| 31354A | Bushing (for clutch pedal spring upper seat) | 90386-10019 |
| 31354B | Pin with hole (for clutch pedal spring upper seat) | 90249-10127 |
| 31355 | Clutch pedal spring lower seat | 31355-20020 |
| 31357B | center adjustment lever | 31357-32020 |
| 31357C | Bushing (for center adjustment lever) | 90386-10019 |
| 31357D | Compression spring (for center adjustment lever) | 90501-40015 |
| 31418 | clutch hose | 90931-01035 · 96816-50395 |
| 31453A | Pin with hole (for clutch master cylinder push rod U-shaped clamp) | 90249-08143 |
| 31453B | Bushing (for clutch master cylinder push rod U-shaped clamp) | 90386-08036 |
| 31481 | Clutch master cylinder to flexible hose pipe | 31481-32050 · 31481-32060 · 31481-32061 · 31481-32062 · 31481-32080 · 31481-32082 · 31481-32110 |
| 31482 | Pipe from clutch release cylinder to flexible hose | 31482-32030 · 31482-32040 |
| 31484A | No. 1 flexible hose bracket (for clutch) | 31484-32060 |
| 31484C | No. 1 clutch tube bracket | 31484-20320 · 31484-32050 |
| 31485 | No. 2 flexible hose bracket (for clutch) | 31484-32070 |
