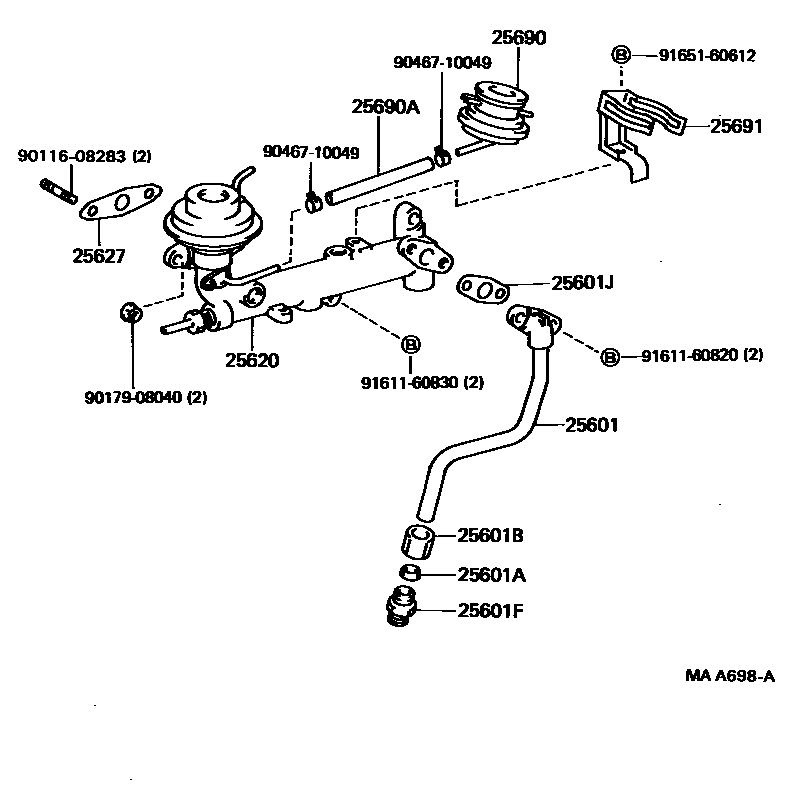

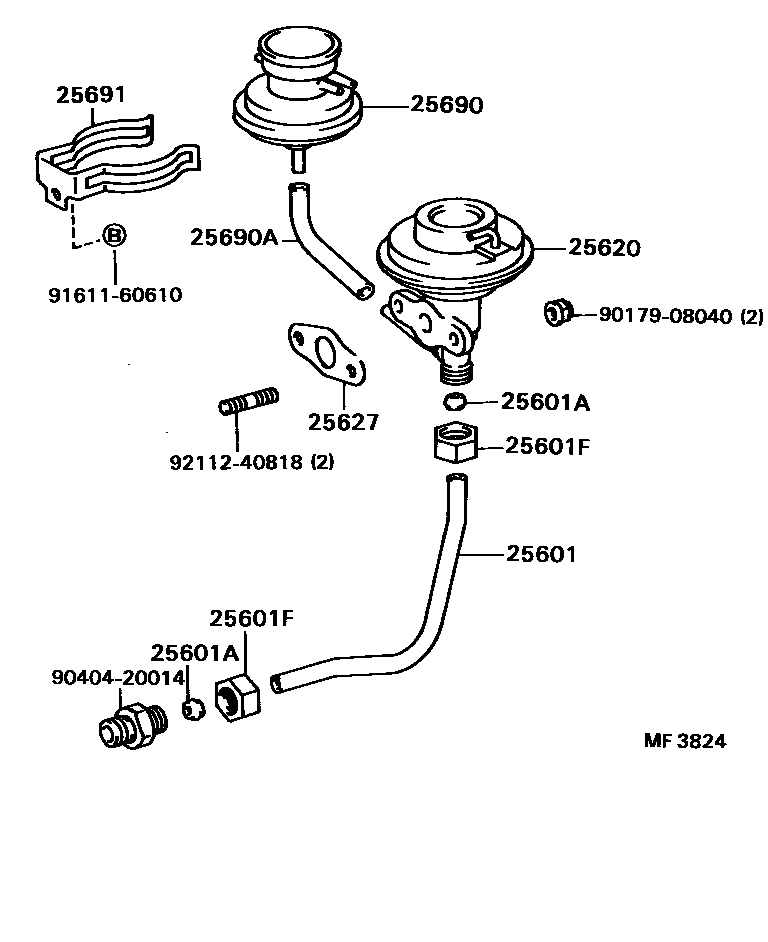

Toyota CAMRY 废气再循环系统 — Figure 2501
Toyota CAMRY EPC diagram 2501, 废气再循环系统, with 2 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 25601 | No. 1 EGR pipe assembly | 25601-62010 · 25611-74030 |
| 25601A | No. 1 EGR tube ball sleeve | 90410-12042 · 90410-16001 |
| 25601B | No. 1 EGR pipe connecting nut | 90402-22012 |
| 25601F | Connector (for No. 1 EGR tube) | 90402-20073 · 90404-22003 |
| 25601J | Gasket (for No. 1 EGR tube) | 25627-62010 |
| 25620 | EGR valve assembly | 25620-62010 · 25620-62020 · 25620-74110 · 25620-74120 |
| 25627 | EGR valve gasket | 25627-62010 · 25627-74010 |
| 25690 | EGR vacuum regulator assembly | 25870-62010 · 25870-74090 · 25870-74100 |
| 25690A | Hoses (for EGR vacuum regulator) | 25695-62010 · 90445-11065 |
| 25691 | EGR vacuum regulator bracket | 25691-62010 · 25691-74040 |
