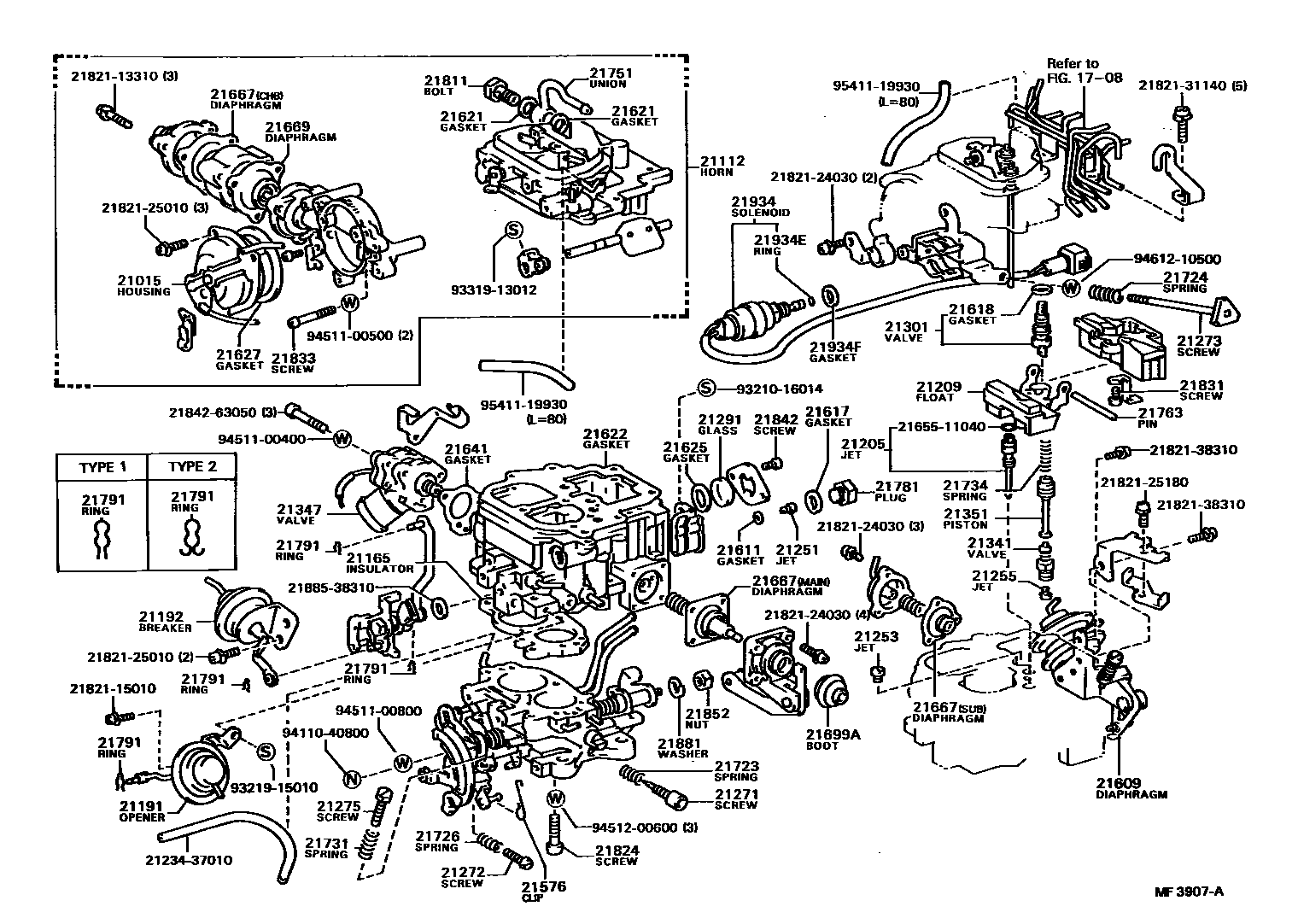

Toyota CAMRY 化油器 — Figure 2103
Toyota CAMRY EPC diagram 2103, 化油器, with 1 images and 51 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 21015 | Coil housing sub-assembly | 21015-63200 |
| 21112 | Air intake bell mouth | 21112-63200 |
| 21165 | Vibration isolation pad | 21165-63010 |
| 21191 | opener | 21191-63030 |
| 21192 | breaker | 21192-63060 |
| 21205 | Idle speed measuring hole assembly | 21205-74010 |
| 21209 | Float sub-assembly | 21209-63090 |
| 21251 | first main measuring hole | 90999-41119 |
| 21253 | Deputy main measuring hole | 21253-37040 |
| 21255 | Power measuring hole | 90999-43065 |
| 21271 | Idle speed adjustment screw | 21271-37080 |
| 21272 | First gear idle speed adjustment screw | 21272-71010 |
| 21273 | Throttle adjustment screw | 21273-63050 |
| 21275 | Adjustment screw | 21273-51010 |
| 21291 | oil level gauge glass | 21291-34320 |
| 21301 | Needle valve sub-assembly | 21301-63050 |
| 21341 | enrichment valve | 21304-30010 |
| 21347 | Solenoid valve | 21347-63200 |
| 21351 | enrichment piston | 21351-37040 |
| 21576 | Pump filter clip | 21576-63050 |
| 21609 | Diaphragm sub-assembly | 21667-63050 |
| 21611 | Main gage hole gasket | 21611-22010 |
| 21617 | Main oil gallery plug gasket | 21617-30010 |
| 21618 | Needle seat gasket | 21618-14010 |
| 21621 | Oil pipe joint gasket | 21633-24030 |
| 21622 | Air intake bell gasket | 21622-63010 |
| 21625 | oil level gauge gasket | 21655-60200 |
| 21627 | Coil housing gasket | 21627-28150 |
| 21641 | Gasket (for thermostat valve cover) | 21641-63010 |
| 21667 | Diaphragm | 21667-63090 · 21667-72080 · 21667-74030 |
| 21669 | Diaphragm | 21669-63010 |
| 21699A | Dust boot (for accelerator pump) | 21699-37040 |
| 21723 | Idle speed adjustment spring | 21723-37040 |
| 21724 | Throttle valve adjustment spring | 21723-38330 |
| 21726 | First gear idle speed adjustment spring | 21726-38310 |
| 21731 | Deceleration buffer or positioner adjustment spring | 21726-38310 |
| 21734 | Thickening piston spring | 21734-33081 |
| 21751 | Oil pipe joint | 21894-63050 |
| 21763 | floating lever pin | 21763-34320 |
| 21781 | Main oil gallery screw plug (for carburetor measuring hole) | 21781-15230 |
| 21791 | No. 1 snap ring (for carburetor connecting rod) | 21791-13010 · 21791-60010 |
| 21811 | Oil pipe joint bolt | 21811-11060 |
| 21824 | Set screw (for first idle cam lifter assembly) | 93110-16035 |
| 21831 | Enrichment piston limit screw | 21821-25010 |
| 21833 | No. 1 fixing screw (for carburetor body assembly) | 21833-33010 |
| 21842 | Fixing screw (for carburetor oil level gauge clamp assembly) | 21842-33010 |
| 21852 | Throttle lever retaining nut | 21852-30010 |
| 21881 | Lock washer (for throttle shaft) | 21881-60010 |
| 21934 | Throttle solenoid valve | 21062-63200 · 21062-63210 |
| 21934E | O-ring (for solenoid valve) | 21655-44101 |
| 21934F | padding | 21617-10010 |
