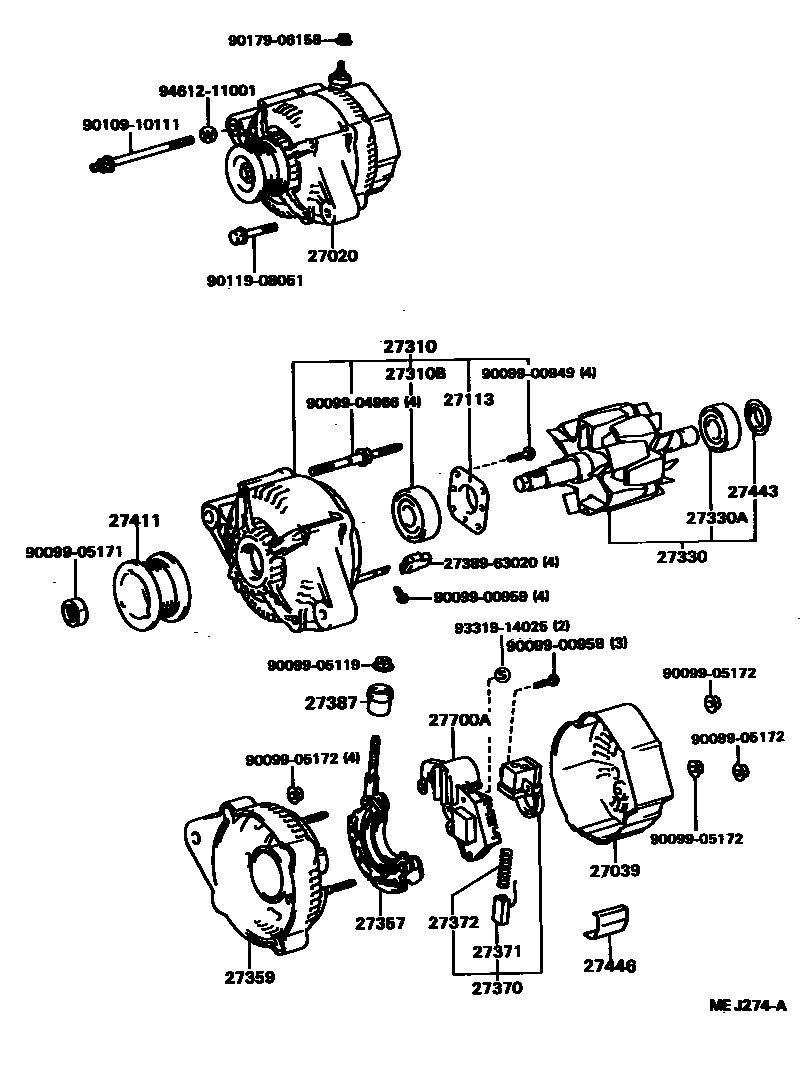

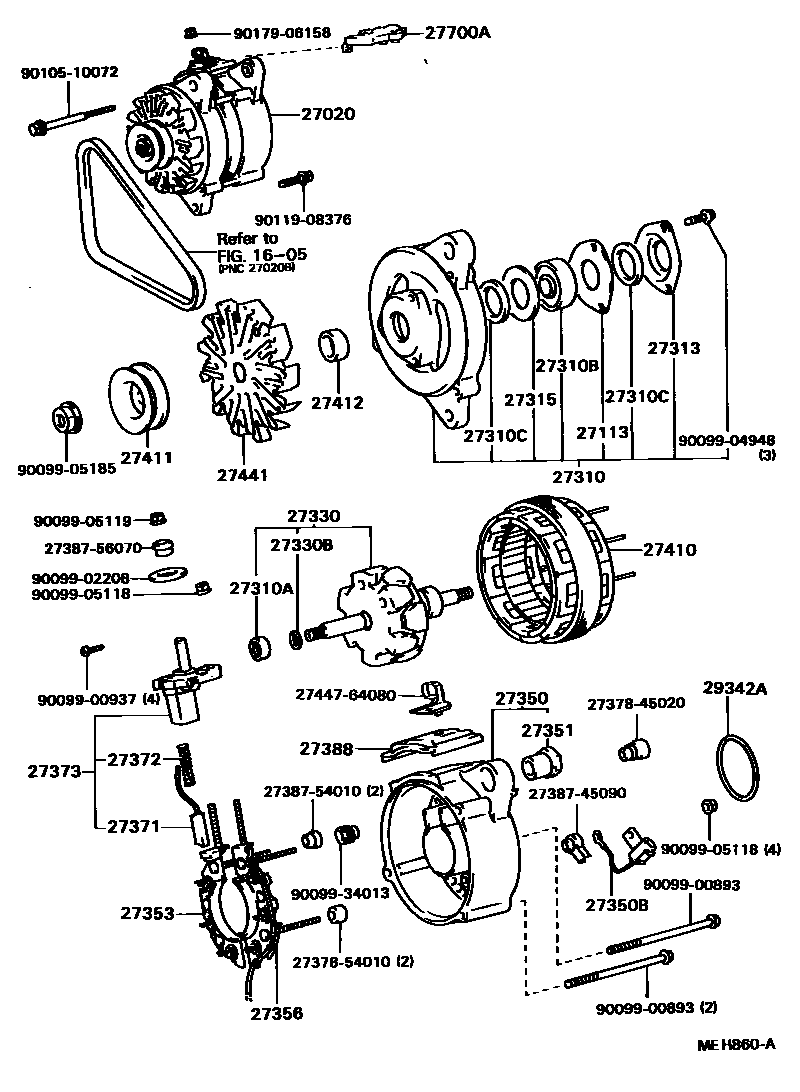

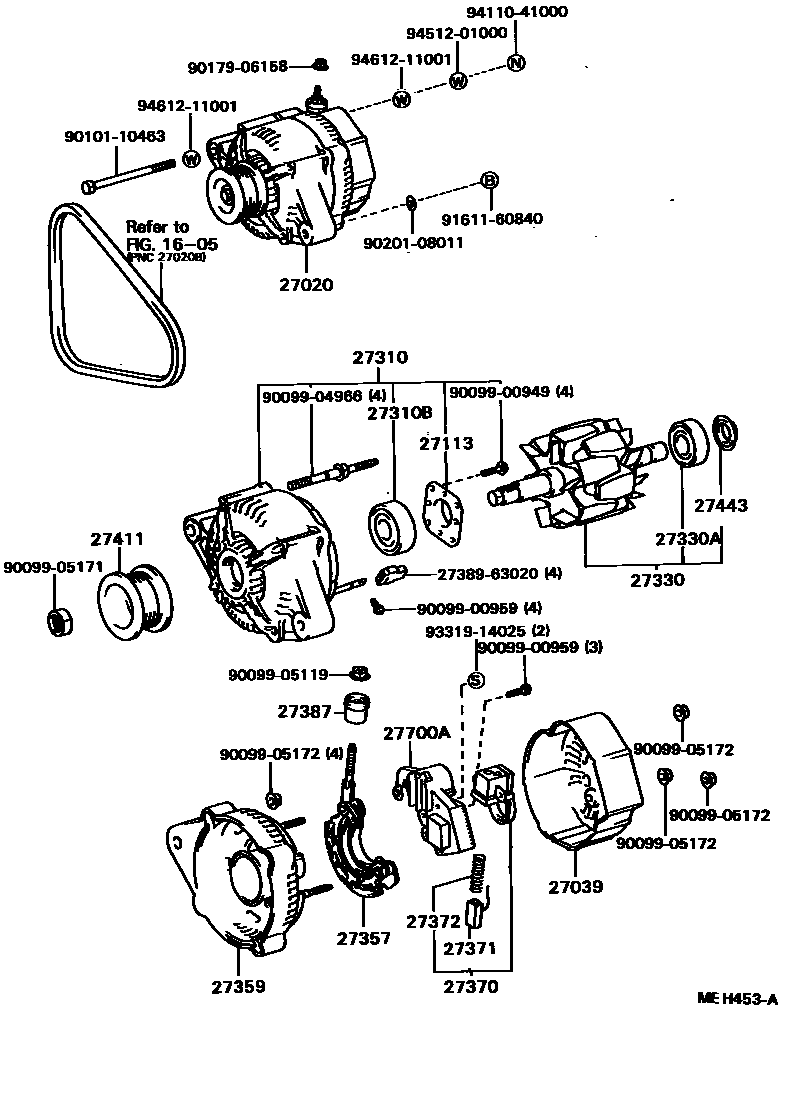

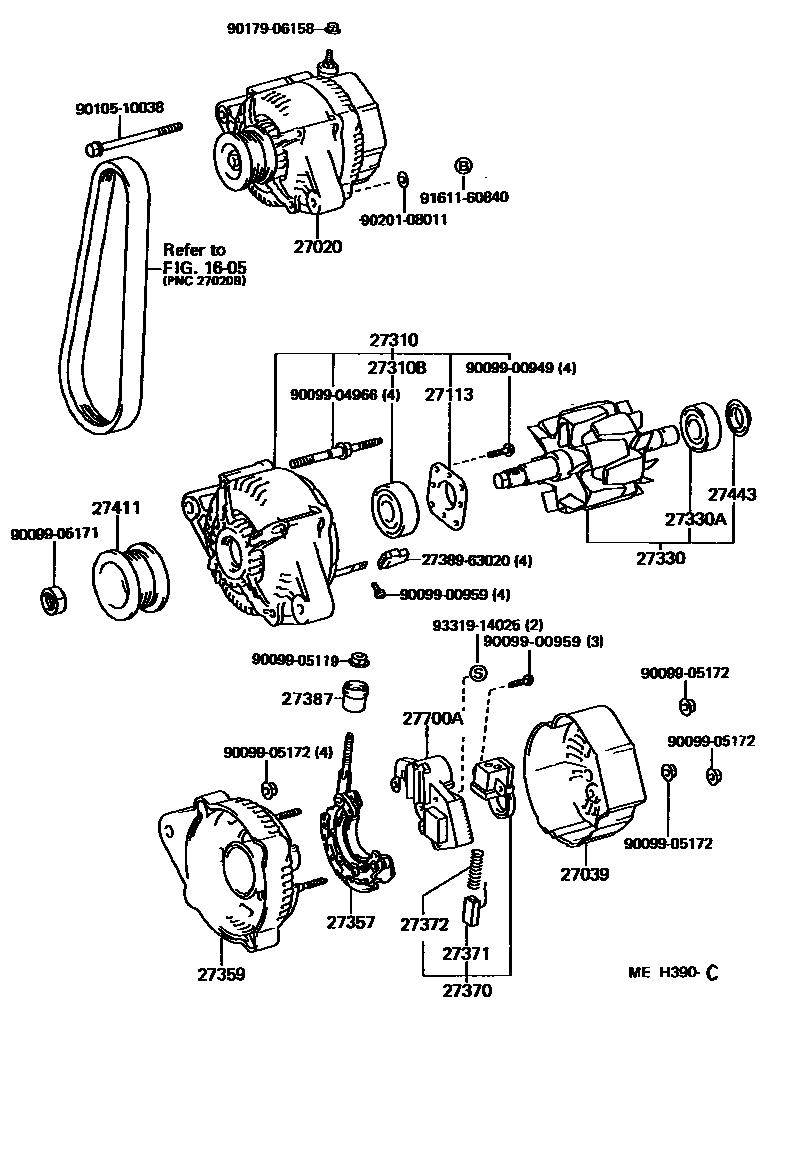

Toyota CAMRY Alternator — Figure 1903
Toyota CAMRY EPC diagram 1903, Alternator, with 4 images and 33 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 27020 | Alternator Assembly | 27020-64100 · 27060-62011 · 27060-63021 · 27060-63031 · 27060-63081 · 27060-63082 |
| 27039 | Alternator Rear End Cover | 27039-72010 · 27039-72110 |
| 27113 | Generator bearing block | 27312-57060 · 27312-70200 · 27312-72100 |
| 27310 | Alternator Drive End Frame Assembly | 27310-62011 · 27310-63021 · 27310-63041 · 27310-64060 · 27310-70100 |
| 27310A | Collar or nut (for generator drive end cover) | 27333-57060 |
| 27310B | Bearing (for Alternator Drive End Frame) | 90099-10137 · 90099-10159 · 90099-10178 |
| 27310C | Felt pad (for generator drive end cover) | 90099-02209 |
| 27313 | Generator No. 2 felt pad inner cover | 27313-57060 |
| 27315 | Generator No. 1 felt pad inner cover | 27315-57060 |
| 27330 | Alternator Rotor Assembly | 27330-10020 · 27330-10021 · 27330-64030 · 27330-72100 · 27330-72101 |
| 27330A | Bearings (for generator rotor) | 90099-10140 |
| 27330B | Snap ring (for generator rotor) | 90099-07103 |
| 27350 | Rectifier end frame assembly | 27350-64060 |
| 27350B | generator capacitor | 90099-52066 |
| 27351 | Bushing (for generator rectifier end frame) | 27351-64060 |
| 27353 | Generator positive rectifier frame | 27353-54180 |
| 27356 | Generator negative rectifier frame | 27356-64100 |
| 27357 | Generator rectifier frame | 27357-63020 · 27357-63040 |
| 27359 | Generator rectifier end frame | 27359-43160 · 27359-63021 · 27359-63041 · 27359-63081 · 27359-70200 |
| 27370 | Alternator Brush Holder Assembly | 27370-63021 |
| 27371 | Generator brushes | 27371-56070 · 27371-63020 |
| 27372 | Generator brush spring | 27372-56070 · 27372-72100 |
| 27373 | Generator A brush holder | 27373-57070 |
| 27387 | Terminal Insulator | 27387-70170 |
| 27388 | Generator brush cover | 27388-64080 |
| 27410 | Generator stator assembly | 27410-54180 |
| 27411 | Alternator Pulley | 27411-16180 · 27411-62011 · 27411-63081 · 27411-64060 |
| 27412 | Isolator collar (for generator pulley) | 27412-64060 |
| 27441 | generator fan | 27441-64060 |
| 27443 | Generator bearing cap | 27443-63020 |
| 27446 | Generator clamp | 27446-62010 |
| 27700A | Generator voltage regulator assembly | 27700-63021 · 27700-64030 · 27700-70030 |
| 29342A | Vacuum pump seals | 90099-14055 |
