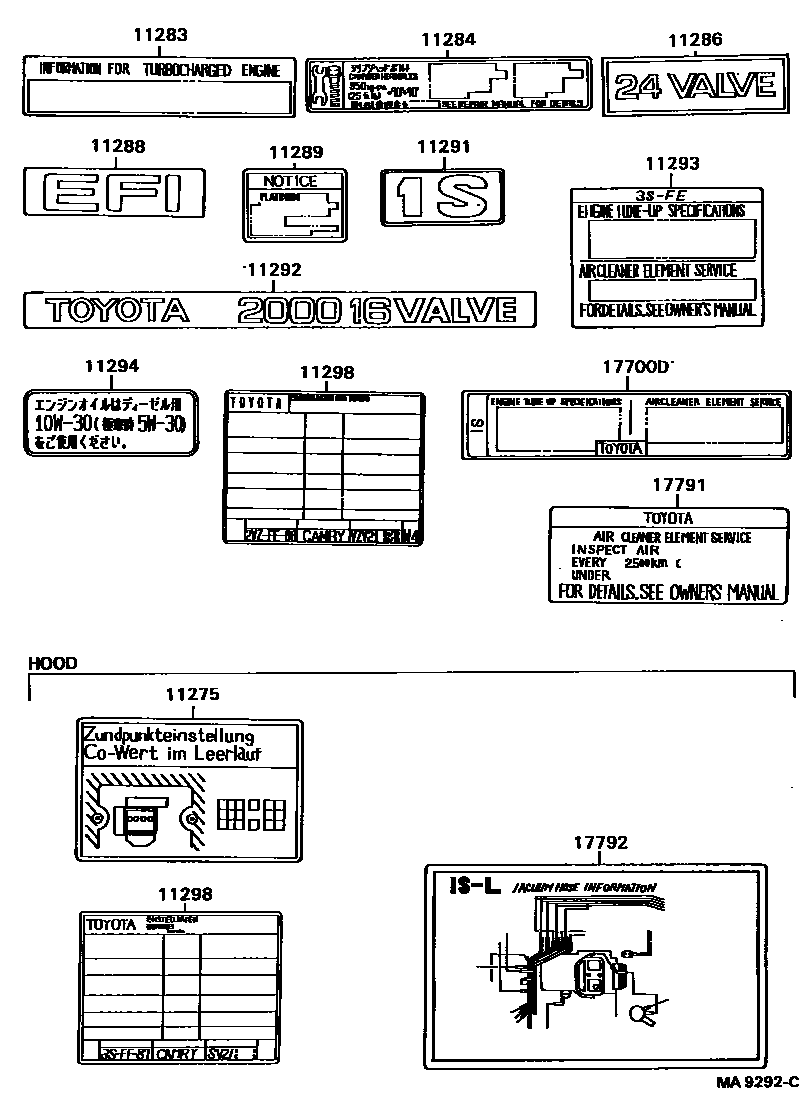

Toyota CAMRY 警示铭牌和名称铭牌(发动机) — Figure 1709
Toyota CAMRY EPC diagram 1709, 警示铭牌和名称铭牌(发动机), with 1 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11275 | Adjust ignition timing warning nameplate | 11275-62010 · 11275-62020 · 11275-74040 · 11275-74050 · 11275-74080 · 11275-74090 |
| 11283 | Turbocharger warning plate | 11294-64050 |
| 11284 | Engine bolt information plate | 11284-62010 |
| 11286 | Engine specification plate | 11286-62010 |
| 11288 | Engine system nameplate | 11288-74020 |
| 11289 | Spark plug warning nameplate | 11289-73020 |
| 11291 | Engine name plate | 11291-63020 · 11291-64050 |
| 11292 | Engine No. 2 name plate | 11292-74020 · 11292-74021 |
| 11293 | Engine warning and engine name plate | 11293-74130 |
| 11294 | Engine No. 2 warning plate | 11294-54040 |
| 11298 | Emission control information plate | 11298-62040 · 11298-62050 · 11298-74210 · 11298-74220 · 11298-74340 · 11298-74350 · 11298-74400 · 11298-74410 |
| 17700D | Engine warning plate | 11293-63090 · 11293-64030 |
| 17791 | Maintenance information label | 17791-55010 · 17791-64030 · 17791-74010 |
| 17792 | Engine vacuum hose information plate | 17792-62020 · 17792-63120 · 17792-74110 |
