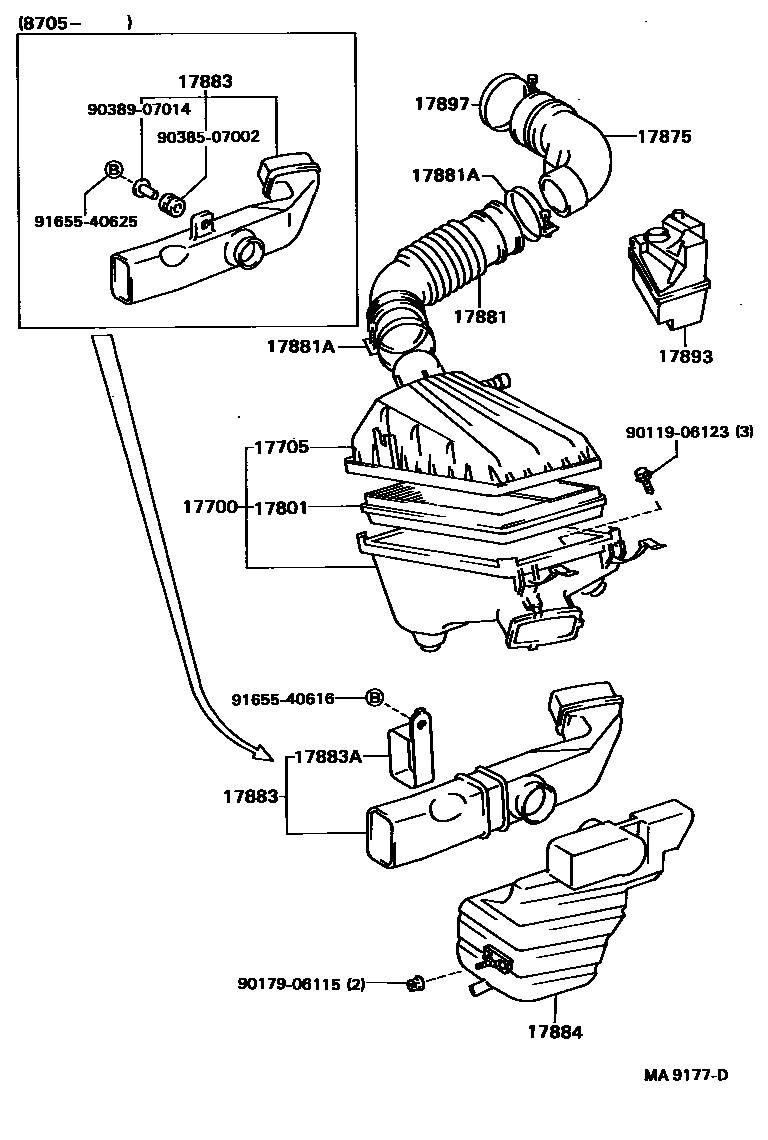

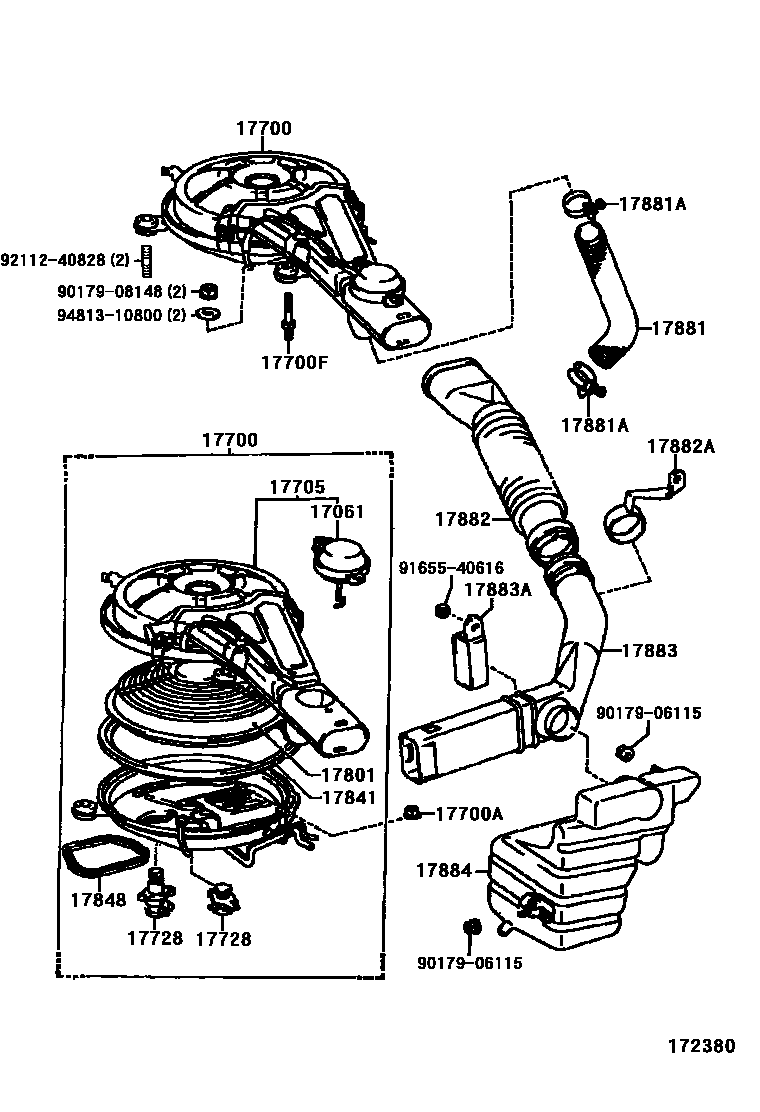

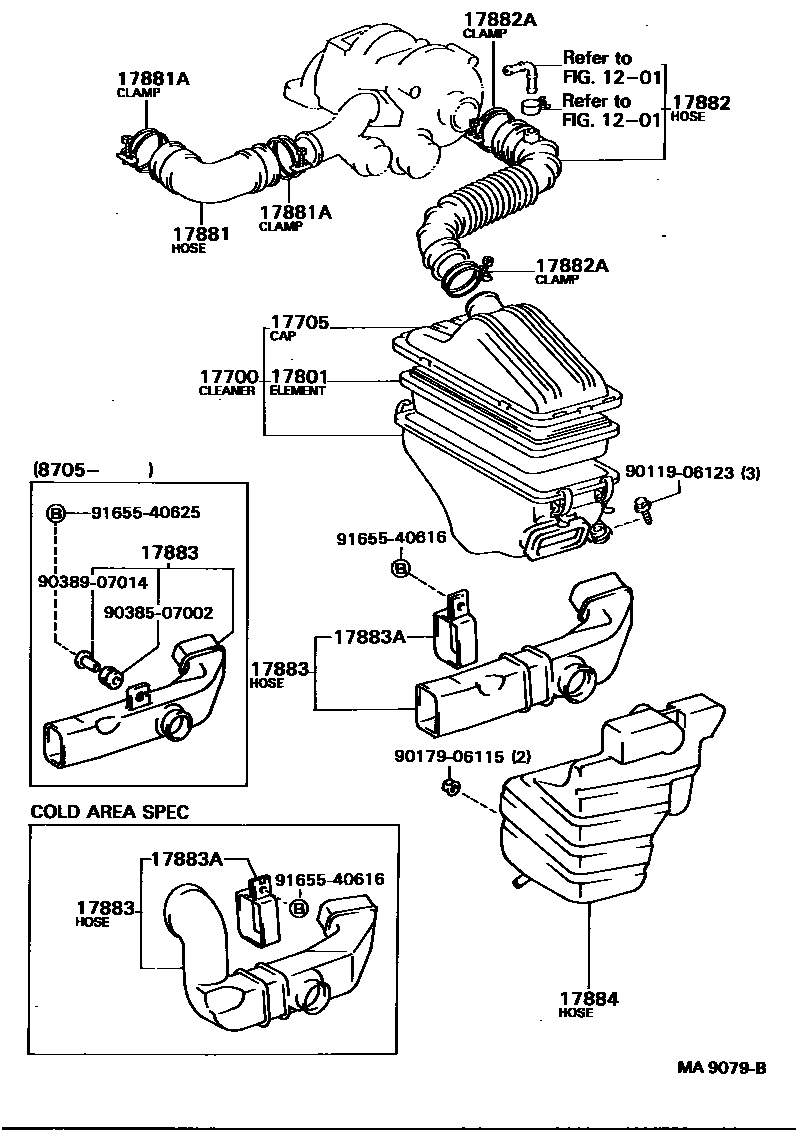

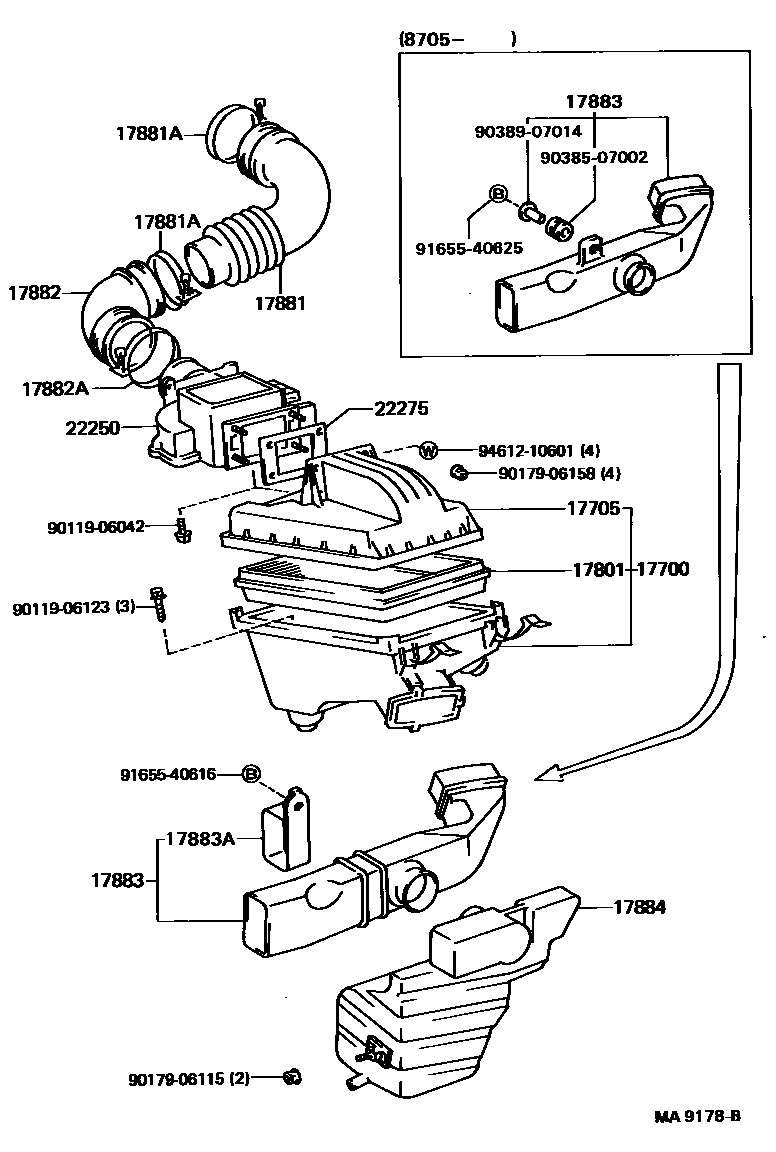

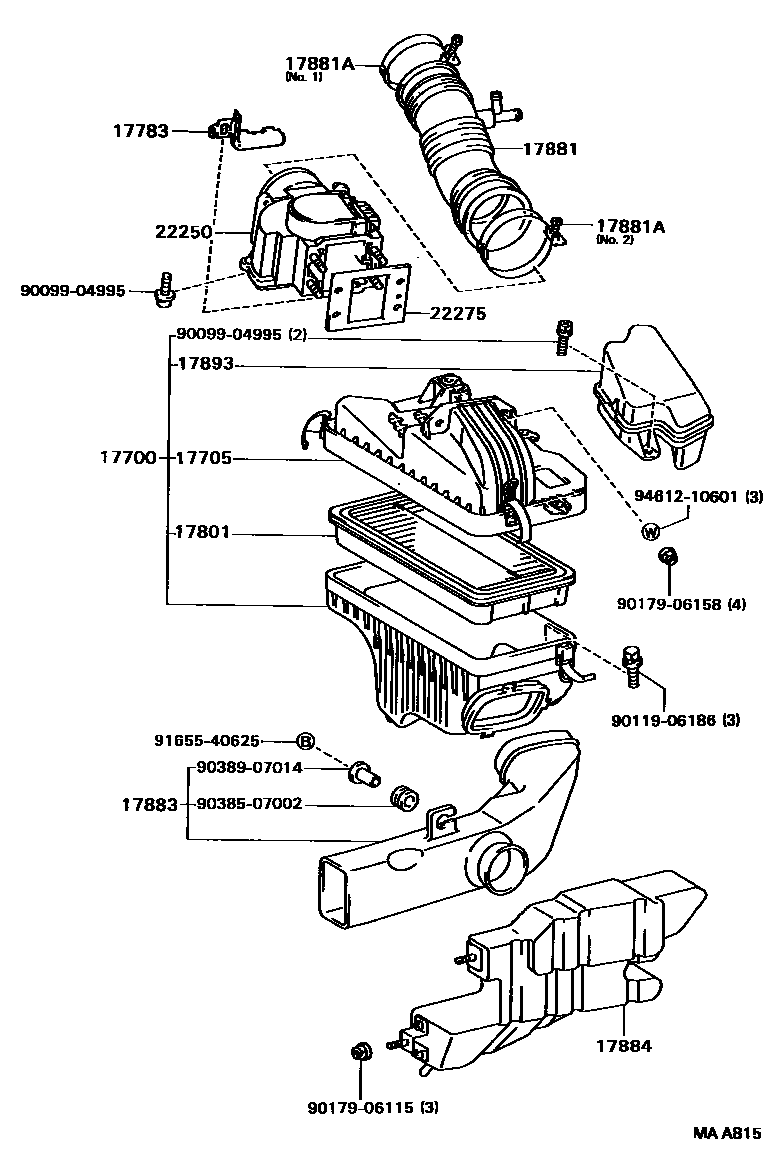

Toyota CAMRY Air Cleaner — Figure 1703
Toyota CAMRY EPC diagram 1703, Air Cleaner, with 5 images and 22 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17061 | Diaphragm sub-assembly | 17061-63030 |
| 17700 | air filter assembly | 17700-62020 · 17700-63150 · 17700-64200 · 17700-74090 · 17700-74100 |
| 17700A | Wing nut (for air cleaner) | 90179-06060 |
| 17700F | Stud bolt (for securing air filter) | 90116-06019 |
| 17705 | Air filter cover sub-assembly | 17705-62020 · 17705-63080 · 17705-64030 · 17705-74070 · 17705-74090 |
| 17728 | thermostat valve | 17728-63030 · 17728-63040 |
| 17783 | air filter baffle | 17783-74030 |
| 17801 | Air filter element sub-assembly | 17801-63020 · 17801-64040 · 17801-74010 · 17801-74020 |
| 17841 | filter liner | 17841-63010 |
| 17848 | Gasket from air cleaner to carburetor | 17848-35010 |
| 17875 | Intake connecting pipe | 17875-74030 |
| 17881 | No. 1 air cleaner hose | 17341-64020 · 17881-13120 · 17881-62020 · 17881-74040 · 17881-74100 · 17881-74110 |
| 17881A | Clamp (for No. 1 air cleaner hose) | 90460-70001 · 96111-10460 · 96111-10710 · 96111-10730 · 96111-10750 · 96111-10830 · 96111-10900 |
| 17882 | No. 2 air cleaner hose | 17880-64050 · 17881-32010 · 17882-74040 |
| 17882A | Clamp (for No. 2 air cleaner hose) | 90460-60002 · 90460-75001 · 96111-10670 · 96111-10800 |
| 17883 | No. 3 air cleaner hose | 17882-63100 · 17882-63110 · 17882-64040 |
| 17883A | Clamp (for No. 3 air cleaner hose) | 90460-01046 · 90460-01047 |
| 17884 | No. 4 air cleaner hose | 17883-62010 · 17883-63030 |
| 17893 | Intake resonator | 17893-62010 · 17893-74010 |
| 17897 | Hose clamp (for air cleaner) | 96111-10800 |
| 22250 | Intake air flow meter assembly | 22250-62020 · 22250-74130 · 22250-74140 |
| 22275 | air flow meter gasket | 22275-41010 · 22275-43010 |
