Toyota CAMRY Exhaust Pipe — Figure 1702

Toyota CAMRY EPC diagram 1702, Exhaust Pipe, with 6 images and 26 PNC and OE references.

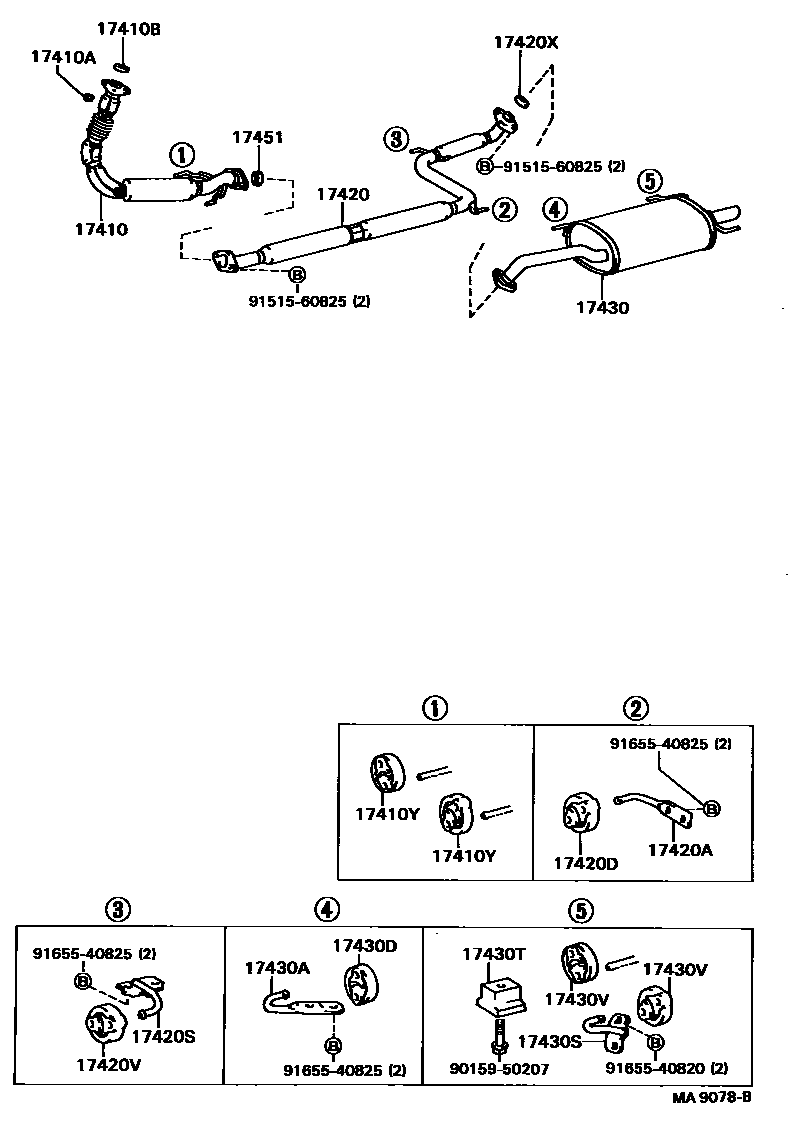

Toyota CAMRY Exhaust Pipe EPC diagram — MA9078B
Exhaust Pipe — MA9078B (198610 – 999999)

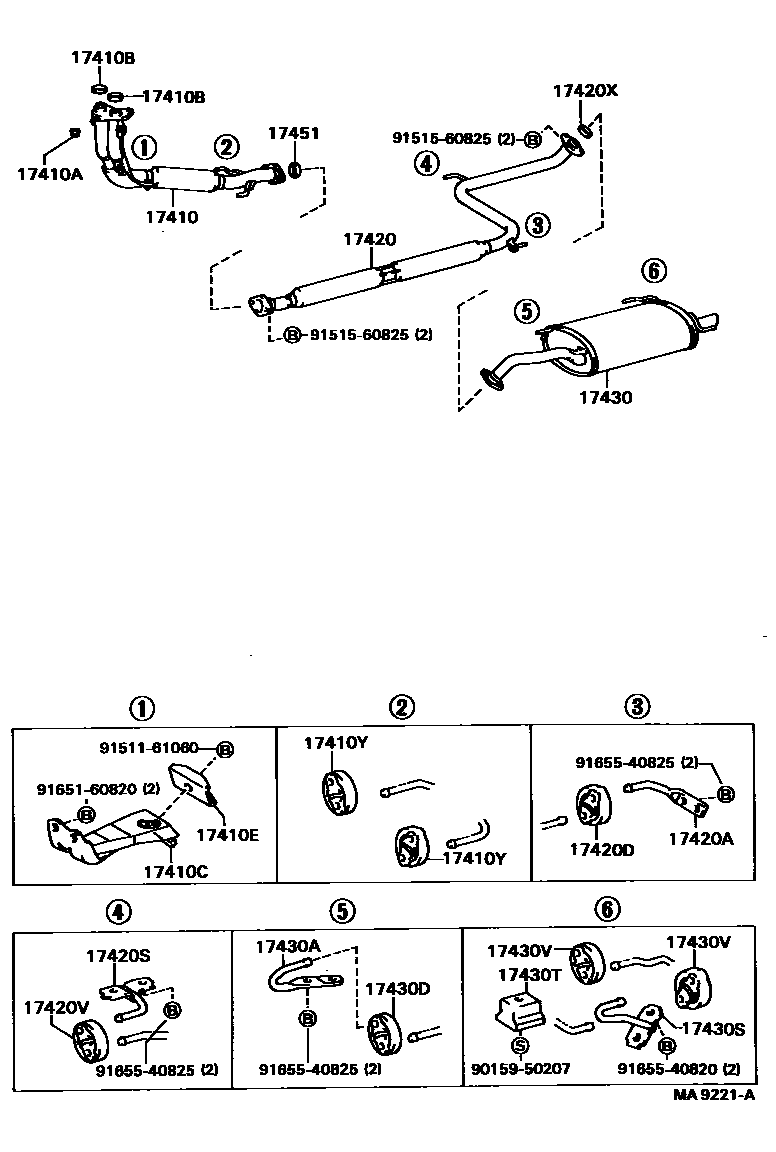

Toyota CAMRY Exhaust Pipe EPC diagram — MA9221A
Exhaust Pipe — MA9221A (198610 – 999999)

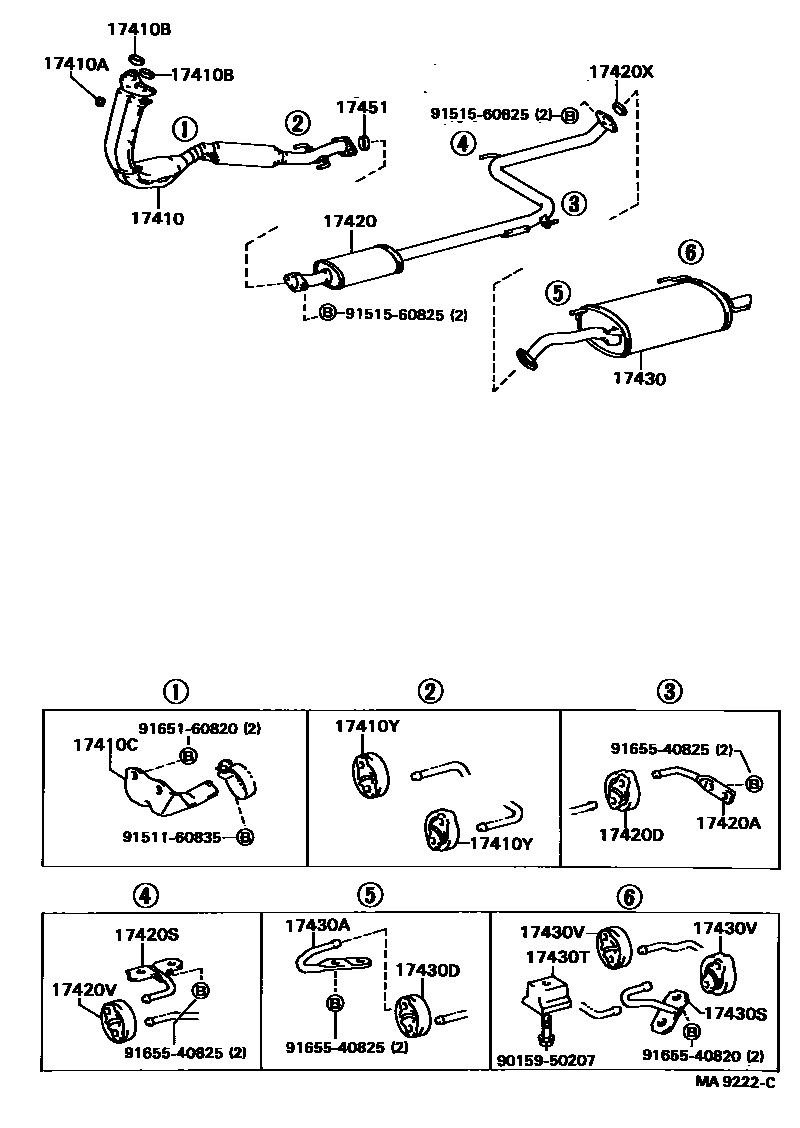

Toyota CAMRY Exhaust Pipe EPC diagram — MA9222C
Exhaust Pipe — MA9222C (198610 – 999999)

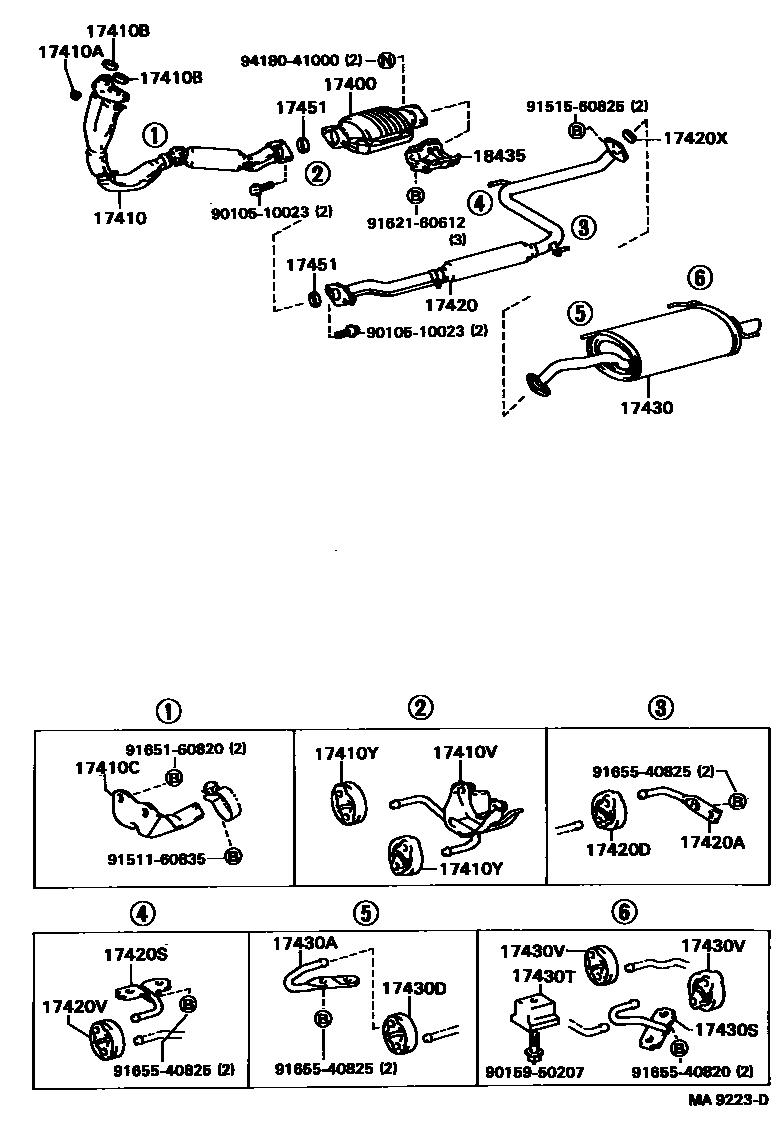

Toyota CAMRY Exhaust Pipe EPC diagram — MA9223D
Exhaust Pipe — MA9223D (198610 – 999999)

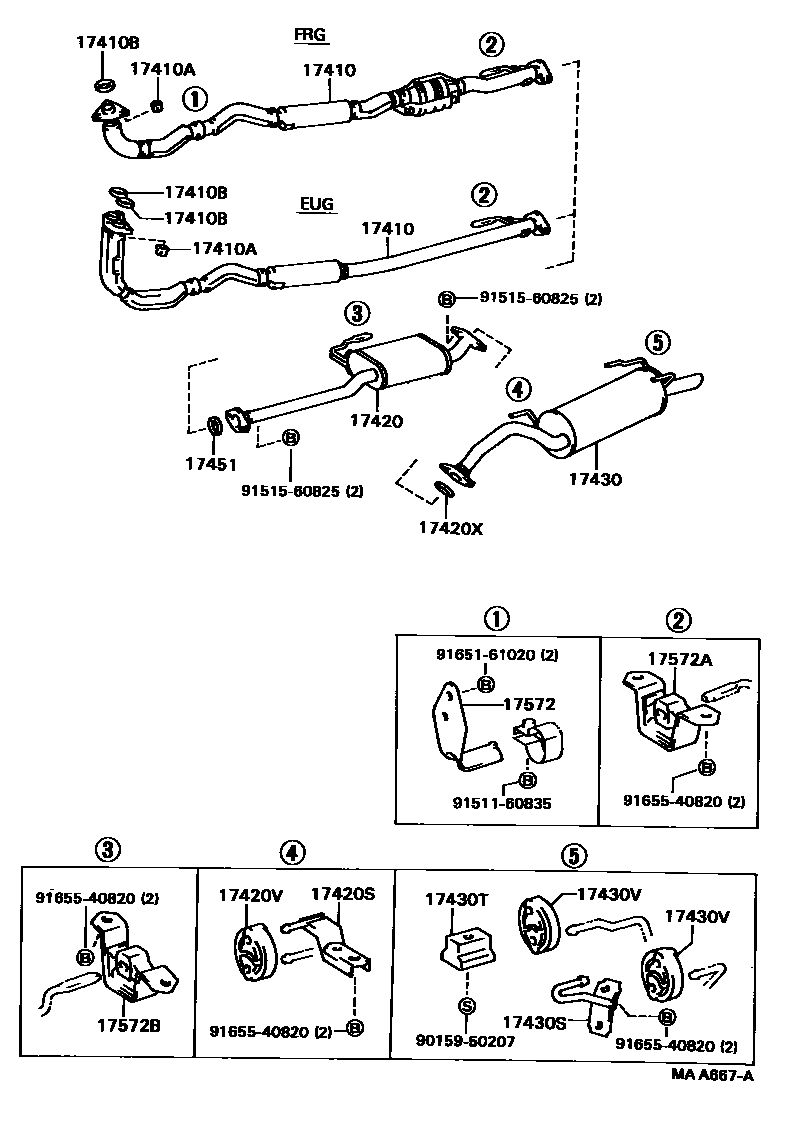

Toyota CAMRY Exhaust Pipe EPC diagram — MAA667A
Exhaust Pipe — MAA667A (198710 – 999999)

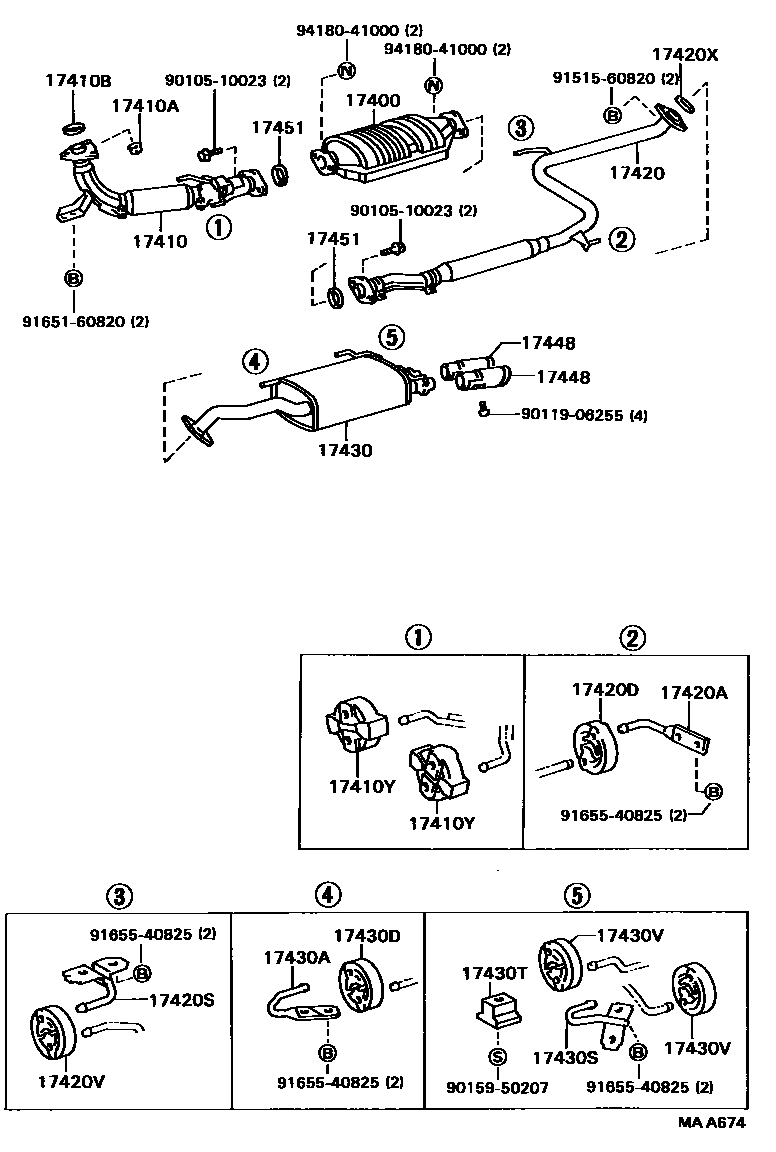

Toyota CAMRY Exhaust Pipe EPC diagram — MAA674
Exhaust Pipe — MAA674 (198802 – 999999)

PNC and OE references

PNCPart nameOE numbers
17400Three-way catalytic converter assembly with catalyst18450-62020 · 18450-74090
17410Front exhaust pipe assembly17410-62020 · 17410-63150 · 17410-64200 · 17410-74160 · 17410-74170 · 17410-74280 · 17410-74301
17410AExhaust pipe fixing studs and nuts90179-10070
17410BExhaust pipe gasket90917-06001 · 90917-06004 · 90917-06005
17410CFront exhaust pipe bracket (for front)17571-63070 · 17571-74050
17410ENo. 1 front exhaust pipe clamp (for front)90917-04054
17410VFront exhaust pipe bracket (for rear)17503-74050
17410YFront exhaust pipe bolts or rings (for rear)17565-11100 · 17565-62010
17420Central exhaust pipe assembly17420-62020 · 17420-63130 · 17420-64060 · 17420-74150 · 17420-74160 · 17420-74200 · 17420-74210 · 17420-74350
17420ACenter exhaust pipe front bracket17572-63050
17420DCenter exhaust pipe front bolt or ring17565-11100 · 17565-62010
17420SCenter exhaust pipe rear bracket17507-63030 · 17508-74020
17420VCenter exhaust pipe rear bolt or ring17565-11100 · 17565-62010
17420XCenter exhaust pipe liner90917-06012
17430Exhaust tailpipe assembly17430-62040 · 17430-64380 · 17430-64390 · 17430-64400 · 17430-74140 · 17430-74160 · 17430-74170 · 17430-74180 · 17430-74200 · 17430-74220 · 17430-74300 · 17430-74310 · 17430-74500 · 17430-74510 · 17430-74520
17430AExhaust tailpipe bracket (for front)17563-63080
17430DExhaust tailpipe bolts or rings (for front)17565-11100 · 17565-55020
17430SExhaust tailpipe bracket (for rear)17509-63060 · 17509-74040
17430TExhaust tailpipe cushion (for rear)17591-36010 · 17591-36011
17430VExhaust tailpipe bolts or rings (for rear)17565-63120
17448Exhaust pipe tail throat17448-79025
17451Exhaust pipe gasket90917-06012 · 90917-06031 · 90917-06032
17572No. 1 exhaust pipe bracket17571-74110
17572ANo. 1 lower exhaust pipe bracket17573-74010
17572BNo. 2 exhaust pipe bracket17572-74020
18435Three-way catalytic converter protection device18436-74020
