Toyota CAMRY Manifold — Figure 1701

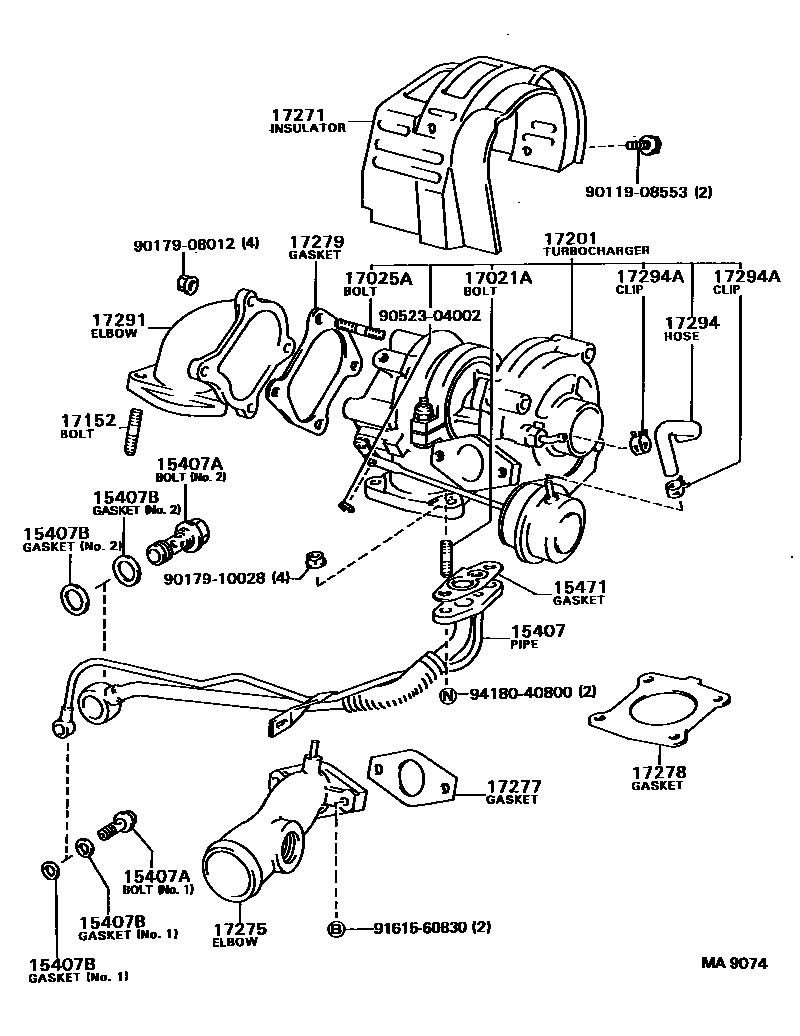

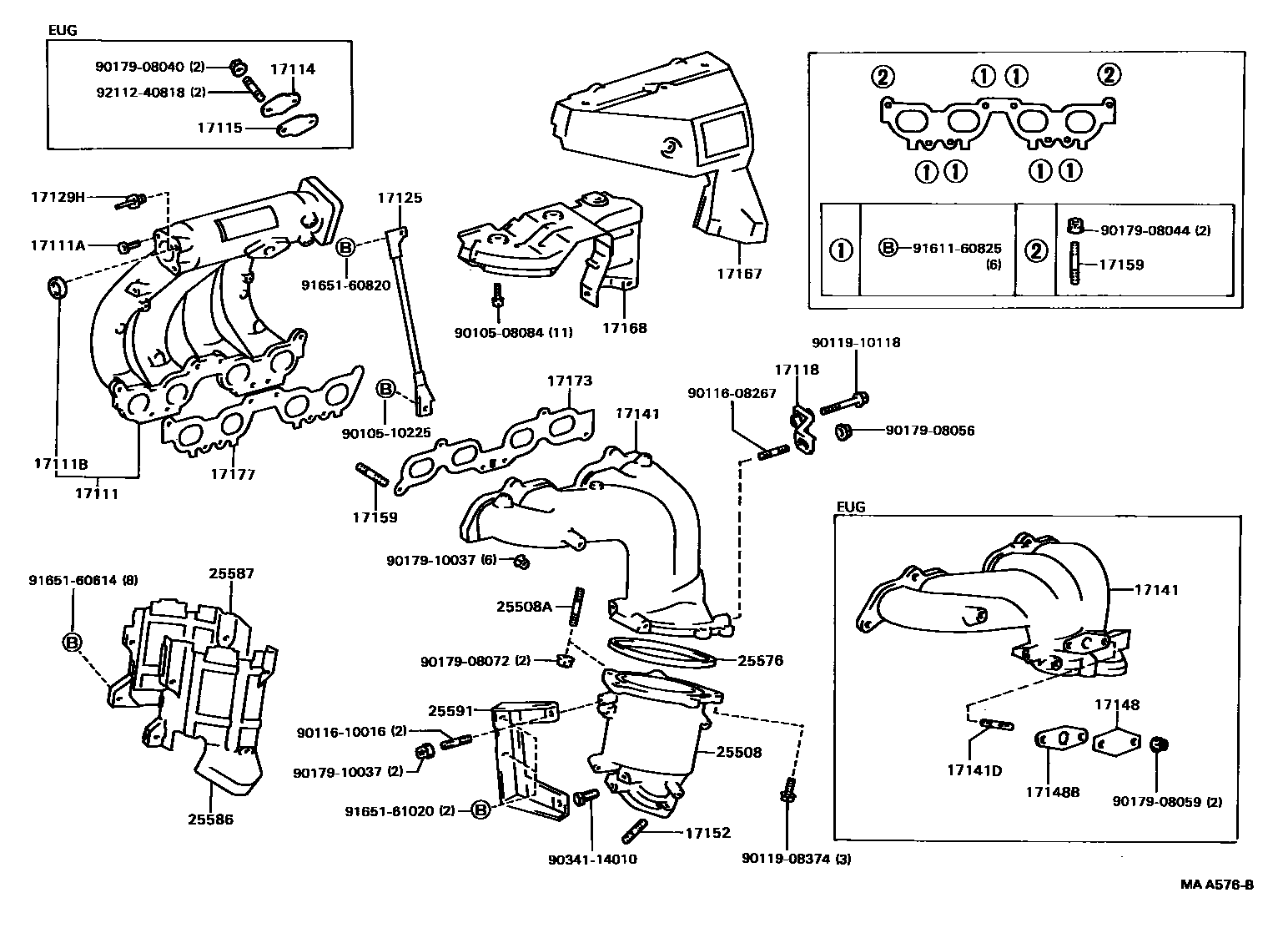

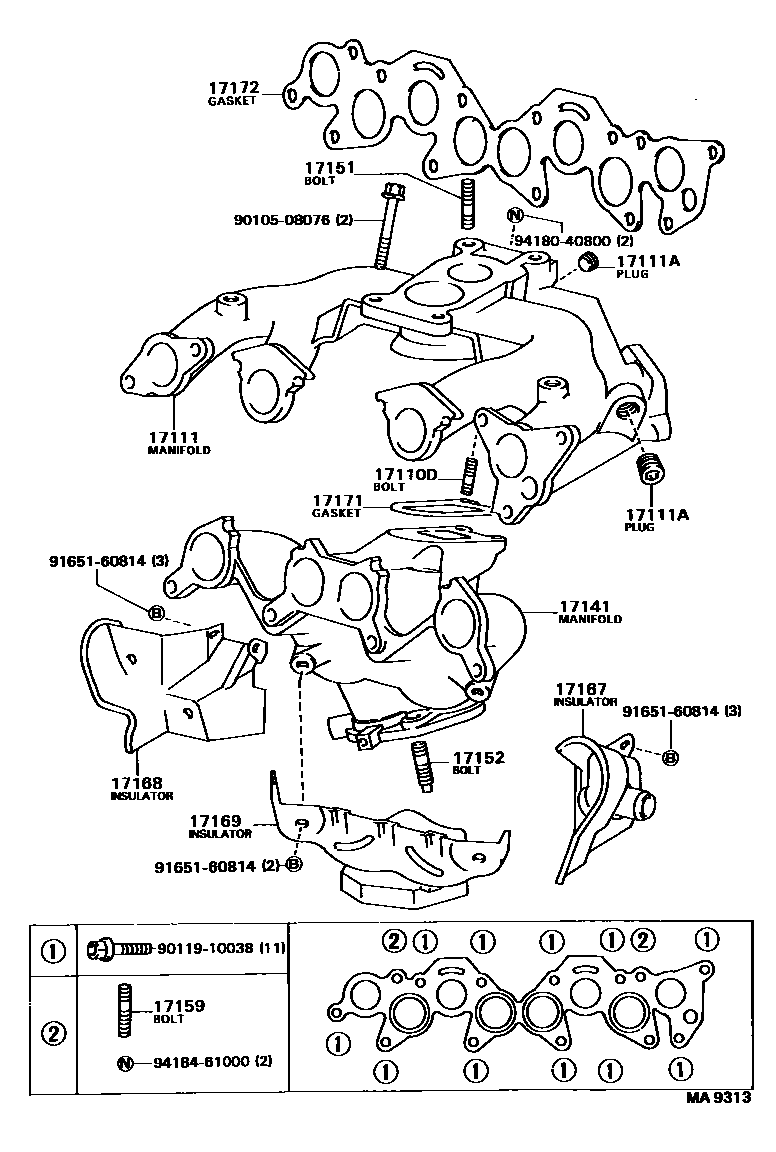

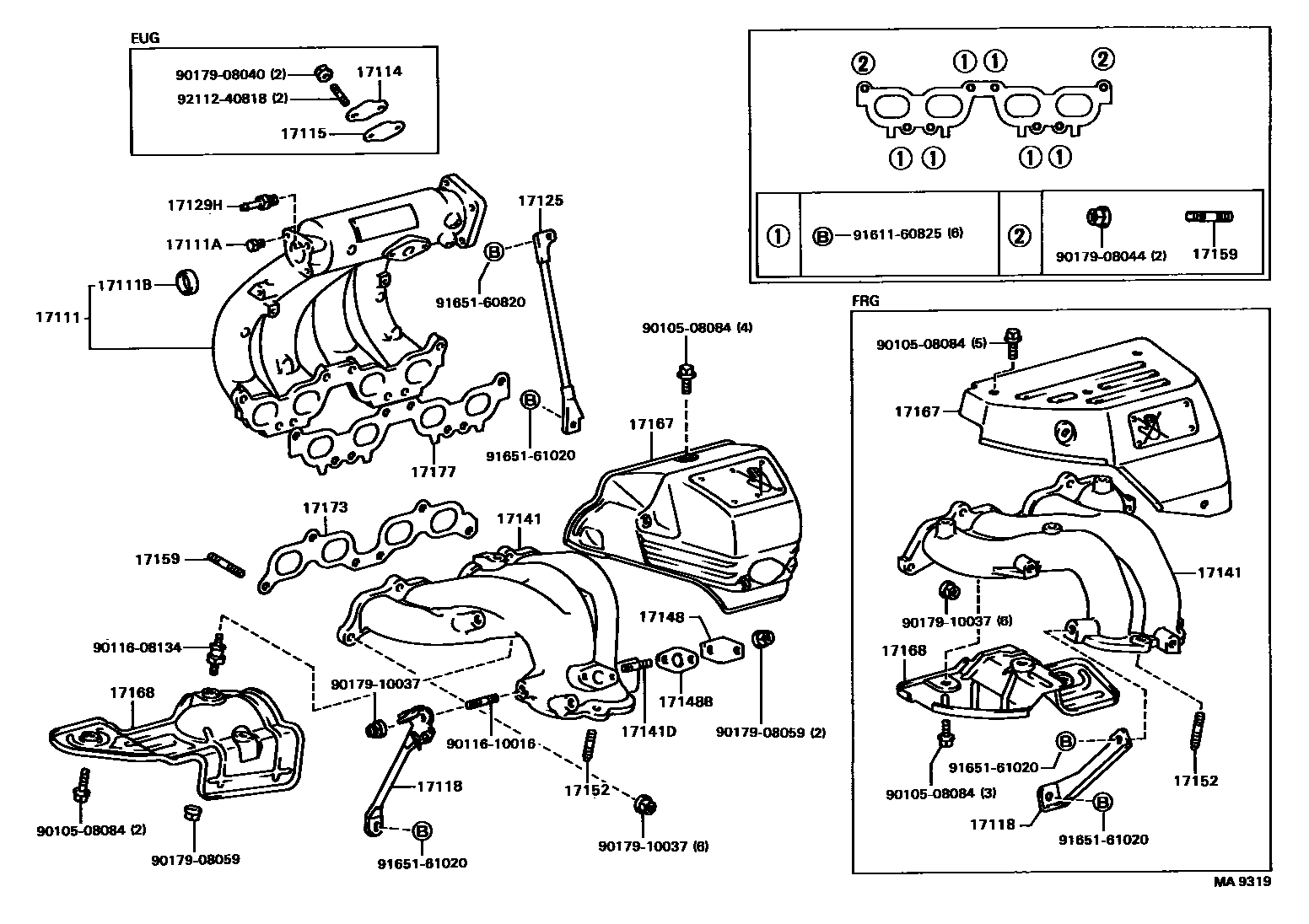

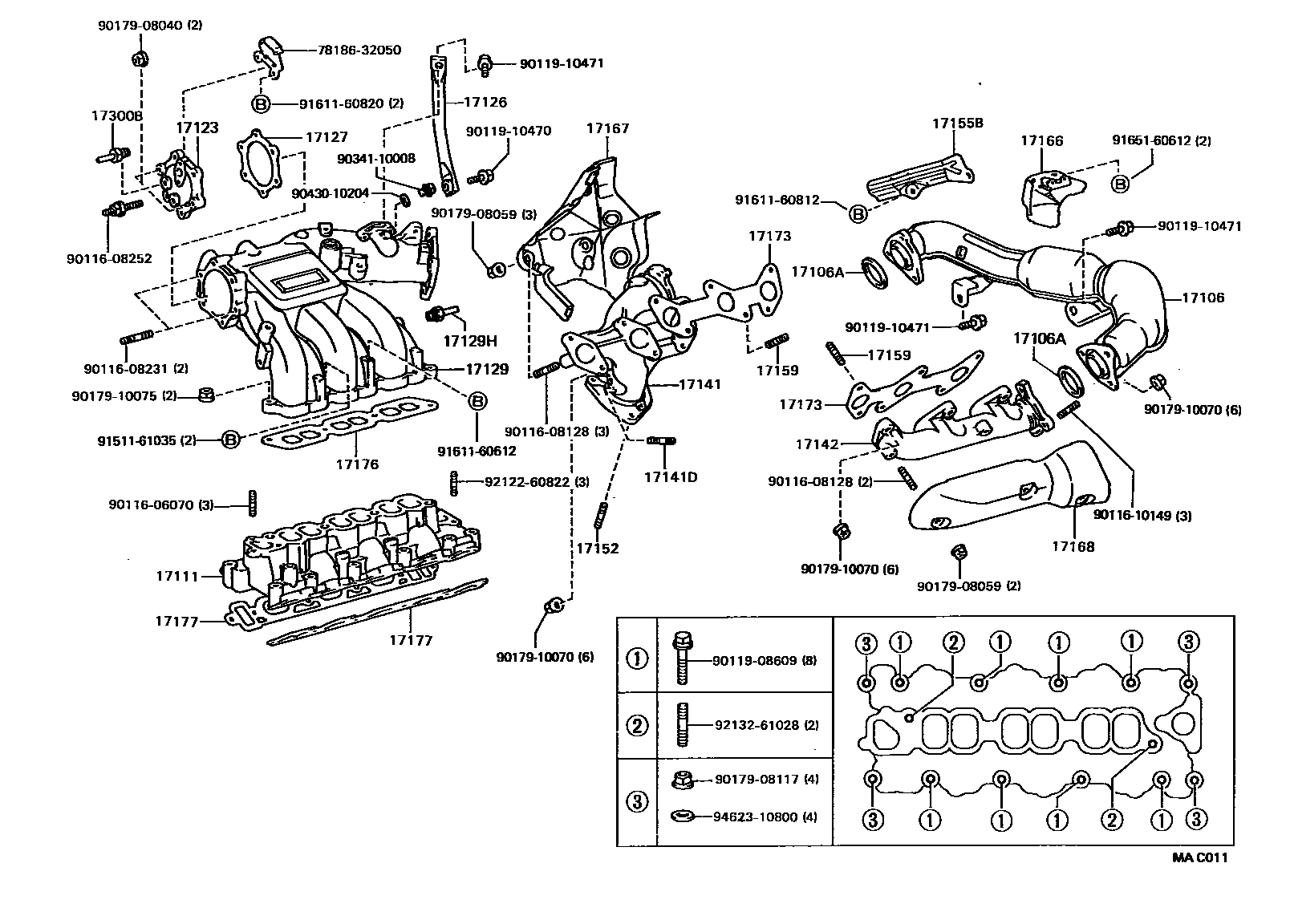

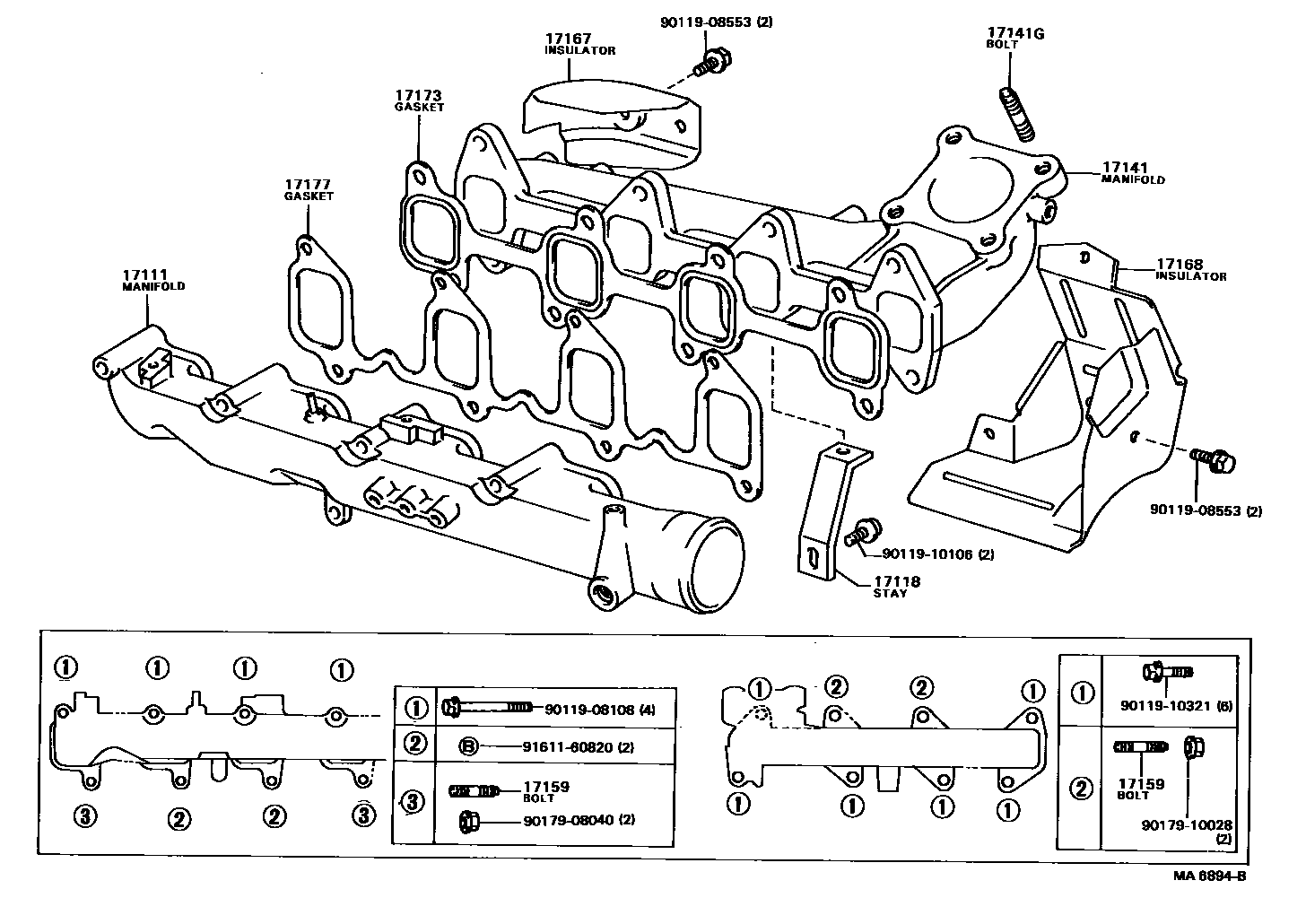

Toyota CAMRY EPC diagram 1701, Manifold, with 7 images and 57 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

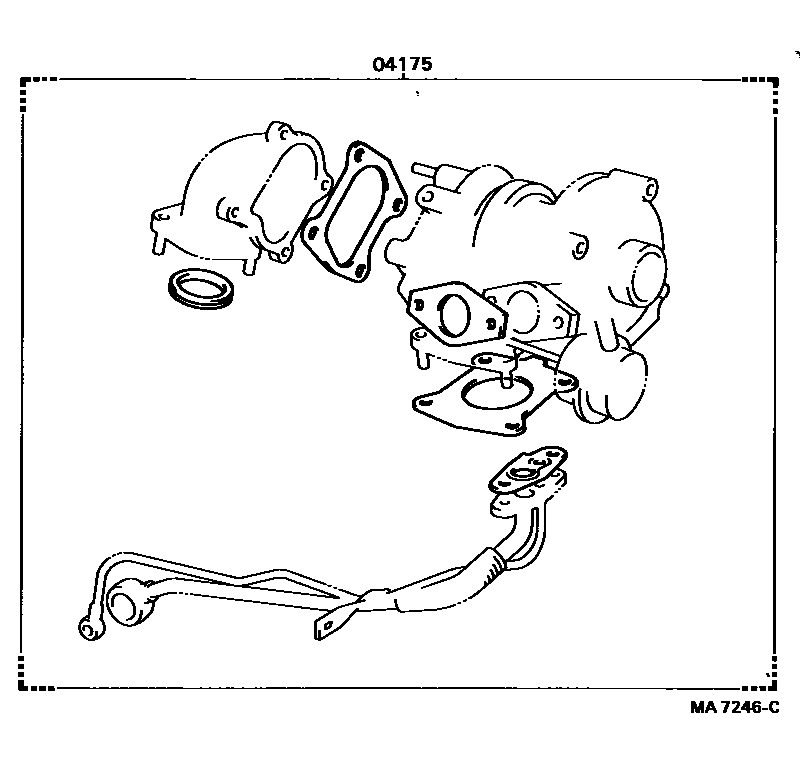

| 04175 | Turbocharger gasket assembly | 04175-64021 · 04175-64022 |
| 15407 | Turbine oil inlet pipe sub-assembly | 15407-64011 |
| 15407A | Connector bolt (for turbine oil inlet pipe) | 90401-10006 · 90401-27002 |
| 15407B | Gasket (for turbine oil inlet pipe) | 90210-27001 · 90430-10035 |
| 15471 | Turbine oil inlet pipe gasket | 15471-54010 |
| 17021A | Stud bolts (for bearing housing) | 90116-08158 |
| 17025A | Stud bolts (for turbine housing) | 90116-08200 |
| 17106 | Exhaust crossover pipe assembly | 17106-62011 |
| 17106A | Exhaust pipe gasket | 90917-06048 |
| 17110D | Bolts (for intake manifold to exhaust manifold) | 92112-60825 |
| 17111 | Intake Manifold | 17101-74070 · 17101-74071 · 17111-62020 · 17111-63040 · 17111-64090 |
| 17111A | No. 1 screw plug | 90344-53011 · 90345-51025 |
| 17111B | No. 2 screw plug | 96411-44000 |
| 17114 | Intake manifold hole cover | 25617-74020 |
| 17115 | Intake manifold hole cover gasket | 25627-74010 |
| 17118 | Manifold stays | 17118-64020 · 17118-74040 · 17118-74080 · 17118-88362 |
| 17123 | Pressure tank cover | 17123-62010 |
| 17125 | No. 1 pressure tank stay | 17125-74020 · 17125-74021 · 17125-88361 |
| 17126 | No. 2 pressure tank stay | 17126-62010 |
| 17127 | Pressure tank cover gasket | 17127-62020 |
| 17129 | Intake pressure tank | 17109-62010 |
| 17129H | Connector No. 4 | 90404-51010 · 90404-51026 |
| 17141 | exhaust manifold | 17141-62020 · 17141-63051 · 17141-64031 · 17141-74040 · 17141-74050 · 17141-88360 |
| 17141D | Studs (for oxygen sensor) | 90116-08128 · 90116-08253 |
| 17141G | Stud bolts (for turbocharger) | 90116-10054 |
| 17142 | No. 2 exhaust manifold housing | 17142-62010 |
| 17148 | Exhaust manifold plate (for EGR intake) | 17148-74010 |
| 17148B | EGR air intake gasket | 89466-32010 |
| 17151 | Studs (for manifold to carburetor) | 92122-40832 |
| 17152 | Studs (for manifold to exhaust) | 90116-10017 · 90116-10058 · 90116-10149 |
| 17155B | Exhaust manifold No. 5 heat shield | 17155-62010 |
| 17159 | Studs (for manifold to cylinder head) | 90116-08251 · 90116-10063 · 90116-10095 · 90116-10123 · 90116-10133 · 90116-10150 · 92122-60820 · 92122-60825 |
| 17166 | Exhaust manifold No. 4 heat shield | 17166-62011 |
| 17167 | Exhaust manifold No. 1 heat shield | 17167-62010 · 17167-64031 · 17167-74021 · 17167-74040 · 17167-74050 · 17902-63020 |
| 17168 | Exhaust manifold No.2 insulation pad | 17168-62010 · 17168-64021 · 17168-74020 · 17168-74030 · 17168-88360 · 17932-63030 |
| 17169 | Exhaust manifold No. 3 heat shield | 17904-63020 |
| 17171 | Gasket (intake manifold to exhaust manifold) | 17171-63022 |
| 17172 | Gasket (manifold to cylinder head) | 17172-63010 |
| 17173 | Gasket (exhaust manifold to cylinder head) | 17173-62020 · 17173-64050 · 17173-88360 |
| 17176 | Gasket (intake surge tank to intake manifold) | 17176-62020 |
| 17177 | No. 1 gasket (intake manifold to cylinder head) | 17177-62030 · 17177-64010 · 17177-74020 |
| 17201 | Turbocharger sub-assembly | 17201-64020 |
| 17271 | No. 1 turbine vibration isolation pad | 17271-64030 |
| 17275 | Compressor oil outlet elbow | 17275-64040 |
| 17277 | Compressor oil outlet gasket | 17277-54010 |
| 17278 | Gasket (turbo to exhaust manifold) | 17278-64010 |
| 17279 | Turbine outlet elbow gasket | 17279-64010 |
| 17291 | Turbine oil outlet elbow | 17291-64030 |
| 17294 | Actuator hose | 17294-28010 |
| 17294A | Clamp (for actuator hose) | 96132-30600 |
| 17300B | Connector (for intake control valve) | 90404-51026 |
| 25508 | Manifold three-way catalytic converter sub-assembly | 25508-74021 · 25508-74022 |
| 25508A | Stud bolts (for manifold three-way catalytic converter) | 90116-08171 |
| 25576 | Manifold three-way catalytic converter gasket | 25576-74010 |
| 25586 | No. 1 manifold three-way catalytic converter vibration isolation pad | 25586-74010 · 25586-74011 |
| 25587 | No. 2 manifold three-way catalytic converter vibration isolation pad | 25587-74010 · 25587-74011 |
| 25591 | Manifold bracket | 25591-74010 |
