Toyota CAMRY Oil Filter — Figure 1502

Toyota CAMRY EPC diagram 1502, Oil Filter, with 3 images and 8 PNC and OE references.

Toyota CAMRY Oil Filter EPC diagram — MA6093A
Oil Filter — MA6093A (198610 – 999999)

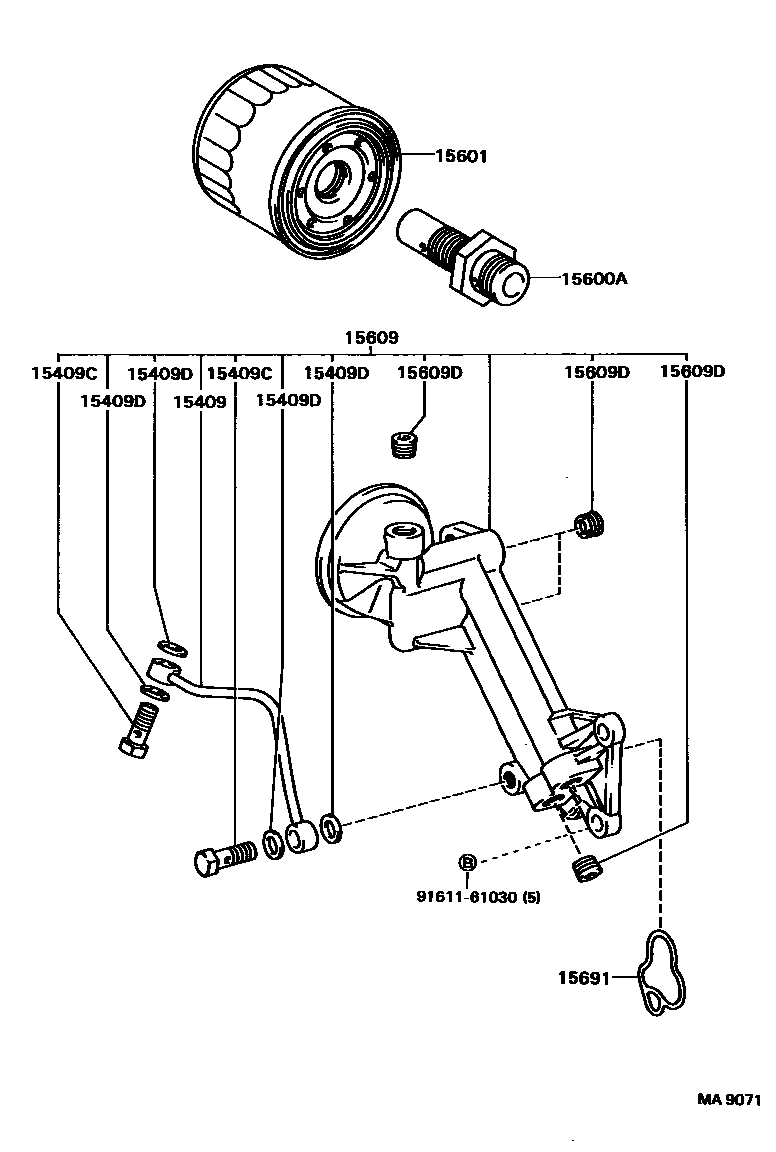

Toyota CAMRY Oil Filter EPC diagram — MA9071
Oil Filter — MA9071 (198610 – 999999)
Toyota CAMRY Oil Filter EPC diagram — MAC085
Oil Filter — MAC085 (198802 – 999999)

PNC and OE references

PNCPart nameOE numbers
15409Oil filter outlet pipe or oil outlet hose15431-64030
15409CJoint bolt (for oil filter outlet pipe)90401-10006 · 90401-10020 · 90401-10031
15409DGasket (for oil filter outlet pipe)90430-10035
15600AConnector (for oil filter)90404-19002 · 90404-27001
15601Oil filter sub-assembly15601-13011 · 90915-03001 · 90915-03002 · 90915-03003
15609Oil filter bracket sub-assembly15608-64040
15609DStraight threaded plug with head (for oil filter bracket)90344-53002
15691oil filter gasket15691-64030
