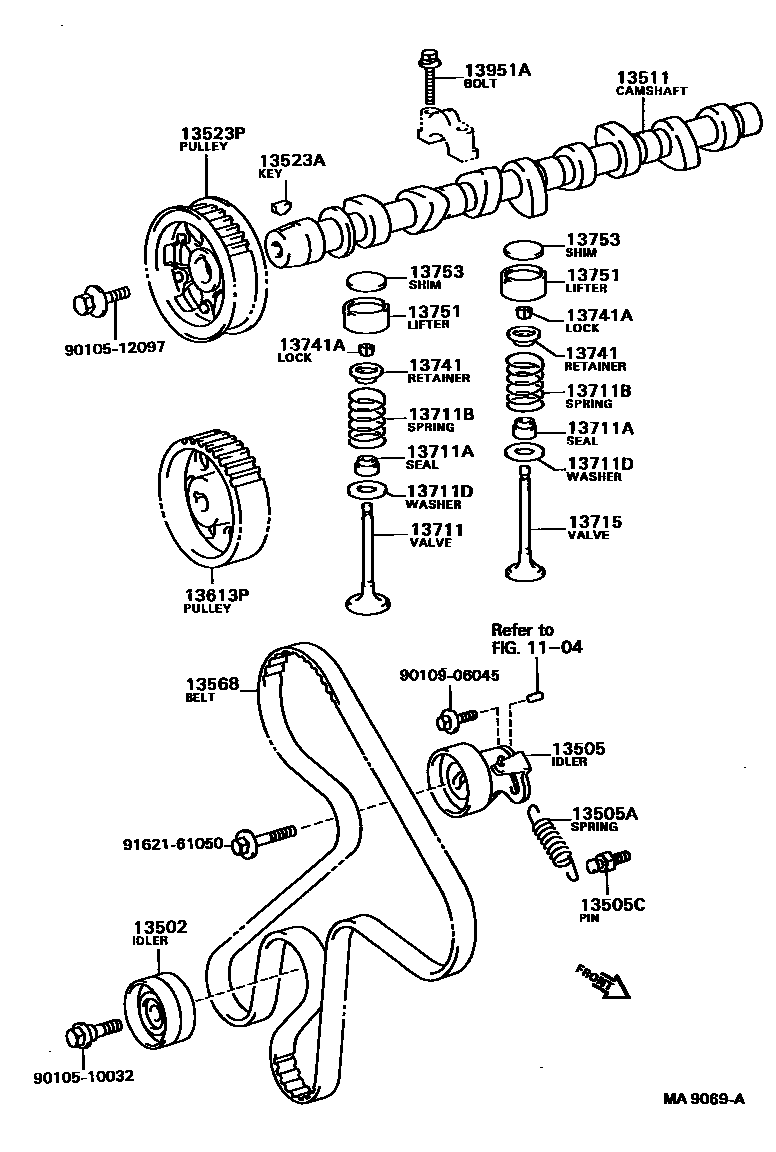

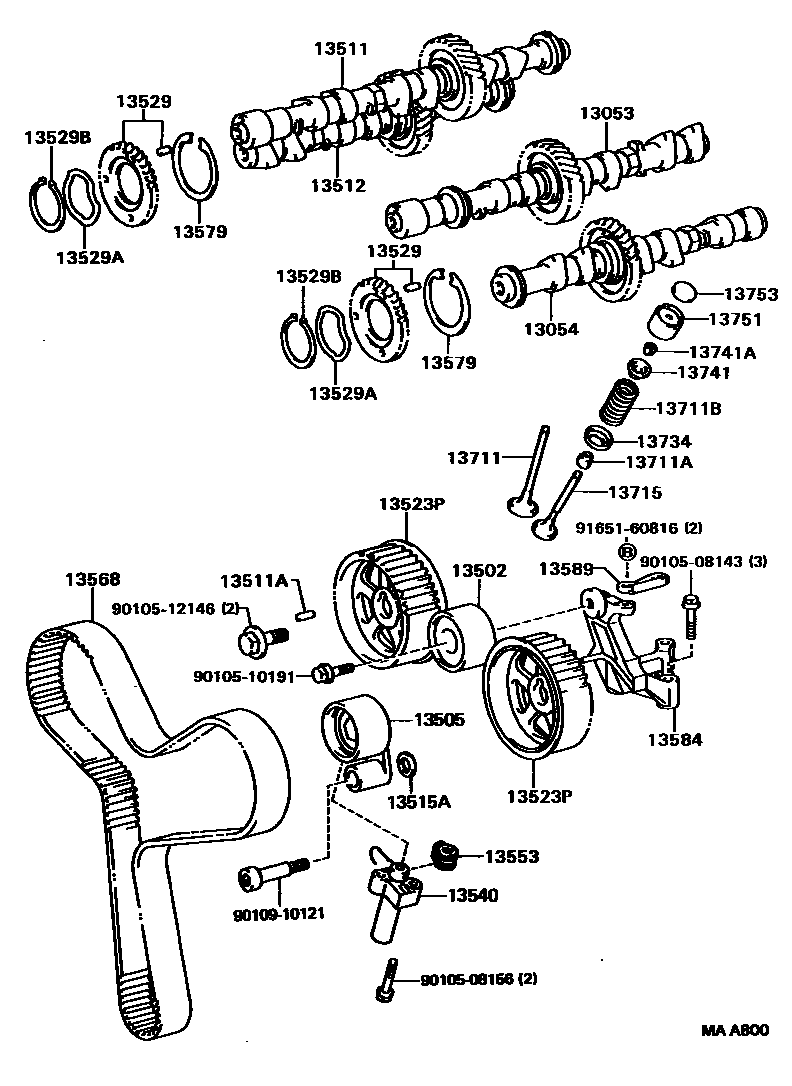

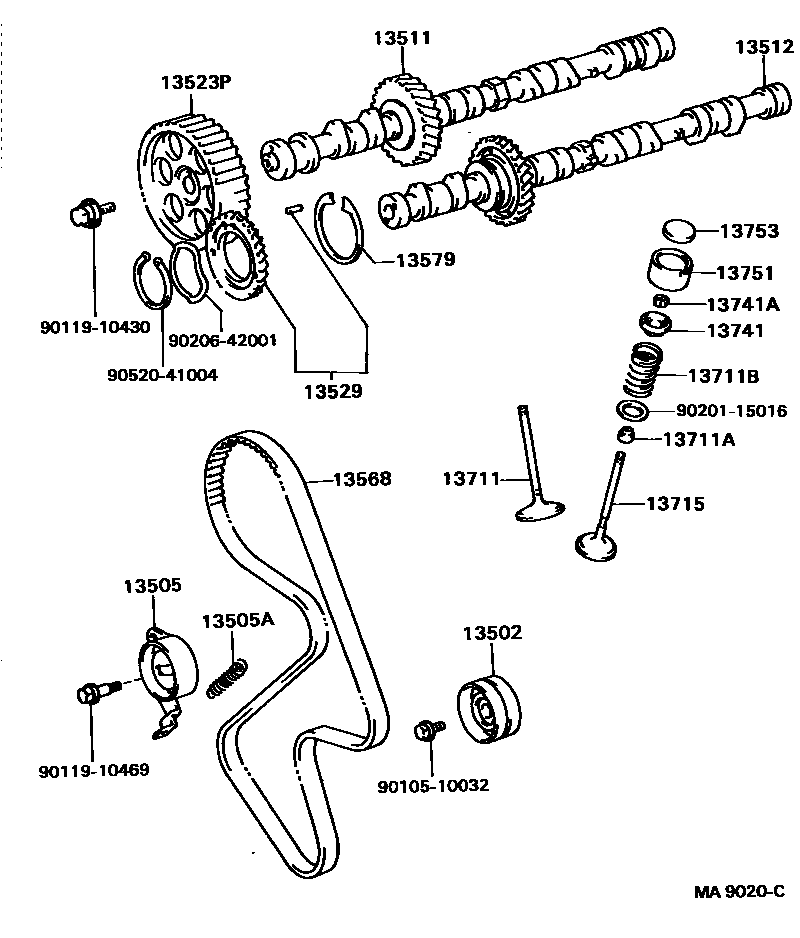

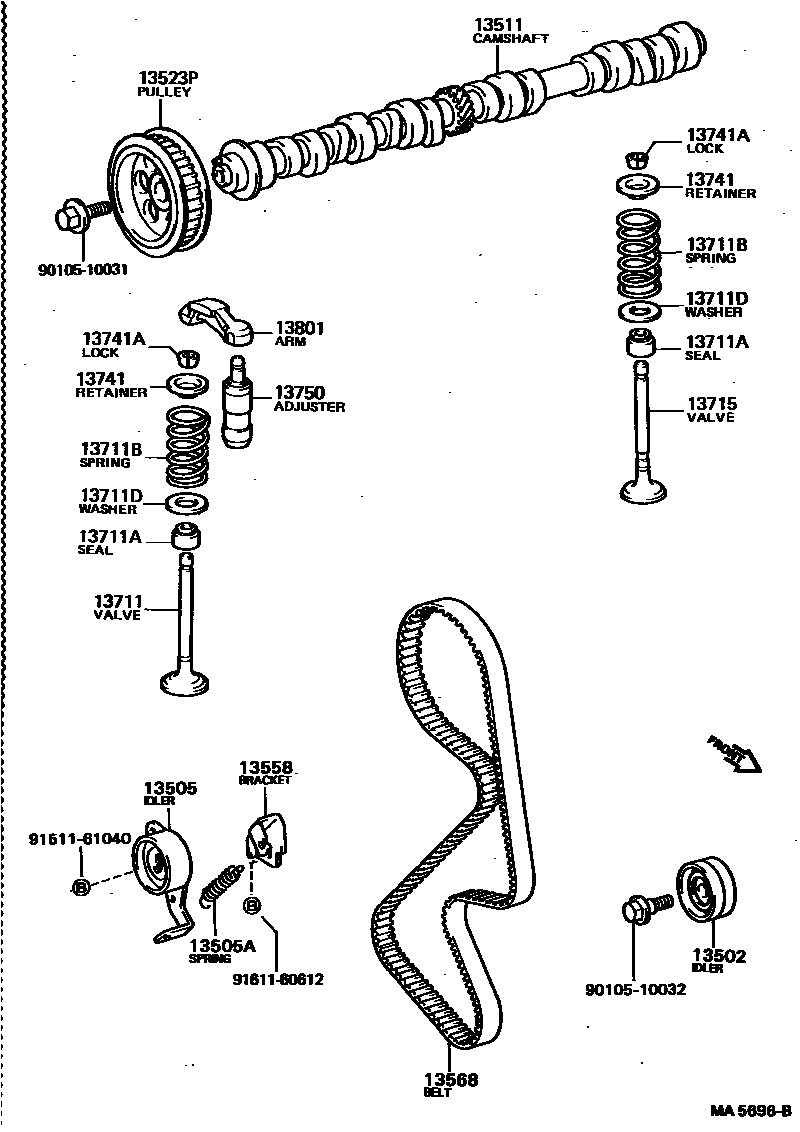

Toyota CAMRY Camshaft & Valve — Figure 1302
Toyota CAMRY EPC diagram 1302, Camshaft & Valve, with 4 images and 36 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 13053 | No. 3 camshaft sub-assembly | 13053-62020 |
| 13054 | No. 4 camshaft sub-assembly | 13054-62020 |
| 13502 | No. 2 timing belt idler pulley sub-assembly | 13503-62010 · 13503-63010 · 13503-64020 |
| 13505 | No. 1 timing belt idler pulley sub-assembly | 13505-62031 · 13505-63010 · 13505-63021 · 13505-64020 · 13505-64021 · 13505-74010 |
| 13505A | Tension spring (for idler pulley) | 90506-20039 · 90506-20052 · 90507-18006 |
| 13505C | Pin (for idler tension spring) | 13575-64010 |
| 13511 | camshaft | 13501-62020 · 13501-63010 · 13501-74030 · 13511-64040 |
| 13511A | Direct pin (for camshaft locking pin) | 90250-05121 |
| 13512 | Camshaft No. 2 | 13502-62020 · 13502-74010 · 13502-74020 |
| 13515A | Flat washer (for distributor drive gear) | 90201-10098 |
| 13523A | Half-moon pin (for timing gear) | 90280-05004 |
| 13523P | Camshaft timing pulley | 13051-62010 · 13051-64011 · 13523-63020 · 13523-63021 · 13523-74020 |
| 13529 | Camshaft counter gear | 13529-62900 · 13529-74900 |
| 13529A | Wave Washer (for Camshaft Counter Gear) | 90206-42001 |
| 13529B | Shaft snap ring (for camshaft counter gear) | 90520-41004 |
| 13540 | No. 1 chain tensioner assembly | 13540-62011 |
| 13553 | Chain tensioner dust cover | 13553-62010 |
| 13558 | Spring bracket (for idler pulley) | 13558-63010 |
| 13568 | timing belt | 13568-62020 · 13568-63020 · 13568-63021 · 13568-64011 · 13568-74010 · 13568-74011 |
| 13579 | Camshaft timing gear bolt washer | 13579-62010 · 13579-74010 |
| 13584 | Timing belt idler bracket | 13584-62020 |
| 13589 | Idler gear bracket stay | 13589-62010 |
| 13613P | Fuel injection pump drive pulley | 13613-64011 |
| 13711 | intake valve | 13711-62020 · 13711-63010 · 13711-64020 · 13711-74040 |
| 13711A | Oil seal or O-ring (for valve stem) | 90913-02053 · 90913-02057 · 90913-02062 · 90913-02066 · 90913-02067 · 90913-02075 |
| 13711B | Compression spring (for inner side) | 90501-31003 · 90501-43003 · 90501-45014 · 90504-30003 |
| 13711D | Flat washer (for valve spring seat) | 90201-16010 · 90201-21002 |
| 13715 | exhaust valve | 13715-62020 · 13715-63011 · 13715-64040 · 13715-74020 |
| 13734 | Valve spring seat | 13734-62010 |
| 13741 | Valve spring seat ring | 13740-43010 · 13741-16010 · 13741-43010 · 13741-63010 |
| 13741A | Valve spring seat lock plate | 90913-03005 · 90913-03014 · 90913-03021 |
| 13750 | Valve lash adjuster assembly | 13750-70010 |
| 13751 | valve lifter | 13751-16010 · 13751-64011 · 13751-74010 |
| 13753 | valve adjustment gasket | 13753-16020 · 13753-16040 · 13753-16060 · 13753-16080 · 13753-16100 · 13753-16120 · 13753-16140 · 13753-16160 · 13753-16180 · 13753-16200 · 13753-16220 · 13753-16240 · 13753-16260 · 13753-16280 · 13753-16300 · 13753-16320 · 13753-16340 · 13753-64010 · 13753-64030 · 13753-64050 · 13753-64070 · 13753-64090 · 13753-64110 · 13753-64130 · 13753-64150 · 13753-64170 · 13753-64190 · 13753-64210 · 13753-64230 · 13753-64250 · 13753-64270 · 13753-64290 · 13753-64310 · 13753-64330 · 13753-64350 · 13753-64370 · 13753-64390 · 13753-64410 · 13753-64430 · 13753-64450 · 13753-64470 · 13753-64490 |
| 13801 | No. 1 valve rocker arm sub-assembly | 13811-63020 |
| 13951A | Bolts (for rocker arm bracket assembly) | 91621-60840 |
