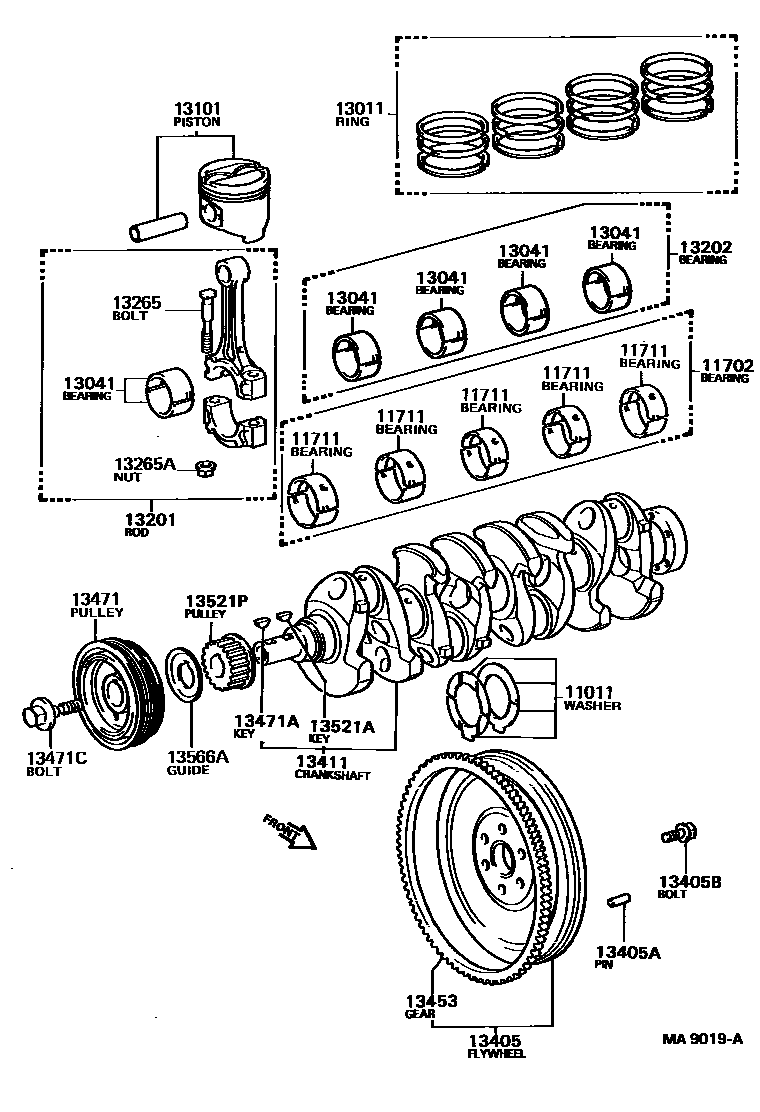

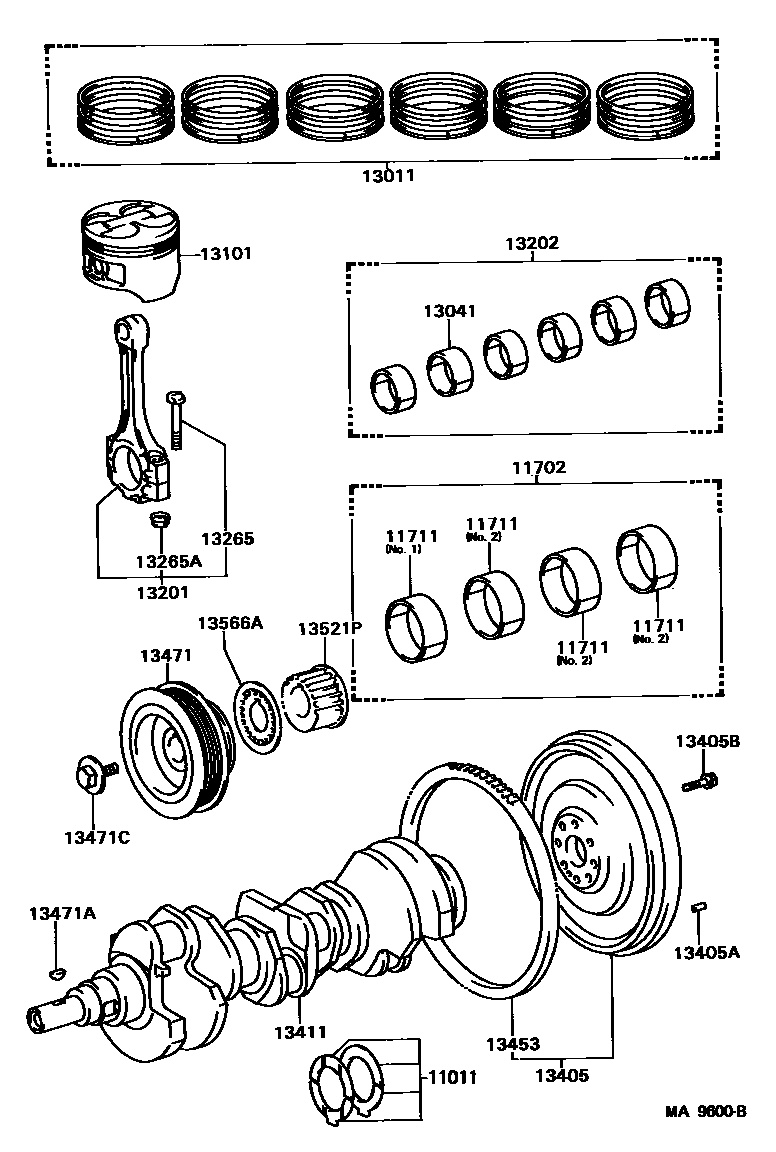

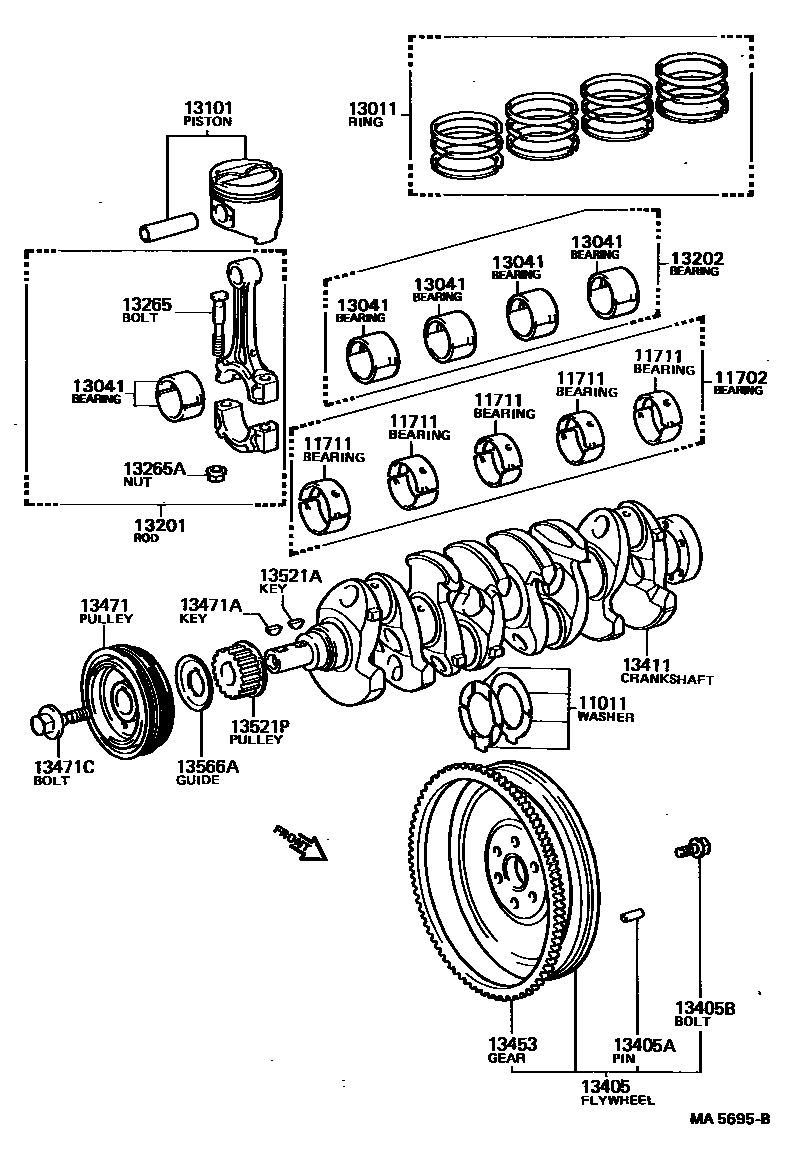

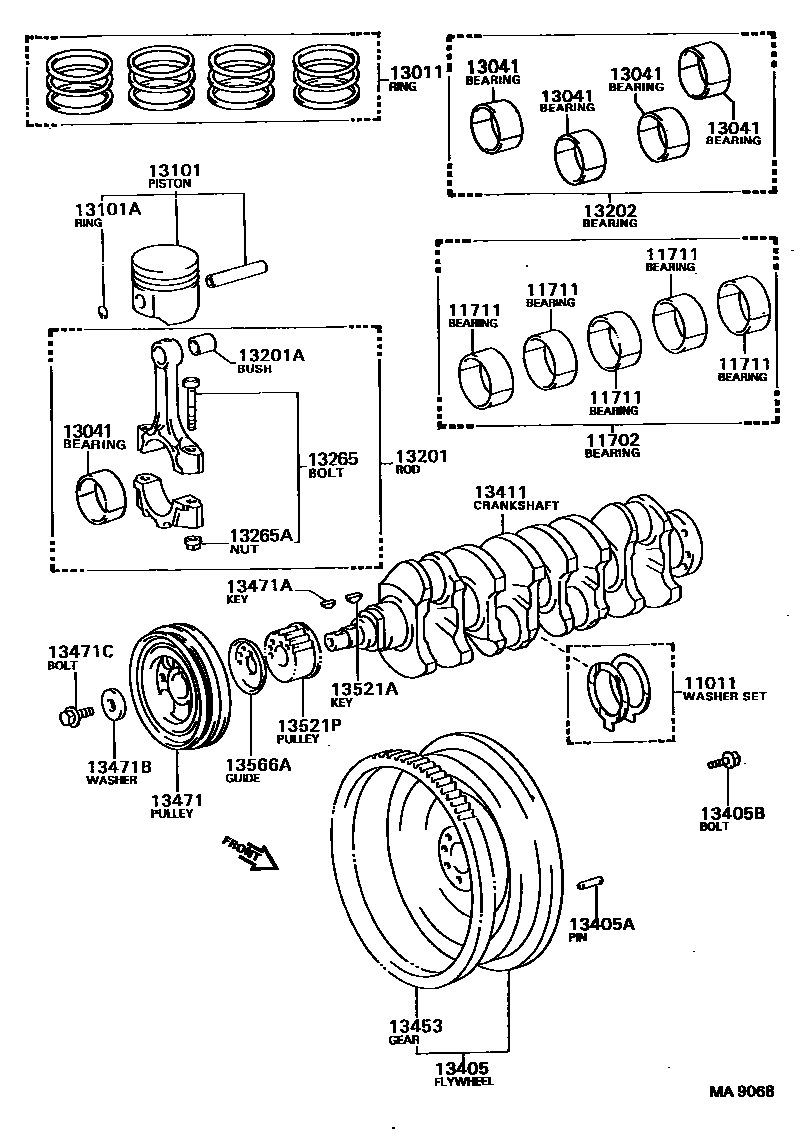

Toyota CAMRY Crankshaft & Piston — Figure 1301
Toyota CAMRY EPC diagram 1301, Crankshaft & Piston, with 4 images and 22 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11011 | Crankshaft thrust washer assembly | 11011-25010 · 11011-62010 · 11011-64010 · 11012-64010 · 11013-64010 |
| 11702 | crankshaft bearing assembly | 11704-62010 · 11704-63021 · 11704-64030 |
| 13011 | Piston ring assembly | 13011-62040 · 13011-63030 · 13011-63031 · 13011-64150 · 13011-74071 · 13011-74080 · 13011-74081 · 13013-62040 · 13013-63030 · 13013-63031 · 13013-64150 · 13013-74072 · 13013-74091 · 13014-63030 · 13014-63031 · 13015-63030 · 13015-63031 |
| 13101 | Piston sub-assembly with pin | 13013-74072 · 13101-63011 · 13101-64070 · 13101-74040 · 13101-74050 · 13103-62020 · 13103-63011 · 13103-64070 · 13103-74050 · 13104-63011 · 13105-63011 |
| 13101A | Bore snap ring (for piston pin) | 90521-29003 |
| 13201 | Connecting rod sub-assembly | 13201-69045 · 13201-69055 · 13201-69075 · 13201-69085 |
| 13201A | Bushing (for connecting rod small end) | 90999-73102 |
| 13202 | Connecting rod bearing assembly | 13204-62010 · 13204-63020 · 13204-64031 |
| 13265 | Connecting rod bolts | 13265-49015 · 13265-62010 · 13265-63010 |
| 13265A | Hexagonal nut (for connecting rod bolts) | 90179-08014 · 90179-09001 · 90179-10042 |
| 13405 | Flywheel sub-assembly | 13405-62020 · 13405-64050 · 13405-64060 · 13405-69056 · 13405-74030 · 13405-74040 |
| 13405A | Direct sales (for flywheel) | 90250-08054 · 90250-08120 |
| 13405B | Flywheel fixing bolt | 90105-10071 · 90105-10138 |
| 13411 | crankshaft | 13411-62901 · 13411-63010 · 13411-64011 · 13411-64900 · 13411-74900 · 13411-74902 |
| 13453 | flywheel ring gear | 13453-20010 · 13453-64011 · 13453-74010 |
| 13471 | crankshaft pulley | 13408-62010 · 13408-63020 · 13408-64031 · 13408-74020 |
| 13471A | Crankshaft key (for crankshaft pulley assembly) | 90280-05010 · 95161-10519 · 95161-20516 · 95161-20519 |
| 13471B | Flat Washer (for crankshaft pulley assembly) | 90119-14005 · 90201-14005 · 90201-14007 |
| 13471C | Bolt (for crankshaft pulley assembly) | 90105-14057 · 90105-16031 · 90119-14015 · 91511-61435 |
| 13521A | Key (for crankshaft timing gear) | 95161-10519 · 95161-20519 · 95161-20622 |
| 13521P | crankshaft timing pulley | 13521-62020 · 13521-63010 · 13521-64010 · 13521-74020 |
| 13566A | timing belt guide | 13566-64010 · 13567-62010 · 13567-63010 · 13567-74010 |
