Toyota CAMRY Ventilation Hose — Figure 1201

Toyota CAMRY EPC diagram 1201, Ventilation Hose, with 4 images and 8 PNC and OE references.

Toyota CAMRY Ventilation Hose EPC diagram — MA6892
Ventilation Hose — MA6892 (198610 – 999999)

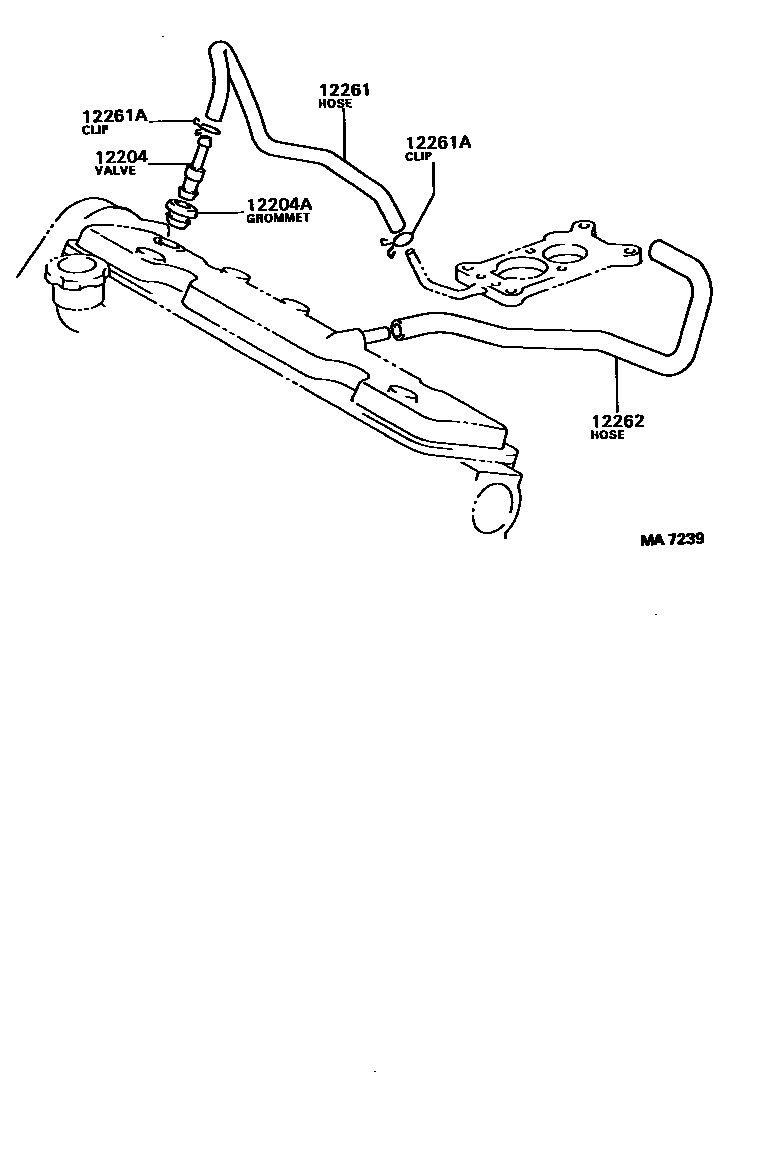

Toyota CAMRY Ventilation Hose EPC diagram — MA7239
Ventilation Hose — MA7239 (198610 – 999999)

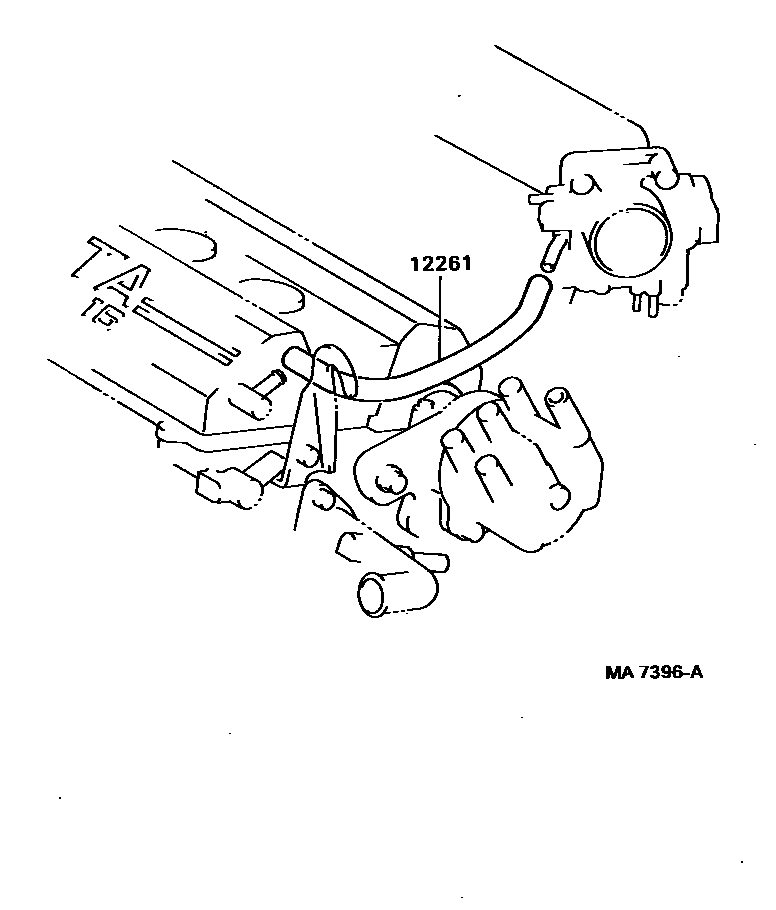

Toyota CAMRY Ventilation Hose EPC diagram — MA7396A
Ventilation Hose — MA7396A (198610 – 999999)
Toyota CAMRY Ventilation Hose EPC diagram — MAA680
Ventilation Hose — MAA680 (198802 – 999999)

PNC and OE references

PNCPart nameOE numbers
12204Ventilation valve sub-assembly12204-11040 · 12204-63010
12204AGasket (for ventilation system)90480-18001
12221Ventilation duct No. 190407-10011
12222BClip (for ventilation duct)96132-31000
12261Ventilation Hose12261-62020 · 12261-63020 · 12261-64040 · 12261-74020
12261AClip or clip (for vent hose)90467-14001 · 90467-14082 · 90467-15120 · 90467-17002 · 90467-17126
12262Ventilation hose No. 212262-62020 · 12262-63040
12262AClamp (for vent hose No. 2)90467-14017
