Toyota CAMRY Cylinder Head — Figure 1104

Toyota CAMRY EPC diagram 1104, Cylinder Head, with 4 images and 52 PNC and OE references.

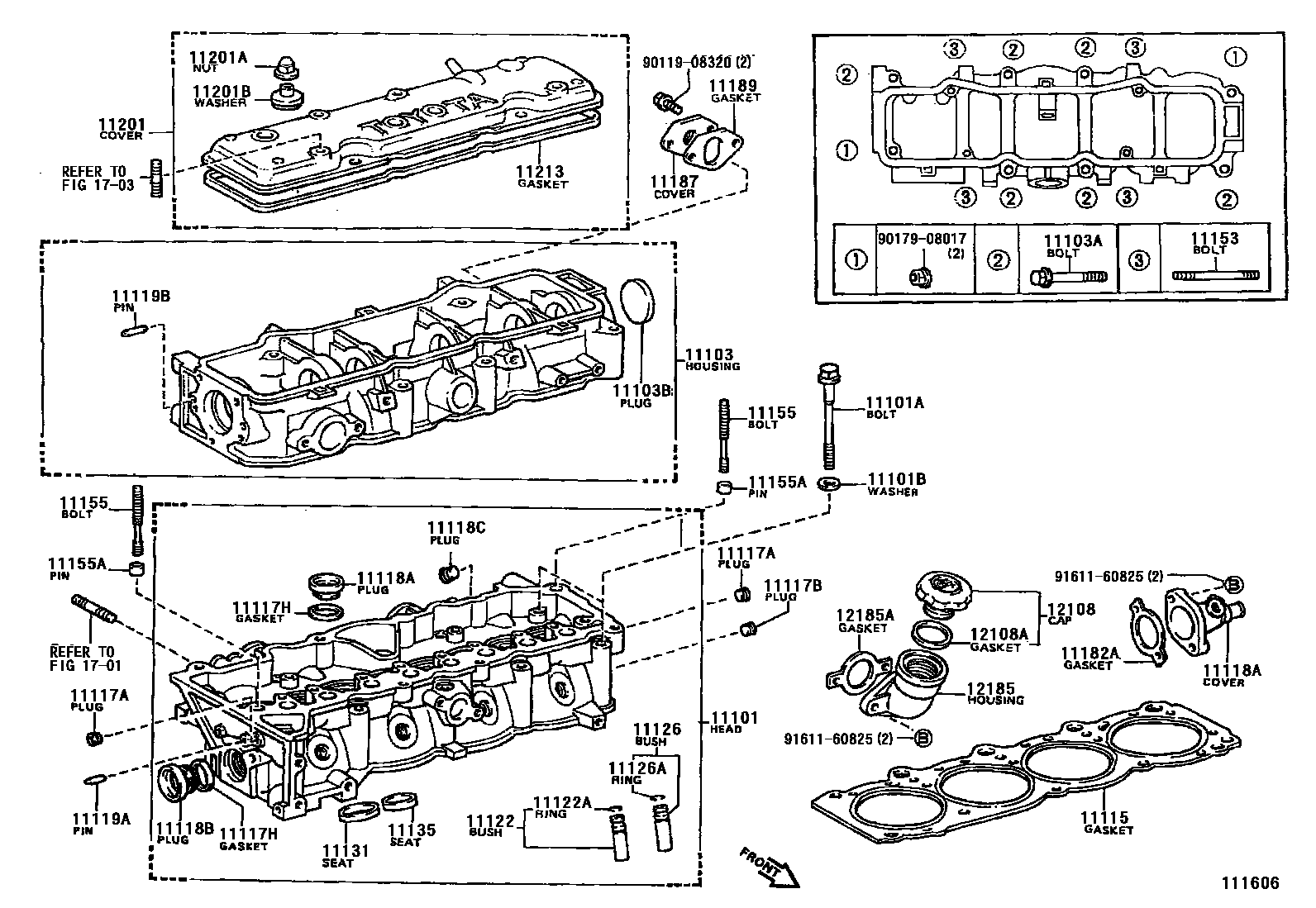

Toyota CAMRY Cylinder Head EPC diagram — 111606
Cylinder Head — 111606 (198610 – 999999)

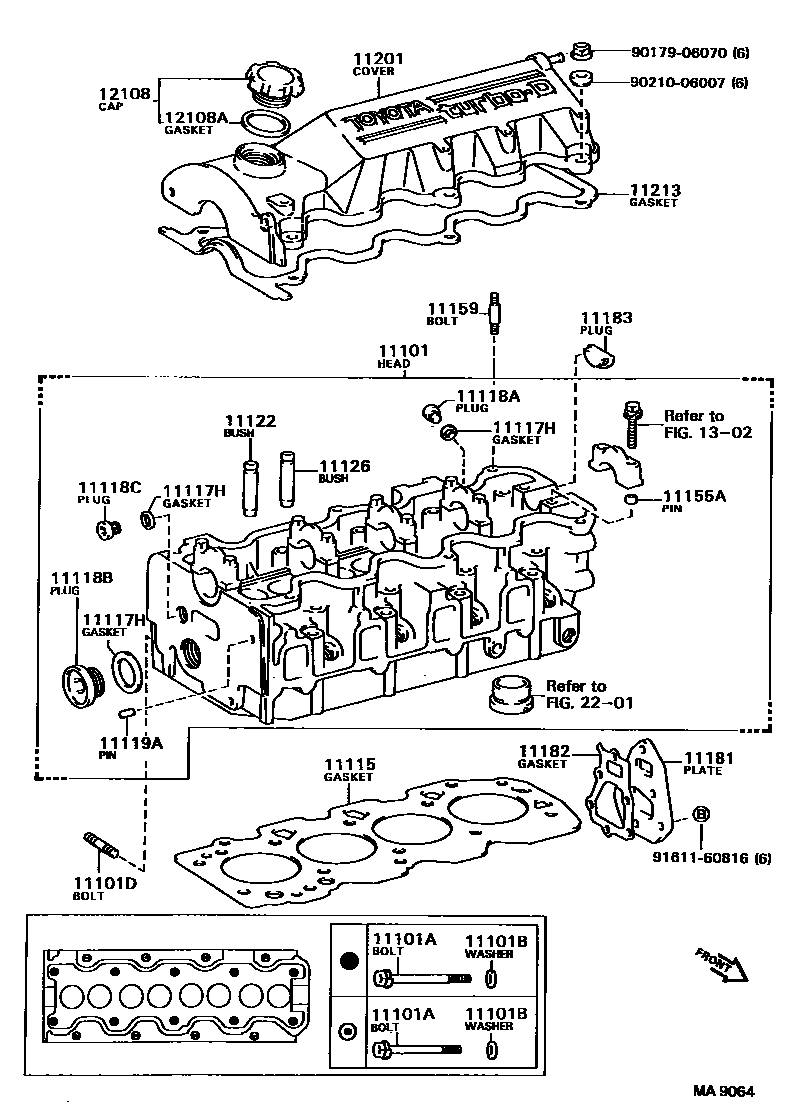

Toyota CAMRY Cylinder Head EPC diagram — MA9064
Cylinder Head — MA9064 (198610 – 999999)

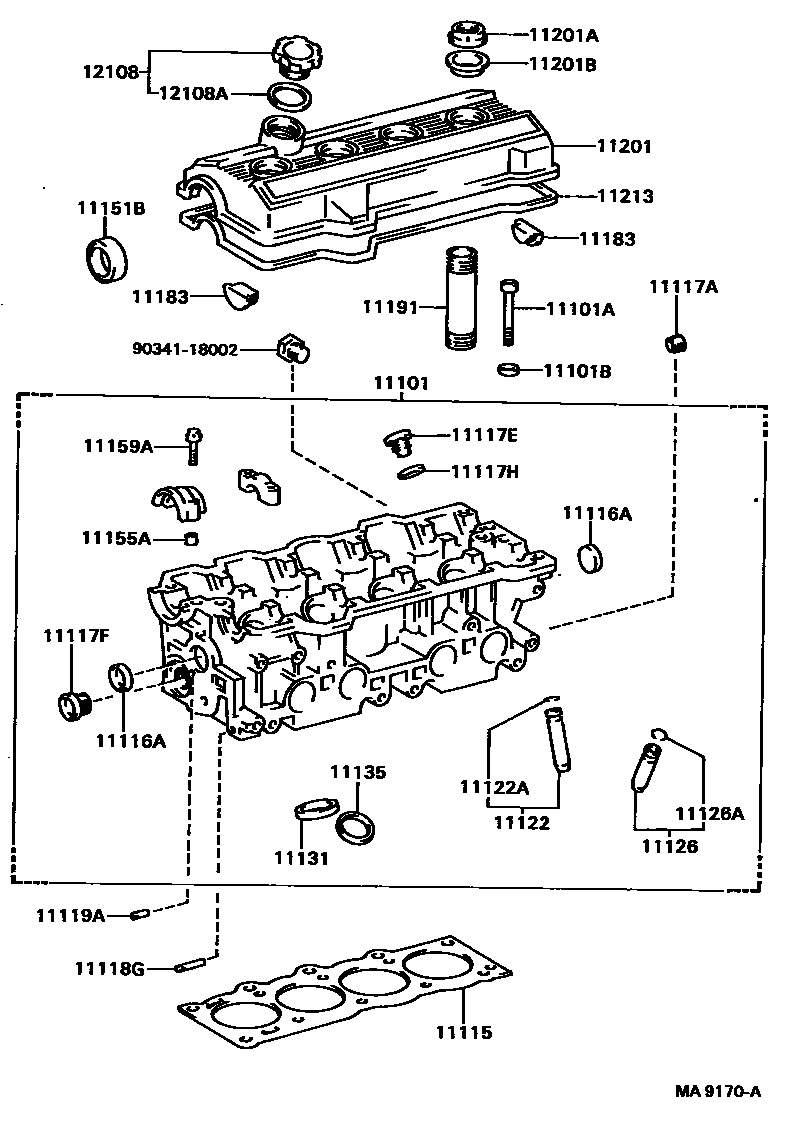

Toyota CAMRY Cylinder Head EPC diagram — MA9170A
Cylinder Head — MA9170A (198610 – 999999)

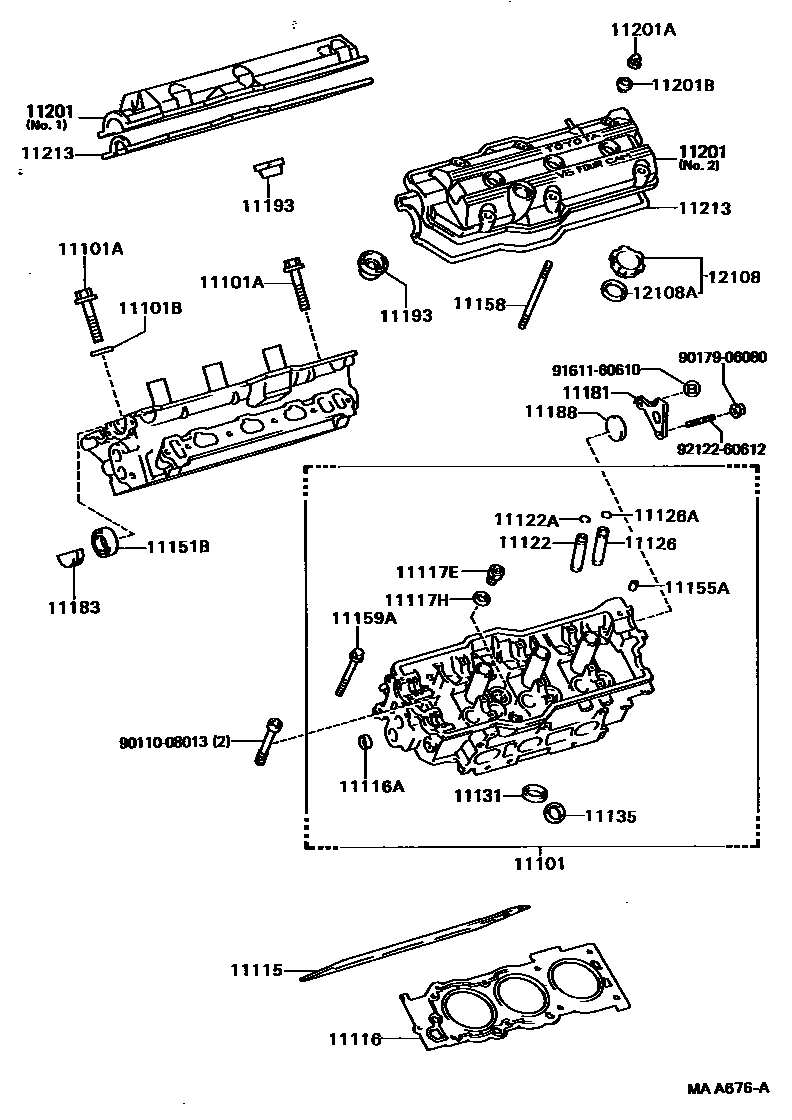

Toyota CAMRY Cylinder Head EPC diagram — MAA676A
Cylinder Head — MAA676A (198802 – 999999)

PNC and OE references

PNCPart nameOE numbers
11101CYLINDER HEAD SUB-ASSY11101-64090 · 11101-69027 · 11101-69055 · 11101-74030
11101ABOLT (FOR CYLINDER HEAD)90105-11018 · 90105-11019 · 90109-10048 · 90110-10006 · 90910-02077
11101BFlat Washer (for cylinder head assembly)90201-10344 · 90201-11018 · 90201-12222
11101DStud bolts (for water outlet)92122-60820
11103Camshaft housing sub-assembly11103-63900
11103ABolts (for camshaft housing assembly)91511-60865
11103BNo. 1 sealing plug (for cam housing)96411-45000
11115GASKET, CYLINDER HEAD11115-62030 · 11115-63010 · 11115-64100 · 11115-74030
11116No. 2 cylinder head gasket11116-62030
11116ANo. 1 sealing plug96411-42800 · 96411-43000
11117ANo. 1 headed tapered thread plug90344-52003 · 90344-52013 · 90344-53011
11117BNo. 2 headed tapered thread plug90344-53011
11117EPLUG, STRAIGHT SCREW W/HEAD, NO.190341-24009 · 90341-24090
11117FNo. 2 headed straight thread plug90341-32031
11117HGasket (for coolant hole)90430-10204 · 90430-12010 · 90430-20004 · 90430-24246 · 90430-33133
11118ANo. 1 straight screw plug90341-10005 · 90341-20002
11118BNo. 2 straight screw plug90341-24090 · 90341-32070
11118CNo. 3 straight screw plug90340-18001 · 90341-12002 · 90341-12013
11118GSlotted Spring Pin No. 190249-06084
11119ANo. 1 direct sales90250-06003 · 90250-06068
11119BNo. 2 direct sales90250-06003
11122BUSH, INTAKE VALVE GUIDE11122-16020 · 11122-63020 · 11122-64010 · 11123-16020 · 11123-63020 · 11123-64010
11122AShaft snap ring (for valve guide bushing)90520-10004 · 90520-12049
11126BUSH, EXHAUST VALVE GUIDE11122-16020 · 11123-16020 · 11126-63020 · 11126-64010 · 11127-63020 · 11127-64010
11126AShaft snap ring (for valve guide bushing)90520-10004 · 90520-12049
11131intake valve seat11131-62020 · 11131-63010 · 11131-74020 · 11132-62020 · 11132-63010 · 11132-74020
11135Exhaust valve seat11135-62020 · 11135-63010 · 11135-74020 · 11135-74030 · 11136-62020 · 11136-63010 · 11136-74020 · 11136-74030
11151BOIL SEAL (FOR CAMSHAFT SETTING)90311-38017 · 90311-38034
11153Studs (for mounting camshaft housing to cylinder head cover)92122-40650
11155Studs (for mounting the cylinder head to the camshaft housing)90116-08150
11155APIN, RING W/HEAD90253-10004 · 90253-11021 · 90253-13017
11158STUD (FOR CYLINDER HEAD TO HEAD COVER)90116-06071
11159Studs (for mounting cylinder head to camshaft bearing cap)90116-06023
11159ABOLT (FOR CYLINDER HEAD TO CAMSHAFT BEARING CAP)90119-07005
11181cylinder head rear plate11181-62010 · 11181-64010
11181Acylinder head rear cover11108-63010
11182Rear cylinder head gasket11182-64010
11182ARear cylinder head cover gasket16341-63010
11183PLUG, SEMICIRCULAR11183-62010 · 11183-64010 · 11183-74010
11187Rear camshaft housing cover11187-63010
11188Camshaft housing screw plug11188-62010
11189Camshaft housing rear cover gasket11117-63010
11191spark plug sleeve11191-74011
11193spark plug bushing gasket11193-62020
11201CYLINDER HEAD COVER SUB-ASSY11201-62020 · 11201-64041 · 11201-64070 · 11201-69085 · 11201-74020 · 11202-62020
11201ACap nut (for cylinder head cover)90176-06008 · 90179-28002 · 90179-28004
11201BGasket (for cylinder head cover)90210-08020 · 90210-08025 · 90480-30025
11213GASKET, CYLINDER HEAD COVER11213-62010 · 11213-63010 · 11213-63011 · 11213-64040 · 11213-74020
12108OIL FILLER CAP SUB-ASSY12180-13030 · 12180-62010 · 12180-65010
12108AGASKET (FOR OIL FILLER CAP)90430-37004 · 90430-37140
12185Oil filler cap housing12185-63010
12185AOil filler cap gasket16341-63010
