Toyota CAMRY Engine Overhaul Gasket Kit — Figure 1103

Toyota CAMRY EPC diagram 1103, Engine Overhaul Gasket Kit, with 4 images and 2 PNC and OE references.

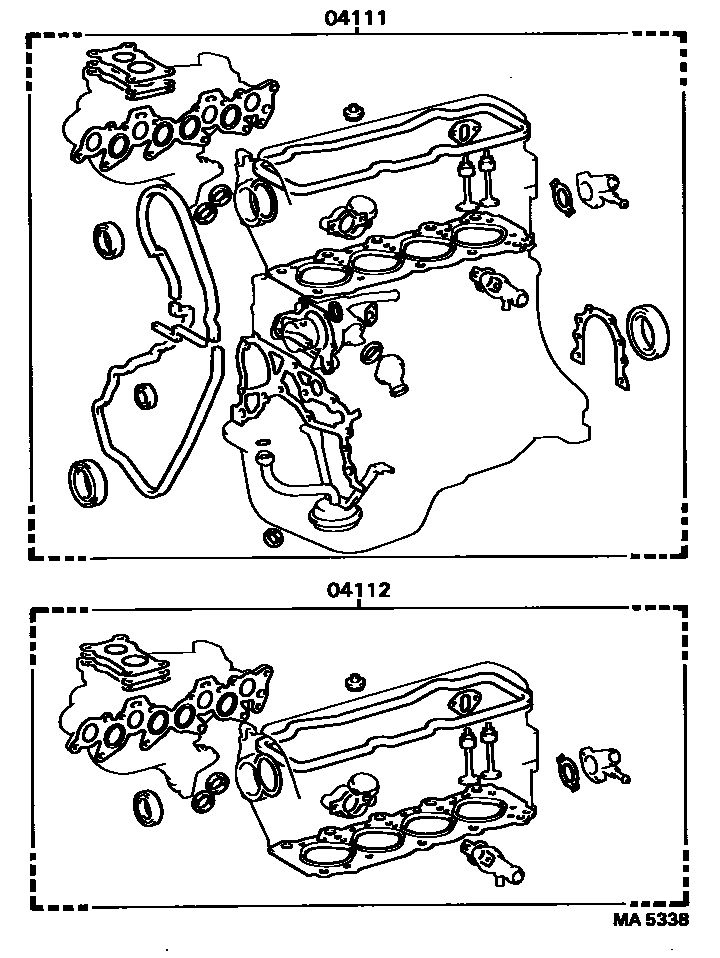

Toyota CAMRY Engine Overhaul Gasket Kit EPC diagram — MA5338
Engine Overhaul Gasket Kit — MA5338 (198610 – 999999)

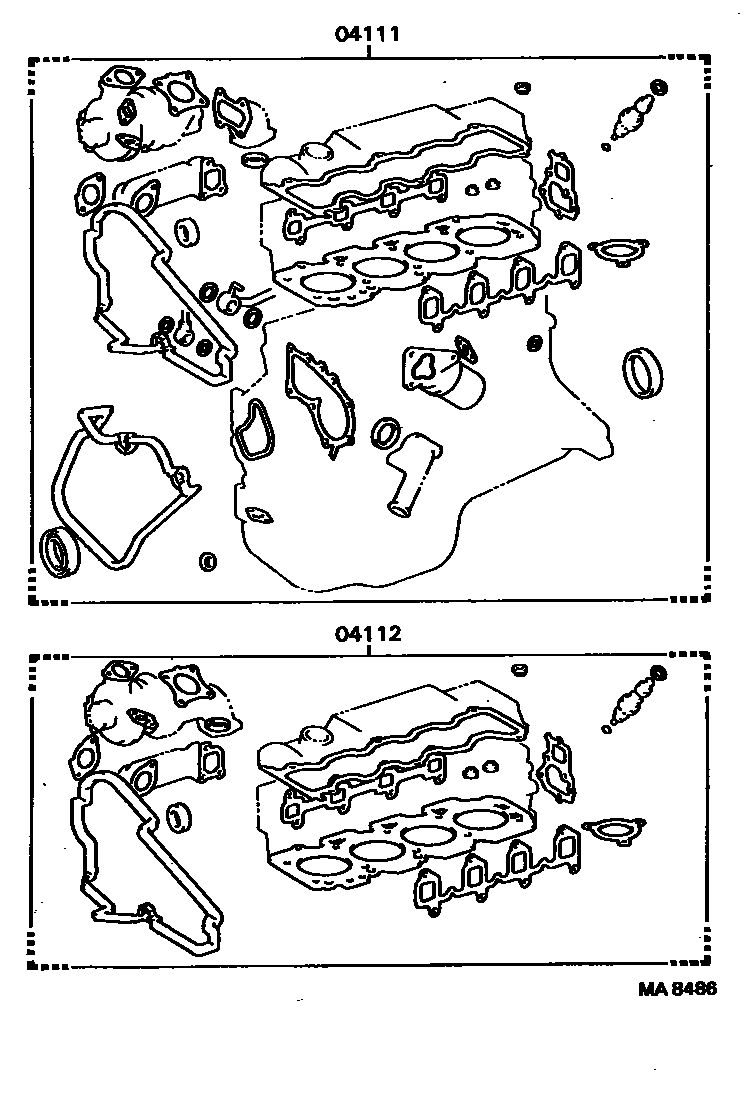

Toyota CAMRY Engine Overhaul Gasket Kit EPC diagram — MA8486
Engine Overhaul Gasket Kit — MA8486 (198610 – 999999)

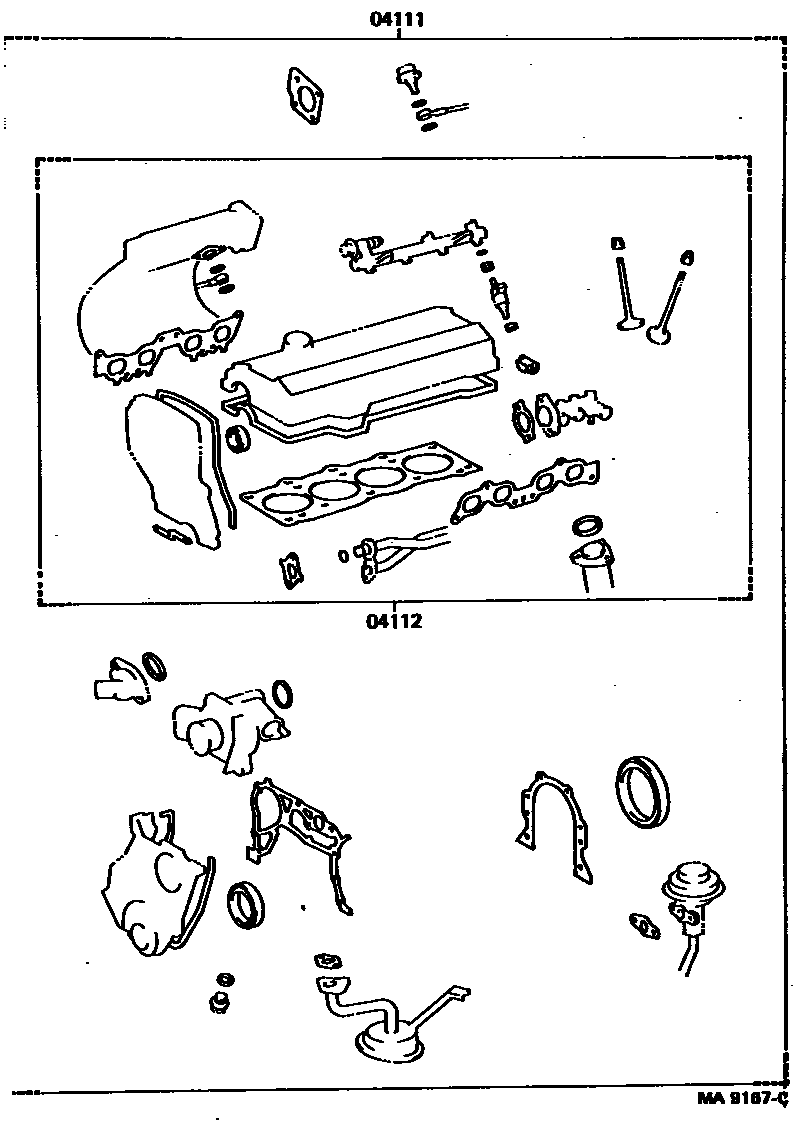

Toyota CAMRY Engine Overhaul Gasket Kit EPC diagram — MA9167C
Engine Overhaul Gasket Kit — MA9167C (198610 – 999999)

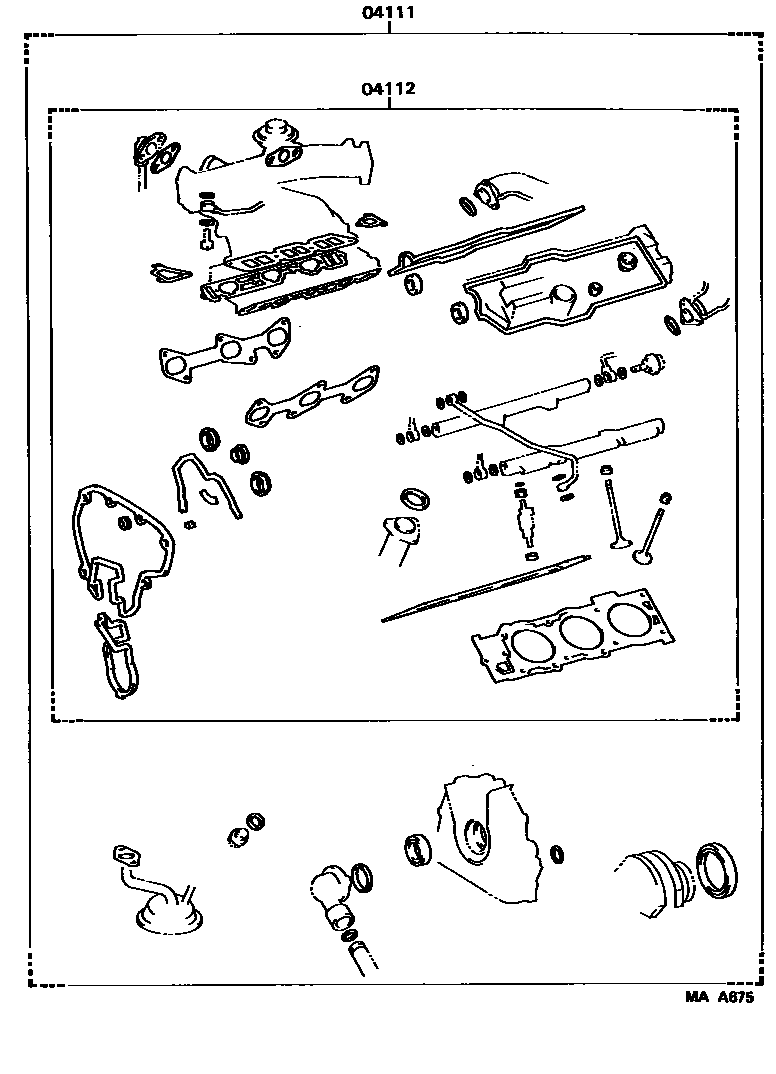

Toyota CAMRY Engine Overhaul Gasket Kit EPC diagram — MAA675
Engine Overhaul Gasket Kit — MAA675 (198802 – 999999)

PNC and OE references

PNCPart nameOE numbers
04111Engine overhaul gasket assembly04111-62020 · 04111-63021 · 04111-63022 · 04111-64101 · 04111-74051
04112Engine valve grinding pad assembly04112-62020 · 04112-63020 · 04112-63021 · 04112-64082 · 04112-74050
