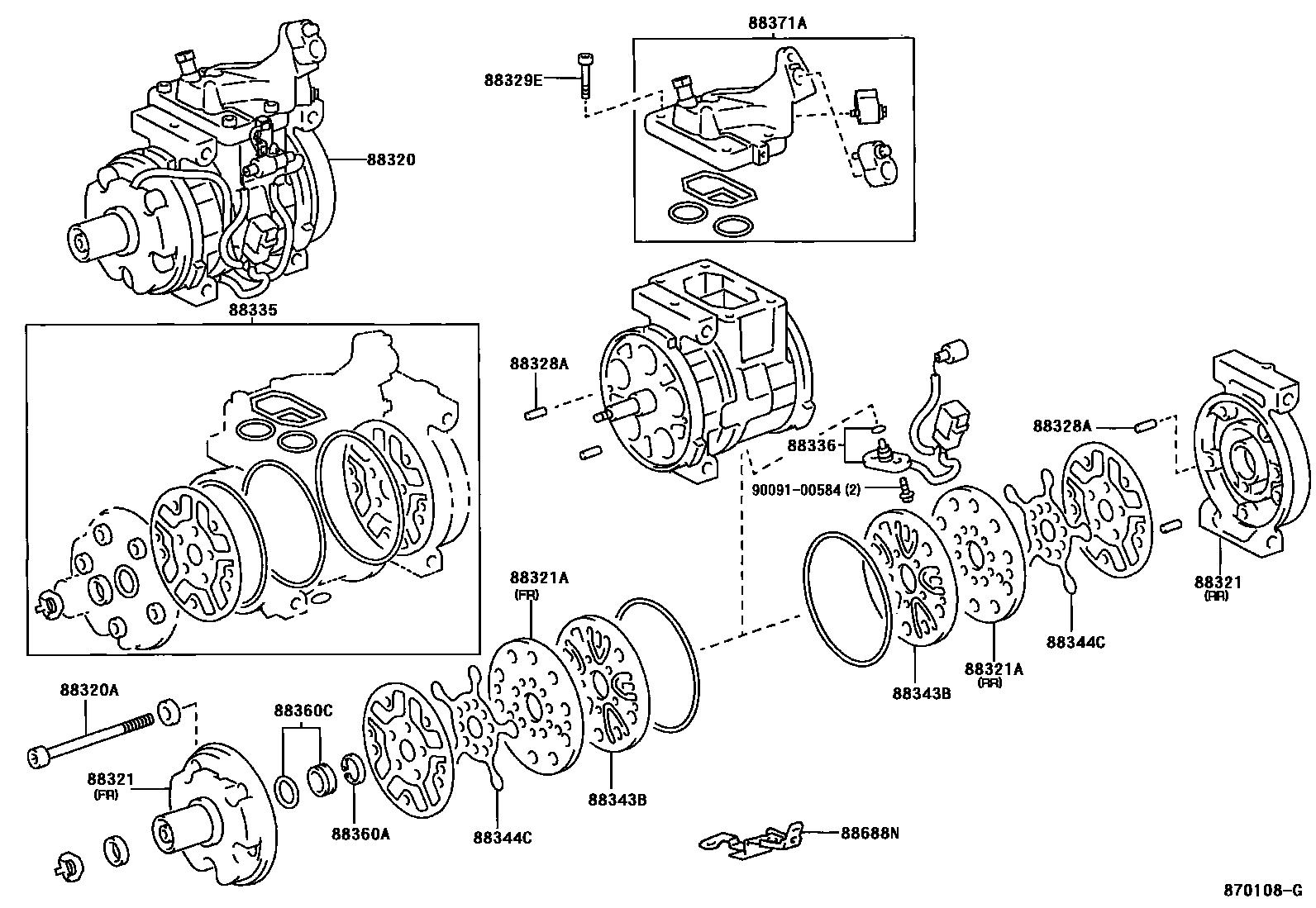

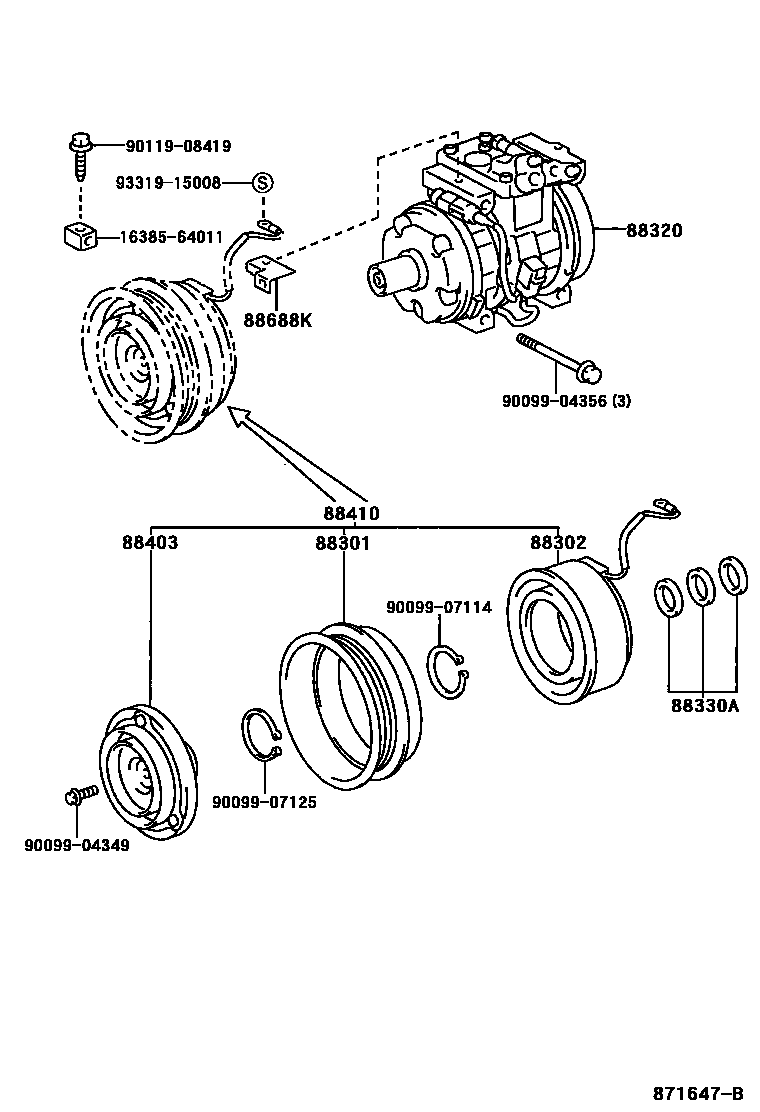

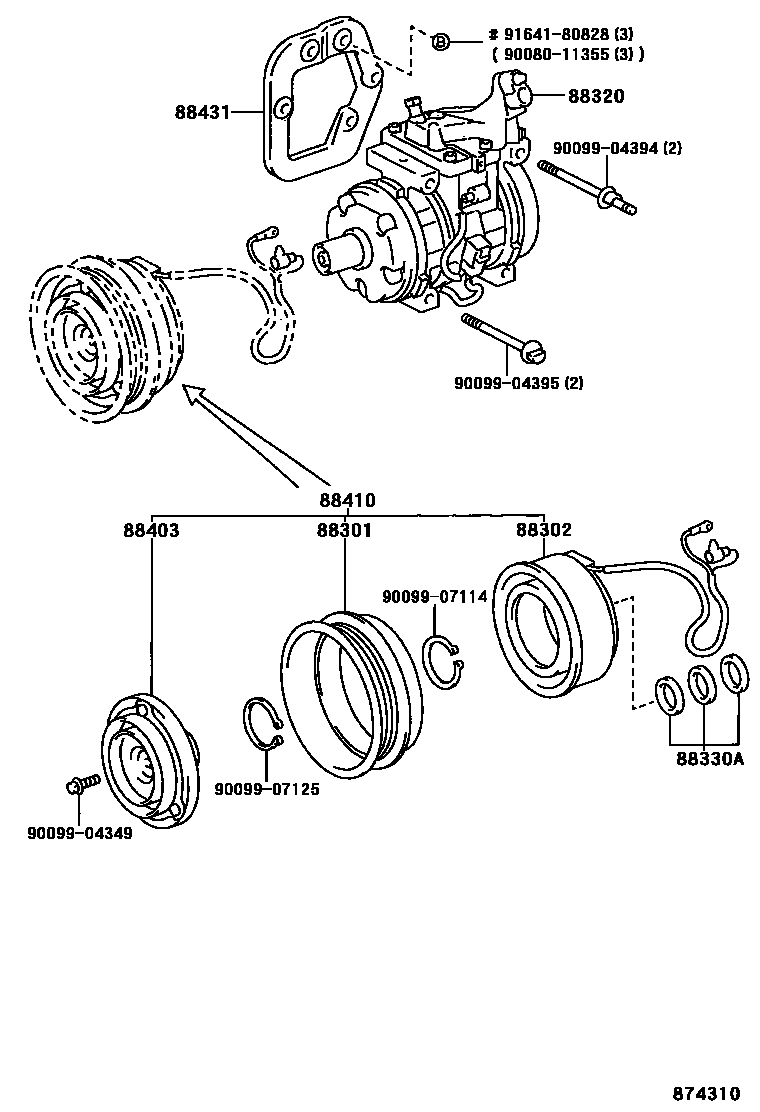

Toyota CAMRY Heating & Air Conditioning - Compressor — Figure 8719
Toyota CAMRY EPC diagram 8719, Heating & Air Conditioning - Compressor, with 3 images and 21 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88301 | Electromagnetic clutch rotor sub-assembly | 88412-2A050 · 88412-33010 · 88412-33040 |
| 88302 | Electromagnetic clutch stator sub-assembly | 88411-22310 · 88411-2A030 · 88411-33050 |
| 88320 | Cooler Compressor Assembly | 88320-33100 · 88320-33120 |
| 88320A | Through bolt | 90099-04958 |
| 88321 | Cooler compressor cylinder head | 88321-32010 · 88322-32040 · 88322-32050 |
| 88321A | Valve sub-assembly | 88341-22010 · 88341-44010 · 88342-22010 · 88342-44010 |
| 88328A | compressor pin | 90099-08058 |
| 88329E | No. 1 compressor bolt | 90099-04924 |
| 88330A | Washer (for electromagnetic clutch) | 88335-14020 |
| 88335 | Overhaul gasket assembly | 88335-2B030 |
| 88336 | compressor sensor | 88336-33110 |
| 88343B | suction valve reed | 88343-14020 |
| 88344C | Discharge valve reed | 88344-22010 |
| 88360A | Compressor seal ring | 90096-90022 |
| 88360C | Shaft seal assembly | 88360-2B020 |
| 88371A | suction valve | 88371-2B120 · 88371-33040 |
| 88403 | Electromagnetic clutch hub sub-assembly | 88403-30290 |
| 88410 | Magnetic Clutch Assembly | 88410-28170 · 88410-33100 · 88410-33110 |
| 88431 | Compressor No. 1 mounting bracket | 88431-07010 · 88431-33020 |
| 88688K | Cooler compressor bracket | 88688-33260 |
| 88688N | cooler bracket | 88688-22180 |
