Toyota CAMRY 座椅电机和座椅加热器 — Figure 8513

Toyota CAMRY EPC diagram 8513, 座椅电机和座椅加热器, with 1 images and 2 PNC and OE references.

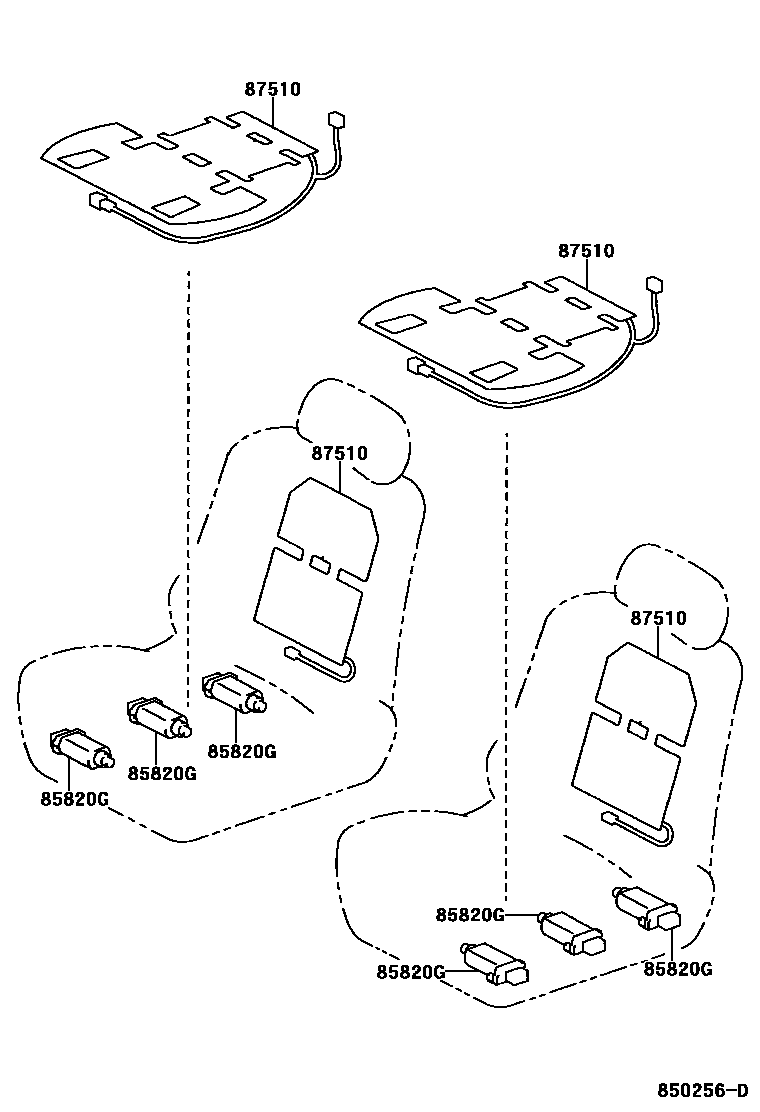

Toyota CAMRY 座椅电机和座椅加热器 EPC diagram — 850256D
座椅电机和座椅加热器 — 850256D (199608 – 999999)

PNC and OE references

PNCPart nameOE numbers
85820GElectric seat motor assembly85820-30510 · 85820-30710
87510Seat heater assembly87510-0W091 · 87510-0W101 · 87510-33090 · 87510-33100
