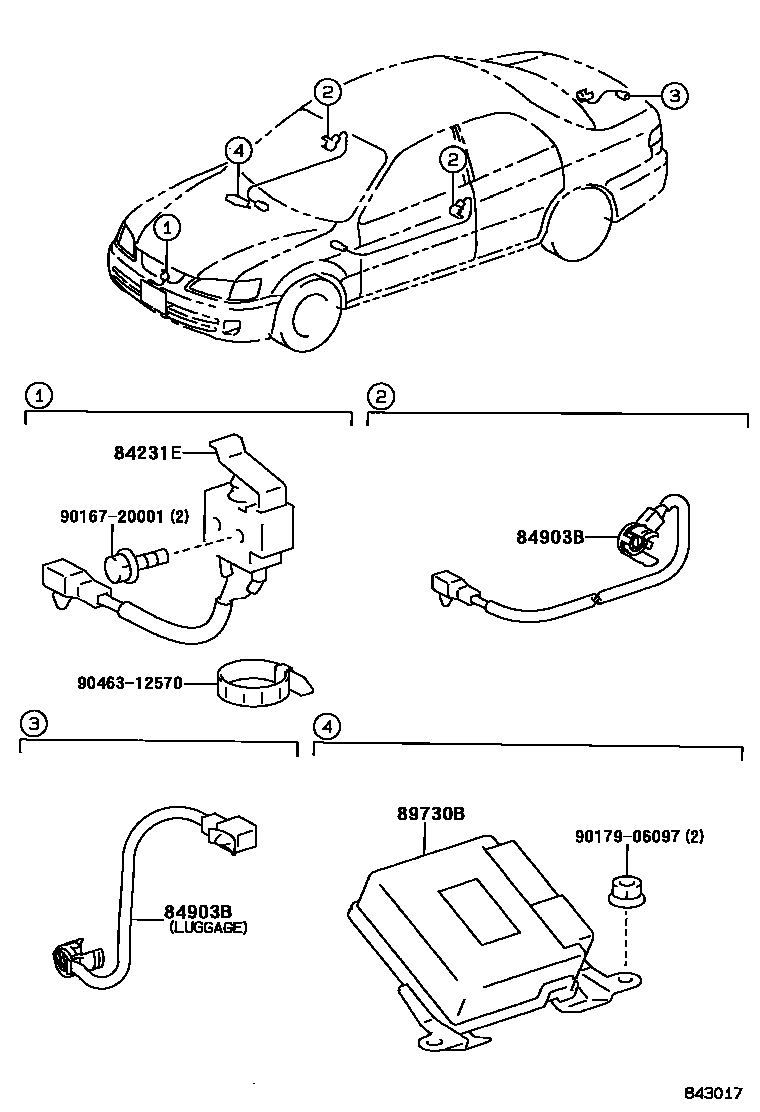

Toyota CAMRY 防盗装置 — Figure 8424
Toyota CAMRY EPC diagram 8424, 防盗装置, with 2 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 84231E | Door control light switch (anti-theft) | 84231-24030 |
| 84903B | Door unlock switch sub-assembly | 84903-33040 · 84903-33041 · 84903-33090 · 84903-33100 |
| 89703 | Ignition lock cylinder and key assembly with transceiver | 89703-33030 · 89703-33070 |
| 89708B | Remote door lock cylinder and transmitter assembly | 89708-33191 · 89708-33240 · 89708-33250 |
| 89730B | Anti-theft warning ECU assembly | 89730-06010 · 89730-06011 · 89730-06030 · 89730-06031 · 89730-06040 · 89730-06041 |
| 89782 | transceiver key coil | 89782-33020 · 89782-33030 |
| 89783 | transceiver key amplifier | 89783-33020 · 89783-33030 |
| 89785 | transceiver key master transmitter | 89785-26020 |
| 89786 | transceiver key secondary transmitter | 89786-60050 |
