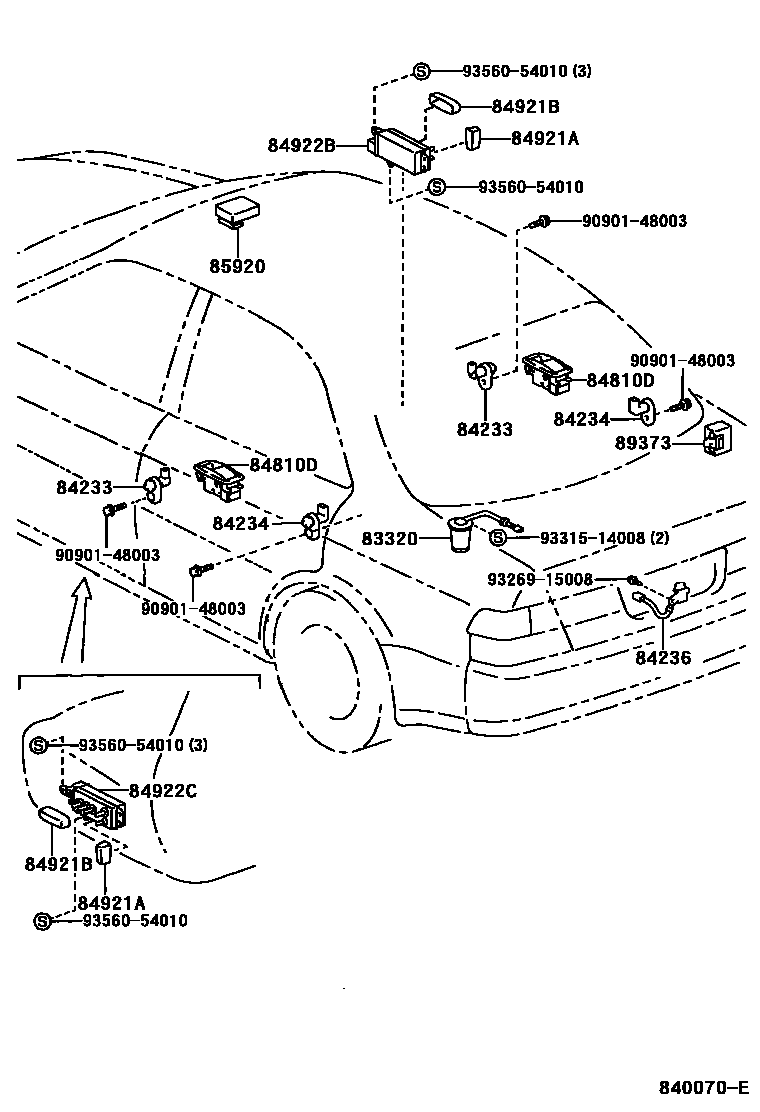

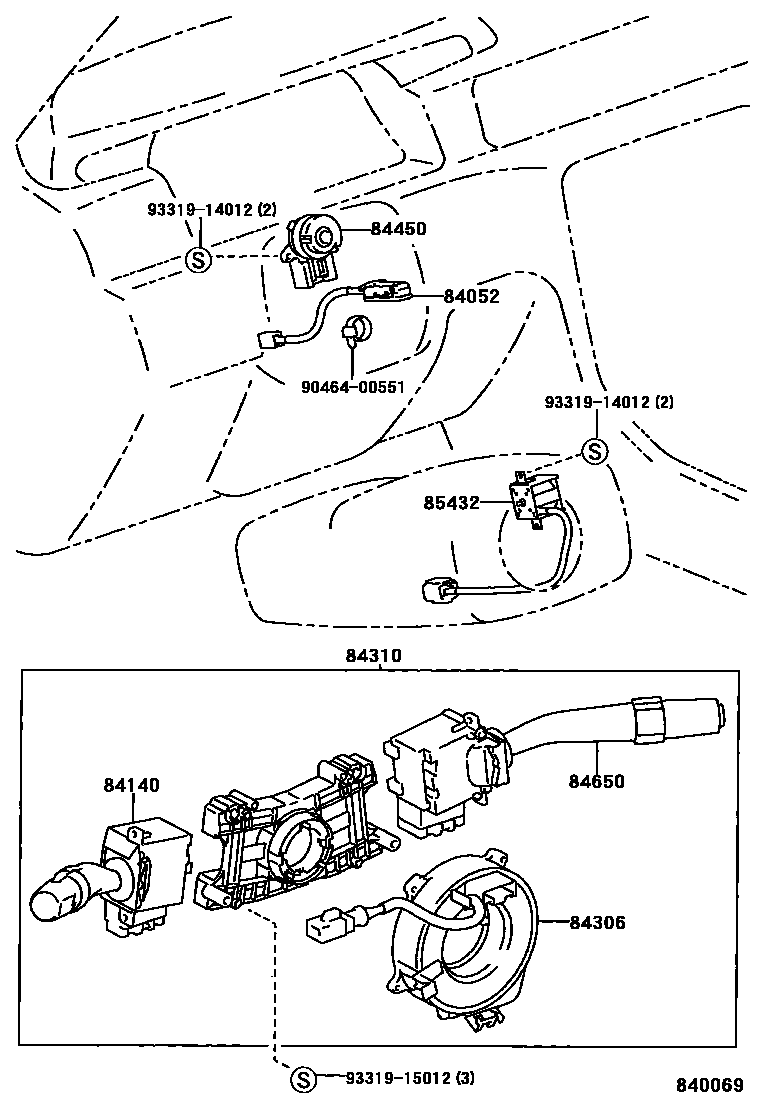

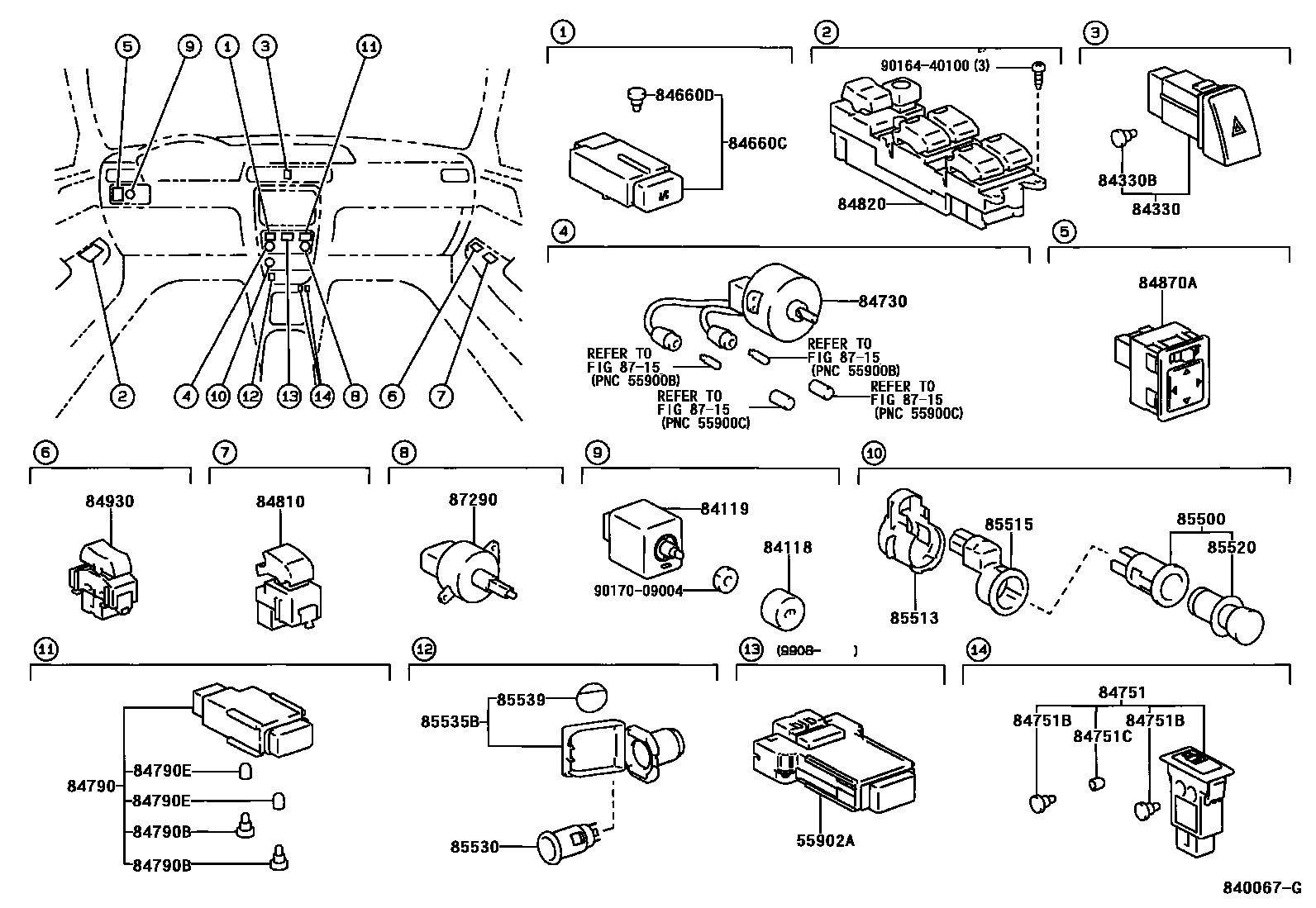

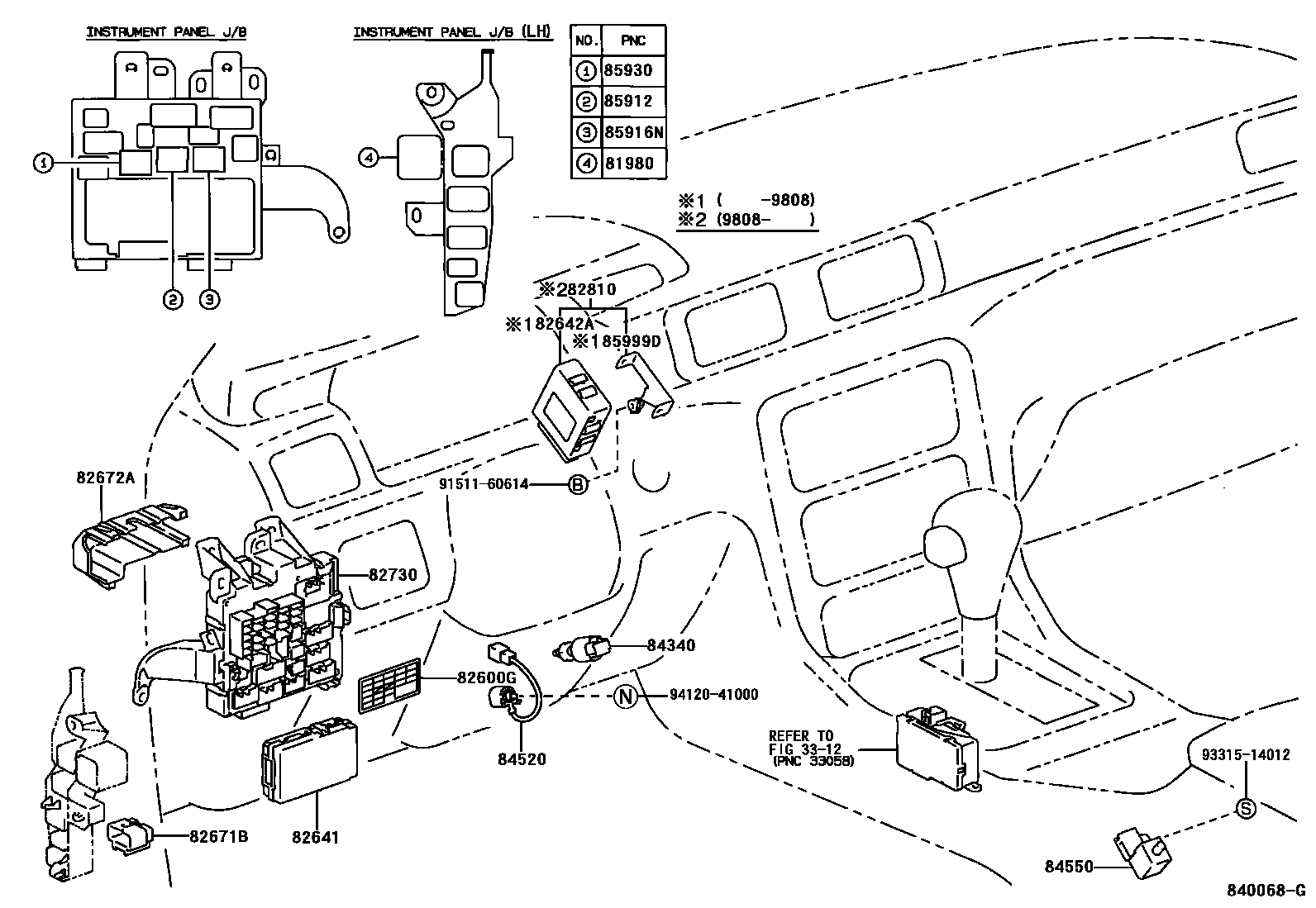

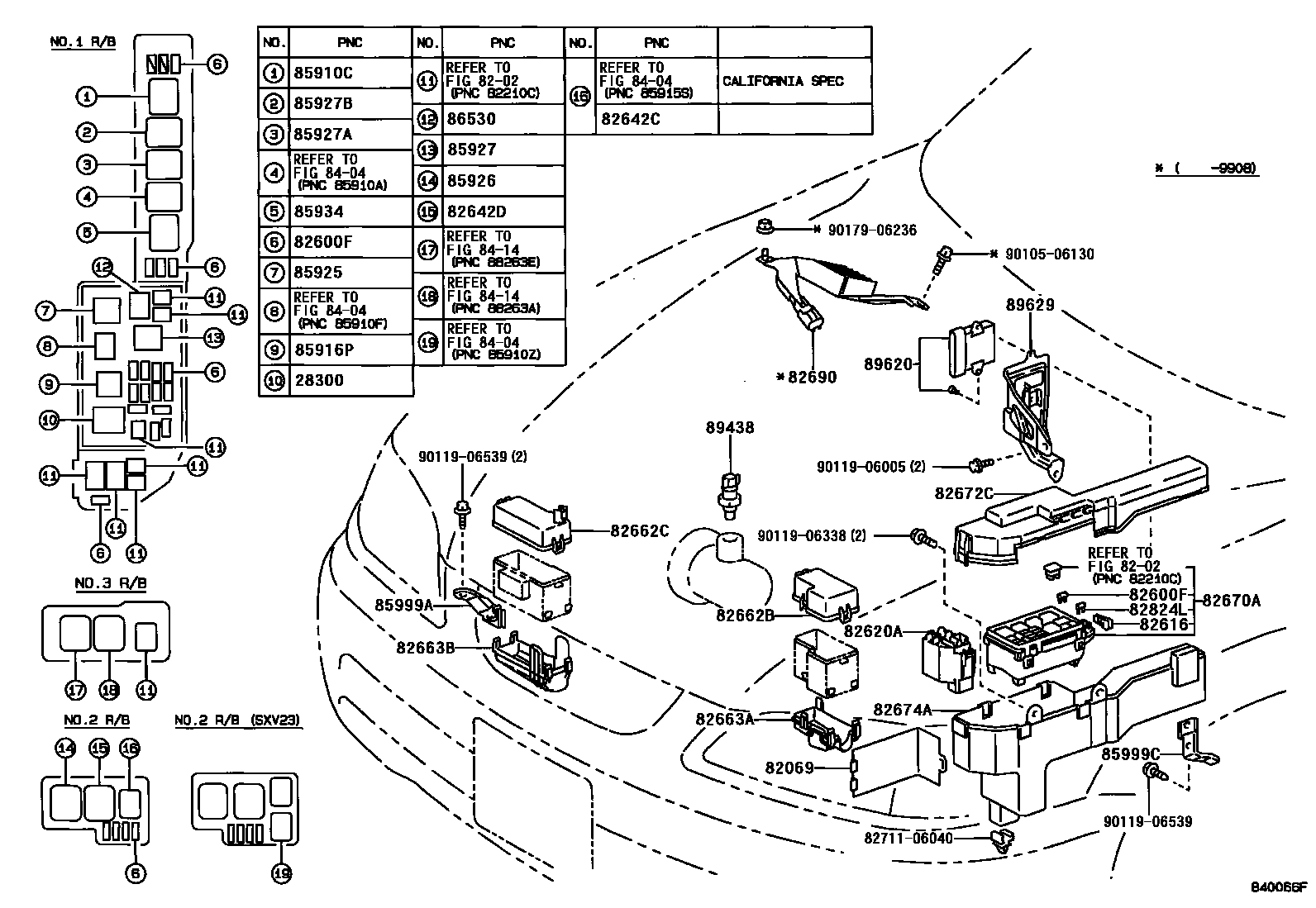

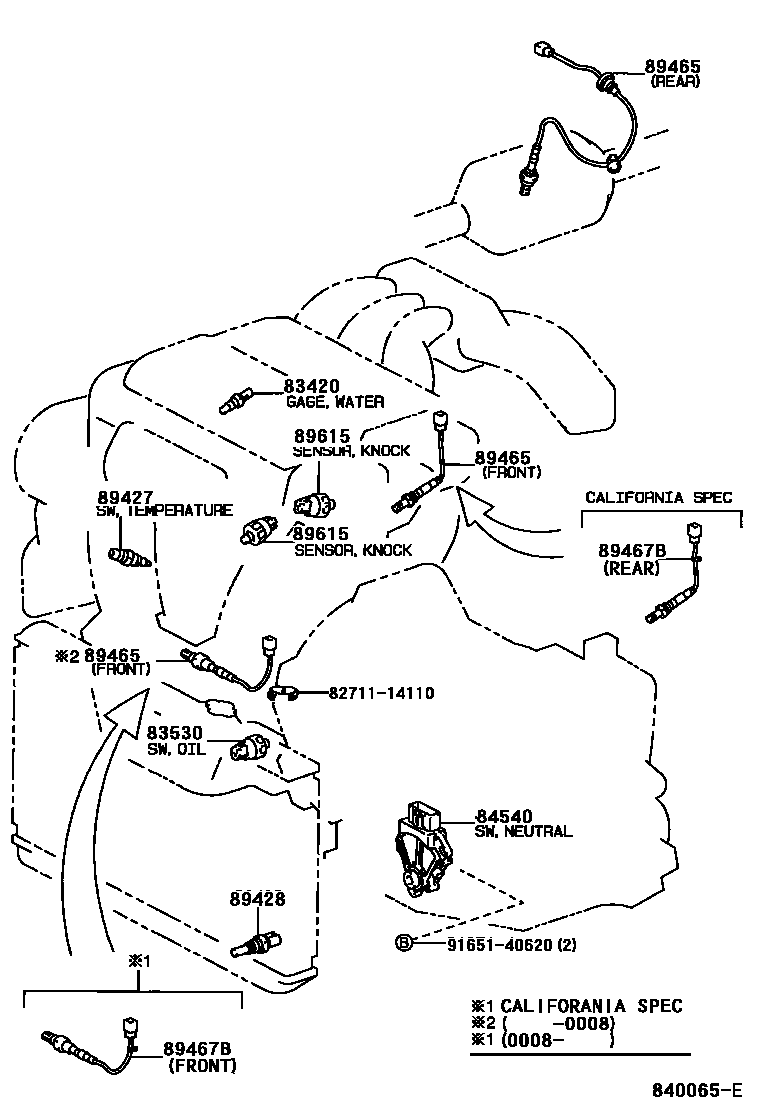

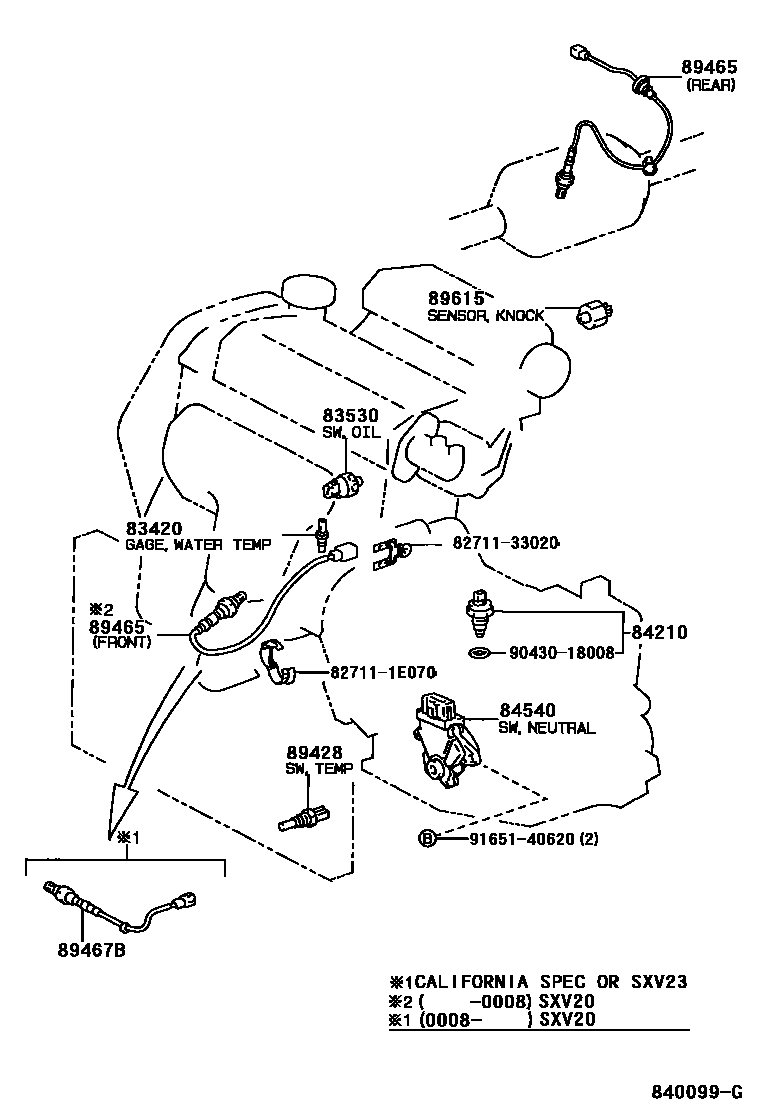

Toyota CAMRY 开关和继电器和ECU — Figure 8401
Toyota CAMRY EPC diagram 8401, 开关和继电器和ECU, with 7 images and 94 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 28300 | Starter relay assembly | 28300-10020 |
| 55902A | Control button sub-assembly | 55902-33220 |
| 81980 | Turn signal flasher relay assembly | 81980-12070 · 81980-12110 |
| 82069 | Junction box cover assembly | 82069-06010 |
| 82600F | Spare fuse | 90080-82020 · 90080-82021 · 90080-82022 · 90080-82023 · 90080-82024 · 90080-82031 · 90982-09009 |
| 82600G | Warning nameplate (for fuses) | 82683-06010 · 82683-06020 |
| 82616 | fuse puller | 82616-20010 |
| 82620A | Fuse box assembly | 82620-06010 |
| 82641 | Integrated relay No. 1 | 82641-33041 · 82641-33070 · 82641-33080 · 82641-33130 |
| 82642A | driving light relay | 82642-50030 |
| 82642C | No. 2 daytime running light relay | 90987-04004 |
| 82642D | No. 2 driving light relay | 90987-02006 |
| 82662B | No. 2 relay box upper cover | 82662-06010 · 82662-06030 · 82662-06040 · 82662-06041 · 82662-33060 |
| 82662C | No. 3 relay box upper cover | 82662-33050 |
| 82663A | No. 2 relay box lower cover | 82663-06010 |
| 82663B | No. 3 relay box lower cover | 82663-33020 |
| 82670A | No. 1 junction box assembly | 82720-06010 · 82720-06020 · 82720-33051 |
| 82671B | junction box | 82671-30370 |
| 82672A | Junction box cover | 82672-06030 |
| 82672C | Junction box cover | 82672-06010 · 82672-06011 · 82672-06020 · 82672-06060 · 82672-06061 · 82672-0W050 · 82672-33161 |
| 82674A | Junction box lower cover | 82674-06010 |
| 82690 | Low beam resistor assembly | 82690-33010 |
| 82730 | Instrument panel junction box assembly | 82730-06010 · 82730-06020 |
| 82810 | Driving light relay assembly | 82810-06020 · 82810-06030 |
| 82824L | Shorting pin | 82824-20140 |
| 83320 | Fuel gauge sensor assembly | 83320-33030 |
| 83420 | Water temperature sensor assembly | 83420-20040 · 83420-AA010 |
| 83530 | Oil pressure switch assembly (for engine) | 83530-28020 · 83530-30090 · 83530-60020 · 83530-AA011 |
| 84052 | Unlock warning switch assembly | 84052-33040 |
| 84118 | Light control rheostat button | 84118-20030 |
| 84119 | Light control rheostat | 84119-20250 |
| 84140 | Headlight dimmer switch assembly | 84140-26140 |
| 84210 | Reversing light switch assembly | 84210-12040 |
| 84233 | Door control light switch assembly (for front door) | 84231-33071 · 84231-53010 |
| 84234 | Door control light switch assembly (for rear door) | 84231-33071 · 84231-53010 |
| 84236 | Door control light switch assembly (for trunk) | 84231-20380 · 84231-41010 |
| 84306 | Spiral cable sub-assembly | 84306-12070 · 84306-35010 · 84306-35011 |
| 84310 | Turn signal switch assembly | 84310-33500 · 84310-33740 · 84310-33800 · 84310-35680 |
| 84330B | Hazard warning signal switch light bulb | 84999-10320 |
| 84340 | brake light switch assembly | 84340-32090 · 84340-32110 |
| 84450 | Ignition or starter switch assembly | 84450-12200 |
| 84520 | Clutch start switch assembly | 84520-33010 |
| 84540 | Neutral start switch assembly | 84540-20200 · 84540-20220 |
| 84550 | Parking brake switch assembly | 84550-33010 |
| 84650 | Windshield wiper switch assembly | 84652-2G010 · 84652-2G011 · 84652-60800 · 84652-60870 · 84652-60871 |
| 84660C | Cooler switch | 84660-33010 · 84660-33020 |
| 84660D | Light bulb (for cooler switch) | 88607-33010 |
| 84730 | Heater blower switch assembly | 84732-06040 |
| 84751 | Seat heater switch | 84751-33030 |
| 84751B | Seat heater switch light bulb | 84999-10320 |
| 84751C | Seat heater switch bulb cover | 84998-10650 |
| 84790 | Rear window defogger switch assembly | 84790-33030 |
| 84790B | Bulb (for rear window defogger switch) | 84999-10410 · 84999-10450 |
| 84790E | Bulb cover (for rear window defogger switch) | 84998-10060 · 84998-10730 |
| 84810 | Electric window lift switch assembly | 84810-AC010 |
| 84810D | Rear electric window lift switch assembly | 84810-33060 |
| 84820 | Electric window lift main switch assembly | 84820-33140 · 84820-60090 |
| 84870A | Exterior rearview mirror switch assembly | 84870-16020 |
| 84922B | Front right electric seat switch | 84922-33070 |
| 84922C | Front left electric seat switch | 84922-33080 |
| 84930 | Door control switch assembly | 84930-33080 · 84930-33090 |
| 85432 | Key interlock solenoid valve | 85432-33020 |
| 85500 | Cigarette lighter assembly | 85500-28050 |
| 85513 | Cigarette lighter cover | 85513-12020 |
| 85515 | Cigarette lighter frame bracket | 85515-33010 |
| 85520 | Cigarette lighter button and cigarette lighter core assembly | 85520-28010 |
| 85530 | No. 1 power socket assembly | 85530-33020 |
| 85535B | No. 1 power outlet cover | 85535-33030 |
| 85539 | Power socket attention labels | 85539-60020 |
| 85910C | Relay assembly (for heater blower motor) | 90987-04002 |
| 85912 | defogger relay | 90080-87010 · 90987-02012 |
| 85916N | Tail light relay | 90080-87010 · 90987-02012 |
| 85916P | headlight relay | 90987-02006 |
| 85925 | Radiator fan relay | 85925-17010 |
| 85926 | Headlight dimmer relay | 85926-30020 |
| 85927 | cooling fan relay | 90084-98011 · 90987-03003 |
| 85927A | Cooling fan relay No. 2 | 90987-04004 |
| 85927B | Cooling fan relay No. 3 | 90987-02012 |
| 85930 | Electric window relay assembly | 90080-87010 · 90987-02012 |
| 85934 | Electromagnetic clutch relay | 90987-02012 |
| 85999A | No. 2 relay bracket | 85999-33150 |
| 85999C | No. 3 relay bracket | 85999-33050 |
| 85999D | No. 4 relay bracket | 85999-33140 |
| 86530 | Speaker relay assembly | 90987-02012 |
| 87290 | Heater switch assembly | 87290-06020 |
| 89373 | Malfunction indicator light sensor | 89373-33180 · 89373-33230 |
| 89427 | Temperature detection switch | 89428-41010 |
| 89428 | No. 2 temperature detection switch | 89428-33010 · 89428-33020 |
| 89438 | Power steering oil pressure switch | 89438-33010 |
| 89465 | oxygen sensor | 89465-33120 · 89465-33130 · 89465-33180 · 89465-33210 · 89465-33230 |
| 89467B | air fuel ratio sensor | 89467-33010 · 89467-33011 · 89467-33020 · 89467-33030 · 89467-41010 · 89467-41011 · 89467-41020 · 89467-41021 · 89467-41030 |
| 89615 | knock control sensor | 89615-12040 · 89615-12090 · 89615-20030 · 89615-32030 · 89615-32040 · 89615-33020 |
| 89620 | Ignition assembly | 89621-35020 |
| 89629 | Ignition bracket assembly | 89629-33100 |
