Toyota CAMRY 安全带和儿童保护座椅 — Figure 7104

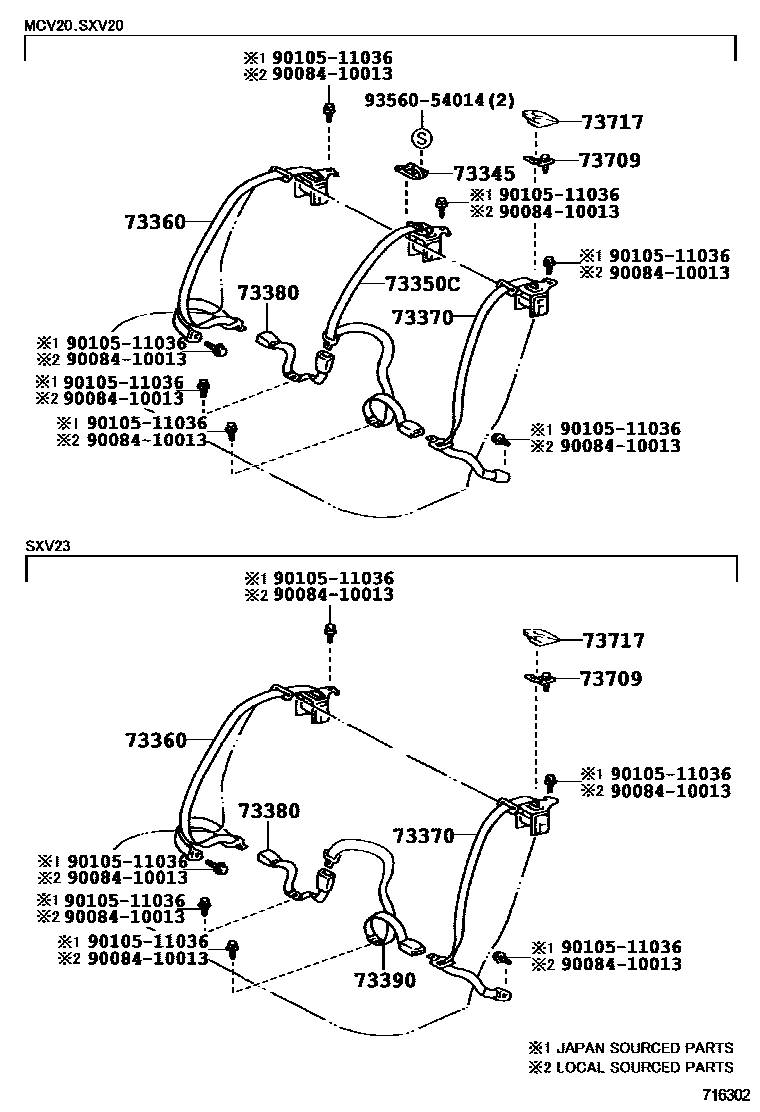

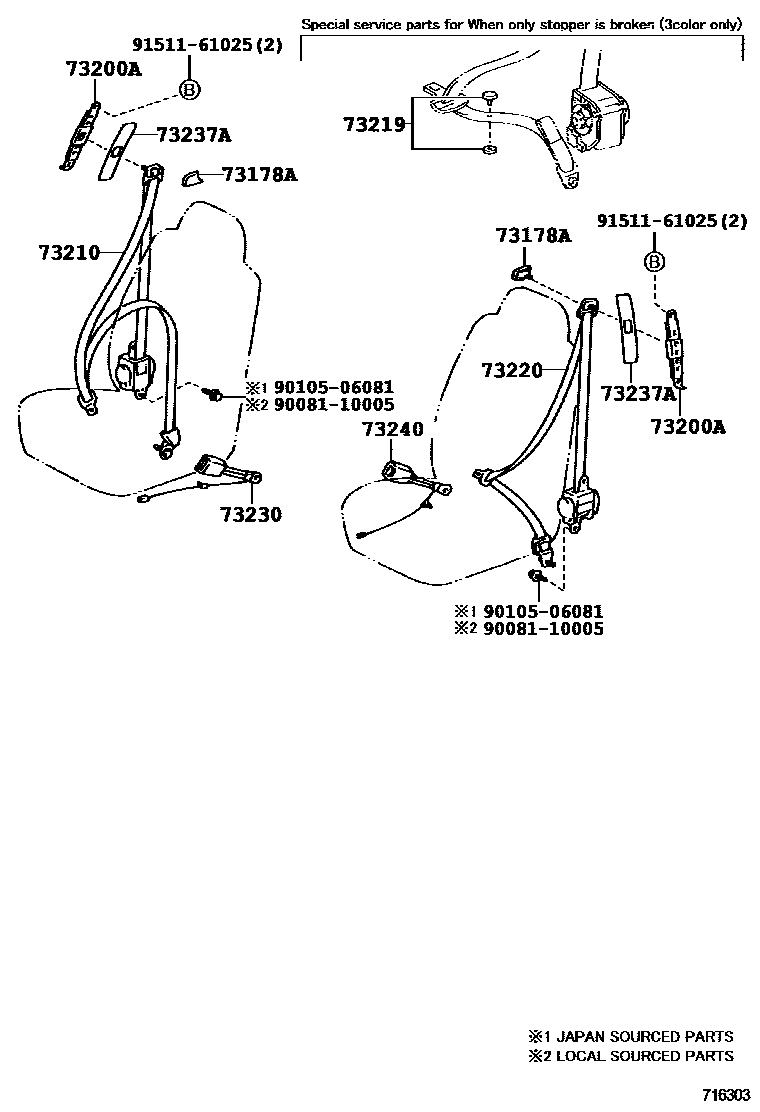

Toyota CAMRY EPC diagram 7104, 安全带和儿童保护座椅, with 2 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 73200A | Front shoulder seat belt anchor adjuster assembly | 73200-AA010 |
| 73219 | Tongue plate stop | 73219-33010 · 73219-33020 · 73219-33030 |
| 73370 | Three-point outer safety belt assembly for the left rear seat | 73370-0W090 · 73370-AA030 |
| 73380 | Three-point inner safety belt assembly for the right rear seat | 73470-AA010 |
| 73709 | Tie anchor bracket sub-assembly | 73708-33021 · 73708-33030 · 73708-50020 · 73709-20010 |
