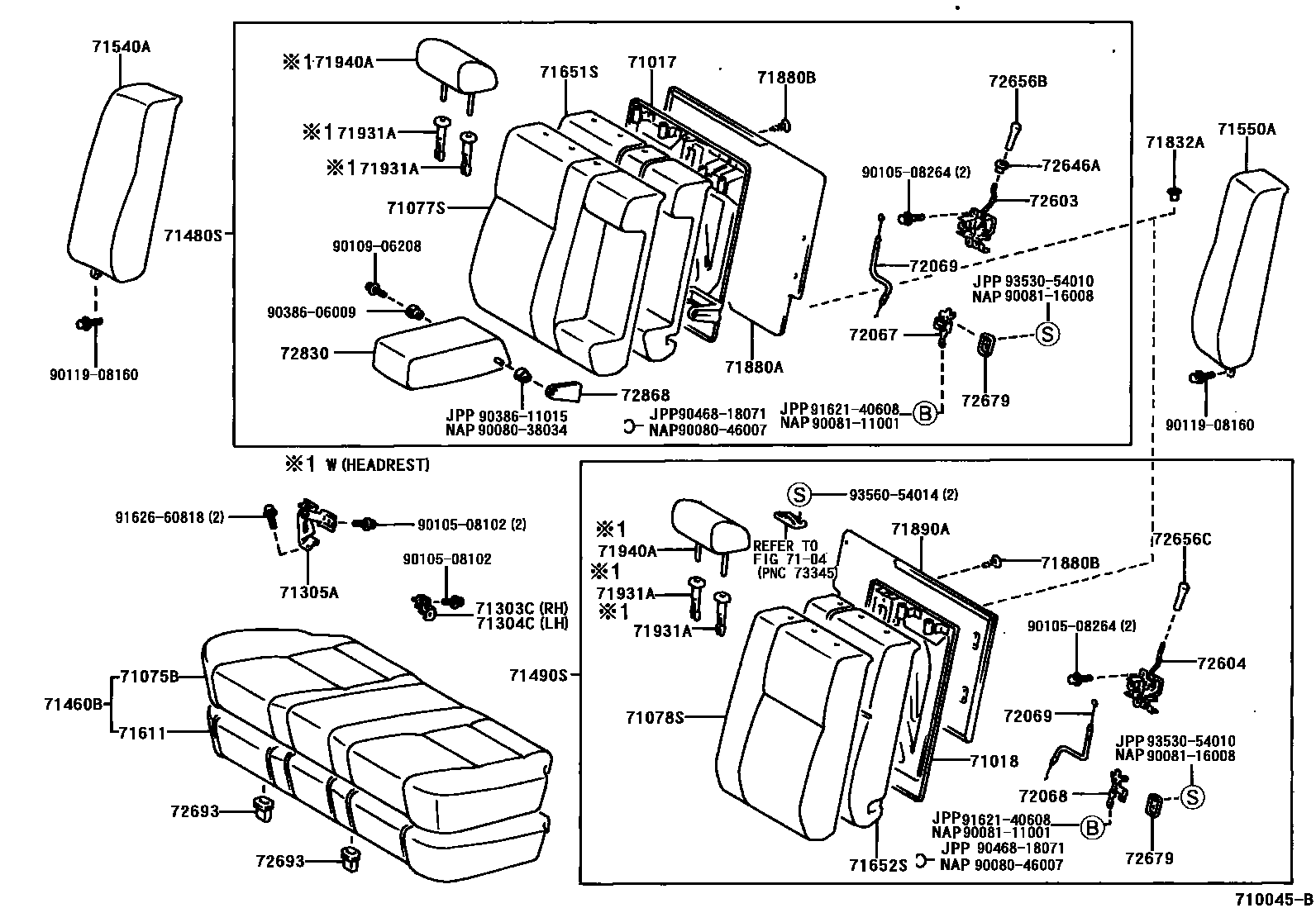

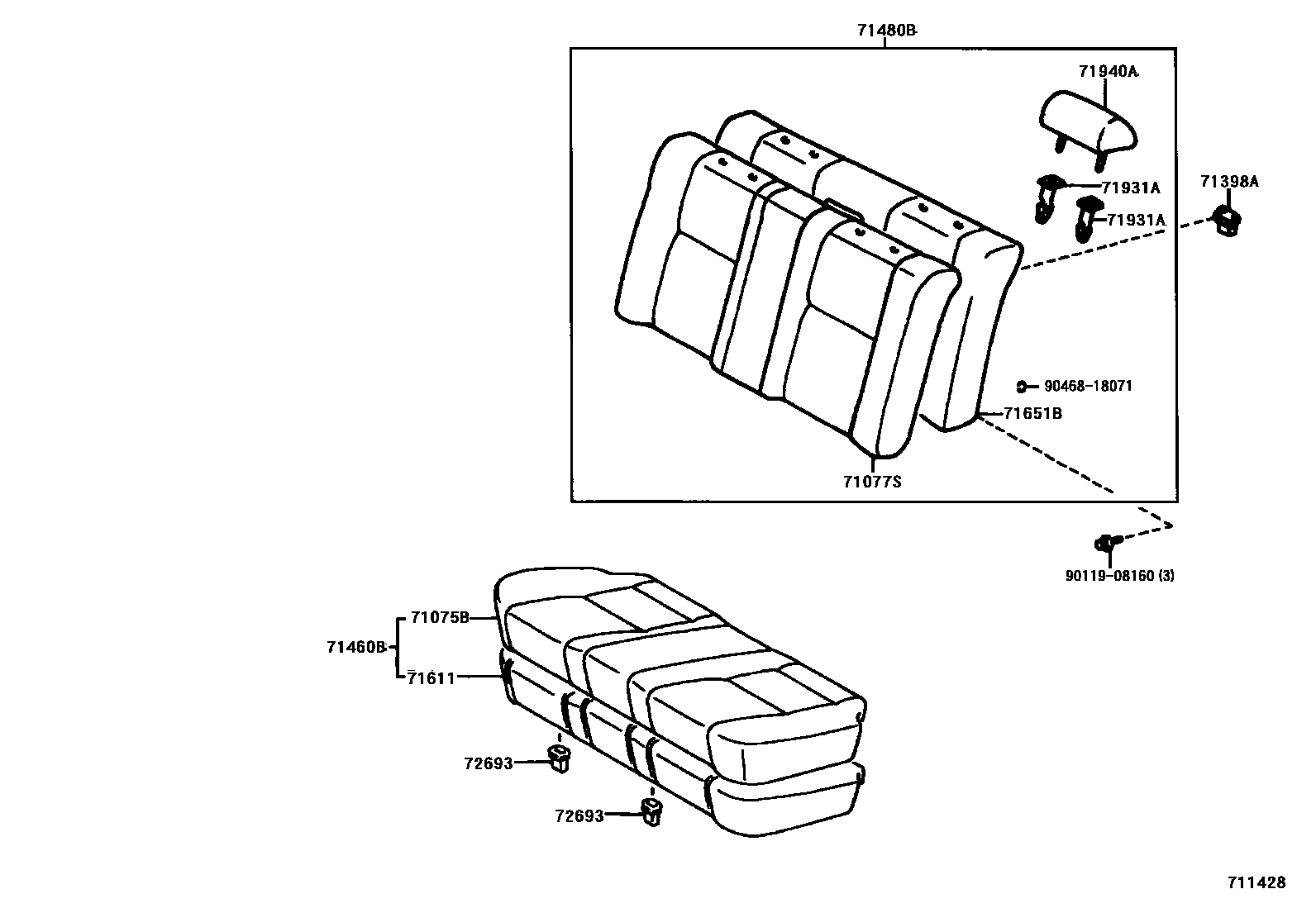

Toyota CAMRY 后排座椅和座椅滑轨 — Figure 7102
Toyota CAMRY EPC diagram 7102, 后排座椅和座椅滑轨, with 2 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71017 | Right rear seat back frame sub-assembly | 71017-33070 · 71017-33080 |
| 71018 | Rear left seat back frame sub-assembly | 71018-33030 · 71018-33040 |
| 71303C | Rear right seat backrest hinge sub-assembly | 71303-33010 |
| 71304C | Rear left seat back hinge sub-assembly | 71303-33010 |
| 71305A | Rear center seat backrest hinge sub-assembly | 71305-33020 |
| 71398A | Rear seat back retainer | 71398-33010 |
| 71540A | Rear right side seat back assembly | 71540-33110 |
| 71611 | Rear seat cushion cushion | 71503-33010 |
| 71651B | Rear seat back cushions (for bench seats) | 71507-33020 |
| 71651S | Rear right seat back cushion (for split seats) | 71651-33080 |
| 71652S | Rear left seat back cushion (for split seats) | 71652-33030 |
| 71880B | Clip (for rear seat back felt cushion) | 90467-09063 |
| 72067 | Rear right seat back lock control lever sub-assembly | 72067-20011 |
| 72068 | Rear left seat back lock control lever sub-assembly | 72067-20011 |
| 72069 | Rear seat back lock control cable sub-assembly | 72069-33020 |
| 72603 | Rear right seat back lock sub-assembly | 72603-33020 |
| 72604 | Rear left seat back lock sub-assembly | 72604-33020 |
| 72693 | Rear seat cushion hook | 72693-20060 |
| 72868 | Right center armrest hinge cover | 72868-33010 |
