Toyota CAMRY 前门锁和车门把手 — Figure 6703

Toyota CAMRY EPC diagram 6703, 前门锁和车门把手, with 1 images and 26 PNC and OE references.

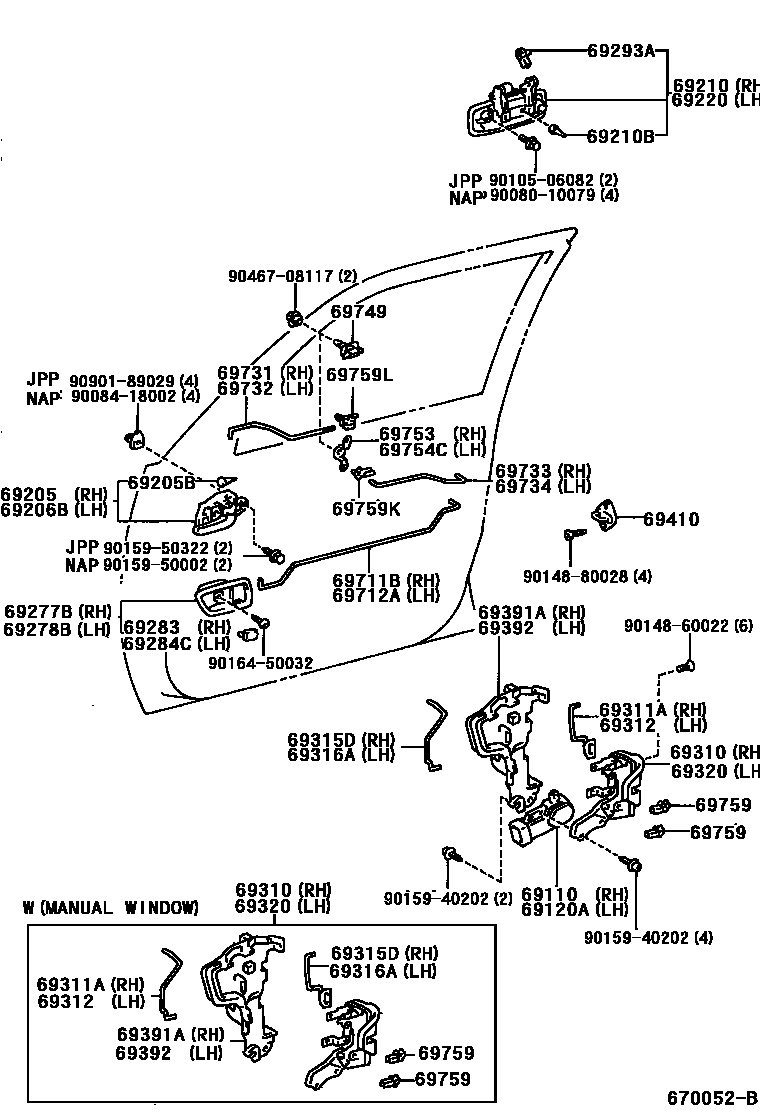

Toyota CAMRY 前门锁和车门把手 EPC diagram — 670052B
前门锁和车门把手 — 670052B (199608 – 999999)

PNC and OE references

PNCPart nameOE numbers
69110Right front door lock actuator assembly69110-33010
69120ALeft front door lock actuator assembly69120-33010
69205BCushion pad (for inner front door handle)90541-04014
69210BCushion pad (for front door outer handle)90541-04018
69293AFront door outer handle buckle69293-12030 · 69293-12040 · 69293-33010 · 69293-33020
69310Right front door lock assembly69303-33020 · 69303-33030 · 69310-33070
69311ARight front door lock opening lever69311-33020
69312Left front door lock opening lever69312-33020
69315DRight front door outer locking link69315-33010
69316ALeft front door outer locking link69316-33010
69320Left front door lock assembly69304-33020 · 69304-33030 · 69320-33060
69391ARight front door lock outer cover69391-33010 · 69391-33030
69392Left front door lock outer cover69392-33010 · 69392-33030
69410Front door lock plate assembly69410-20070
69711BRight front door lock remote control lever69711-33030
69712ALeft front door lock remote control lever69712-33030
69731Right front door No. 1 inner locking link69731-33020
69732Left front door No. 1 inner locking link69732-33020
69733Right front door inner locking link69733-33030
69734Left front door inner locking link69734-33020
69749Front door lock link clip69749-32030 · 69749-33010
69753Right-hand door lock control right-angle lever69753-33030
69754CLeft door lock control right angle lever69753-33030
69759Rear door lock No. 1 control link buckle69759-24050 · 69759-24060
69759KDoor lock control link buckle69759-24080 · 69759-24090
69759LDoor lock control link buckle69759-20410
