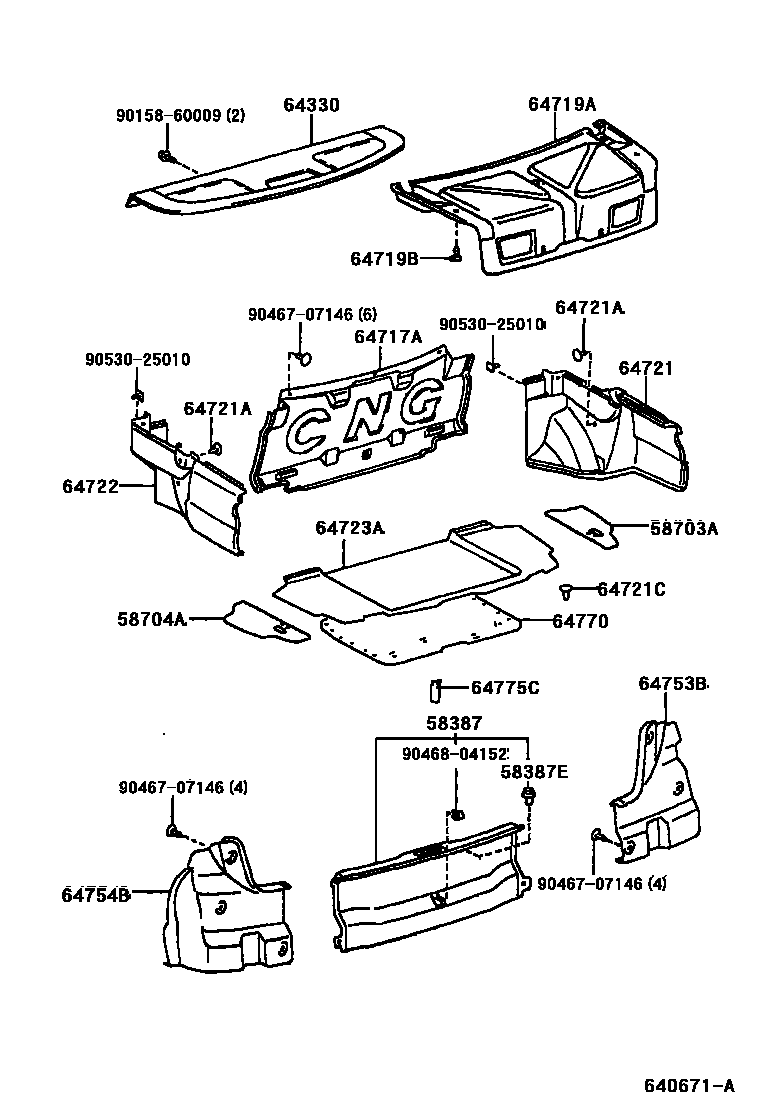

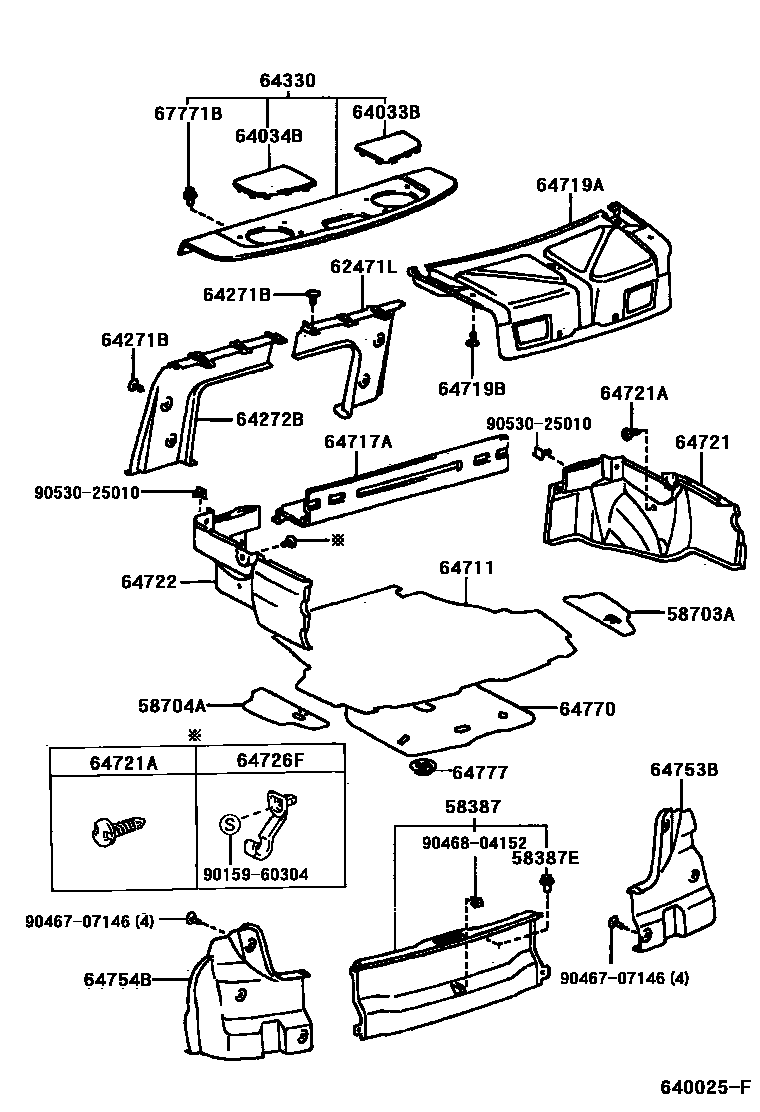

Toyota CAMRY 杂物箱板和行李箱垫 — Figure 6403
Toyota CAMRY EPC diagram 6403, 杂物箱板和行李箱垫, with 2 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58387 | Rear floor decorative panel | 58387-33030 |
| 58387E | Clip (for rear floor trim panel) | 67771-32150 |
| 58703A | Trunk door right side decorative cover sub-assembly | 58703-33020 |
| 58704A | Luggage door left decorative cover sub-assembly | 58704-33020 |
| 62471L | Right compartment partition | 64271-33030 |
| 64271B | Clip (for compartment partition) | 90467-07146 · 90467-08186 |
| 64272B | Left compartment partition | 64272-33010 |
| 64719B | Catch (for trunk door) | 90467-06175 |
| 64721A | Clip (for trunk interior decoration cover) | 90467-08186 |
| 64721C | Clip (suitcase) | 90467-08186 |
| 64726F | Luggage decorative hook No. 2 | 64726-33040 · 64726-33041 |
| 64753B | Rear floor right decorative panel | 64753-33010 |
| 64754B | Rear floor left decorative panel | 64754-33010 |
| 64770 | Spare tire cover assembly | 64770-33040 |
| 64775C | Spare tire cover bracket | 64775-22030 |
| 64777 | Spare tire cover clip | 64777-32030 |
| 67771B | Glove box decorative panel fixings | 67771-16080 |
