Toyota CAMRY 后保险杠及附件 — Figure 5202

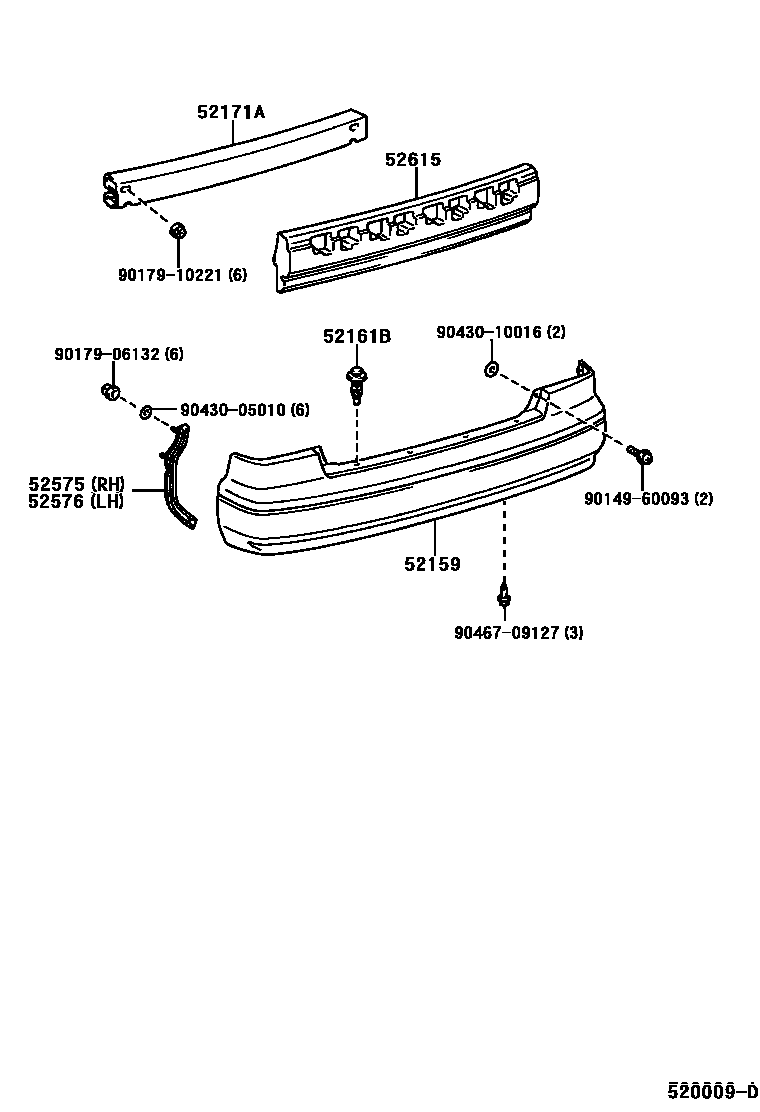

Toyota CAMRY EPC diagram 5202, 后保险杠及附件, with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52159 | rear bumper cover | 52159-33904 · 52159-33907 |
| 52161B | Rear bumper insert | 52161-16010 |
| 52171A | Rear bumper reinforcement No. 1 | 52171-33060 · 52171-33070 |
| 52575 | Rear bumper right side fixing bracket | 52575-AA010 |
| 52576 | Rear bumper left side fixing bracket | 52576-AA010 |
| 52615 | Rear bumper energy absorber | 52615-33010 · 52615-33050 |
