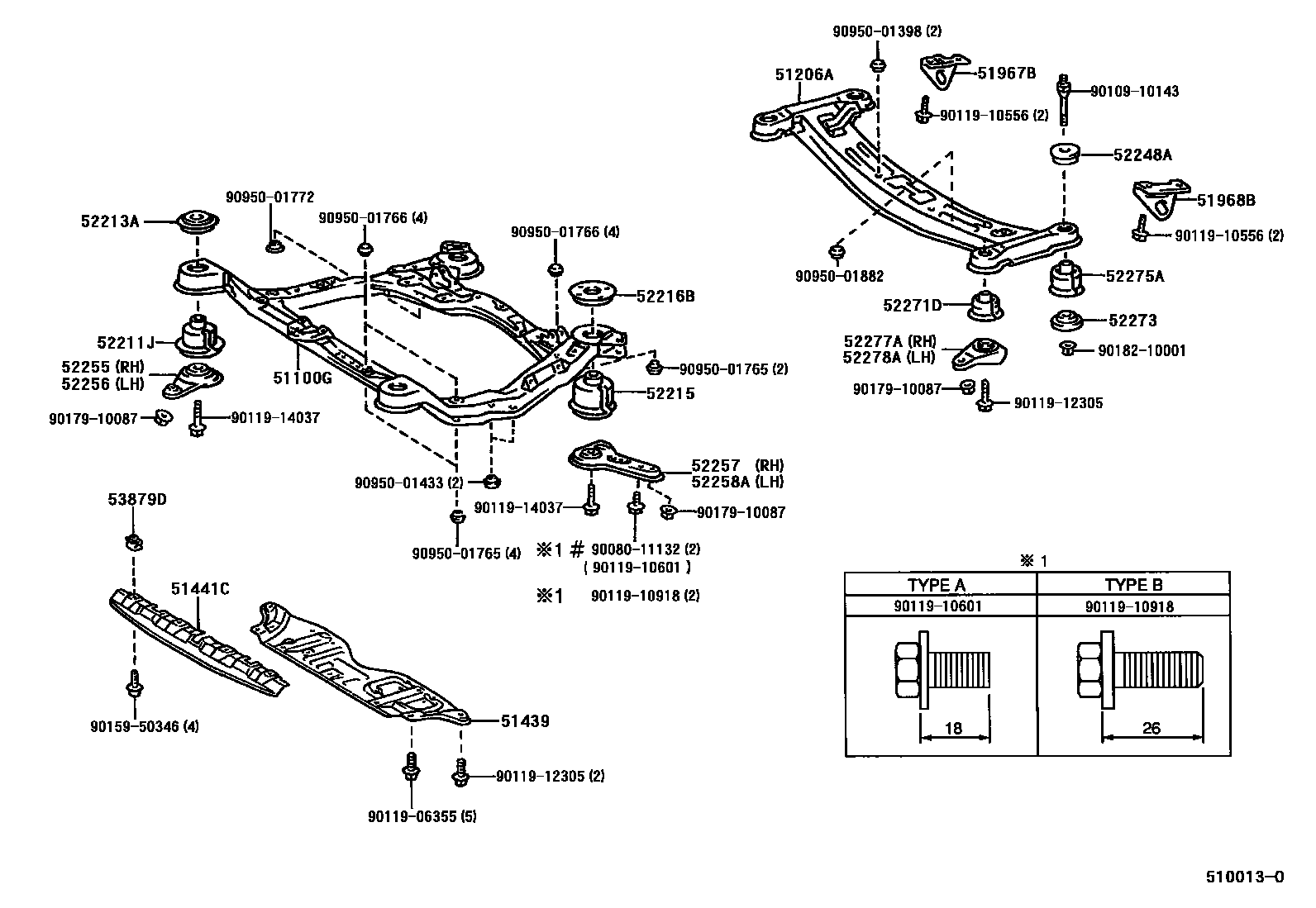

Toyota CAMRY 悬架横梁和发动机底罩 — Figure 5102
Toyota CAMRY EPC diagram 5102, 悬架横梁和发动机底罩, with 1 images and 21 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 51100G | Front frame assembly | 51100-33030 · 51100-33050 |
| 51206A | Rear suspension cross member sub-assembly | 51206-33020 · 51206-33021 · 51206-33022 · 51206-33040 |
| 51439 | Engine rear side baffle | 51439-33010 |
| 51441C | Engine right bottom cover | 51441-33030 |
| 51967B | right rear transport hook | 51967-33020 |
| 51968B | Left rear transport hook | 51968-33010 |
| 52211J | Front suspension cross member, front body fixed cushion | 52211-33010 · 52211-33030 |
| 52213A | Front suspension cross member, front body fixed stop | 52213-33010 · 52213-33030 |
| 52215 | Front suspension cross member Rear body fixed cushion | 52215-33010 · 52215-33030 · 52215-33060 |
| 52216B | Front suspension cross member, rear body fixed stop | 52216-33020 |
| 52248A | Rear body installation collar | 52248-33010 |
| 52255 | Right front suspension cross member front bracket | 52255-33020 · 52255-33040 |
| 52256 | Left front suspension cross member front bracket | 52256-33020 · 52256-33040 |
| 52257 | Right front suspension cross member rear bracket | 51023-33010 · 51023-33030 |
| 52258A | Left front suspension cross member rear bracket | 51024-33010 · 51024-33030 |
| 52271D | Rear suspension cross member, front body fixed cushion | 52271-32050 |
| 52273 | Rear suspension cross member lower block | 52273-32010 |
| 52275A | Rear suspension cross member rear body fixed cushion | 52275-32050 |
| 52277A | Right rear suspension cross member lower block fixing piece | 52203-33010 |
| 52278A | Left rear suspension cross member lower block fixing piece | 52204-33010 |
| 53879D | Front fender lining fixing parts | 53879-20020 |
