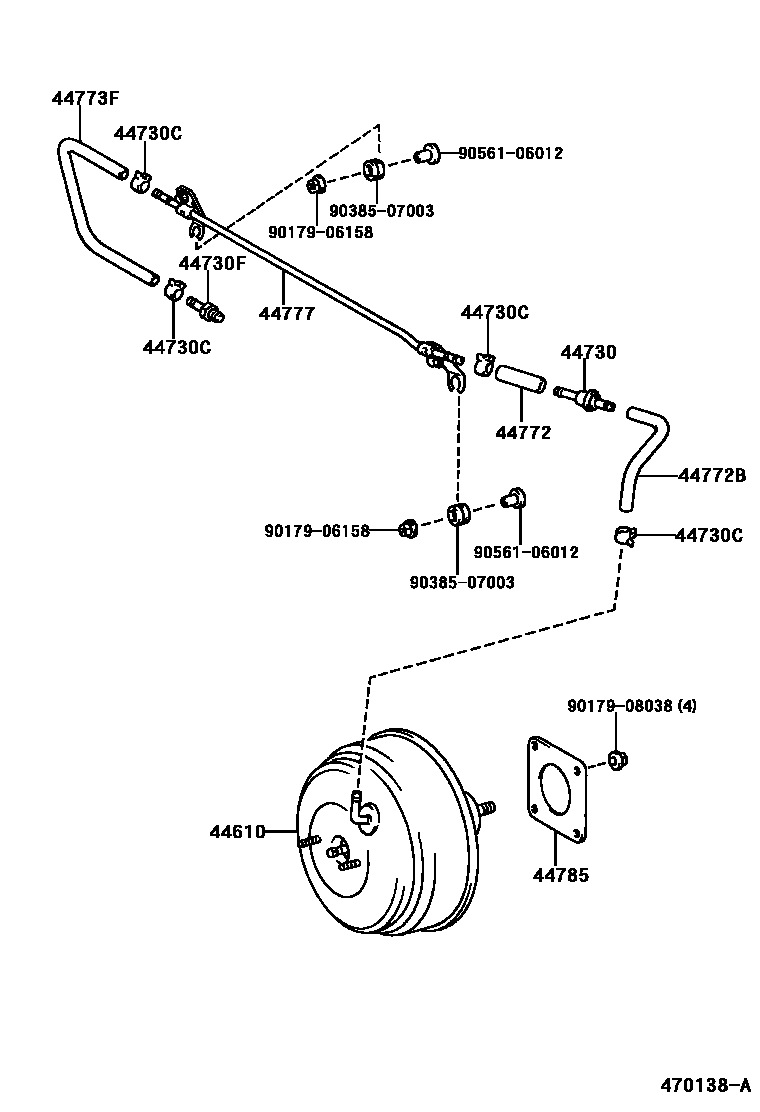

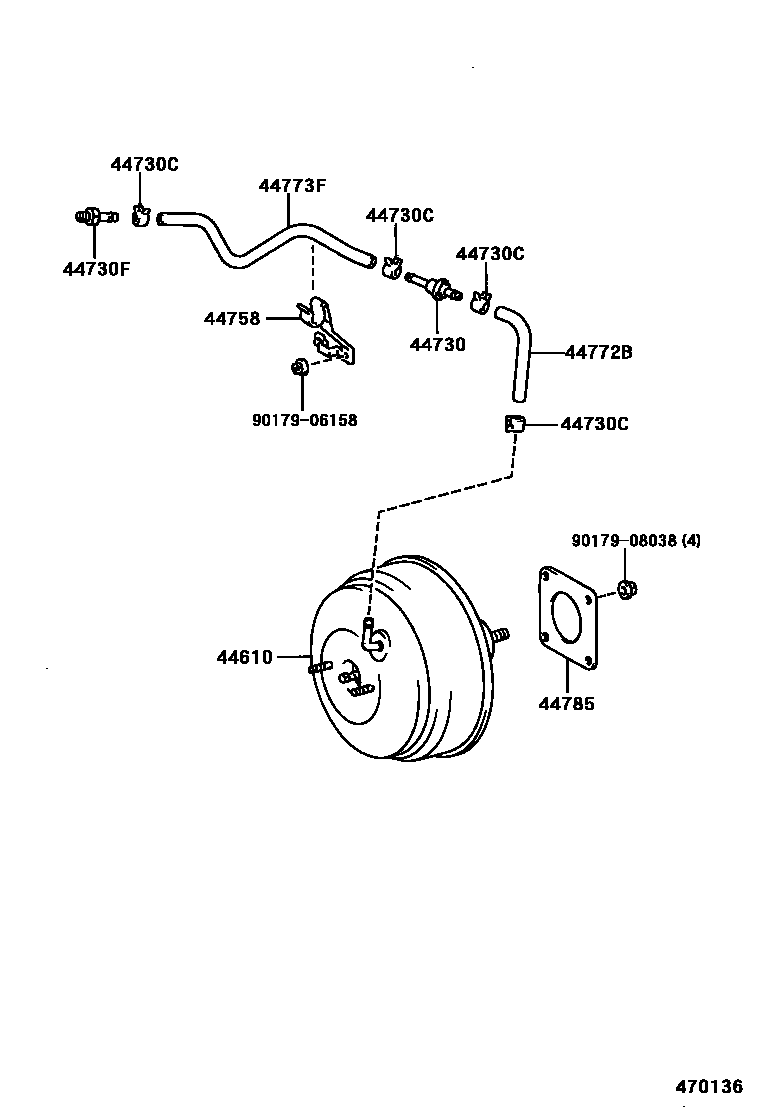

Toyota CAMRY 制动助力器和真空管 — Figure 4703
Toyota CAMRY EPC diagram 4703, 制动助力器和真空管, with 2 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44610 | brake booster assembly | 44610-33420 · 44610-33430 · 44610-33510 · 44610-33530 · 44610-33531 · 44610-33550 · 44610-33551 · 44610-33630 |
| 44730 | Vacuum check valve assembly (for brake) | 44730-10010 |
| 44730C | Clip (for vacuum hose) | 90467-16002 |
| 44730F | Vacuum hose connector (for manifold side) | 90404-51076 · 90404-51319 |
| 44758 | Vacuum check valve bracket | 44758-33020 |
| 44772 | Hoses (check valve to connector tube) | 44772-33040 |
| 44772B | Hoses (check valve to brake booster) | 44772-33050 · 44772-33070 |
| 44773F | Hoses (connector to check valve) | 44773-33040 · 44774-33050 |
| 44777 | No. 1 Vacuum Hose Connector | 44770-33010 |
| 44785 | brake booster pad | 44785-20020 |
