Toyota CAMRY Front Drive Shaft — Figure 4302

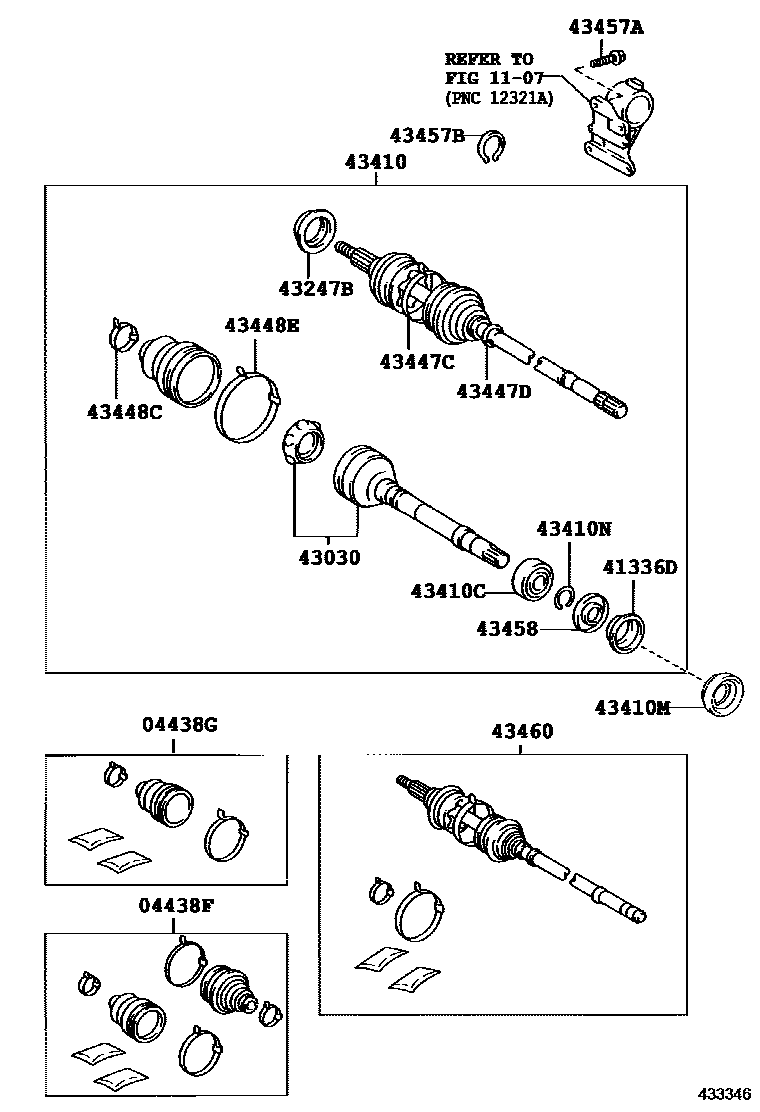

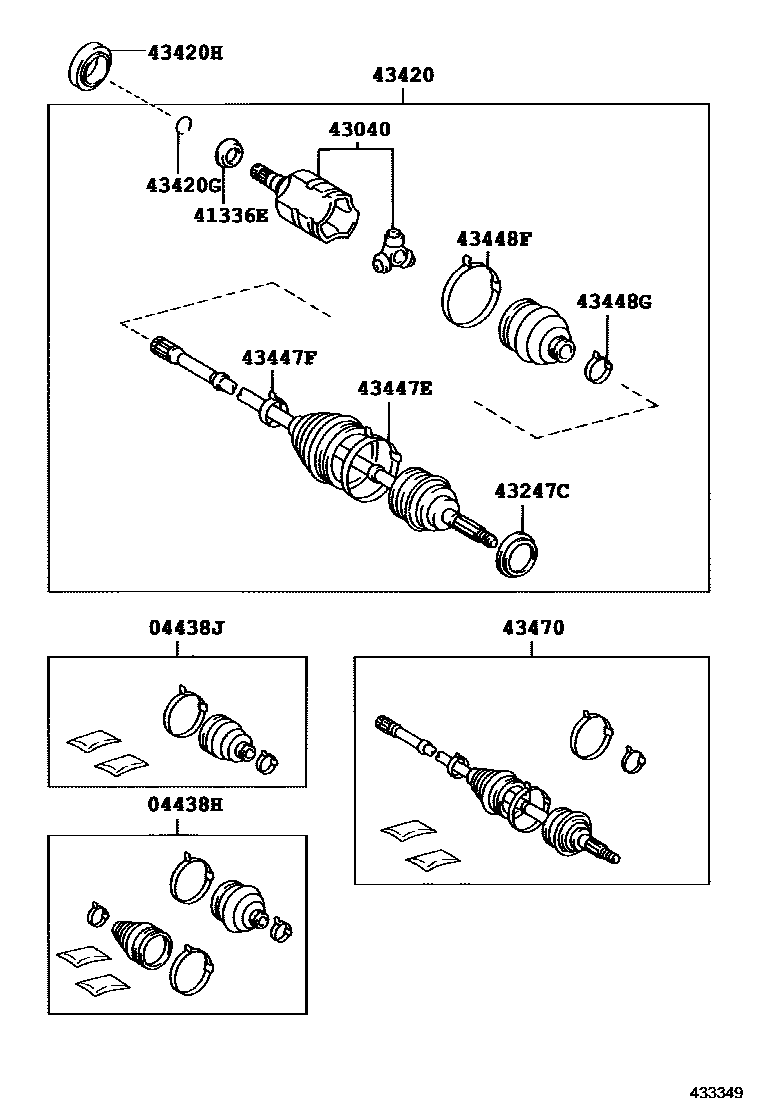

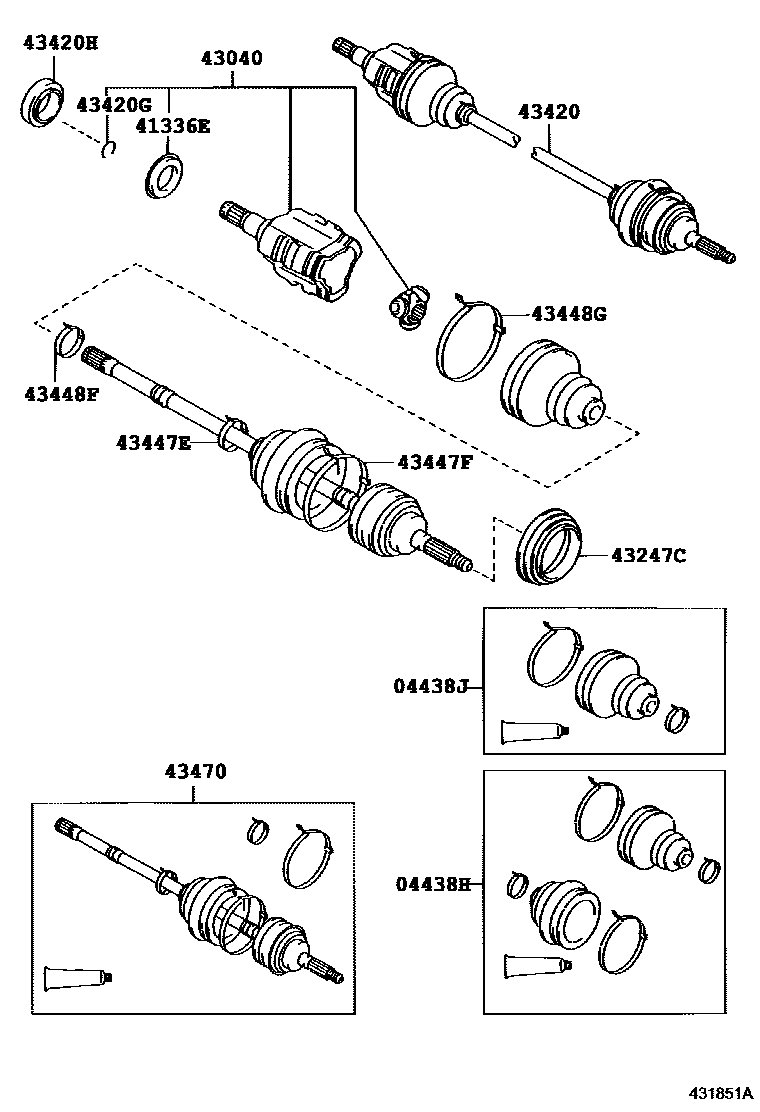

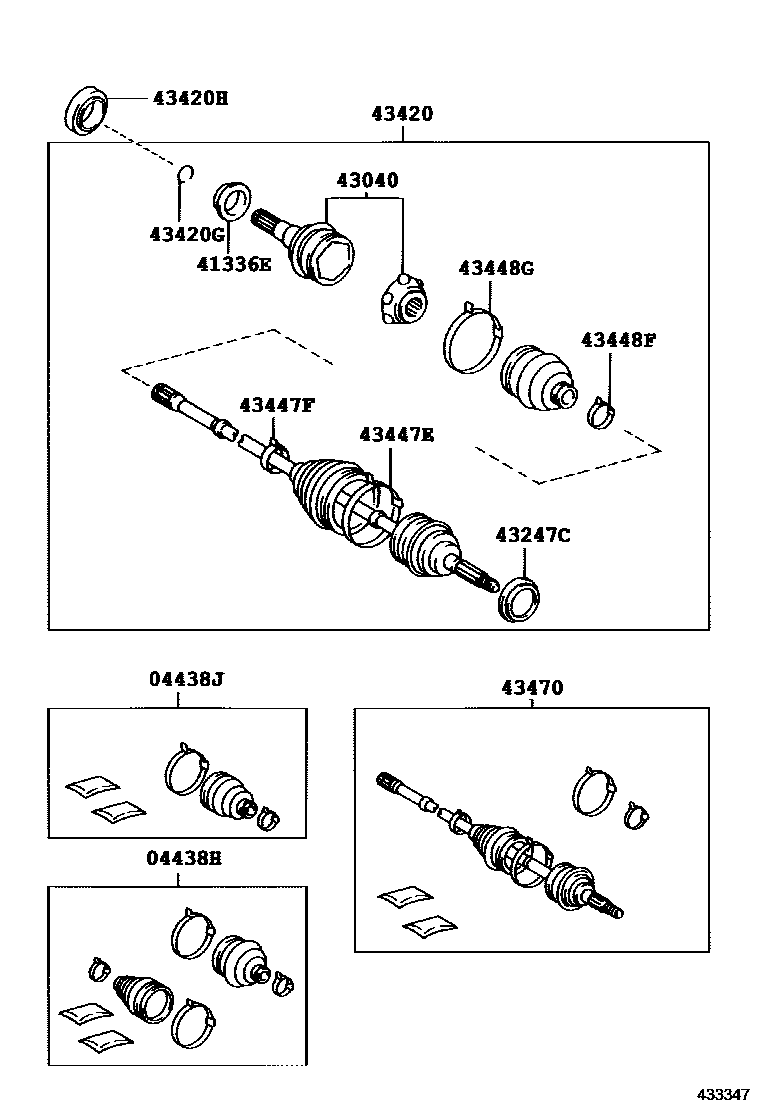

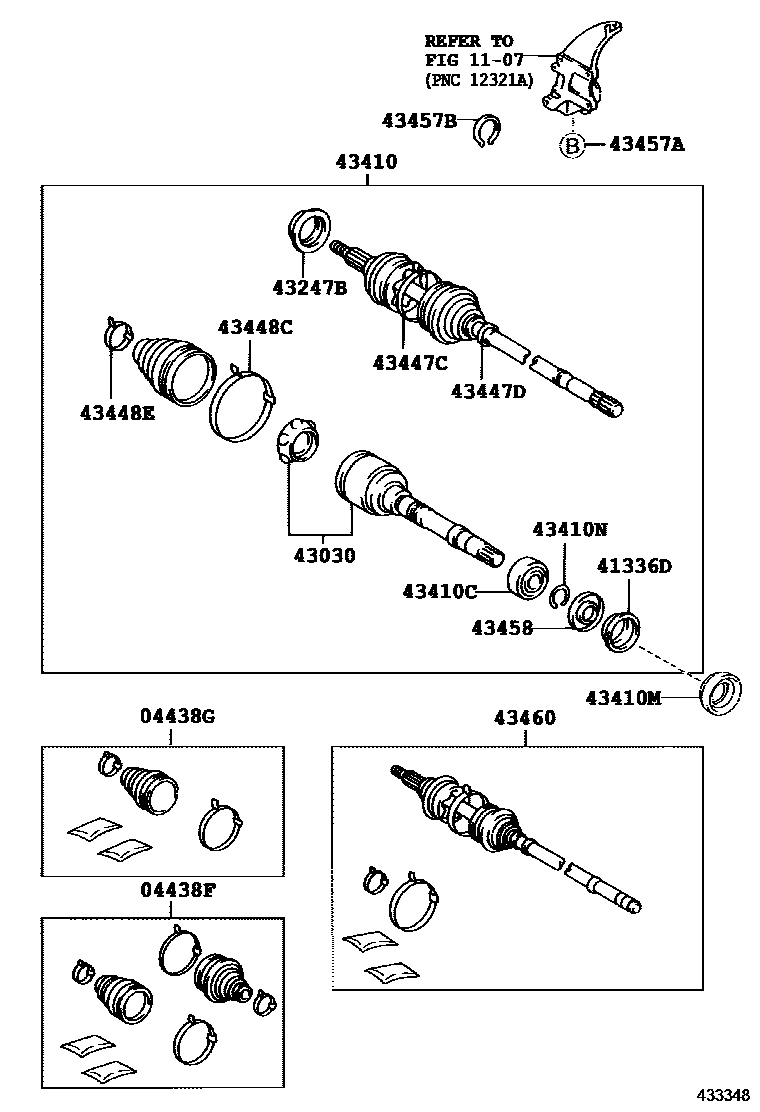

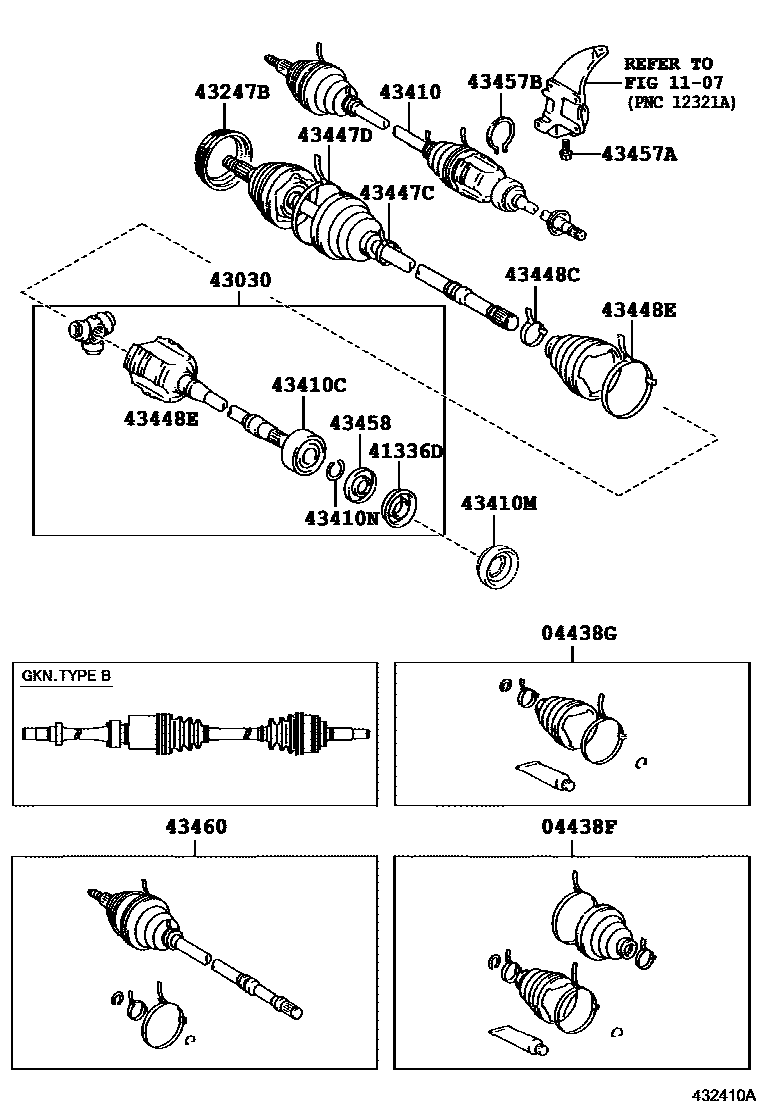

Toyota CAMRY EPC diagram 4302, Front Drive Shaft, with 6 images and 30 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04438F | Right front driveshaft inboard and outboard dust boot assembly | 04438-06021 · 04438-06080 · 04438-06100 |
| 04438G | Right front drive shaft inner universal joint dust boot assembly | 04438-06011 · 04438-06070 · 04438-06090 |
| 04438H | Left front driveshaft inboard and outboard dust boot assembly | 04438-06021 · 04438-06080 · 04438-06100 |
| 04438J | Left front drive shaft inner universal joint dust boot assembly | 04438-06011 · 04438-06070 · 04438-06090 |
| 41336D | Right front driveshaft dust cover | 41336-06010 · 41336-06020 |
| 41336E | Left front driveshaft dust cover | 41336-06030 · 41336-06040 |
| 43030 | Right front drive shaft inner universal joint assembly | 43030-06030 · 43030-06040 |
| 43040 | Left front drive shaft inner universal joint assembly | 43040-06020 · 43040-06040 · 43040-06050 |
| 43247B | No. 2 right front wheel bearing dust cover | 43247-06010 · 43247-06020 |
| 43247C | No. 2 left front wheel bearing dust cover | 43247-06010 · 43247-06020 |
| 43410 | Right front driveshaft assembly | 43410-06060 · 43410-06151 · 43410-06160 · 43410-06161 · 43410-06170 |
| 43410C | Bearings (for front driveshaft) | 90080-36048 · 90363-41002 · 90369-41001 |
| 43410M | JOINT D'HUILE, ARBRE DE TRANSMISSION AVANT, MD | 90311-35019 · 90311-40010 · 90311-40028 |
| 43410N | Hole snap ring (for right front driveshaft) | 90080-52013 · 90081-52006 |
| 43420 | Left front drive shaft assembly | 43420-06060 · 43420-06151 · 43420-06160 · 43420-06161 · 43420-06170 |
| 43420G | Hole snap ring (for left front driveshaft) | 90080-52017 · 90081-52005 |
| 43420H | JOINT D'HUILE, ARBRE DE TRANSMISSION AVANT, MG | 90311-35019 · 90311-35033 · 90311-35048 · 90311-50011 · 90311-50029 |
| 43447C | Clamp (for the outer universal joint dust cover of the right front axle) | 42345-06040 · 42345-06060 |
| 43447D | No. 2 clip (for the universal joint dust cover on the outside of the right front axle) | 42345-06050 · 42345-06070 |
| 43447E | Clamp (for left front axle outer universal joint dust cover) | 42345-06040 · 42345-06060 |
| 43447F | No. 2 clip (for left front axle outer universal joint dust cover) | 42345-06050 · 42345-06070 |
| 43448C | Clamp (for the universal joint dust cover inside the right front axle) | 42345-06020 · 90080-46084 · 90080-46238 |
| 43448E | No. 2 clip (for the universal joint dust cover inside the right front axle) | 42345-06030 · 90080-46173 |
| 43448F | Clamp (for left front axle inner universal joint dust cover) | 42345-06020 · 90080-46084 · 90080-46238 |
| 43448G | Clamp No. 2 (for the universal joint dust cover inside the left front axle) | 42345-06030 · 90080-46173 |
| 43457A | Bolts (for securing the No. 1 drive shaft bearing bracket) | 90119-10461 |
| 43457B | Hole snap ring (for drive shaft bearing bracket) | 90521-75002 · 90521-78002 |
| 43458 | Front drive shaft dust cover | 43458-06010 · 43458-06020 |
| 43460 | Right front outer drive universal joint shaft assembly | 43470-09190 · 43470-09320 · 43470-09321 · 43470-09330 · 43470-09331 · 43470-09340 |
| 43470 | Left front outer drive universal joint shaft assembly | 43470-09190 · 43470-09320 · 43470-09321 · 43470-09330 · 43470-09331 · 43470-09340 |
