Toyota CAMRY 超速档齿轮(ATM) — Figure 3506

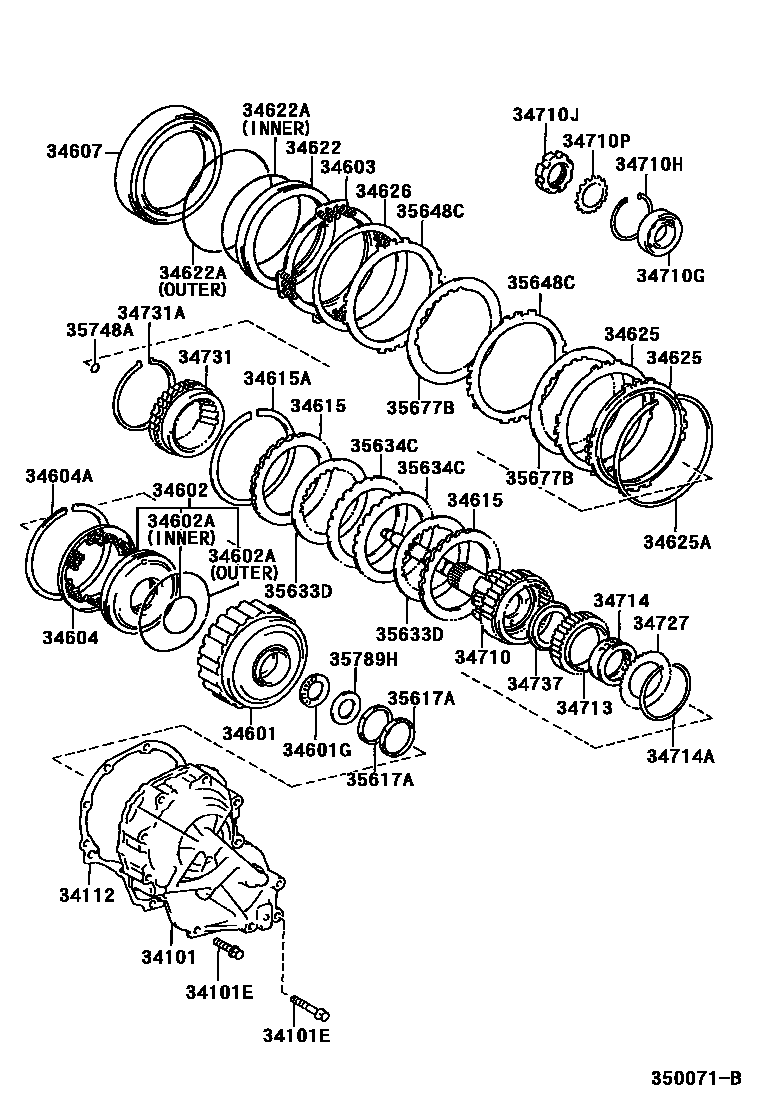

Toyota CAMRY EPC diagram 3506, 超速档齿轮(ATM), with 2 images and 41 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 34101 | Overspeed gear housing sub-assembly | 34101-33020 · 34101-33071 |
| 34101E | Bolts (for securing overdrive housing and transaxle housing) | 90105-08050 · 90105-08056 · 90105-08103 · 90105-08167 · 90105-08283 |
| 34112 | Overdrive housing gasket | 34112-33010 · 34112-33021 |
| 34114 | Overspeed gear housing oil baffle plate | 34114-41010 |
| 34114A | Bolts with washers | 91621-60614 |
| 34601 | Overspeed direct gear clutch drum sub-assembly | 34601-20010 · 34601-33010 |
| 34601G | Thrust needle roller bearing (for overspeed direct clutch) | 90374-28013 |
| 34602 | Overspeed direct gear clutch piston sub-assembly | 34602-20010 · 34602-33010 |
| 34602A | O-ring (for overspeed direct clutch piston) | 90301-57188 · 90301-99016 |
| 34603 | Overdrive brake return spring sub-assembly | 34603-20020 · 34603-33010 · 34603-33050 |
| 34603A | Hole snap ring (for overdrive brake return spring) | 90521-99050 |
| 34604 | Overdrive clutch return spring sub-assembly | 34604-20010 · 34604-32010 |
| 34604A | Hole snap ring (for overdrive clutch return spring) | 90521-99051 · 90521-99060 |
| 34607 | Overdrive brake drum sub-assembly | 34607-32010 · 34607-32020 |
| 34615 | Overdrive clutch flange | 34615-20010 · 34615-33010 · 34615-33020 · 34615-33030 |
| 34615A | Hole snap ring (for overdrive clutch flange) | 90520-99037 · 90521-99001 · 90521-99058 |
| 34622 | overdrive brake piston | 34622-20020 · 34622-33010 · 34622-33050 |
| 34622A | O-ring (for overdrive brake piston) | 90301-99043 · 90301-99044 · 90301-99057 |
| 34625 | No. 1 overdrive brake flange | 34625-20010 · 34625-32020 · 34625-33010 |
| 34625A | Hole snap ring (for overdrive brake flange) | 90521-99050 |
| 34626 | overdrive brake cushion | 34626-20020 |
| 34710 | Overdrive planetary gear assembly | 34710-20022 · 34710-33011 |
| 34710D | Thrust needle roller bearing (for overdrive planetary gear) | 90374-39003 |
| 34710G | Radial ball bearings (for overdrive planetary gears) | 90363-40024 · 90363-40053 |
| 34710H | Hole snap ring (for overdrive planetary gear bearings) | 90521-76003 · 90521-78003 |
| 34710J | Nut (for overdrive planetary gear) | 90179-40005 |
| 34710P | Washer (for overdrive planetary gear) | 90209-40001 |
| 34713 | One-way clutch outer race (for overdrive) | 34713-32010 |
| 34714 | One-way clutch (for overdrive) | 34714-32010 · 34714-32021 |
| 34714A | Hole snap ring (for one-way clutch) | 90521-93002 |
| 34727 | Block (for overdrive) | 34727-32010 · 34727-32020 |
| 34731 | Overdrive planetary ring gear | 34731-32010 · 34731-33010 |
| 34731A | Hole snap ring (for overdrive planetary ring gear) | 90521-99008 · 90521-99059 |
| 34737 | No. 3 overdrive planetary gear thrust washer | 34737-20011 · 34737-33010 |
| 35617A | Clutch drum oil guard (for overdrive) | 35617-16010 |
| 35633D | Clutch disc (for overdrive direct clutch) | 35633-20010 · 35633-20011 · 35633-33030 |
| 35634C | Clutch disc (for overdrive direct gear clutch) | 35634-20010 |
| 35648C | Clutch disc (for overdrive brake) | 35648-32040 · 35648-33030 |
| 35677B | Clutch disc (for overdrive brake) | 35677-20030 · 35677-33030 |
| 35748A | Countershaft oil protector ring (for overdrive gear) | 35748-32010 |
| 35789H | Thrust bearing race (for overdrive housing) | 35789-20020 |
