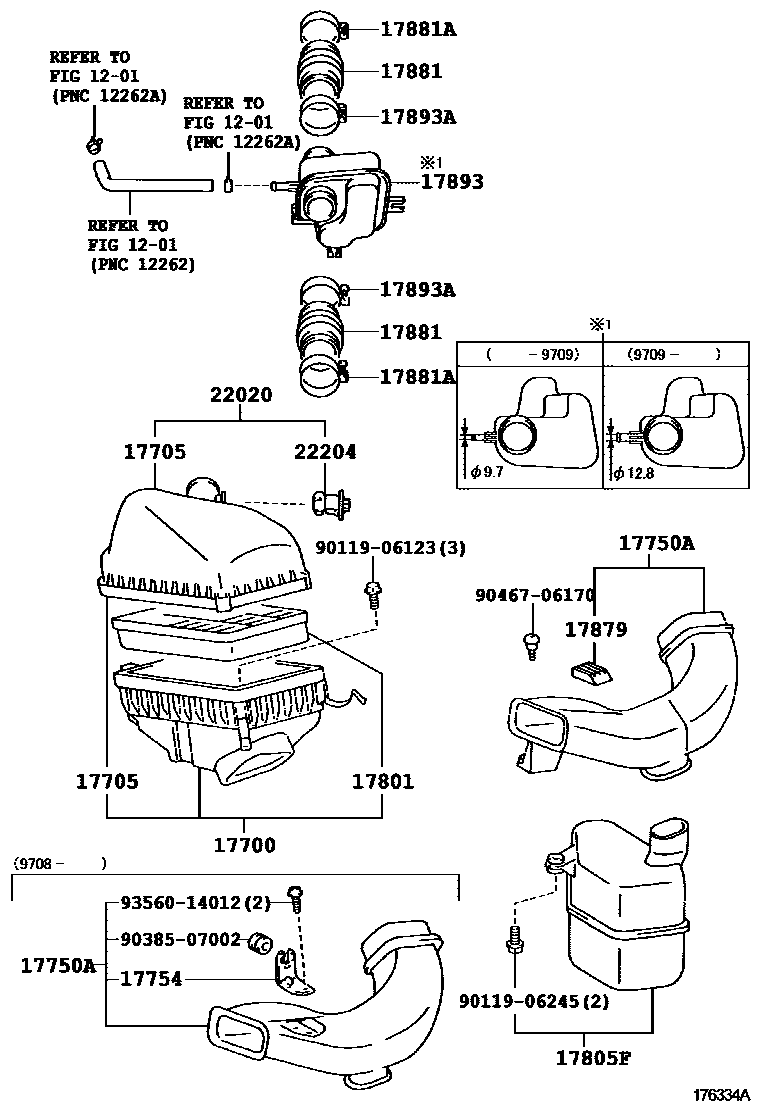

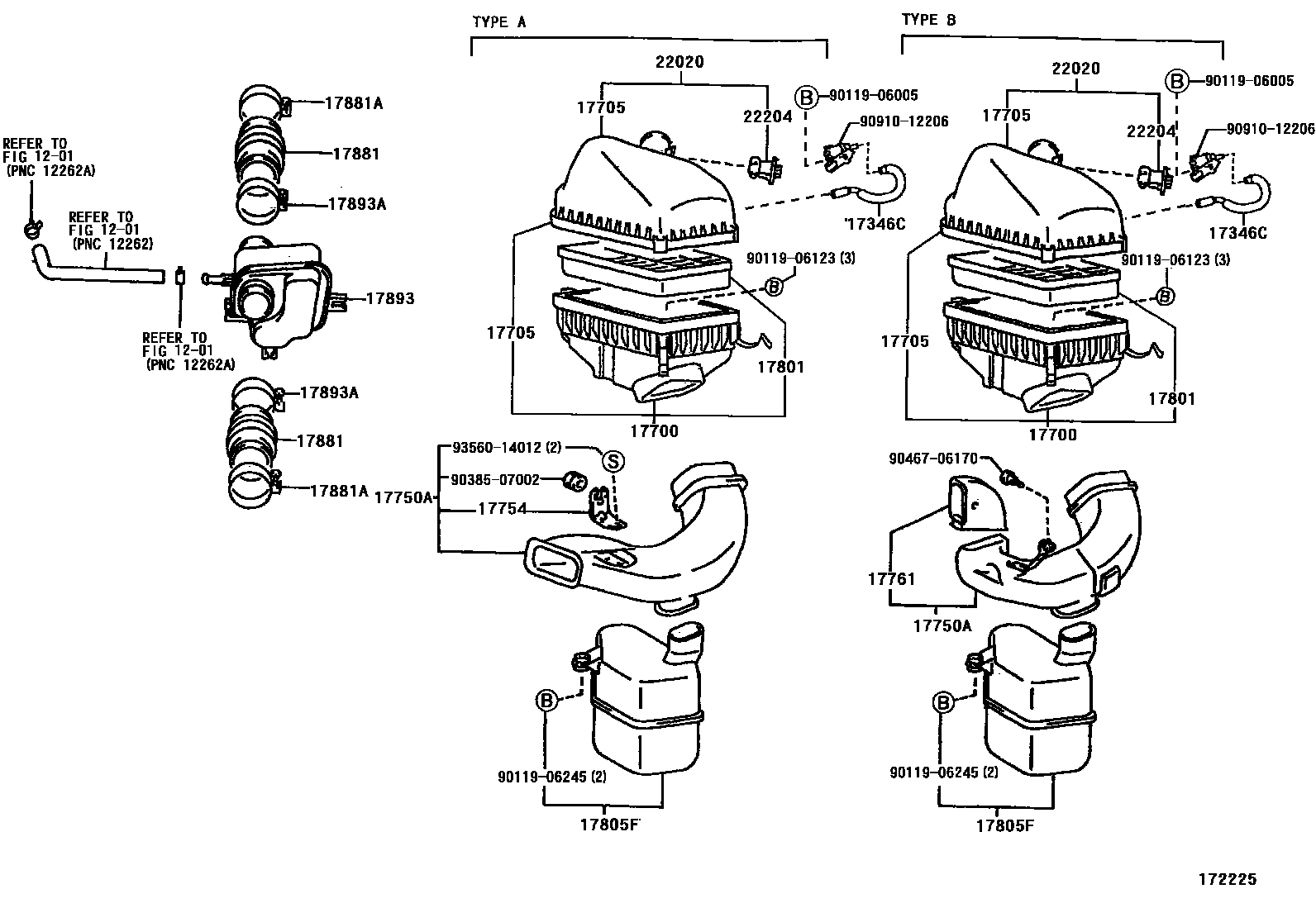

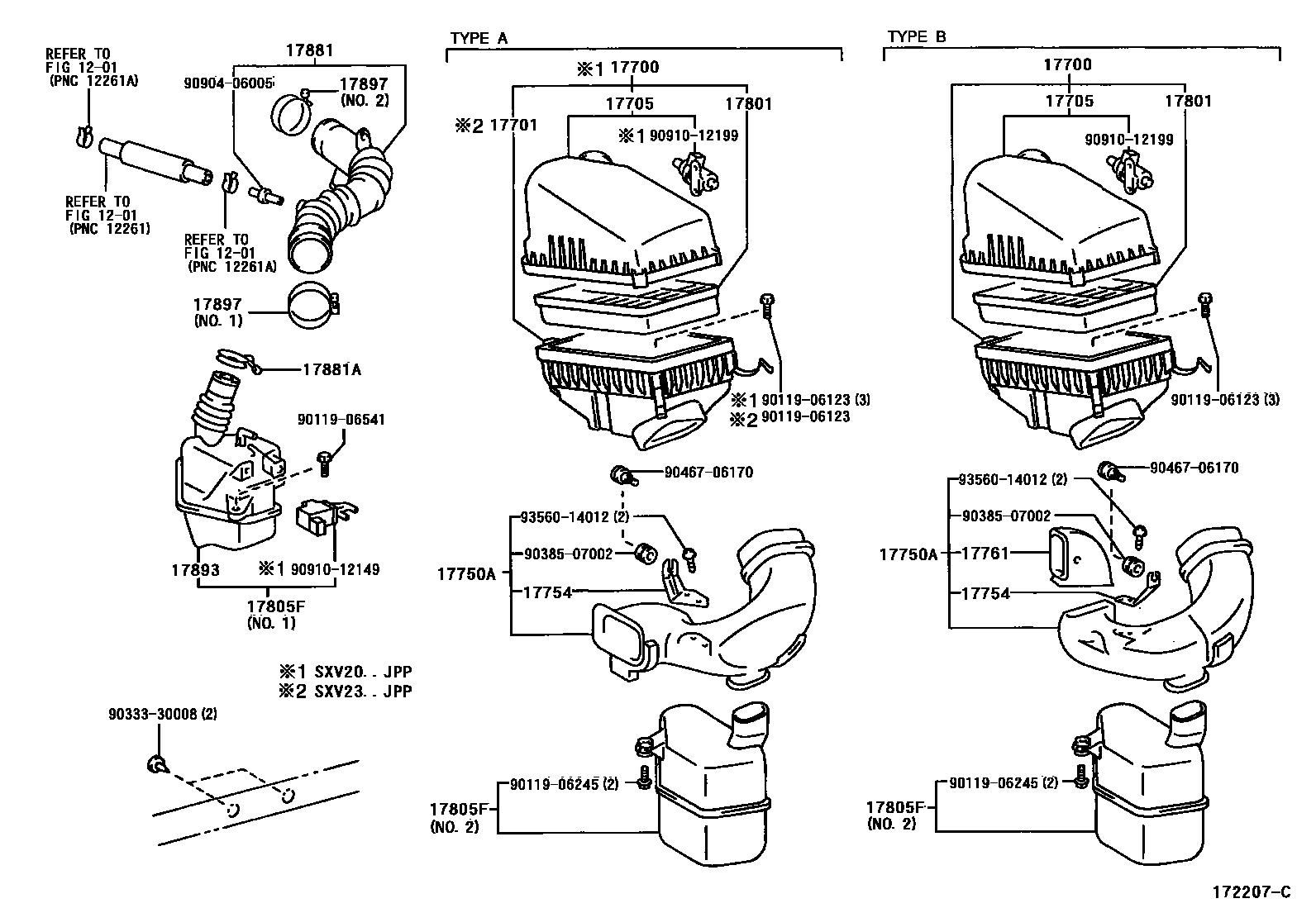

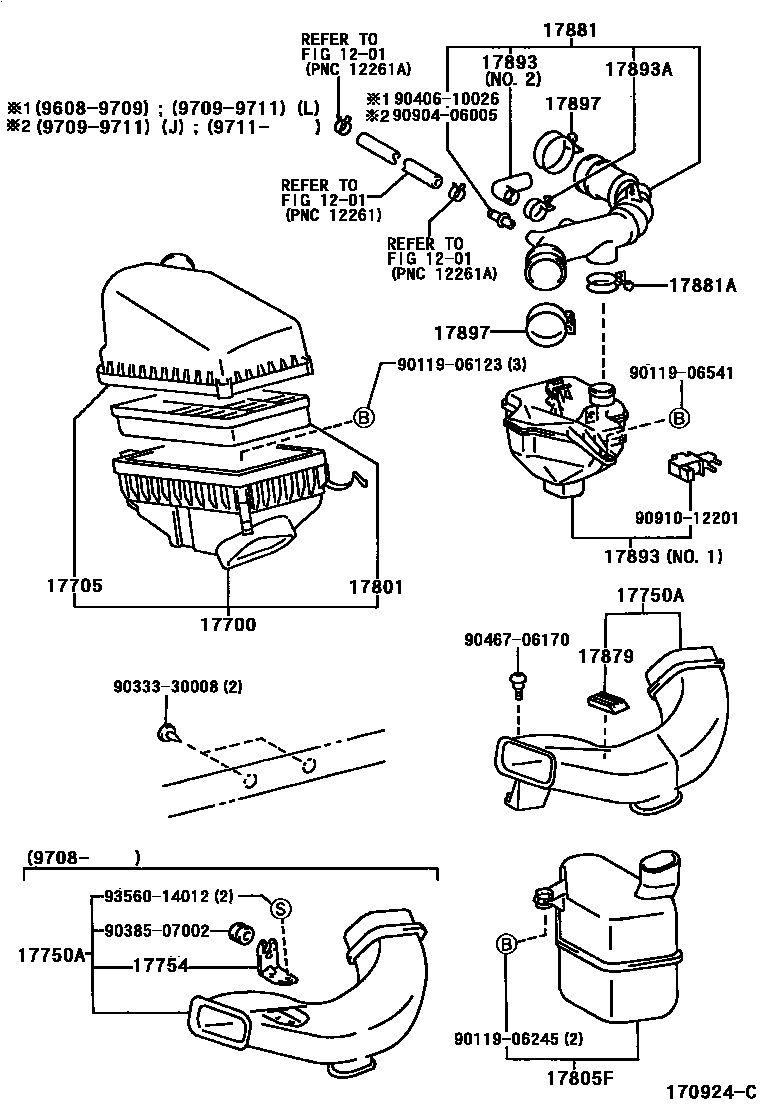

Toyota CAMRY Air Cleaner — Figure 1703
Toyota CAMRY EPC diagram 1703, Air Cleaner, with 4 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17346C | No. 6 hose | 17346-20050 |
| 17700 | air filter assembly | 17700-03090 · 17700-03100 · 17700-20050 · 17700-20051 |
| 17701 | Air filter housing sub-assembly | 17701-0A010 · 17701-20030 |
| 17705 | Air filter cover sub-assembly | 17705-03080 · 17705-03090 · 17705-03120 · 17705-20040 · 17705-20041 |
| 17750A | Air filter air inlet assembly | 17750-20010 · 17750-20030 · 17750-20100 · 17750-74010 · 17750-74030 · 17750-74031 · 17750-74050 · 17750-74070 |
| 17754 | Air filter air inlet stay | 17754-20010 · 17754-74030 |
| 17761 | air filter air inlet cover | 17761-74010 |
| 17801 | Air filter element sub-assembly | 17801-03010 · 17801-74060 |
| 17805F | Intake resonator sub-assembly | 17805-20020 · 17805-74170 · 17805-74200 · 17805-74210 · 17805-74220 · 17805-74230 |
| 17879 | Air filter air inlet lining | 17879-74010 |
| 17881 | No. 1 air cleaner hose | 17881-03120 · 17881-03121 · 17881-20090 · 17881-74730 · 17881-74731 · 17881-7A090 |
| 17881A | Clamp (for No. 1 air cleaner hose) | 96111-10480 · 96111-10570 · 96111-10830 |
| 17893 | Intake resonator | 17893-03060 · 17893-20030 · 17893-20031 · 17893-74380 · 17893-74410 · 17893-74460 · 17893-74490 |
| 17893A | hose clamp | 96111-10380 · 96111-10830 |
| 17897 | Hose clamp (for air cleaner) | 96111-10690 · 96111-10710 · 96111-10850 |
| 22020 | Air flow meter assembly with air filter | 22020-20040 · 22020-20041 |
| 22204 | Intake air flow meter assembly | 22204-20010 |
